AXAA54R-ANZMBQ (2019)
Toyota Rav4 (Jpp)
ILLUST NO. 1 OF 2(1901- )AXAA54,MXAA5#..RHD..X
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-42060 |
MXAA52..RHD;AXAA5#,AXAH5#,AXAL5#,MXAA54..RHD..(ARL,GEN,SA) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C81 |
AXAA54,MXAA5#..RHD..X |
1 | ||
| 87050-42B00 |
AXAA54,MXAA52..(G,M,V)..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 87050-33C91 |
AXAA5#,MXAA5#..RHD..(G,M,V)..(ARL,GEN,SA) |
1 | ||
| 87050-42A90 |
AXAA54,MXAA52..X..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58060 |
MXAA52..RHD..(G,X);MXAA52..RHD..CVT..M;AXAA5#,AXAH5#,AXAL5#,MXAA54..RHD..(ARL,GEN,SA) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33140 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33290 |
MXAA52..RHD..(G,X);MXAA52..RHD..CVT..M;AXAA5#,AXAH5#,AXAL5#,MXAA54..RHD..(ARL,GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33250 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-74010 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88899-10110 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28060 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88898D - GROMMET | ||||
| 88899-33070 |
AXAA5#,MXAA5#..X |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33090 |
AXAA54,MXAA52..ARL LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN |
1 | ||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

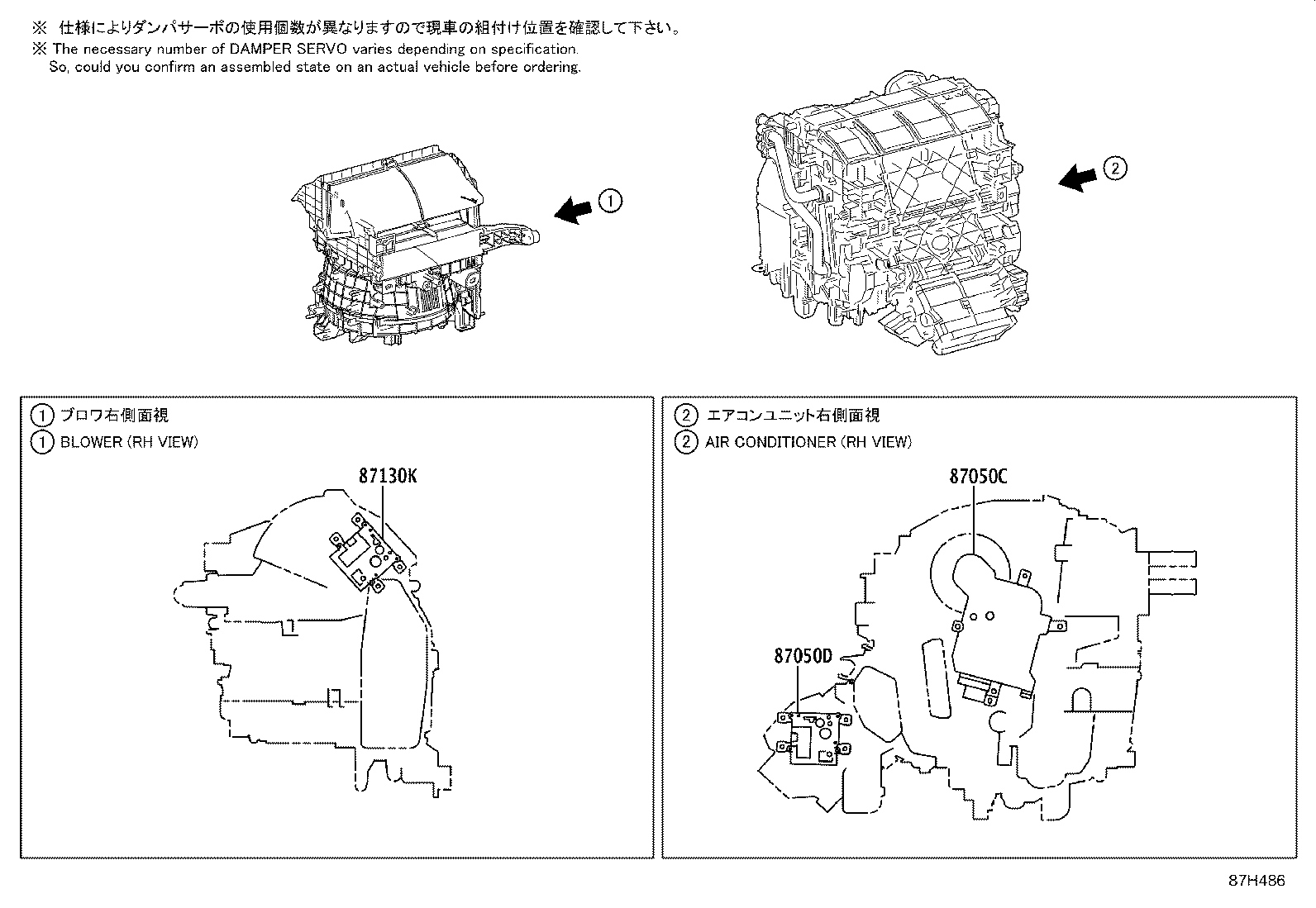

ILLUST NO. 2 OF 2(1901- )AXAA54,MXAA5#..RHD..X ; (2008- )AXAA54,MXAA5#..RHD..X
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-42240 |
MXAA52..6F..G..SA;MXAA54..RHD..(M,V);AXAA52,AXAH5#,AXAL5#..RHD..(ARL,GEN);AXAA54,MXAA52..RHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-42230 |
AXAA54,MXAA5#..RHD..X |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-33340 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33330 |
MXAA52..RHD..(G,X);MXAA52..RHD..CVT..M;AXAA5#,AXAH5#,AXAL5#,MXAA54..RHD..(ARL,GEN,SA) |
1 | ||
