AXAA54R-ANZMBQ (2019)

Toyota Rav4 (Jpp)

Production Jan 2019 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )RHD

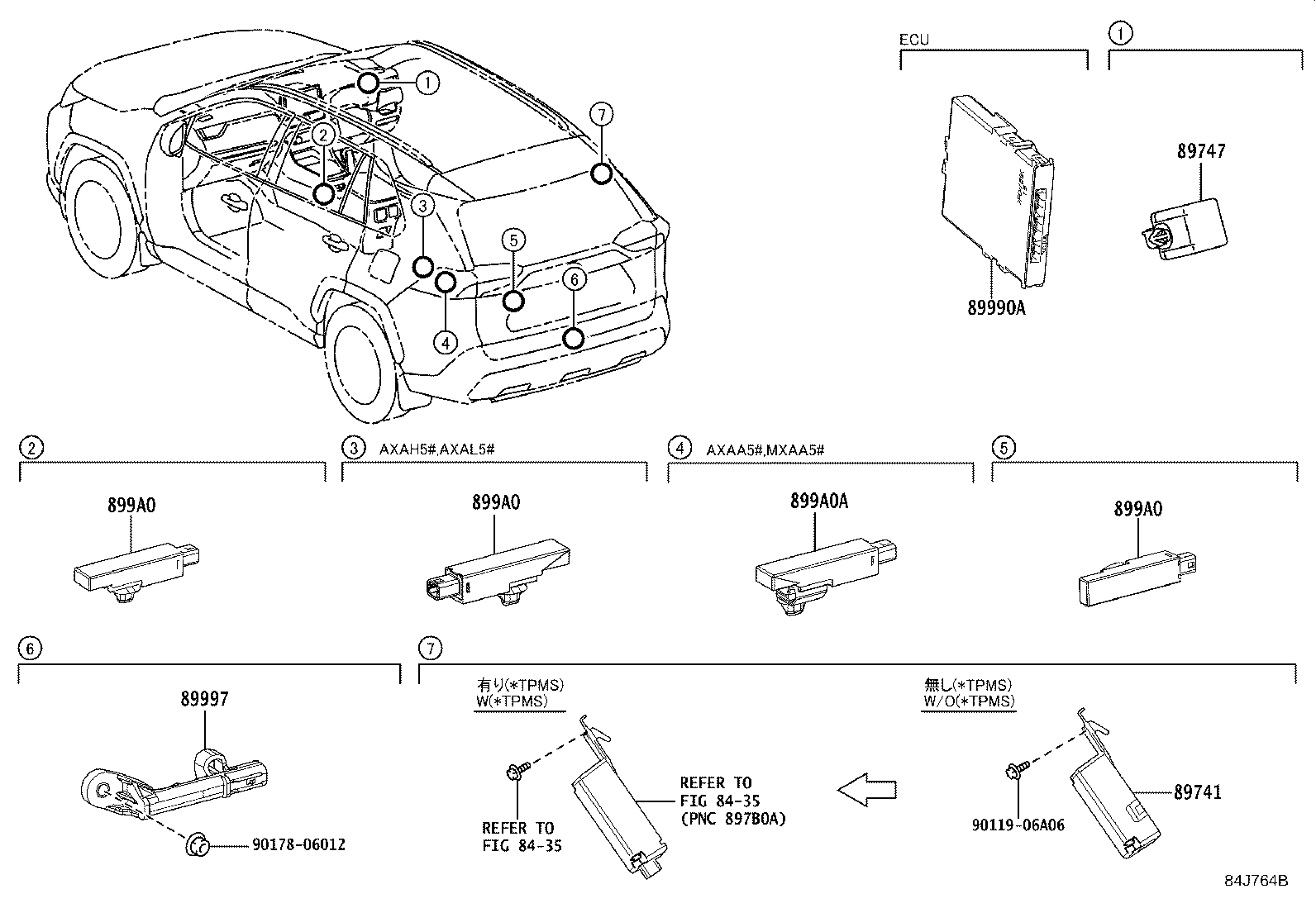

Click highlighted areas on diagram

diagram 8435 8435 89741 89747 89990A 89997 899A0 899A0 899A0 899A0A 9011906A06 9017806012
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-42320

AXAA54,MXAA52..X..ARL

 1
89740-42210

AXAH5#,AXAL5#..ARL;AXAA54,MXAA52..(G,M,V)..ARL

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AXAH5#,AXAL5#;AXAA5#,MXAA5#..G,M,V

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-42020

MXAA52..G;MXAA52..M..(ARL,GEN);AXAA54,MXAA54..G..EUR;AXAA5#,MXAA54..(G,M,V)..(ARL,GCC,GEN,SA)

 1
899H0-42080

MXAA52..M..(ARL,GEN);AXAA54,MXAA54..G..EUR;MXAA52..G..(ARL,EUR,GEN,SA);AXAA5#,MXAA54..(G,M,V)..(ARL,GCC,GEN,SA)

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

AXAH54,MXAA5#..G,V;MXAA5#..M..(ARL,GCC,GEN);AXAH54..M..(ARL,GCC,GEN,RUS);AXAA54,AXAH52,AXAL5#..G..(EUR,RUS);AXAA5#,AXAH52,AXAL5#..(G,M,V)..(ARL,GCC,GEN,SA)

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 2
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-42010

AXAA5#,MXAA5#..(G,M,V)..(ARL,EUR,GCC,GEN,SA)

 1
Common parts
90119-06A06
90178-06012
Linked diagrams
8435
