ZSA44L-ANXMKC (2013)
Toyota Rav4 (China)
(1308- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

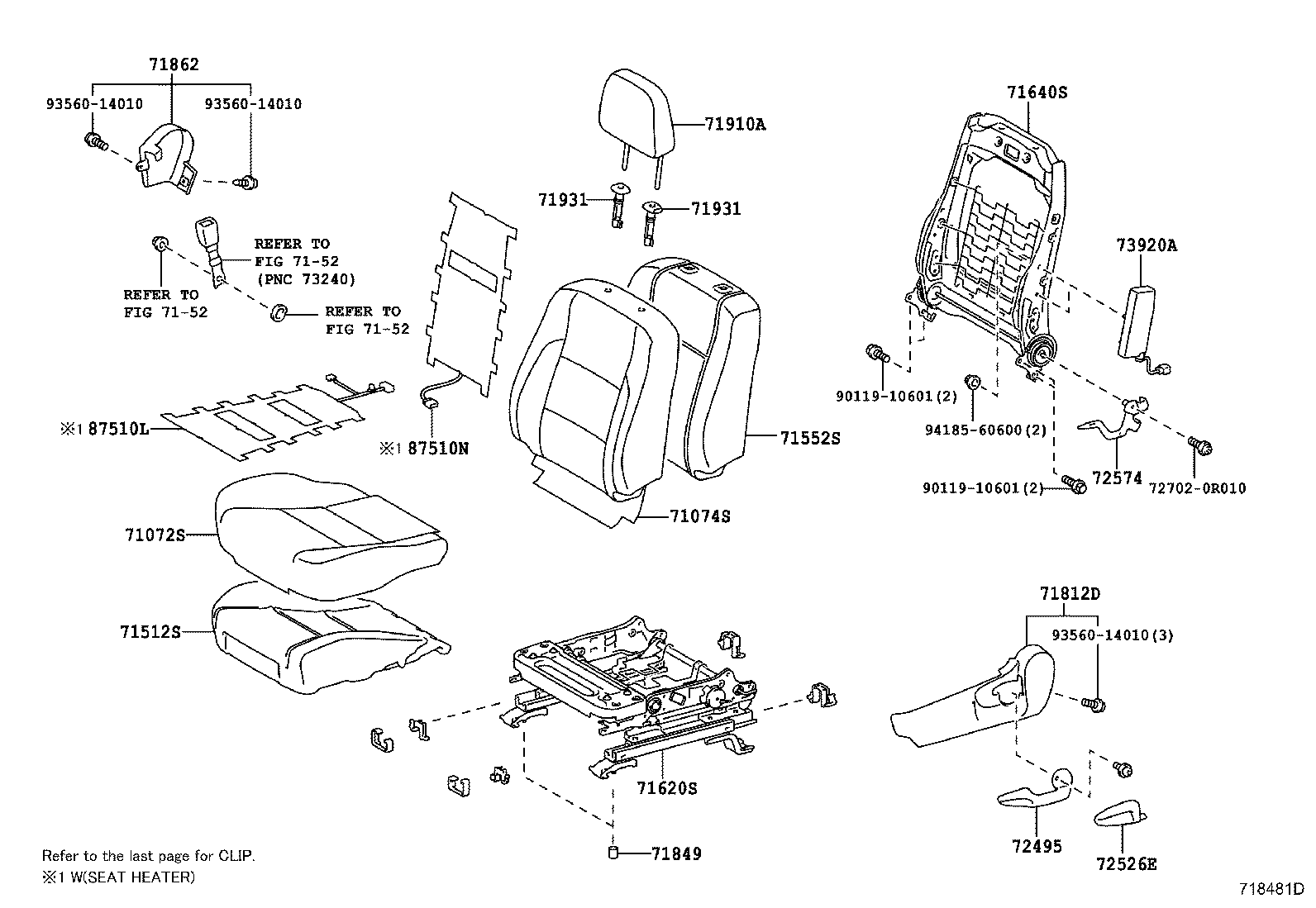

ILLUST NO. 1 OF 5(1308- )
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R110C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71072-0R110A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71072-0R110A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71072-0R110C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R150A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71074-0R150C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0R100 |
ZSA4#..M,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0R140 |
ZSA4#..M,X |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R050 |
ZSA4#..M,X |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-0R051 |
ZSA4#..M,X |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R100C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R080C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R100A1 |
ZSA4#..M,X BEIGE,TRIM4# |
2 | ||
| 71910-0R100C1 |
ZSA4#..M,X BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-0R010 |
ZSA4#..M,X |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 72702-0R010 | ||||
| 90119-10601 | ||||
| 93560-14010 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 5(1308- )
DRIVER SEAT,W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R110C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71072-0R110A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71072-0R110A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71072-0R110C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R150A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71074-0R150C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0R100 |
ZSA4#..M,X |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0R140 |
ZSA4#..M,X |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R050 |
ZSA4#..M,X |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-0R051 |
ZSA4#..M,X |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R100C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R080C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R100A1 |
ZSA4#..M,X BEIGE,TRIM4# |
2 | ||
| 71910-0R100C1 |
ZSA4#..M,X BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93560-14010 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

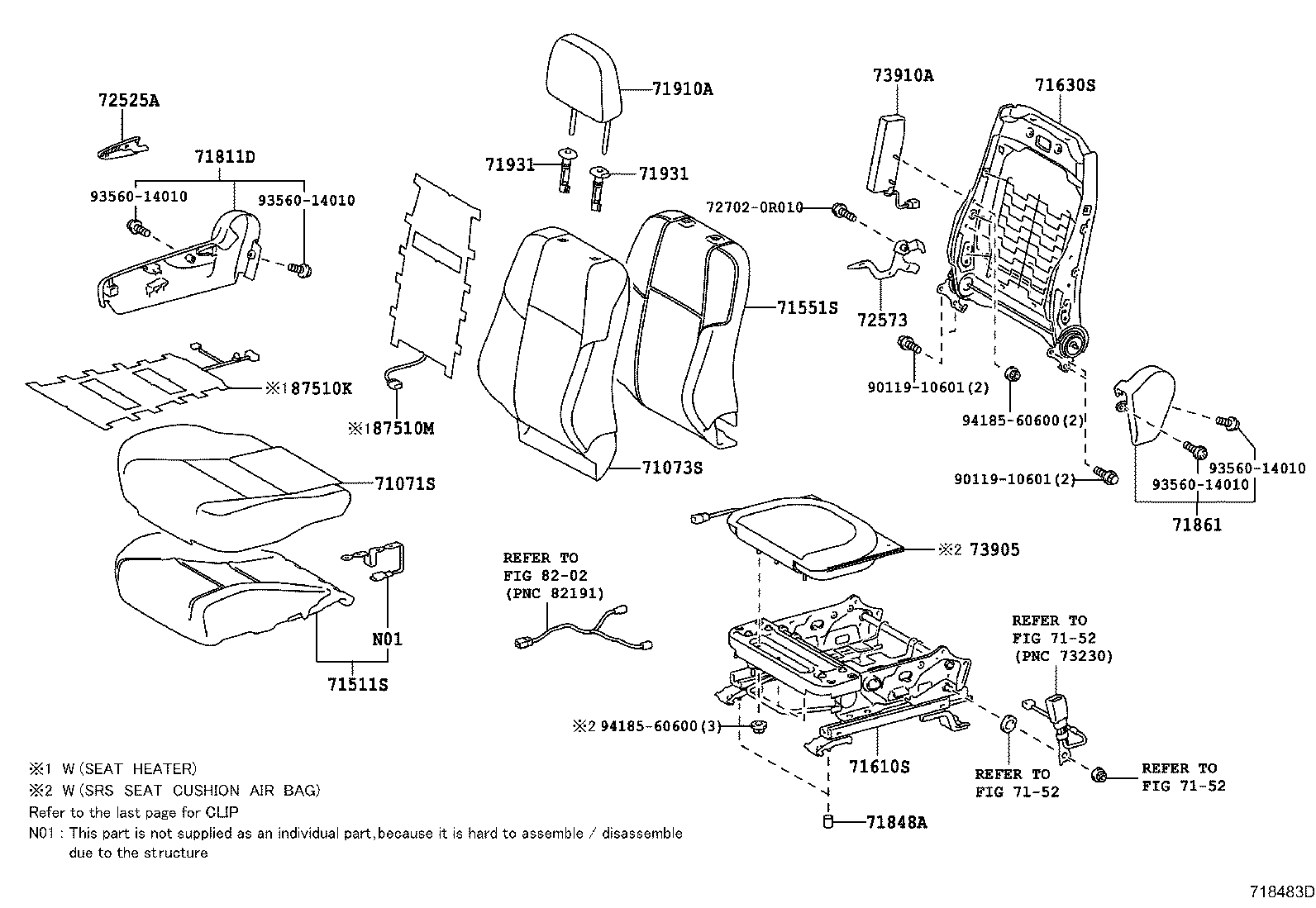

ILLUST NO. 2 OF 5(1308- )
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0R110A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71071-0R110C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71071-0R110C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71071-0R110A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0R210A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71073-0R210C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0R050 |
ZSA44..M VSC-WITH |
1 | ||
| 71501-0R030 |
ZSA4#..M,X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0R110 |
ZSA4#..M,X |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0R060 |
ASA44,ZSA4# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0R051 |
ASA44,ZSA4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R100A1 |
ZSA4#..M,X BEIGE,TRIM4# |
2 | ||
| 71910-0R100C1 |
ZSA4#..M,X BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-0R020C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-0R020A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
2 | ||
| 71930-0R020A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-0R010 |
ASA44,ZSA4# |
1 | ||
| 73905 - AIR BAG SUB-ASSY, FRONT SEAT, RH | ||||
| 73905-0R021 |
ZSA44..M VSC-WITH |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 72702-0R010 | ||||
| 90119-10601 | ||||
| 93560-14010 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

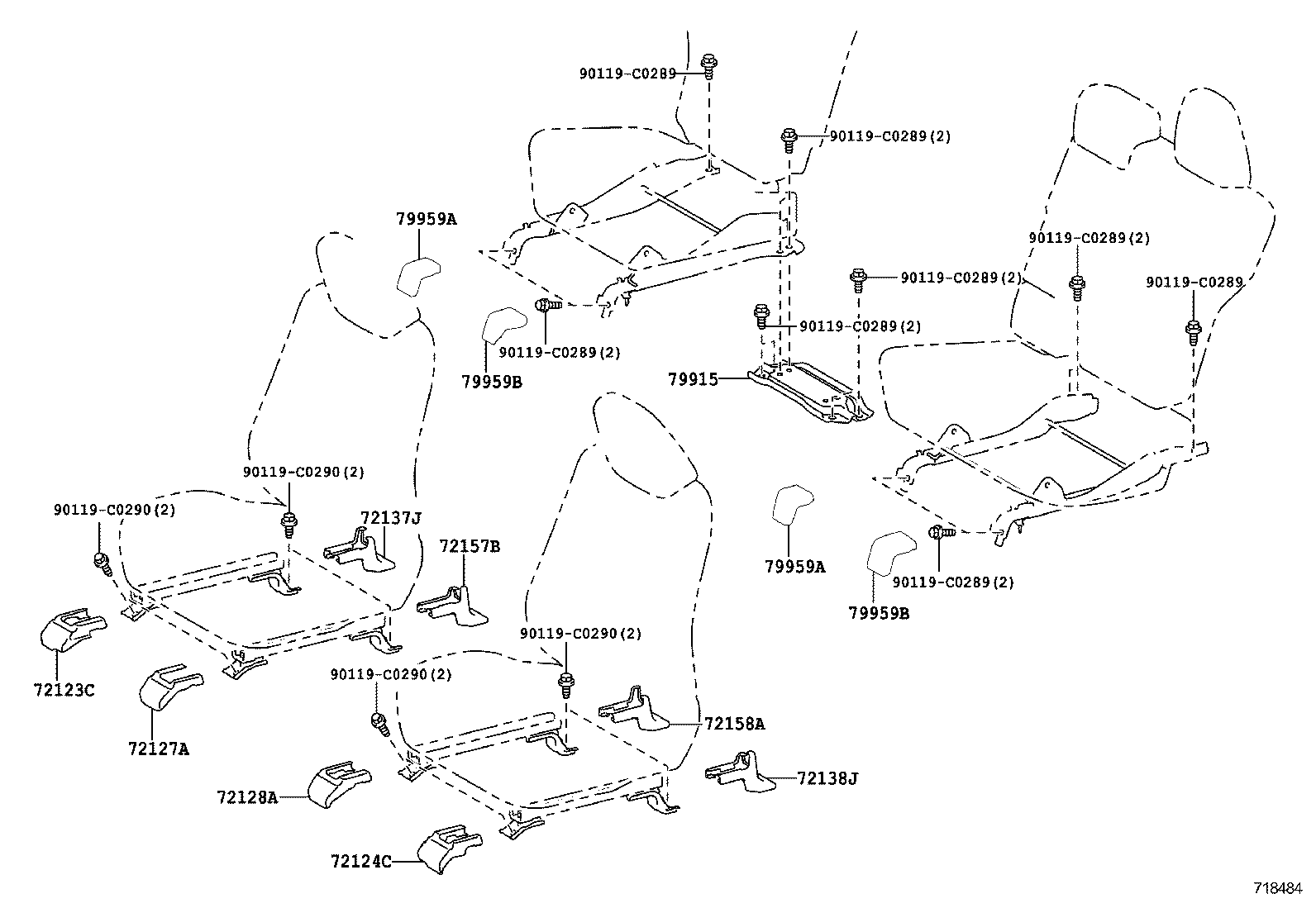

ILLUST NO. 5 OF 5(1308- )
SEAT TRACK COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-0R040C0 |
ZSA4#..CVT..(M,X) BLACK,TRIM2#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72158A - COVER, REAR SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-0R020 |
ASA44,ZSA4# |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR RH SEAT |
1 | ||
| 79959-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR LH SEAT |
1 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR RH SEAT |
1 | ||
| 79959-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR LH SEAT |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-0R060C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR LH SEAT |
1 | ||
| 79959-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR RH SEAT |
1 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-0R060C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR LH SEAT |
1 | ||
| 79959-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4#,FOR RH SEAT |
1 | ||
| Common parts | ||||
| 90119-C0289 | ||||
| 90119-C0290 | ||||

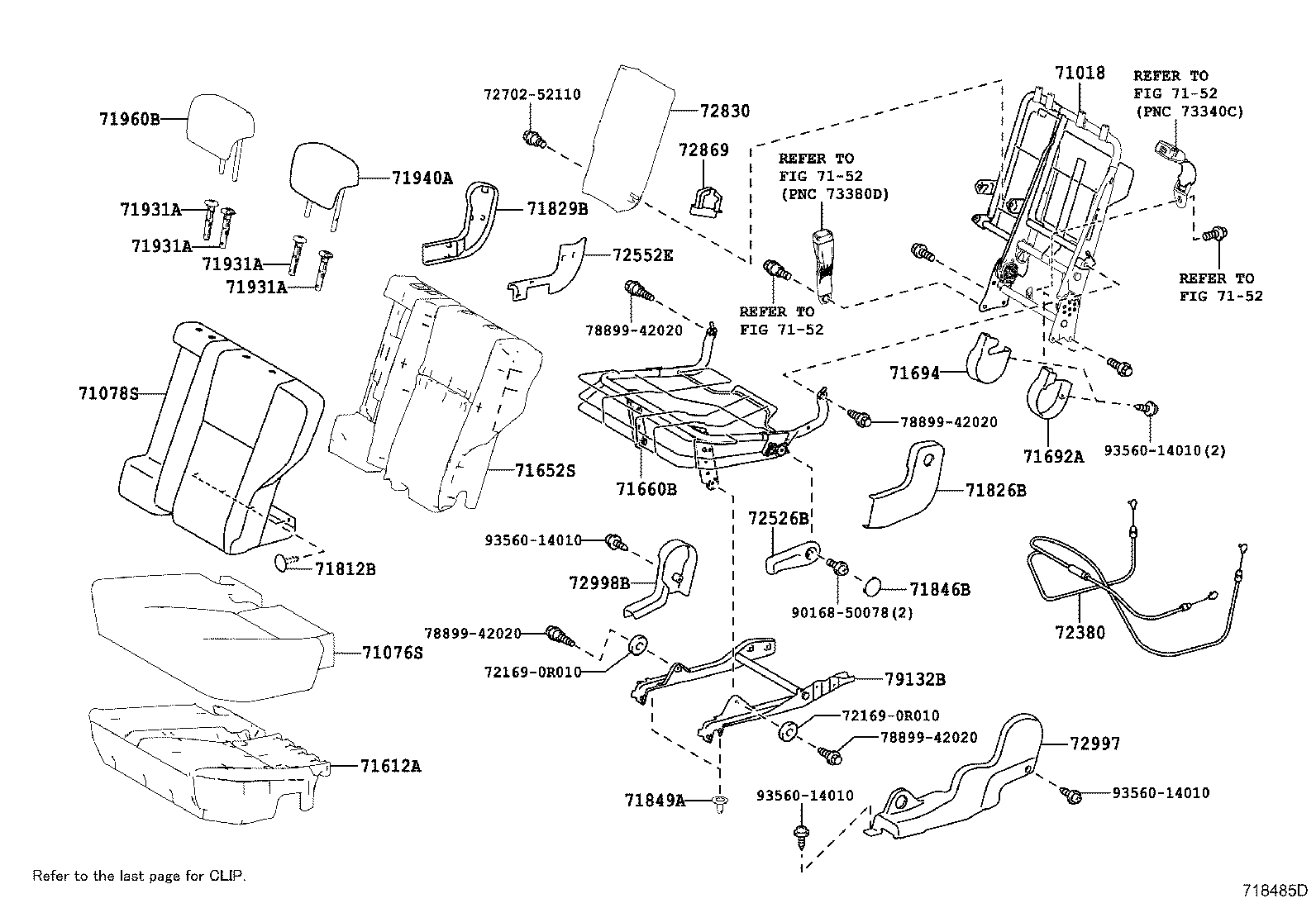

ILLUST NO. 3 OF 5(1308- )
REAR SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-0R040 |
ASA44,ZSA4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-0R100A1 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71076-0R100A5 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71076-0R100C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71076-0R100C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0R120C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71078-0R120A1 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71078-0R120C3 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71078-0R120C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71078-0R120A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71078-0R120A3 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-0R040 |
ASA44,ZSA4# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0R040 |
ASA44,ZSA4# |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-0R040 |
ASA44,ZSA4# |
1 | ||
| 71692A - COVER, REAR NO.3 SEAT LOCK, LH | ||||
| 71692-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71691-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-07042C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
7 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71846B - CAP, REAR SEAT BACK BOARD, NO.1 | ||||
| 71846-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71849A - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R130A1 |
ZSA4#..M,X BEIGE,TRIM4# |
2 | ||
| 71940-0R130C0 |
ZSA4#..M,X BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0R100A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71960-0R100C0 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71960-0R101C2 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71960-0R101A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0R060 |
ASA44,ZSA4# |
2 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72552E - COVER, RECLINING HINGE, LH | ||||
| 72552-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0R100A0 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 72830-0R100C0 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72868-0R040A3 |
ASA44,ZSA4# BEIGE,TRIM4# |
1 | ||
| 72868-0R040C0 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 72868-0R040A0 |
ASA44,ZSA4# SHELL,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72998B - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0R030C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 79132B - LEG, NO.1 SEAT, FRONT LH | ||||
| 79132-0R010 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 72169-0R010 | ||||
| 72702-52110 | ||||
| 78899-42020 | ||||
| 90168-50078 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 4 OF 5(1308- )
REAR SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-0R050 |
ASA44,ZSA4# |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-0R100A1 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71075-0R100C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71075-0R100C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71075-0R100A5 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0R120C1 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71077-0R120A1 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71077-0R120A3 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71077-0R120A4 |
ZSA4#..M,X BEIGE,TRIM4# |
1 | ||
| 71077-0R120C3 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71077-0R120C4 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-0R040 |
ASA44,ZSA4# |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-0R040 |
ASA44,ZSA4# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0R050 |
ASA44,ZSA4# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71692-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90467-07042C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
7 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71845D - CAP, REAR SEAT COVER, RH | ||||
| 71845-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 71848B - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-0R030 |
ASA44,ZSA4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030A0 |
ASA44,ZSA4# W(LOCK),SHELL,TRIM4# |
3 | ||
| 71931-0R030A0 |
ASA44,ZSA4# W/O(LOCK),SHELL,TRIM4# |
3 | ||
| 71930-0R030C0 |
ZSA4#..M,X W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-0R030C0 |
ZSA4#..M,X W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R130A1 |
ZSA4#..M,X BEIGE,TRIM4# |
2 | ||
| 71940-0R130C0 |
ZSA4#..M,X BLACK,TRIM2# |
2 | ||
| 72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-0R060 |
ASA44,ZSA4# |
2 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72551A - COVER, RECLINING HINGE | ||||
| 72551-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72552 - COVER, RECLINING HINGE, NO.2 | ||||
| 72552-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72995B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 72995-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 79131A - LEG, NO.1 SEAT, FRONT RH | ||||
| 79131-0R010 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 72169-0R010 | ||||
| 78899-42020 | ||||
| 90168-50078 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
