ZSA44L-ANXMKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )CVT

Click highlighted areas on diagram

K111,K111F,K114,K114F

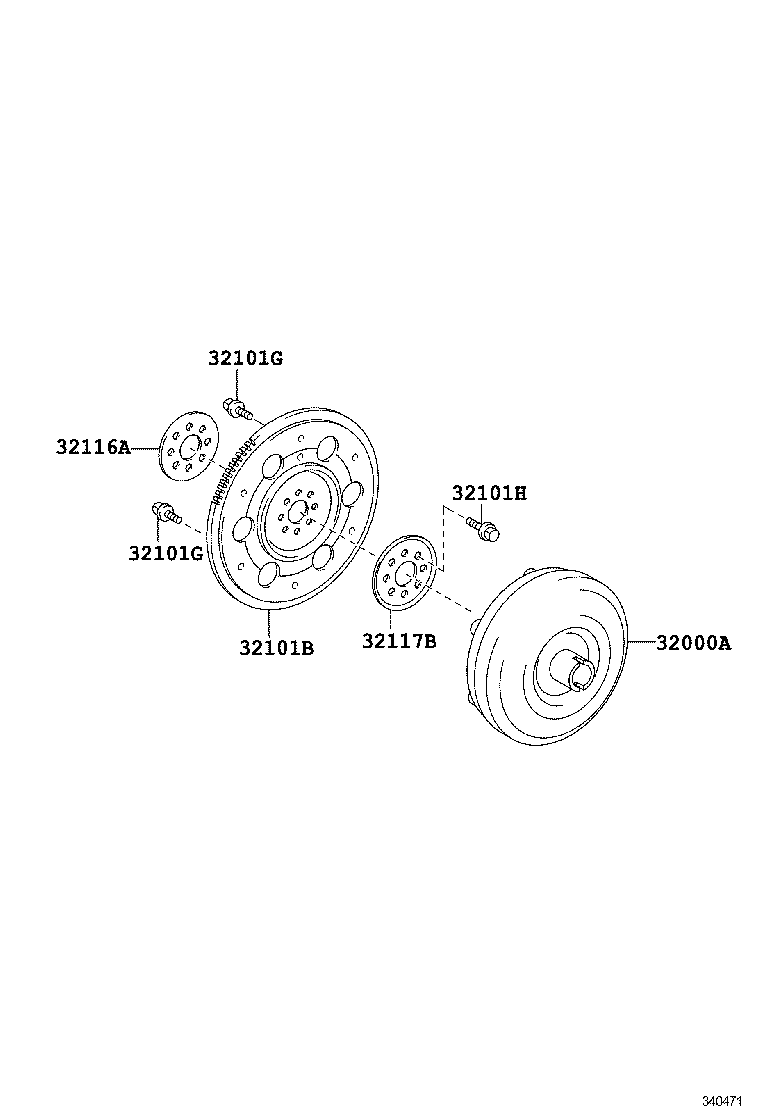

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-28180

ZSA4#..CVT

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-0R011

ZSA4#..CVT..HTWC

 1
32101-0R010

ZSA4#..CVT..HTWC

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

ZSA4#..CVT..HTWC

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

ZSA4#..CVT..HTWC

*9-1.25PX12.4-8.4,SILVER

 5
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

ZSA4#..CVT..HTWC

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

ZSA4#..CVT..HTWC

*9-1.25PX12.4-8.4,SILVER

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZSA4#..CVT..HTWC

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-02020

ZSA4#..CVT..HTWC

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-02020

ZSA4#..CVT..HTWC

 1
