ZSA44L-ANXGKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)G,M,Q

Click highlighted areas on diagram

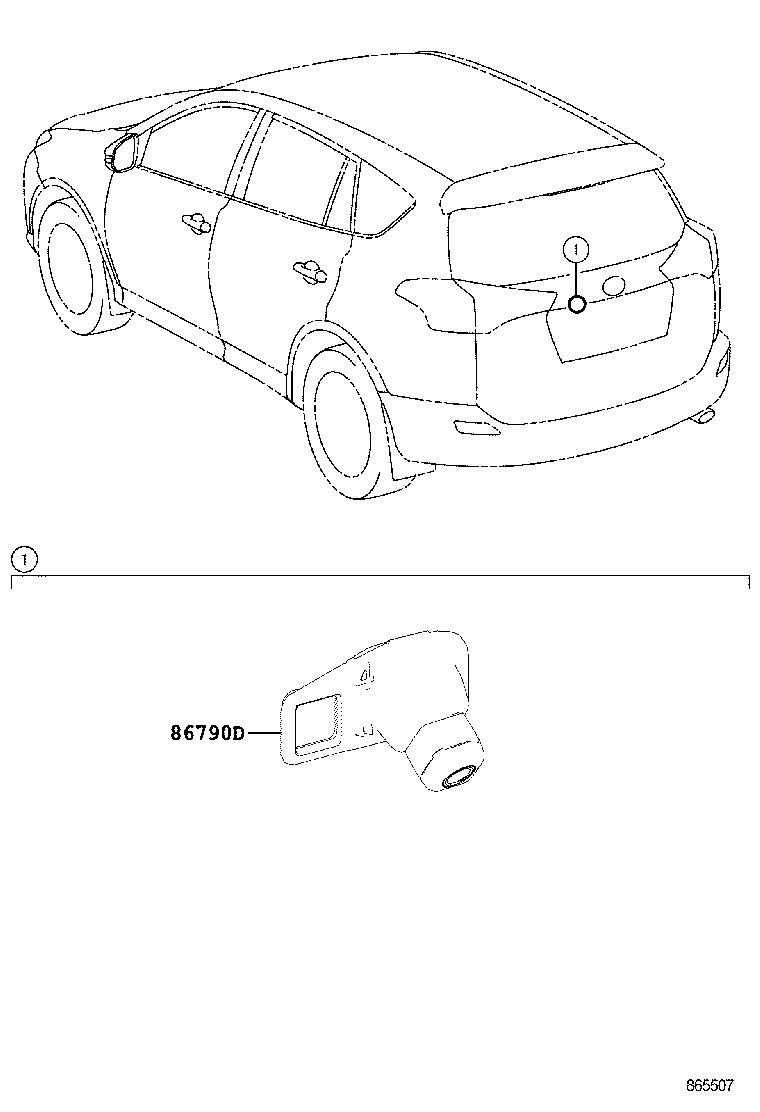

diagram 86790D
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-0R031

ASA44,ZSA4#..G,M,Q

 1
86790-0R030

ASA44,ZSA4#..G,M,Q

 1
