ZSA44L-ANXGKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)ASA44 ; (1308-1607)ZSA44..G

Click highlighted areas on diagram

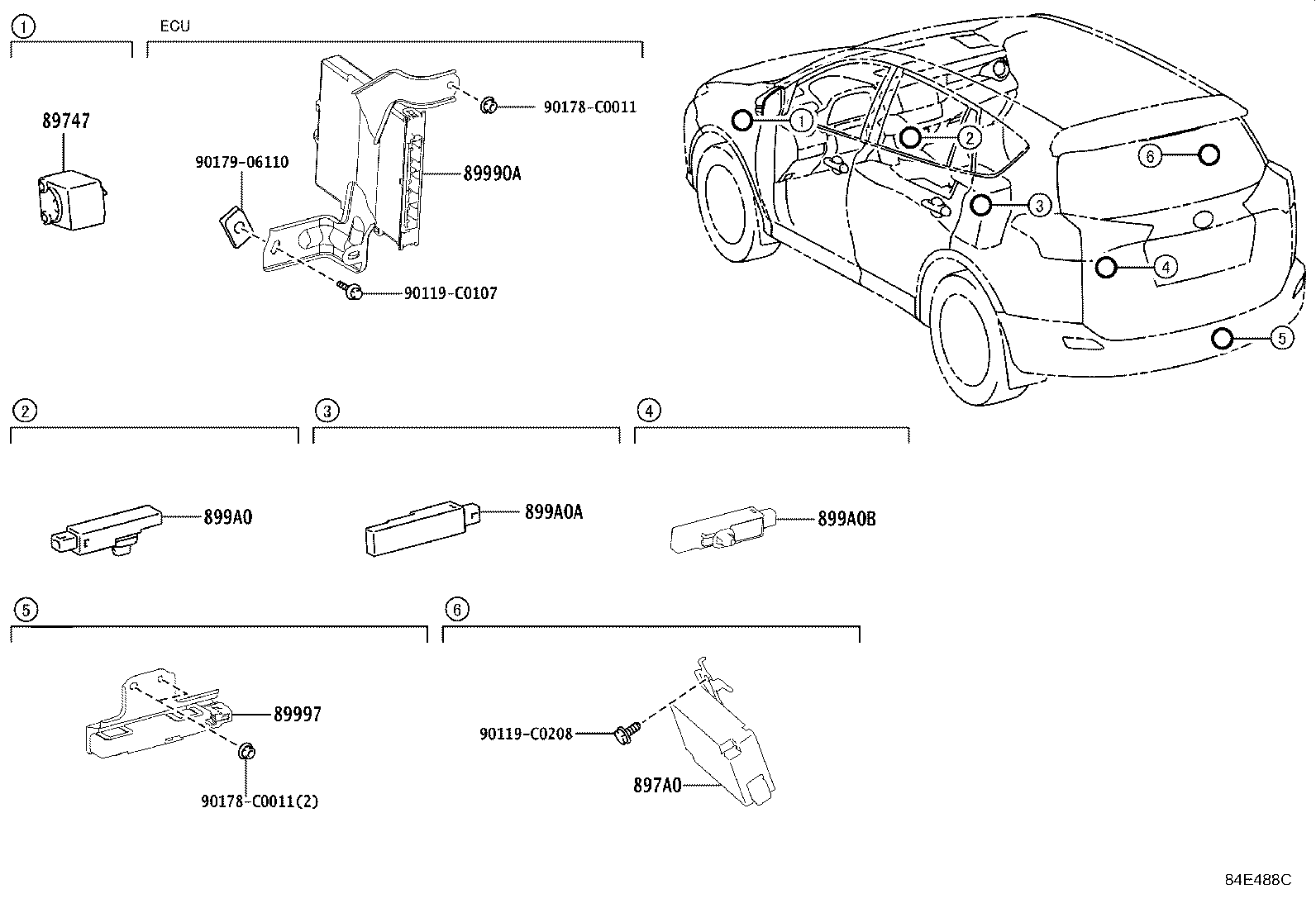

W(SMART ENTRY)

diagram 89747 897A0 89990A 89997 899A0 899A0A 899A0B 90119C0107 90119C0208 90178C0011 90178C0011 9017906110
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

ZSA44..G

POWER DOOR LOCK-WITH & WITH(POWER BACK DOOR)&HEAD LAMP-DISCHARGE & WITH(AUTOMATICHIGH BEAM)

 1
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897B0-0R030

ASA44;ZSA44..G

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0R031

ASA44;ZSA44..G

 1
89990-0R030

ASA44;ZSA44..G

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0R040

ASA44;ZSA44..G

 1
89997-42010

ASA44;ZSA44..G

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0N010

ASA44;ZSA44..G

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0D070

ASA44;ZSA44..G

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0D070

ASA44;ZSA44..G

 1
Common parts
90119-C0107
90119-C0208
90178-C0011
90179-06110

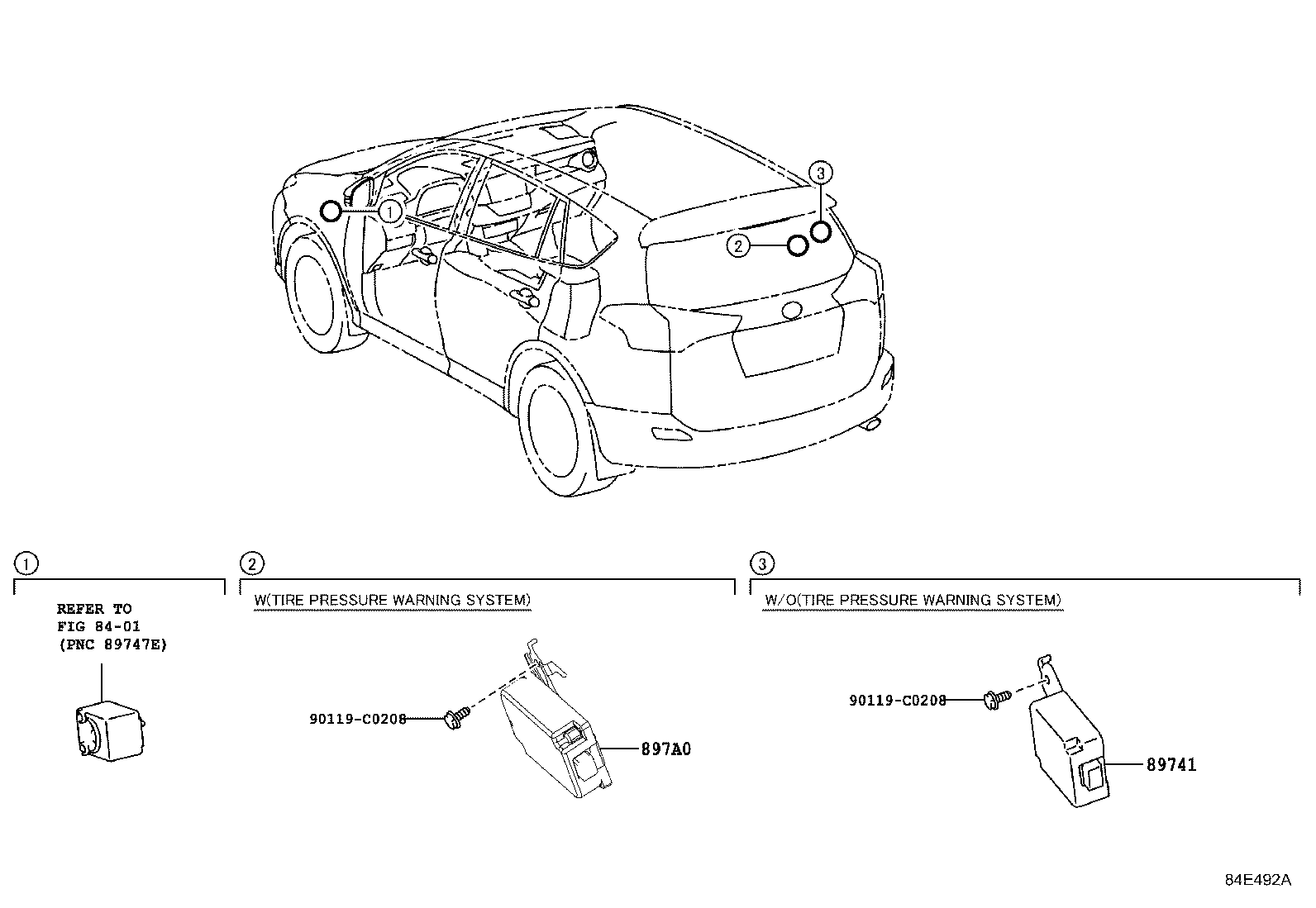

(1308-1607)ZSA4#..M,X

Click highlighted areas on diagram

diagram 8401 89741 897A0 90119C0208 90119C0208
Part # Description Qty Price
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897B0-0R030

ASA44;ZSA44..G

 1
Common parts
90119-C0208
Linked diagrams
8401
