ZSA44L-ANXGKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )ASA44,ZSA4#

Click highlighted areas on diagram

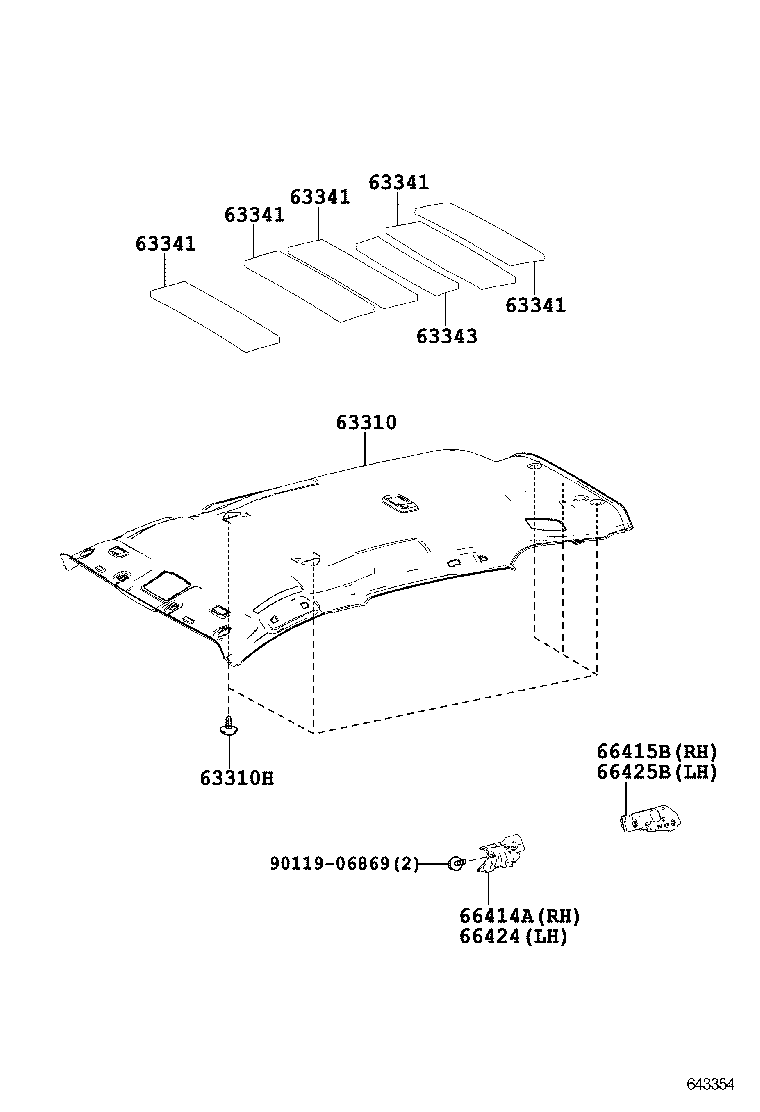

W/O(MOON ROOF OR TWIN MOON ROOF)

diagram 63310 63310H 63341 63341 63341 63341 63341 63343 66414A 66415B 66424 66425B 9011906869
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0R100B2

ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

ASA44;ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-0R040

ZSA4#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0R060

ASA44,ZSA4#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R060

ASA44,ZSA4#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0R060

ASA44,ZSA4#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R060

ASA44,ZSA4#

 1
Common parts
90119-06869

(1308- )ASA44,ZSA4#

Click highlighted areas on diagram

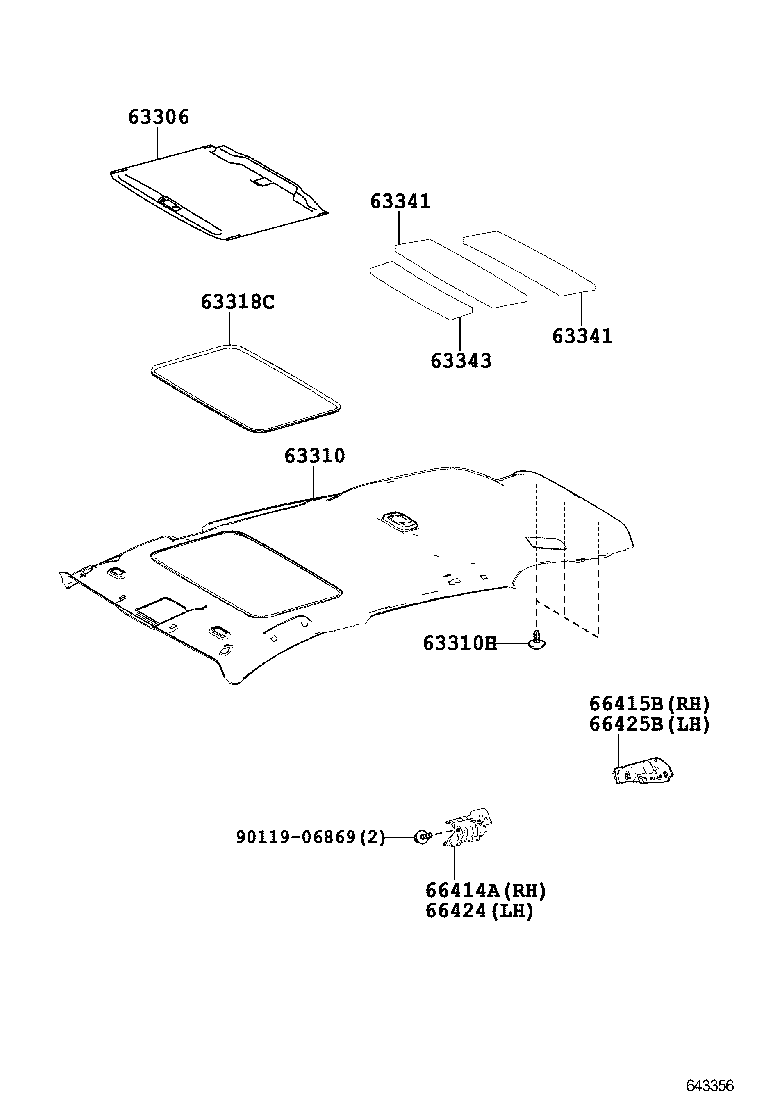

MOON ROOF(SINGLE)

diagram 63306 63310 63310H 63318C 63341 63341 63343 66414A 66415B 66424 66425B 9011906869
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0R040B2

ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-0R100B2

ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

ASA44;ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-0R050B1

ZSA44..G

L=2365,LT.GRAY,TRIM2#,3#,4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-0R040

ZSA4#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0R060

ASA44,ZSA4#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R060

ASA44,ZSA4#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0R060

ASA44,ZSA4#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R060

ASA44,ZSA4#

 1
Common parts
90119-06869

(1308- )

Click highlighted areas on diagram

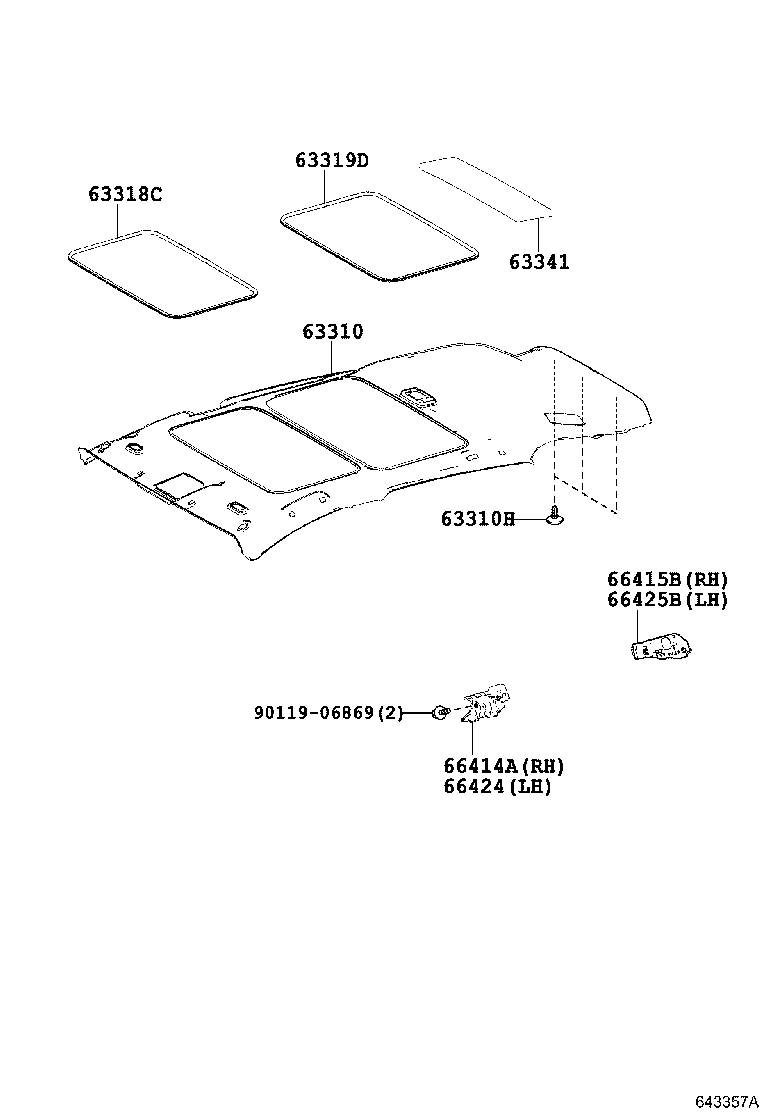

MOON ROOF(TWIN)

diagram 63310 63310H 63318C 63319D 63341 66414A 66415B 66424 66425B 9011906869
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0R100B2

ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

ASA44;ZSA44..G

LT.GRAY,TRIM2#,3#,4#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-0R050B1

ZSA44..G

L=2365,LT.GRAY,TRIM2#,3#,4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0R030

ZSA4#..G,M

 2
66414A - SPACER, SIDE RAIL, REAR RH
66414-0R060

ASA44,ZSA4#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R060

ASA44,ZSA4#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0R060

ASA44,ZSA4#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R060

ASA44,ZSA4#

 1
Common parts
90119-06869
