ZSA42L-ANXXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)

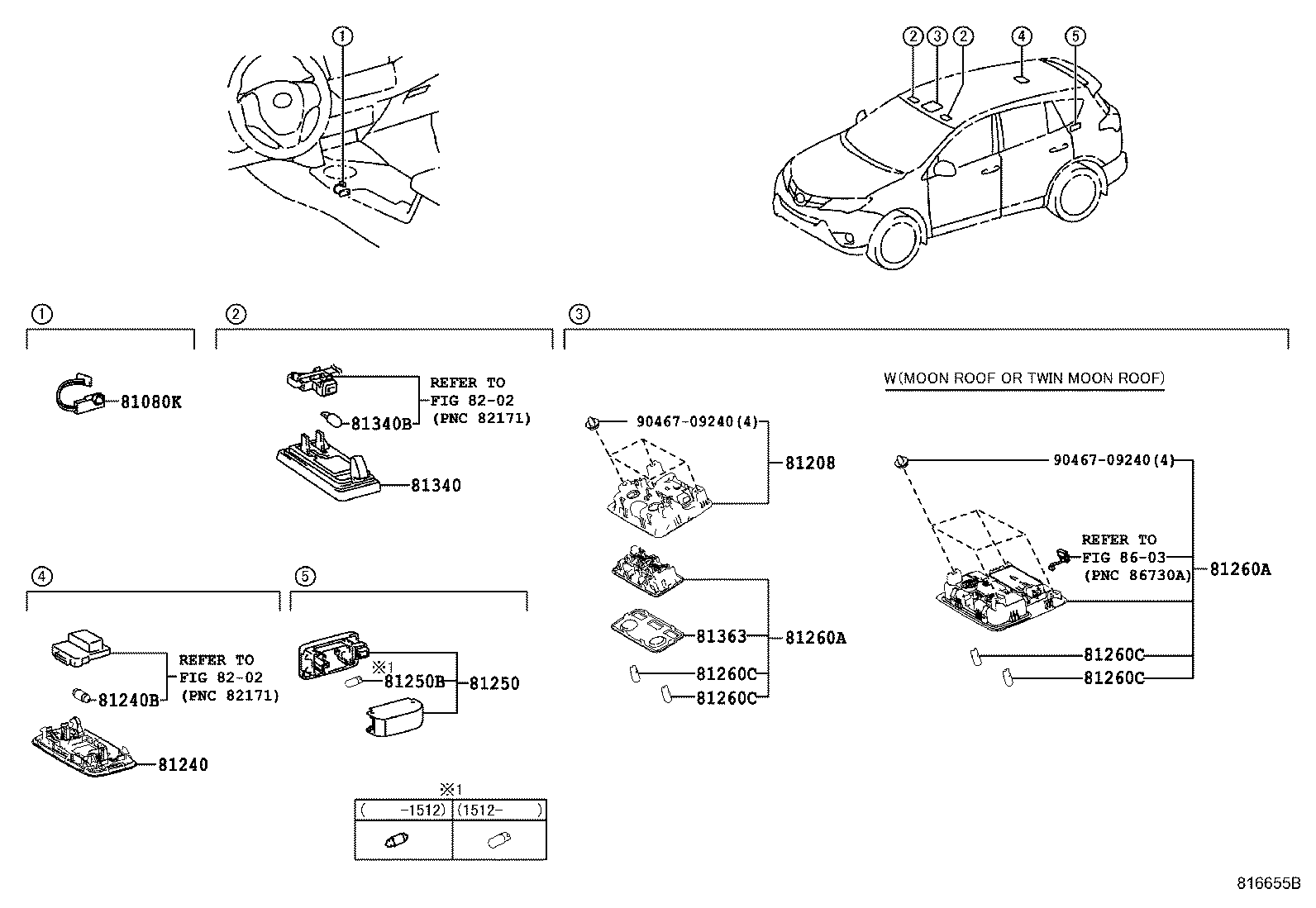

Click highlighted areas on diagram

diagram 81080K 81208 81240 81240B 81250 81250B 81260A 81260A 81260C 81260C 81260C 81260C 81340 81340B 81363 8202 8202 8603 9046709240 9046709240
Part # Description Qty Price
81208 - LAMP SUB-ASSY, MAP
81208-42010B0

ZSA42..X

LT.GRAY,TRIM2#,4#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-35020B0

ZSA4#..M,X

LT.GRAY,TRIM2#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ASA44,ZSA4#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-48010

ASA44,ZSA4#

 1
81330-58010

ASA44,ZSA4#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ASA44,ZSA4#

12V 5W

 1
99132-12050

ASA44,ZSA4#

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-52120B0

ZSA42..X

LT.GRAY,TRIM2#,4#

 1
81260A - LAMP ASSY, MAP
81260-52120B0

ZSA42..X

LT.GRAY,TRIM2#,4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA44,ZSA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA44,ZSA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA44,ZSA4#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

ASA44,ZSA4#

12V 5W

 2
81340 - LAMP ASSY, VANITY
81340-30110

ASA44,ZSA4#

 2
81340-0P010

ASA44,ZSA4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

ASA44,ZSA4#

12V 8W

 2
81363 - LENS, ROOM LAMP, OUTER
81363-52010

ZSA42..X

 1
Common parts
90467-09240
Linked diagrams
8202
8603
