ZSA42L-ANXXKC (2013)
Toyota Rav4 (China)
Production
Aug 2013
-
Jul 2016
Engine
6ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

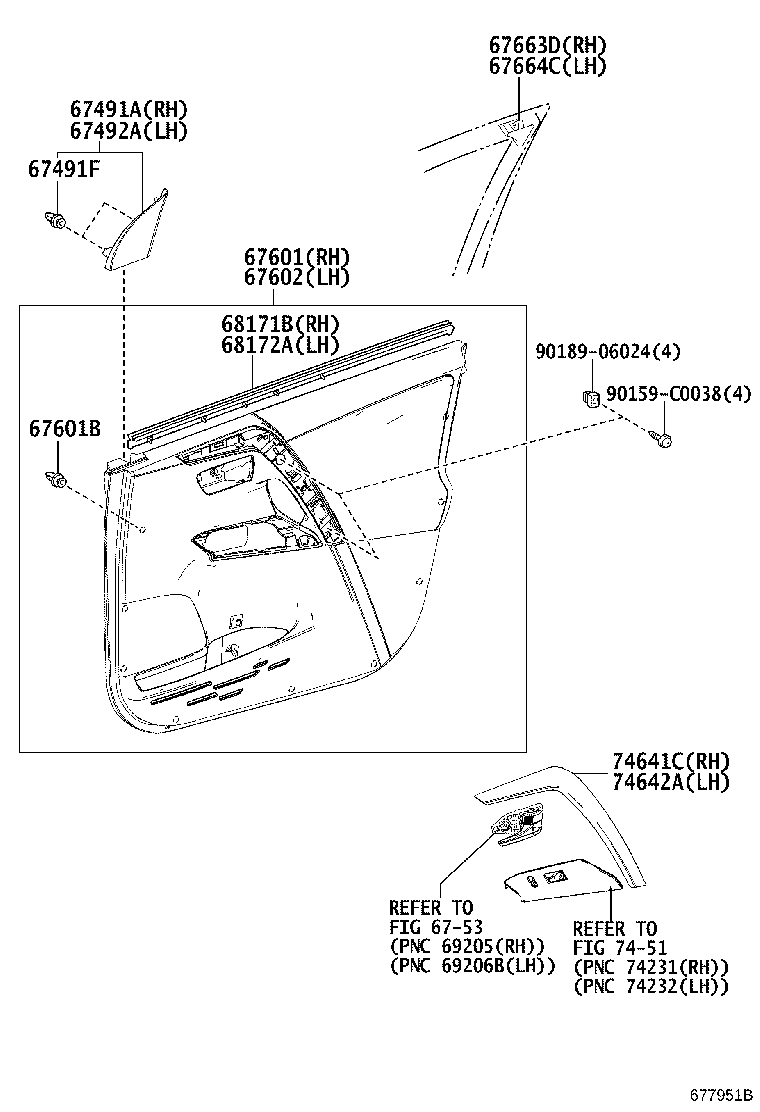

ILLUST NO. 2 OF 2(1308- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0R040 |
ASA44,ZSA4# |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-10167 |
ASA44,ZSA4# |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0R040 |
ASA44,ZSA4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0R120C2 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 67610-0R120C0 |
ZSA4#..M,X BLACK,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-C0033 |
ASA44,ZSA4# |
18 | ||
| 90467-09206 |
ASA44,ZSA4# |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0R120C2 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 67620-0R120C0 |
ZSA4#..M,X BLACK,TRIM4# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0R020 |
ASA44,ZSA4# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-0R020 |
ASA44,ZSA4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0R040 |
ASA44,ZSA4# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0R040 |
ASA44,ZSA4# |
1 | ||
| 74641C - COVER, FRONT DOOR ASSIST GRIP, RH | ||||
| 74641-0R030 |
ASA44,ZSA4# |
1 | ||
| 74642A - COVER, FRONT DOOR ASSIST GRIP, LH | ||||
| 74642-0R030 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90189-06024 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||

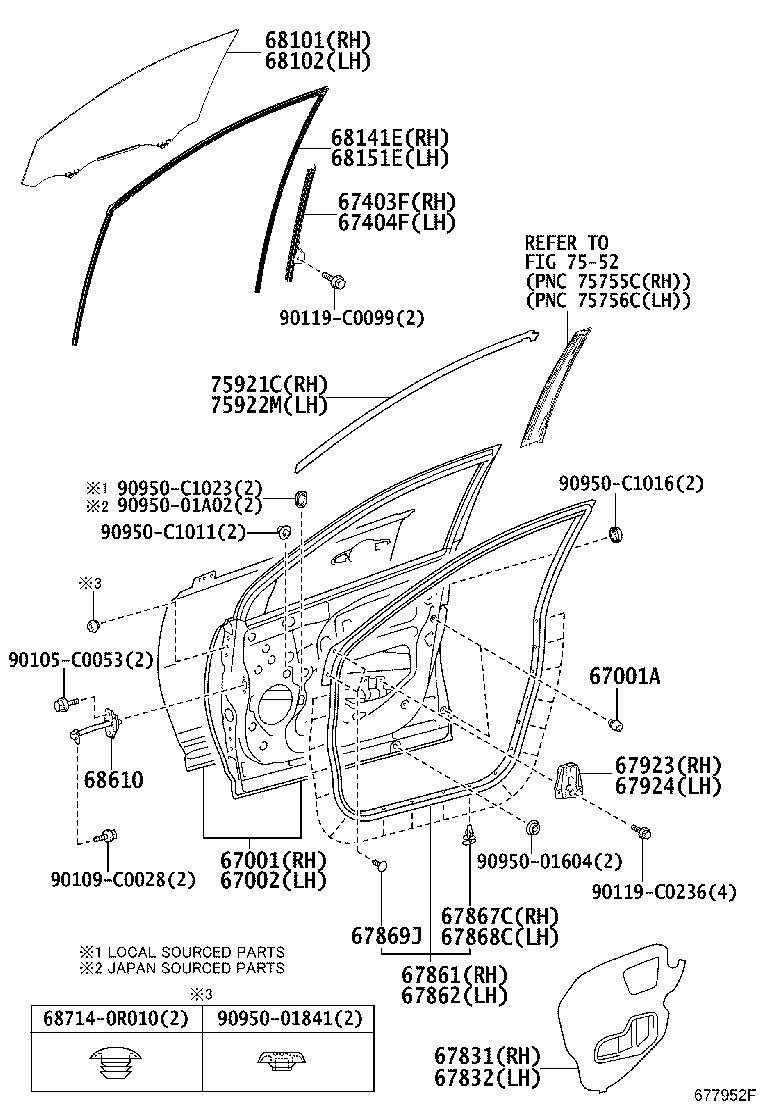

ILLUST NO. 1 OF 2(1308- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0R070 |
ASA44,ZSA4# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
ASA44,ZSA4# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0R070 |
ASA44,ZSA4# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0R040 |
ASA44,ZSA4# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0R040 |
ASA44,ZSA4# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0R050 |
ASA44,ZSA4# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0R050 |
ASA44,ZSA4# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0R040 |
ASA44,ZSA4# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0R040 |
ASA44,ZSA4# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASA44,ZSA4# |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASA44,ZSA4# |
17 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ASA44,ZSA4# |
4 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-0R020 |
ASA44,ZSA4# |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-0R020 |
ASA44,ZSA4# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-0R040 |
ASA44,ZSA4# |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-0R040 |
ASA44,ZSA4# |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0R040 |
ASA44,ZSA4# |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0R040 |
ASA44,ZSA4# |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-0R040 |
ASA44,ZSA4# |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-0R040 |
ASA44,ZSA4# |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-0R040 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 68714-0R010 | ||||
| 90105-C0053 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0236 | ||||
| 90950-01604 | ||||
| 90950-01841 | ||||
| 90950-01A02 | ||||
| 90950-C1011 | ||||
| 90950-C1016 | ||||
| 90950-C1023 | ||||
| Linked diagrams | ||||
| 7552 | ||||
