ZSA42L-ANXXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1308- )

Click highlighted areas on diagram

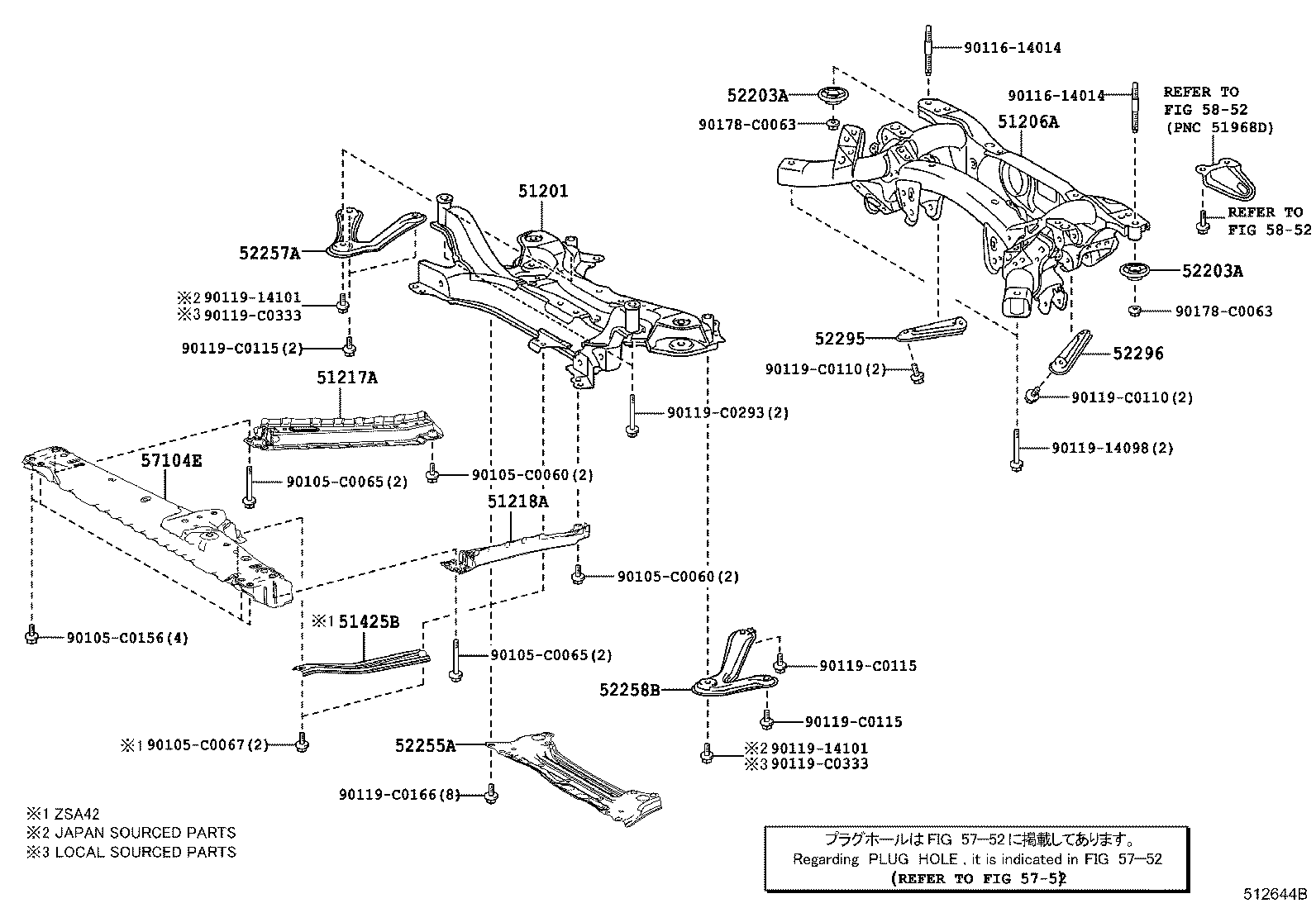

SUSPENSION MEMBER

diagram 51201 51206A 51217A 51218A 51425B 52203A 52203A 52255A 52257A 52258B 52295 52296 57104E 5752 5852 5852 90105C0060 90105C0060 90105C0065 90105C0065 90105C0067 90105C0156 9011614014 9011614014 9011914098 9011914101 9011914101 90119C0110 90119C0110 90119C0115 90119C0115 90119C0115 90119C0166 90119C0293 90119C0333 90119C0333 90178C0063 90178C0063
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02132

ASA44,ZSA4#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-0R043

ASA44,ZSA4#

 1
51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51107-0R050

ASA44,ZSA4#

 1
51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51108-0R040

ASA44,ZSA4#

 1
51425B - REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER
51425-0R010

ZSA42

 1
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-0R040

ASA44,ZSA4#

 2
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-0R040

ASA44,ZSA4#

 2
52255A - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-0R040

ASA44,ZSA4#

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-0R020

ASA44,ZSA4#

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-0R021

ASA44,ZSA4#

 1
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-0R030

ASA44,ZSA4#

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-0R030

ASA44,ZSA4#

 1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-0R040

ASA44,ZSA4#

 1
Common parts
90105-C0060
90105-C0065
90105-C0067
90105-C0156
90116-14014
90119-14098
90119-14101
90119-C0110
90119-C0115
90119-C0166
90119-C0293
90119-C0333
90178-C0063
Linked diagrams
5752
5852

ILLUST NO. 2 OF 2(1308-1607)ZSA4#

Click highlighted areas on diagram

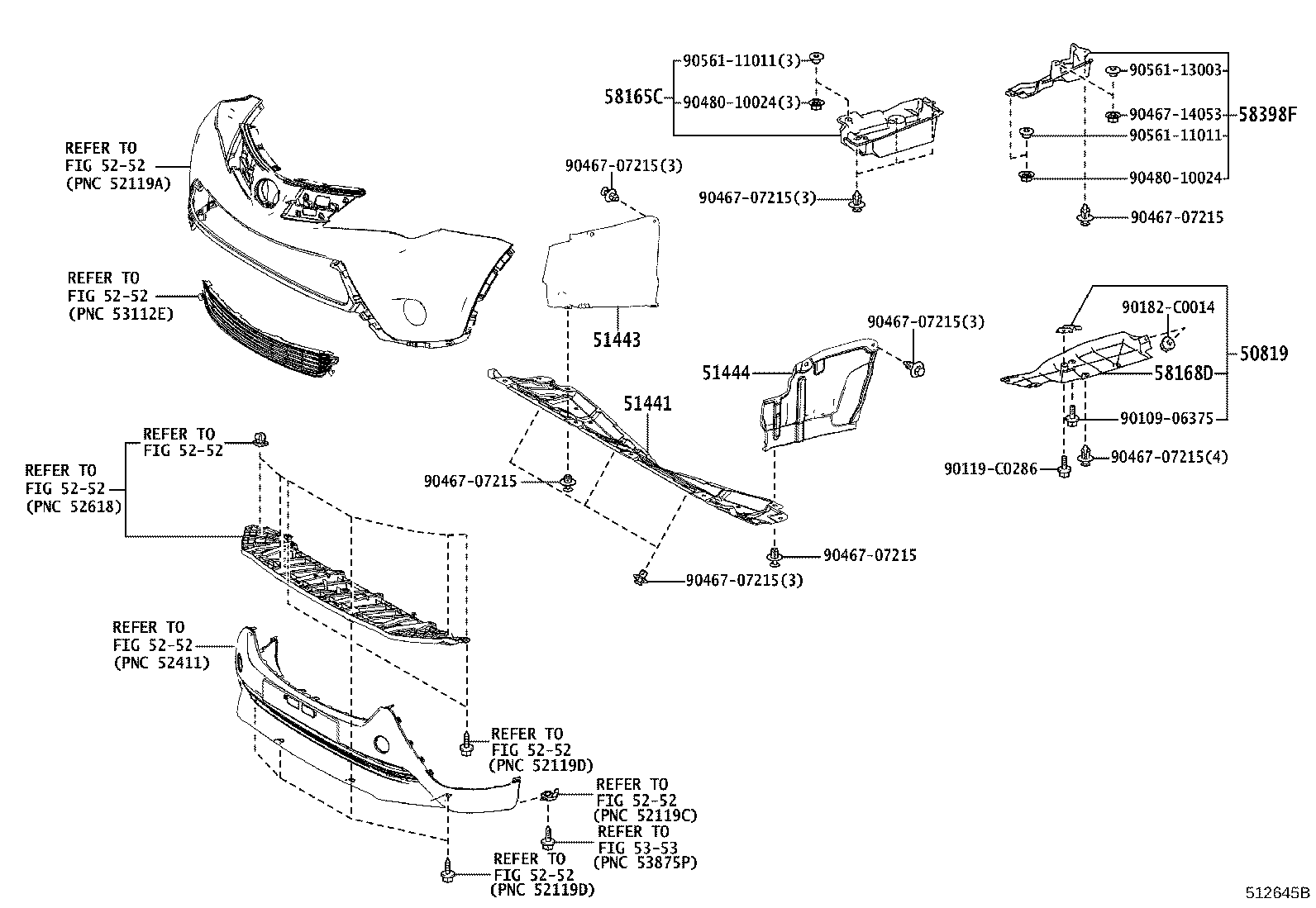

ENGINE UNDER COVER

diagram 50819 51441 51443 51444 5252 5252 5252 5252 5252 5252 5252 5252 5353 58165C 58168D 58398F 9010906375 90119C0286 90182C0014 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046714053 9048010024 9048010024 9056111011 9056111011 9056113003
Part # Description Qty Price
50819 - COVER, FRONT FLOOR
50819-0R020

ASA44,ZSA4#

 1
50819-0R021

ASA44,ZSA4#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-0R050

ZSA4#

MARK 51441-0R050

 1
51441-0R080

ZSA4#

MARK 51441-0R080

 1
51441-0R050

ZSA4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-0R020

ASA44,ZSA4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-0R030

ASA44,ZSA4#

 1
58165C - COVER, FRONT FLOOR, RH
58165-0R020

ASA44,ZSA4#

 1
58168D - COVER, FRONT FLOOR, CENTER LH
58168-0R020

ASA44,ZSA4#

 1
58168-0R021

ASA44,ZSA4#

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-0R050

ASA44,ZSA4#

 1
Common parts
90109-06375
90119-C0286
90182-C0014
90467-07215
90467-14053
90480-10024
90561-11011
90561-13003
Linked diagrams
5252
5353
