ZSA42L-ANXMKC (2013)
Toyota Rav4 (China)

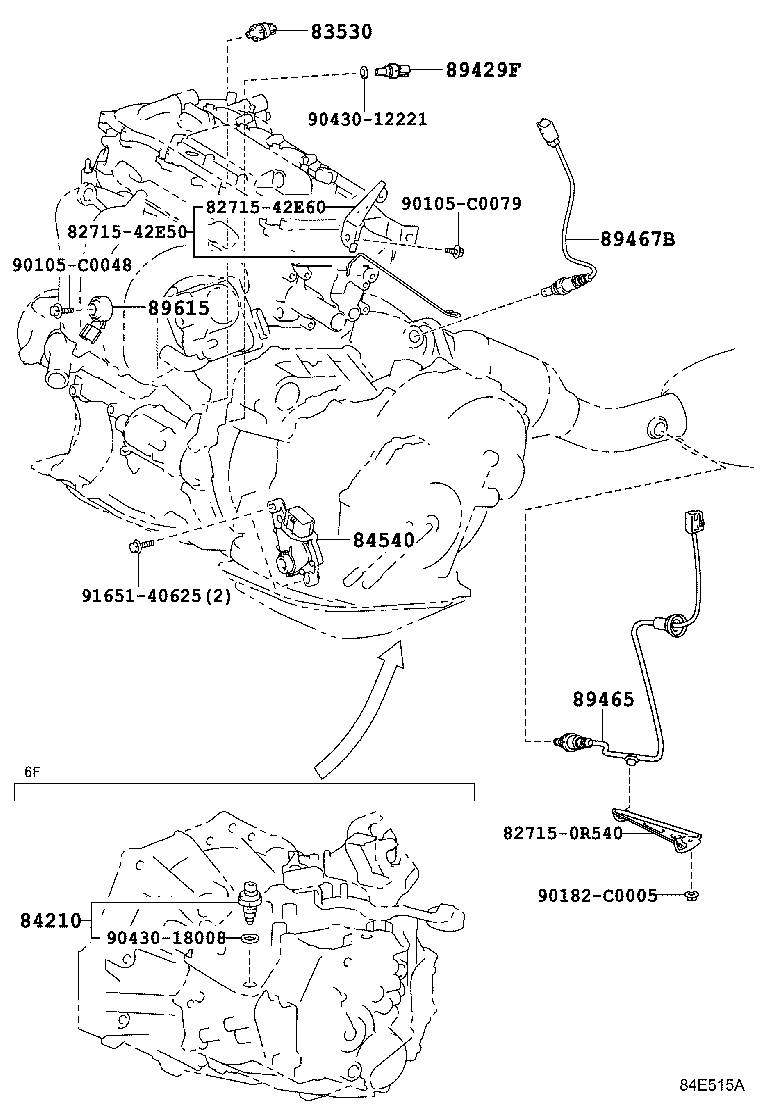

ILLUST NO. 1 OF 9(1308- )ZSA4#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASA44,ZSA4# DENSO |
1 | ||
| 83530-60020 |
ASA44,ZSA4# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZSA4#..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0R050 |
ZSA4# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0R070 |
ZSA4# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 82715-0R540 | ||||
| 82715-42E50 | ||||
| 82715-42E60 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90182-C0005 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||

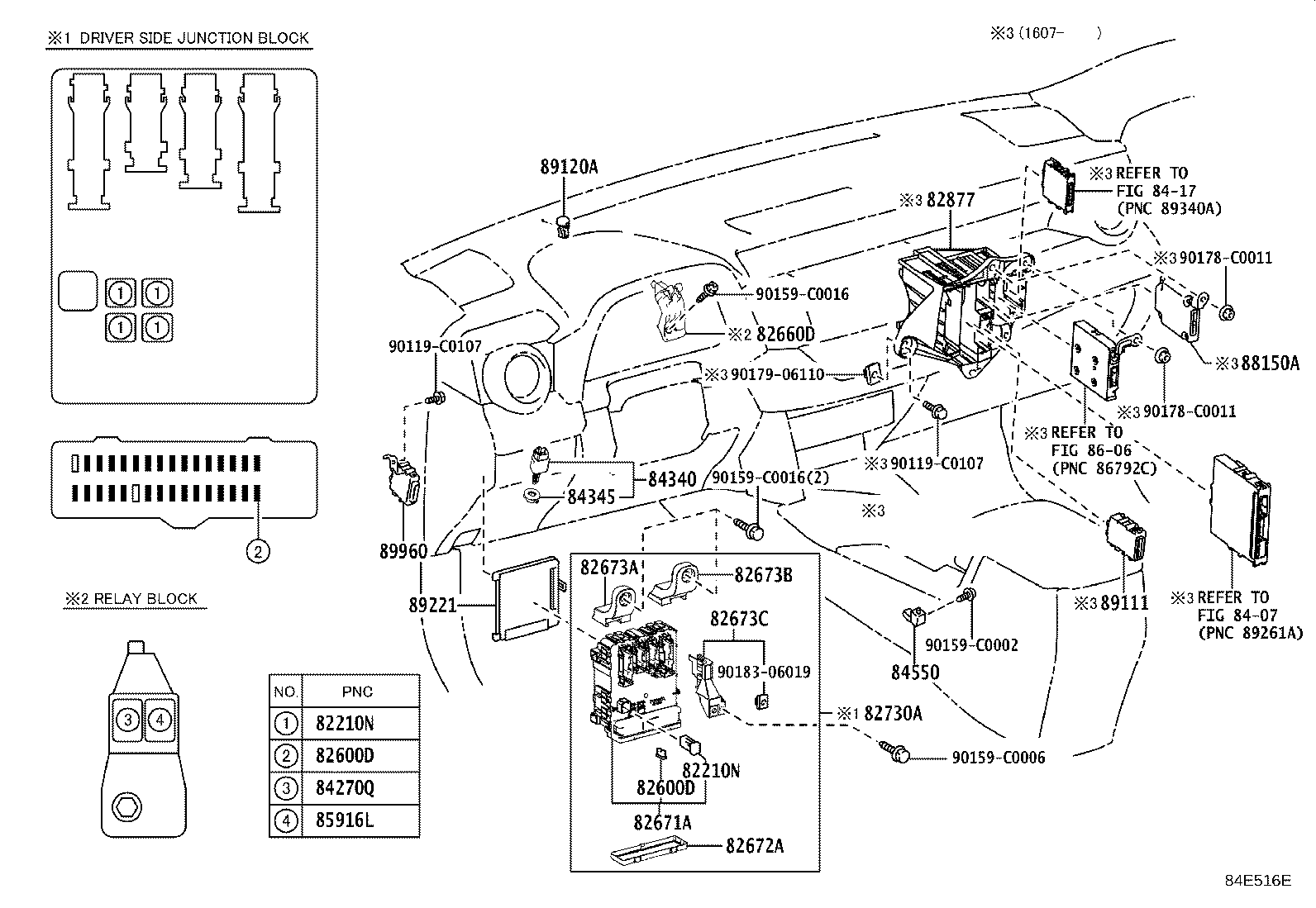

ILLUST NO. 4 OF 9(1308- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASA44,ZSA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASA44,ZSA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASA44,ZSA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASA44,ZSA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASA44,ZSA4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ASA44,ZSA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASA44,ZSA4# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ASA44,ZSA4# 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASA44,ZSA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ASA44,ZSA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ASA44,ZSA4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ASA44,ZSA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASA44,ZSA4# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ASA44,ZSA4# 15A,MINI FUSE,BLUE |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-0R020 |
ASA44,ZSA4# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82732-0R030 |
ASA44,ZSA4# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-0R020 |
ASA44,ZSA4# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0R040 |
ASA44,ZSA4# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-0R050 |
ASA44,ZSA4# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-0R060 |
ASA44,ZSA4# |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0R111 |
ASA44,ZSA4# |
1 | ||
| 82730-0R110 |
ASA44,ZSA4# |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09120 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ASA44,ZSA4# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ASA44,ZSA4# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 89121-0E030 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0R120 |
ZSA4#..G,M |
1 | ||
| 89220-0R100 |
ZSA42..X |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90159-C0002 | ||||
| 90159-C0006 | ||||
| 90159-C0016 | ||||
| 90178-C0011 | ||||
| 90179-06110 | ||||
| 90183-06019 | ||||
| Linked diagrams | ||||
| 8407 | ||||
| 8417 | ||||
| 8606 | ||||

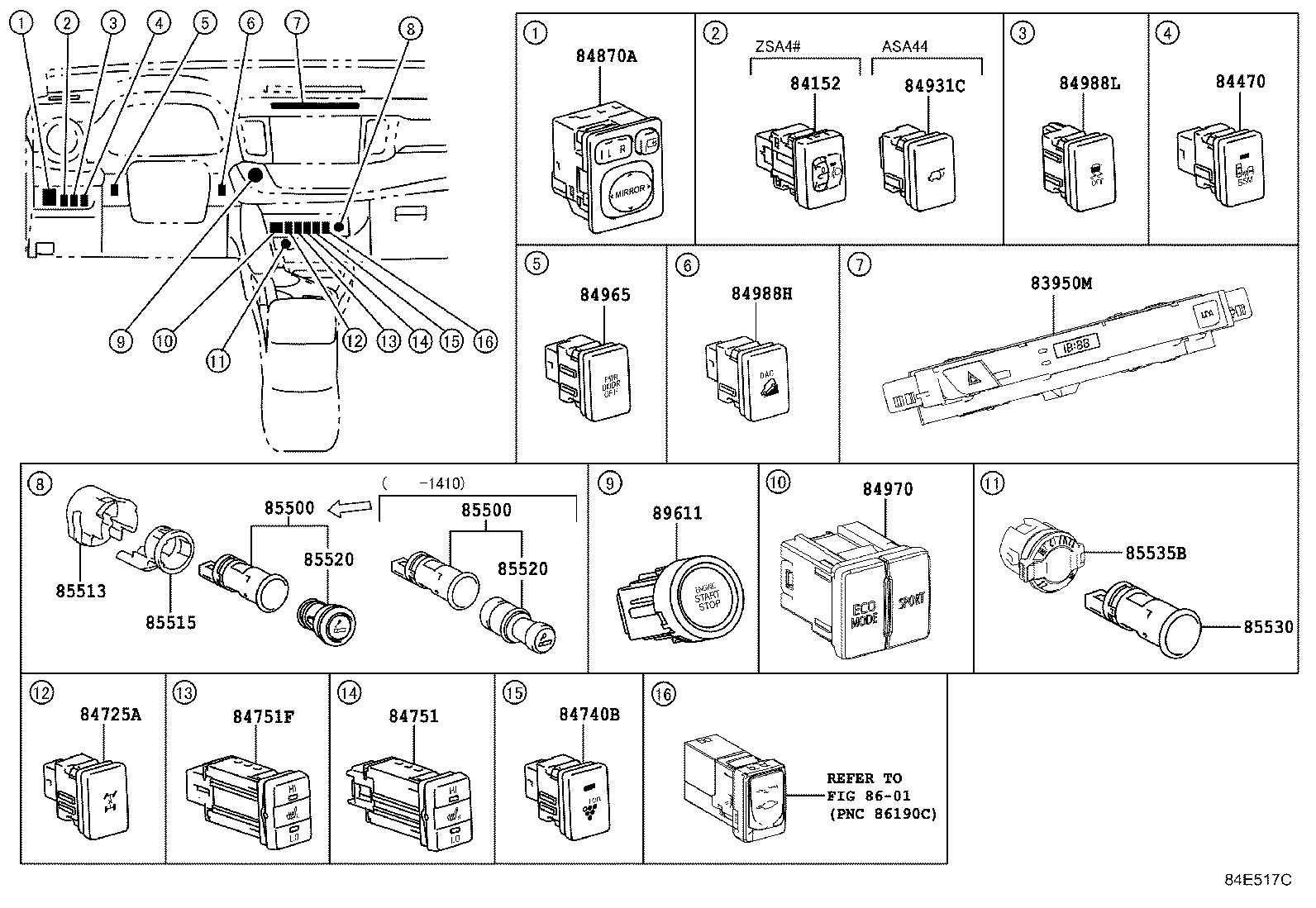

ILLUST NO. 5 OF 9(1308-1607)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-0R060 |
ZSA42..X |
1 | ||
| 83950-0R070 |
ASA44,ZSA4#..G,M |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0R031 |
ZSA4# |
1 | ||
| 84152-0R030 |
ZSA4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D080 |
ASA44,ZSA4#..M,X |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-0R020 |
ASA44,ZSA4#..ATM,CVT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50090 |
ASA44,ZSA4# |
1 | ||
| 85500-26040 |
ASA44,ZSA4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50090 |
ASA44,ZSA4# |
1 | ||
| 85500-26040 |
ASA44,ZSA4# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ASA44,ZSA4# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-0R020 |
ASA44,ZSA4# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ASA44,ZSA4# |
1 | ||
| 85520-30200 |
ASA44,ZSA4# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ASA44,ZSA4# |
1 | ||
| 85520-30200 |
ASA44,ZSA4# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0N010 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0R050 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||

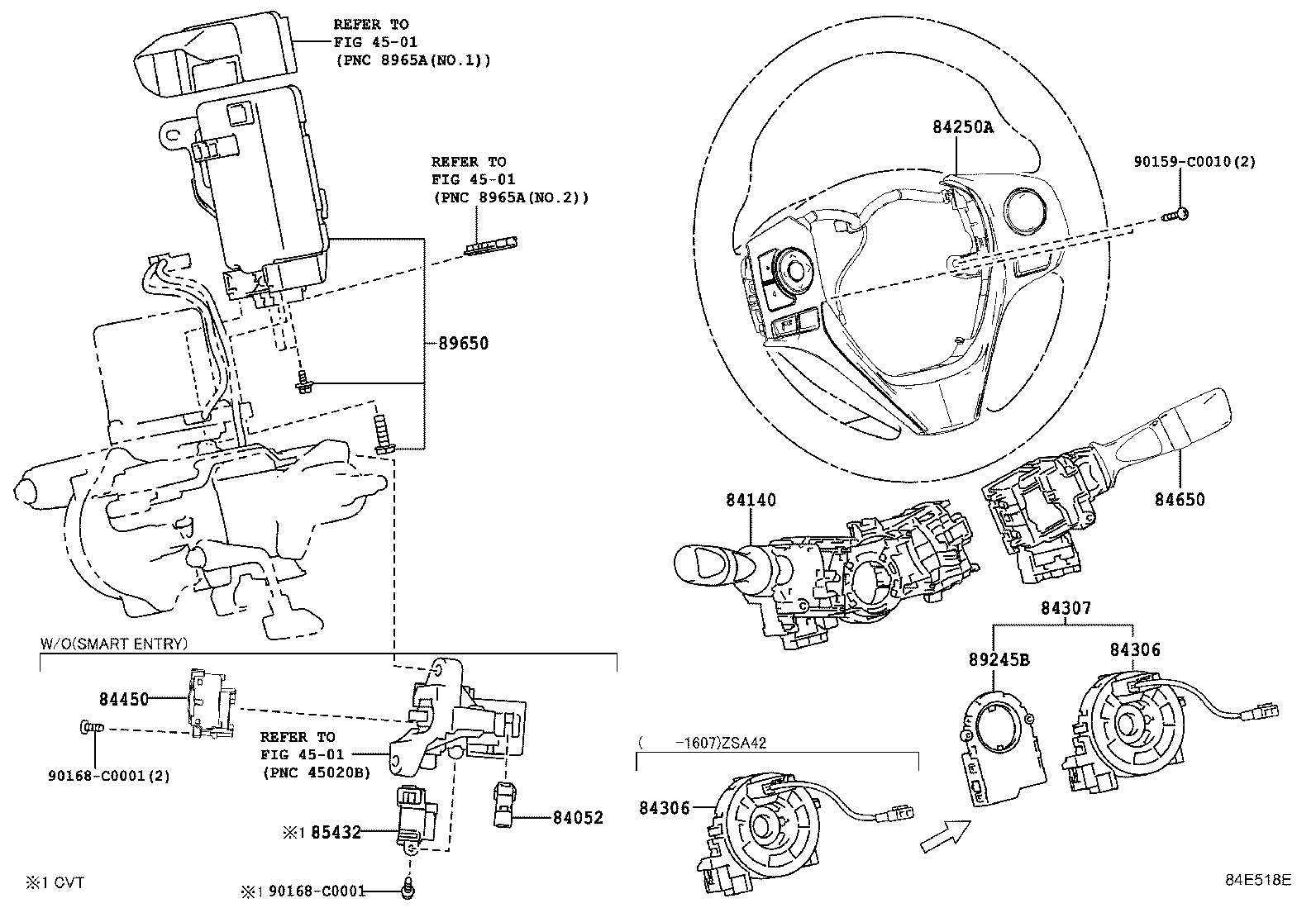

ILLUST NO. 6 OF 9(1308- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-06010 |
ZSA4#..M,X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0R070 |
ZSA42..X |
1 | ||
| 84140-0R071 |
ZSA42..X |
1 | ||
| 84140-0R080 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 84140-0R081 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0R080C0 |
ZSA4#..M BLACK,TRIM2#,4# |
1 | ||
| 84250-0R100C0 |
ZSA42..X BLACK,TRIM2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06180 |
ZSA42 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-06180 |
ZSA42 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0R020 |
ZSA4#..M,X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0R070 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 84652-0R071 |
ASA44,ZSA4#..G,M,X |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06020 |
ZSA4#..CVT..(M,X) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| 90168-C0001 | ||||
| Linked diagrams | ||||
| 4501 | ||||

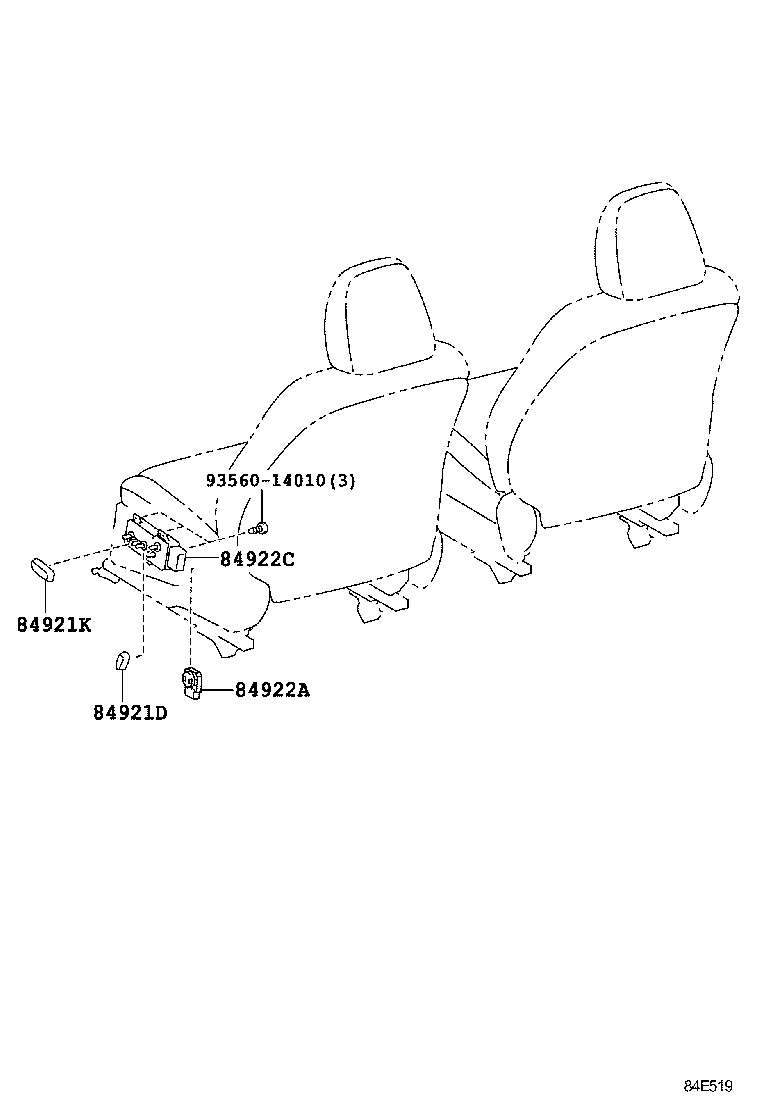

ILLUST NO. 7 OF 9(1308- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-14010 | ||||

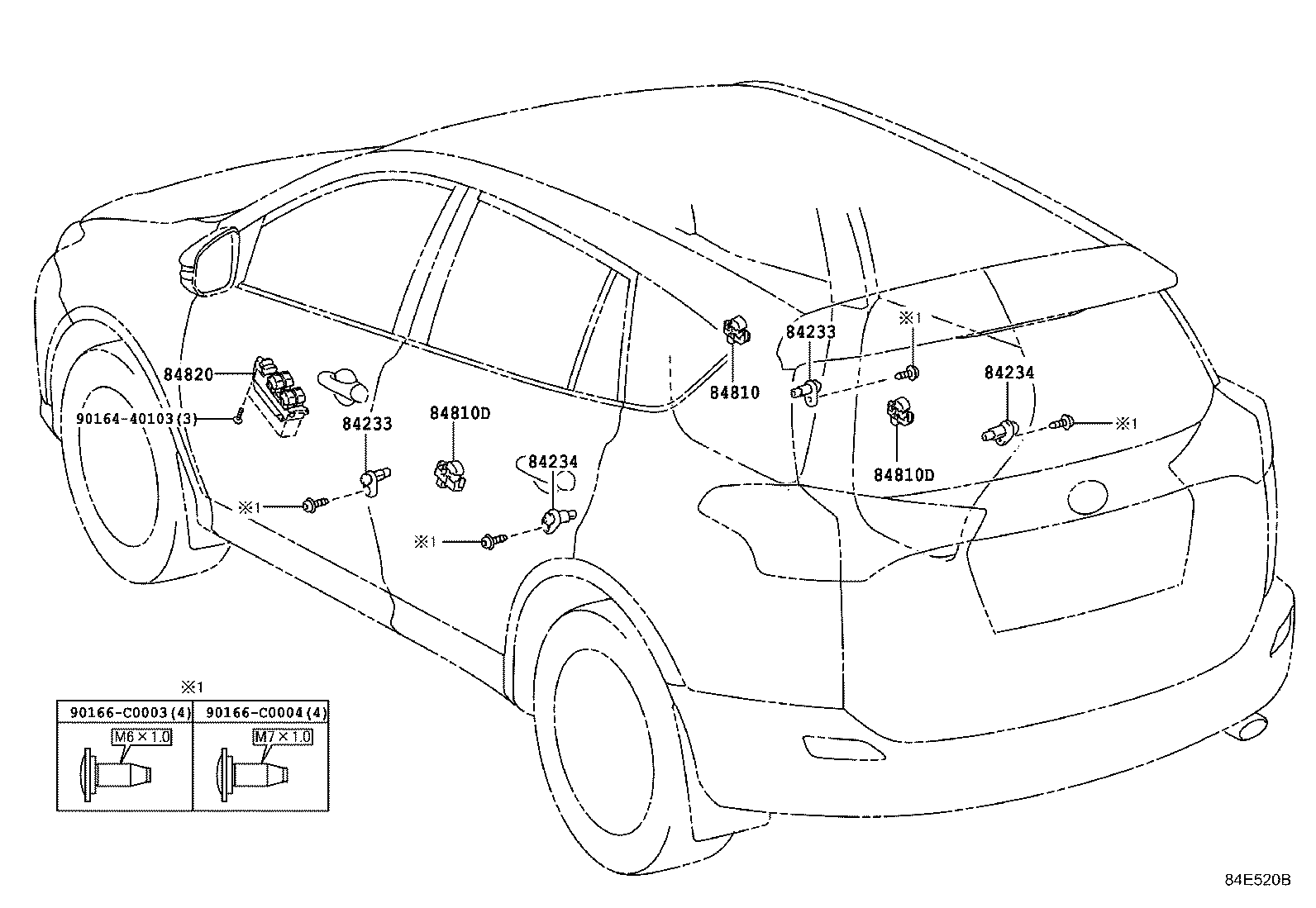

ILLUST NO. 8 OF 9(1308- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ASA44,ZSA4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ASA44,ZSA4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ASA44,ZSA4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ASA44,ZSA4# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D080 |
ASA44,ZSA4# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
ASA44,ZSA4# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0D080 |
ASA44,ZSA4# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-C0003 | ||||
| 90166-C0004 | ||||

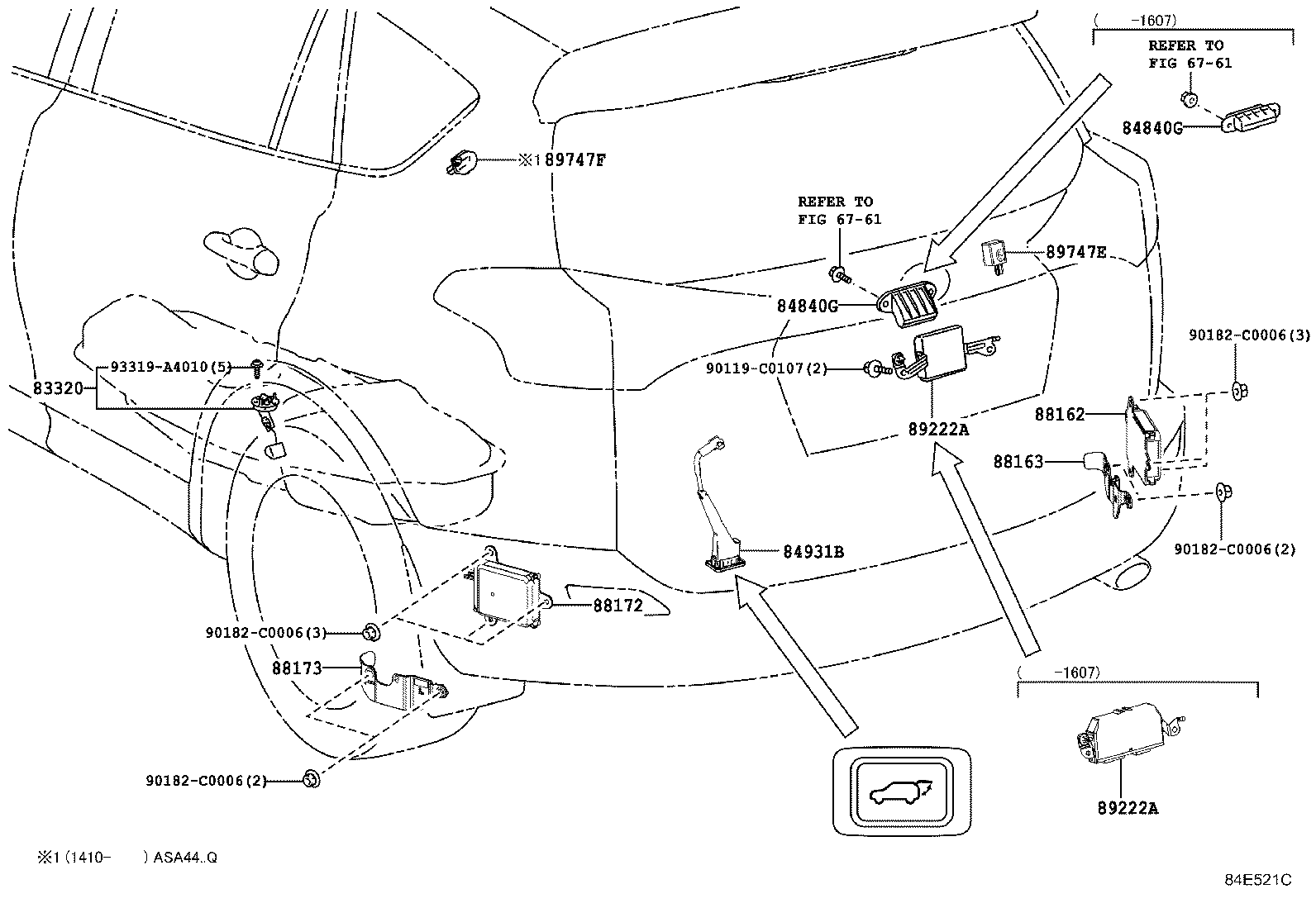

ILLUST NO. 9 OF 9(1308- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-09150 |
ASA44,ZSA4# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-06030 |
ZSA4#..M,X |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-06030 |
ZSA4#..M,X |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90182-C0006 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6761 | ||||

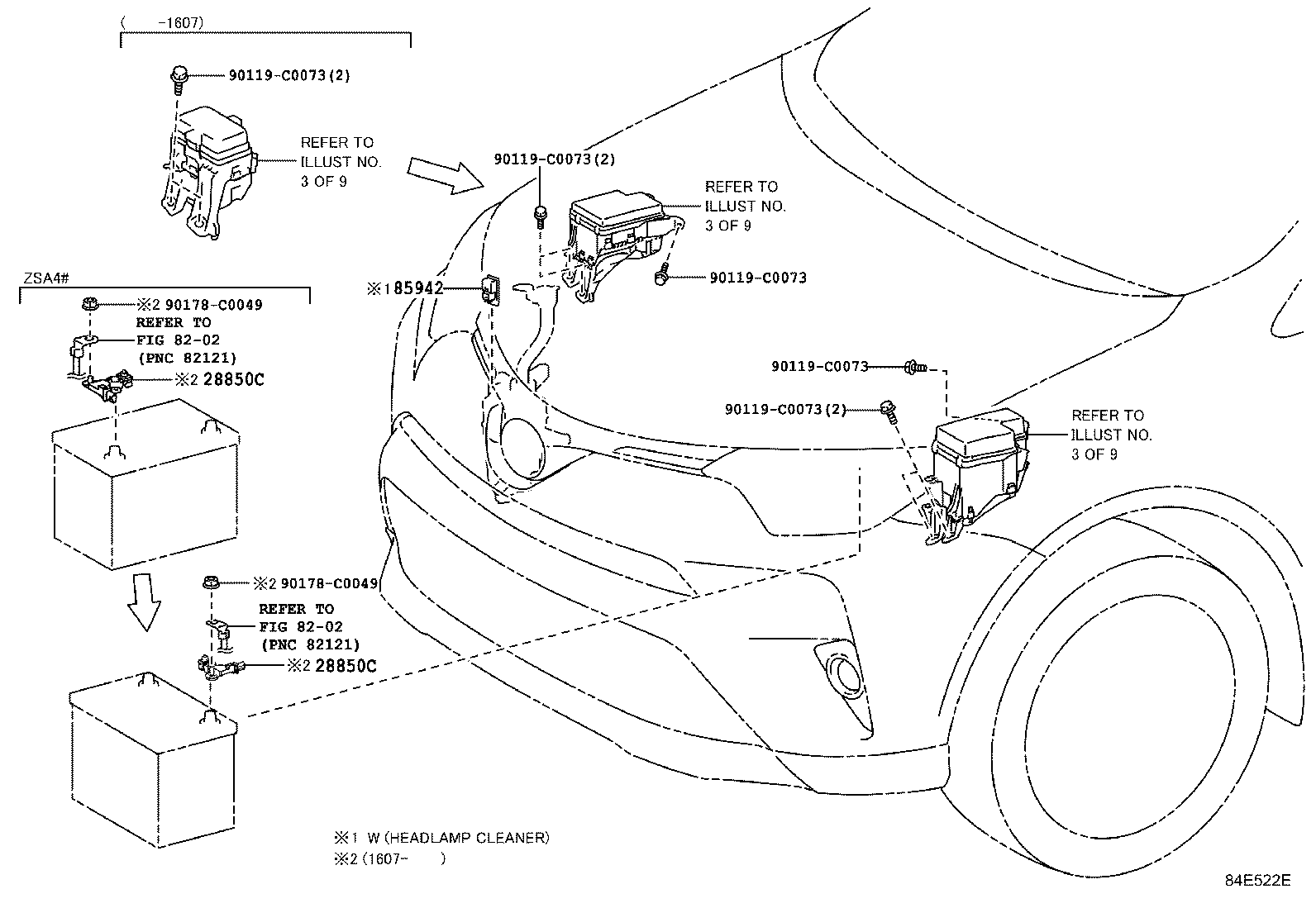

ILLUST NO. 2 OF 9(1308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-C0073 | ||||
| 90178-C0049 | ||||
| Linked diagrams | ||||
| 8202 | ||||

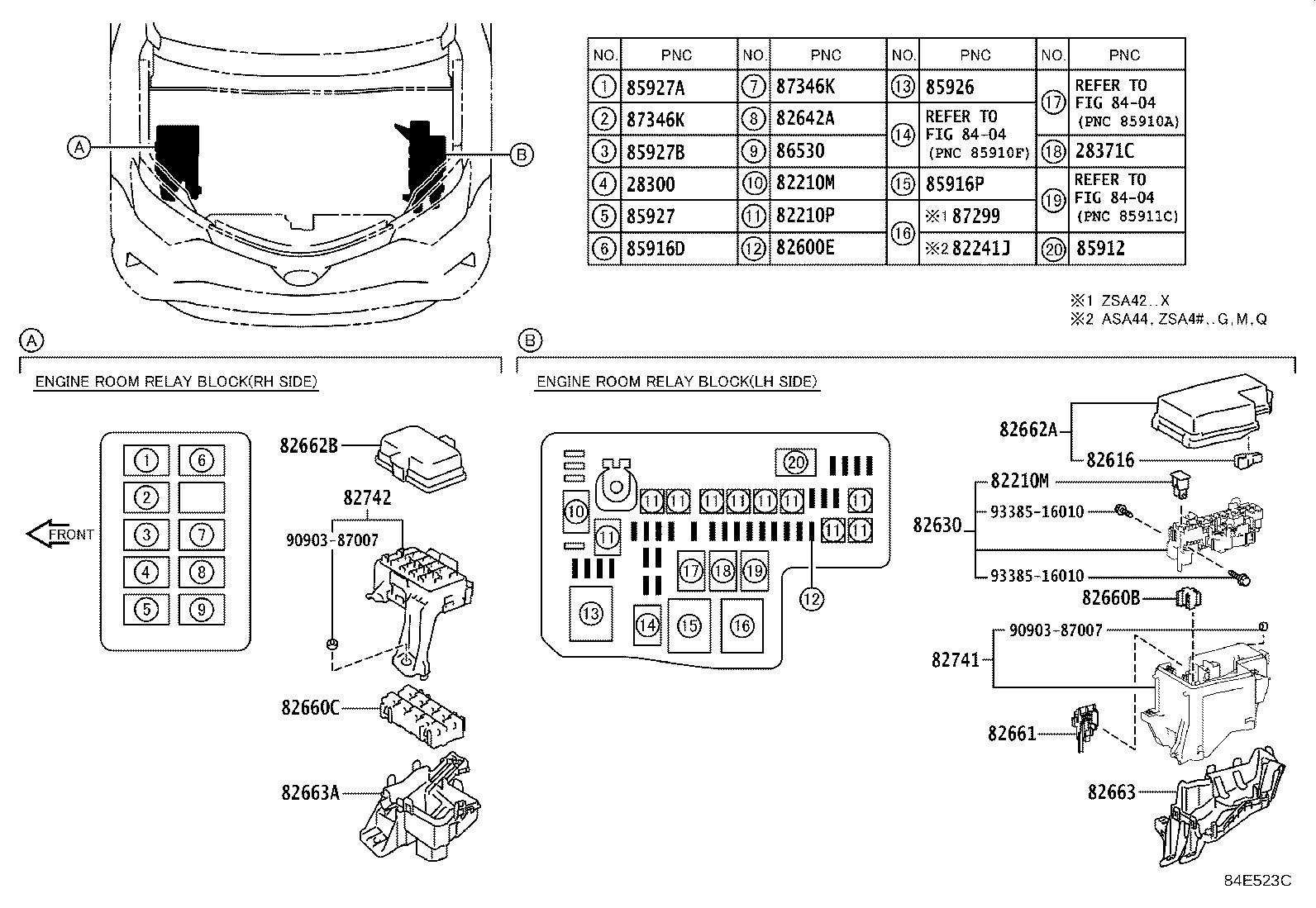

ILLUST NO. 3 OF 9(1308-1607)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
5ARFE,6ZRFE..ASA44,ZSA4# |
1 | ||
| 28300-21020 |
5ARFE,6ZRFE..ASA44,ZSA4# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
5ARFE,6ZRFE..ASA44,ZSA4# |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08274 |
ASA44,ZSA4# 120A,TERM.:MALE,WHT |
1 | ||
| 82210M - FUSIBLE LINK | ||||
| 90982-08274 |
ASA44,ZSA4# 120A,TERM.:MALE,WHT |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ASA44,ZSA4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ASA44,ZSA4# 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08296 |
ASA44,ZSA4# 50A,TERM.:FEMALE,RED |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ASA44,ZSA4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZSA4# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ASA44,ZSA4# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASA44,ZSA4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ASA44,ZSA4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ASA44,ZSA4# 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ASA44,ZSA4# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-0R010 |
ASA44,ZSA4# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ASA44,ZSA4# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0R010 |
ASA44,ZSA4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-0R010 |
ASA44,ZSA4# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0R100 |
ZSA4# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0R120 |
ASA44,ZSA4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0R030 |
ASA44,ZSA4# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0R040 |
ASA44,ZSA4# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0R010 |
ASA44,ZSA4# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-0R020 |
ASA44,ZSA4# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
ASA44,ZSA4# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
ASA44,ZSA4# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2004 |
ASA44,ZSA4# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T4001 |
ASA44,ZSA4# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
ASA44,ZSA4# |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-T4002 |
ZSA42..X |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
ASA44,ZSA4# |
2 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
ASA44,ZSA4# |
2 | ||
| Common parts | ||||
| 90903-87007 | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
