ZSA42L-ANXMKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )6ZR#

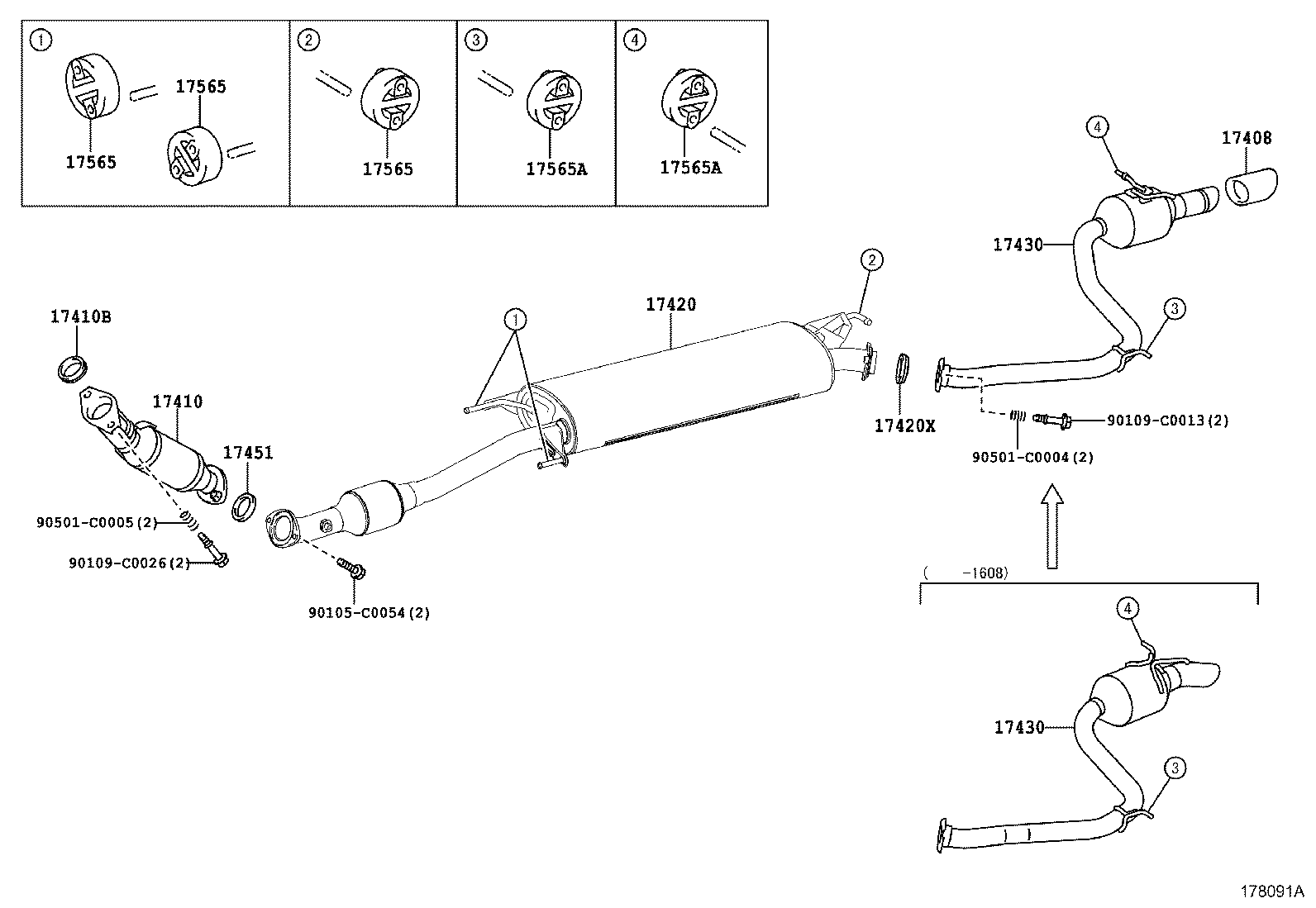

Click highlighted areas on diagram

diagram 17408 17410 17410B 17420 17420X 17430 17430 17451 17565 17565 17565 17565A 17565A 90105C0054 90109C0013 90109C0026 90501C0004 90501C0005
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T640

6ZRFE..ZSA4#

 1
17410B - GASKET, EXHAUST PIPE
17451-0H020

5ARFE,6ZRFE..ASA44,ZSA4#

 1
17451-0T010

5ARFE,6ZRFE..ASA44,ZSA4#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0T050

6ZRFE..ZSA4#

 1
17420-0T051

6ZRFE..ZSA4#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-0V060

5ARFE,6ZRFE..ASA44,ZSA4#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T290

6ZRFE..ZSA4#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T290

6ZRFE..ZSA4#

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

5ARFE,6ZRFE..ASA44,ZSA4#

 1
90917-C6001

5ARFE,6ZRFE..ASA44,ZSA4#

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T010

5ARFE,6ZRFE..ASA44,ZSA4#

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T010

5ARFE,6ZRFE..ASA44,ZSA4#

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0T010

5ARFE,6ZRFE..ASA44,ZSA4#

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

5ARFE,6ZRFE..ASA44,ZSA4#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0D070

5ARFE,6ZRFE..ASA44,ZSA4#

 2
Common parts
90105-C0054
90109-C0013
90109-C0026
90501-C0004
90501-C0005
