ZSA42L-ANXGPC (2016)

Toyota Rav4 (China)

Production Jul 2016 - Nov 2019
Engine 6ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1607- )6ZRFAE

Click highlighted areas on diagram

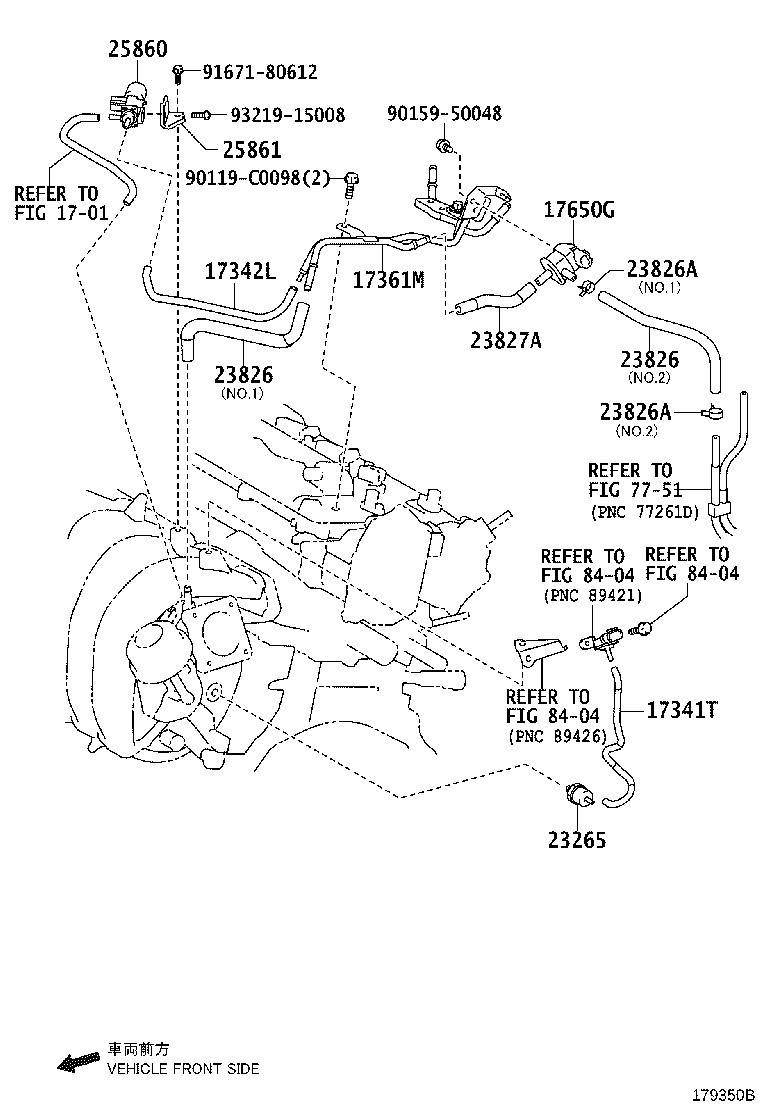

diagram 1701 17341T 17342L 17361M 17650G 23265 23826 23826 23826A 23826A 23827A 25860 25861 7751 8404 8404 8404 90119C0098 9015950048 9167180612 9321915008
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
17341-37060

6ZRFAE..ZSA4#

 1
17341-37100

6ZRFAE..ZSA4#

 1
17342L - HOSE, AIR, NO.2
17342-37050

6ZRFAE..ZSA4#

 1
17361M - TUBE, AIR
17361-0T010

6ZRFAE..ZSA4#

 1
17361-0T030

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-TC001

6ZRFAE..ZSA4#

 1
90910-12283

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

 1
90910-12276

6ZRFAE..ZSA4#

 1
23265 - FILTER, GAS, NO.1
90917-11022

6ZRFAE..ZSA4#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T321

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.2

 1
23826-0T310

6ZRFAE..ZSA4#

NO.2

 1
23826-0T270

6ZRFAE..ZSA4#

NO.1

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T321

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.2

 1
23826-0T310

6ZRFAE..ZSA4#

NO.2

 1
23826-0T270

6ZRFAE..ZSA4#

NO.1

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-C0037

6ZRFAE..ZSA4#

NO.1 & NO.2

 2
96133-41501

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.1

 1
96136-41901

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.2

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-C0037

6ZRFAE..ZSA4#

NO.1 & NO.2

 2
96133-41501

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.1

 1
96136-41901

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS),NO.2

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37030

6ZRFAE..ZSA4#

 1
95328-07009

6ZRFAE..ZSA4#

 1
23827-0T080

6ZRFAE..ZSA4#

EXHAUST EMISSION CONTROL-GUO 6B, WITH(ON BOARD DIAGNOSIS)

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
90910-12281

6ZRFAE..ZSA4#

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37010

6ZRFAE..ZSA4#

 1
Common parts
90119-C0098
90159-50048
91671-80612
93219-15008
Linked diagrams
1701
7751
8404
