ZSA42L-ANFXKC (2013)
Toyota Rav4 (China)
Production
Aug 2013
-
Jul 2016
Engine
6ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

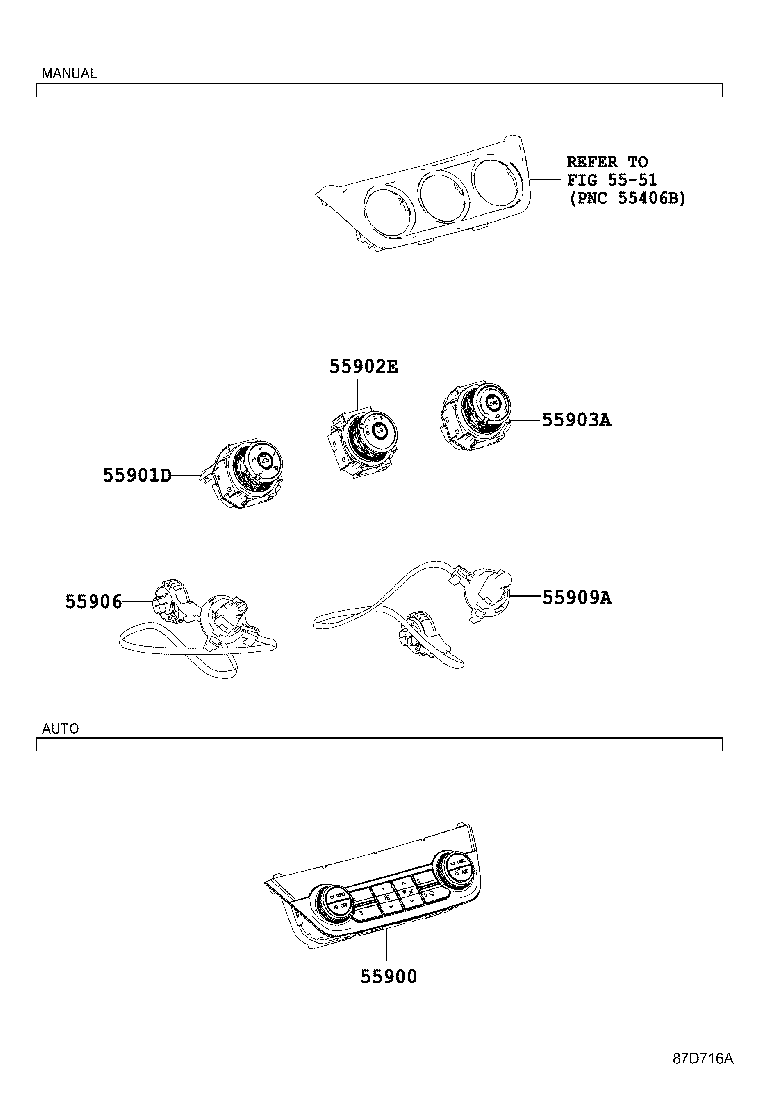

ILLUST NO. 1 OF 3(1308- )
Click highlighted areas on diagram
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0R090 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 55900-0R070 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 55901D - CONTROL SUB-ASSY, HEATER, NO.1 | ||||
| 55901-0R030 |
ZSA42..X |
1 | ||
| 55902E - CONTROL SUB-ASSY, HEATER, NO.2 | ||||
| 55902-0R050 |
ZSA42..X |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| 55903-0R040 |
ZSA42..X |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-0K010 |
ZSA42..X |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K010 |
ZSA42..X |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||

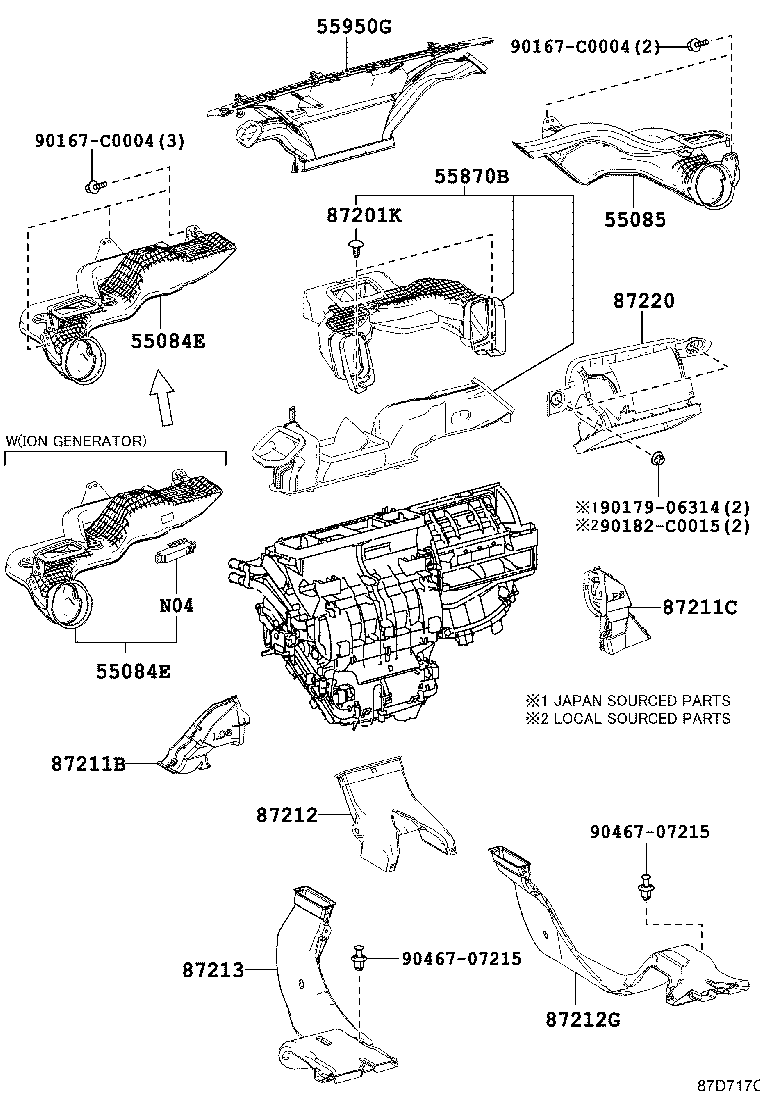

ILLUST NO. 2 OF 3(1308- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-0R030 |
ASA44,ZSA4#..M,X |
1 | ||
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-0R030 |
ASA44,ZSA4#..M,X |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-0R020 |
ASA44,ZSA4# |
1 | ||
| 55870B - DUCT ASSY, HEATER TO REGISTER | ||||
| 55870-0R040 |
ASA44,ZSA4# |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0R040 |
ASA44,ZSA4# |
1 | ||
| 55950-0R041 |
ASA44,ZSA4# |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05161C0 |
ASA44,ZSA4# BLACK |
2 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-0R070 |
ASA44,ZSA4# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-0R080 |
ASA44,ZSA4# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-0R020 |
ASA44,ZSA4# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-0R070 |
ASA44,ZSA4# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-0R060 |
ASA44,ZSA4# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-0R040 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90179-06314 | ||||
| 90182-C0015 | ||||
| 90467-07215 | ||||

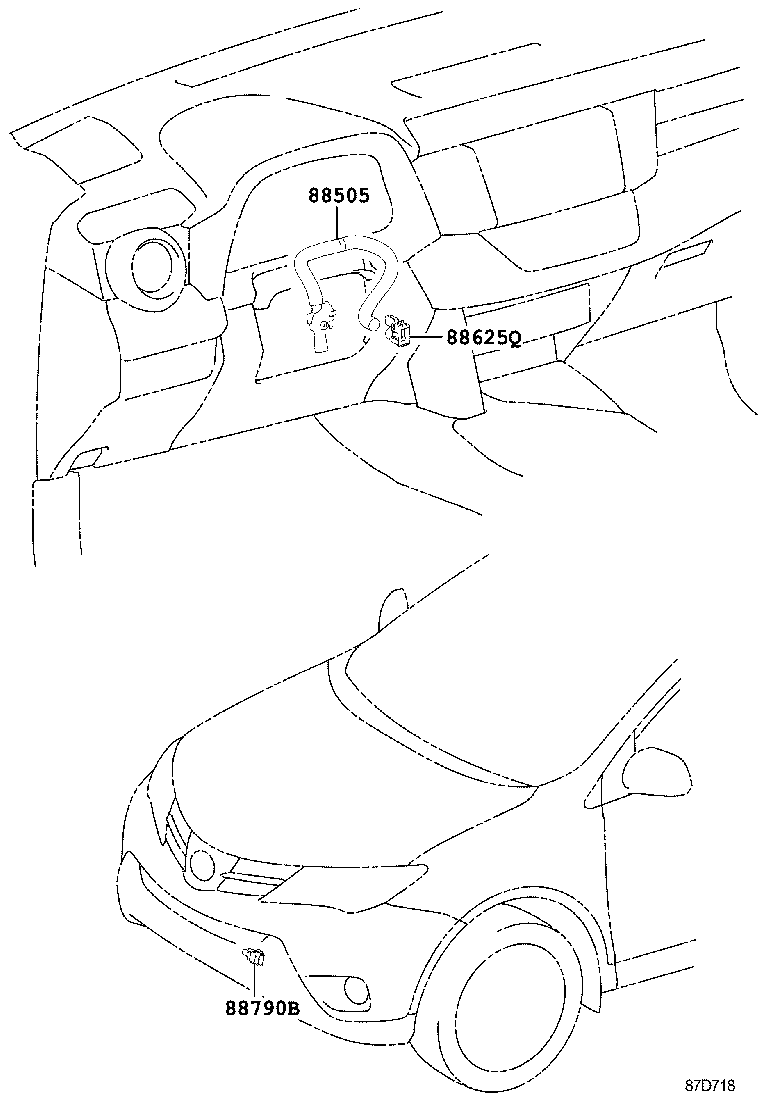

ILLUST NO. 3 OF 3(1308- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-0R020 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ASA44,ZSA4#..G,M,Q |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-0Q010 |
ASA44,ZSA4# |
1 | ||
| 88790-22131 |
ASA44,ZSA4# |
1 | ||
