ZSA42L-ANFXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)

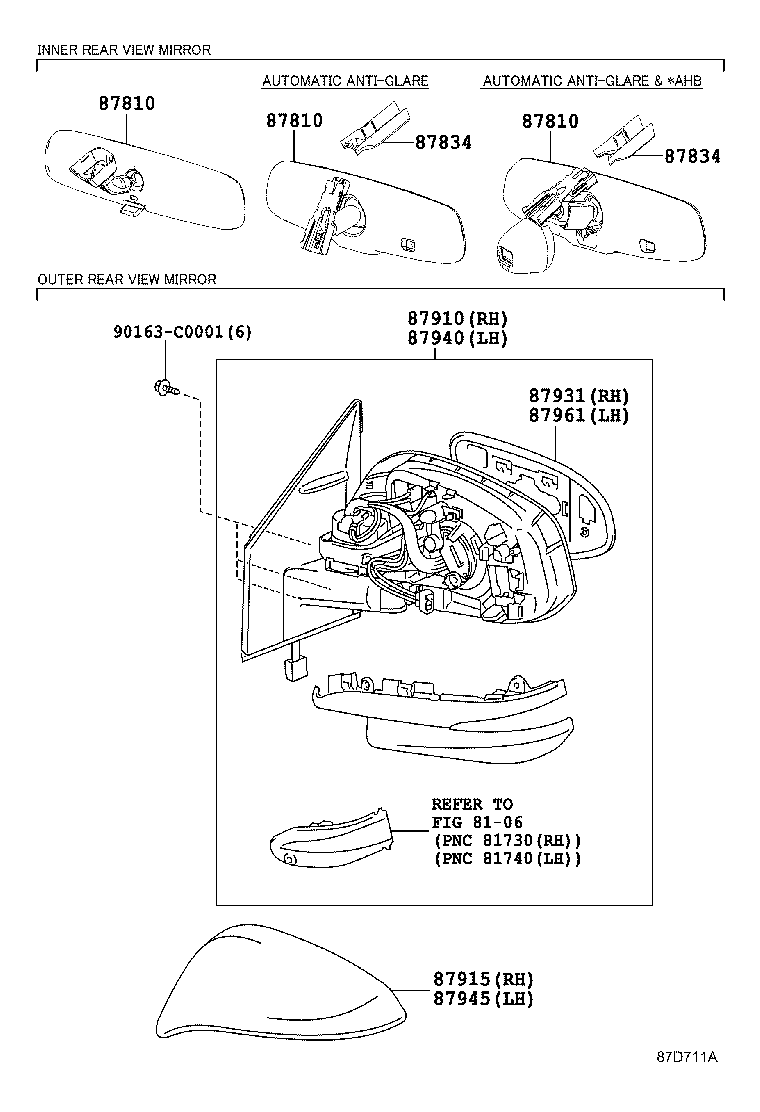

Click highlighted areas on diagram

diagram 8106 87810 87810 87810 87834 87834 87910 87915 87931 87940 87945 87961 90163C0001
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D070

ZSA4#..M,X

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D070

ZSA4#..M,X

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0D070

ZSA4#..M,X

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0R110

ASA44,ZSA4#..M,X

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-0R902

ASA44,ZSA4#

PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-0R110

ASA44,ZSA4#..M,X

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0R120

ASA44,ZSA4#..M,X

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-0R903

ASA44,ZSA4#

PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-0R120

ASA44,ZSA4#..M,X

 1
Common parts
90163-C0001
Linked diagrams
8106
