ZSA42L-ANFXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

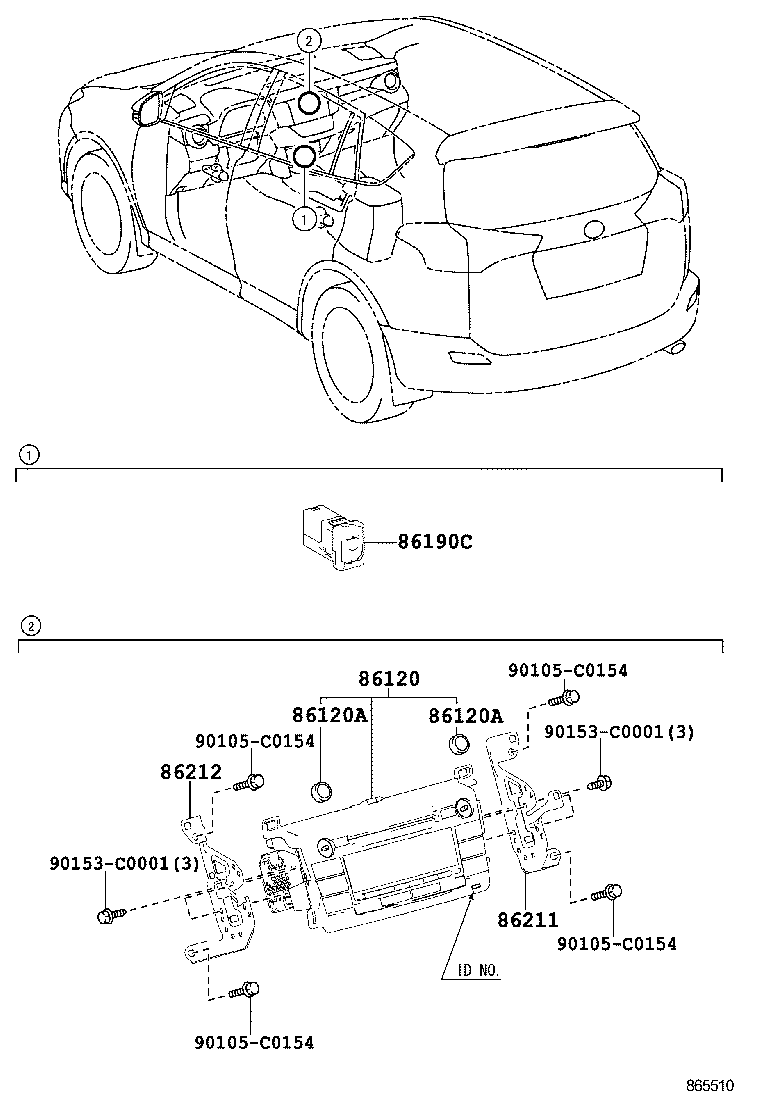

ILLUST NO. 1 OF 2(1308-1607)

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 86211 86212 90105C0154 90105C0154 90105C0154 90105C0154 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0R170

ZSA42..X

FUJITSU TEN,ID100572

 1
86120-0R140

ZSA42..X

FUJITSU TEN,ID100188

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24518

ZSA42..X

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24518

ZSA42..X

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0R020

ASA44,ZSA4#

 1
86211 - BRACKET, RADIO, NO.1
86211-0R070

ASA44,ZSA4#

 1
86212 - BRACKET, RADIO, NO.2
86212-0R070

ASA44,ZSA4#

 1
Common parts
90105-C0154
90153-C0001

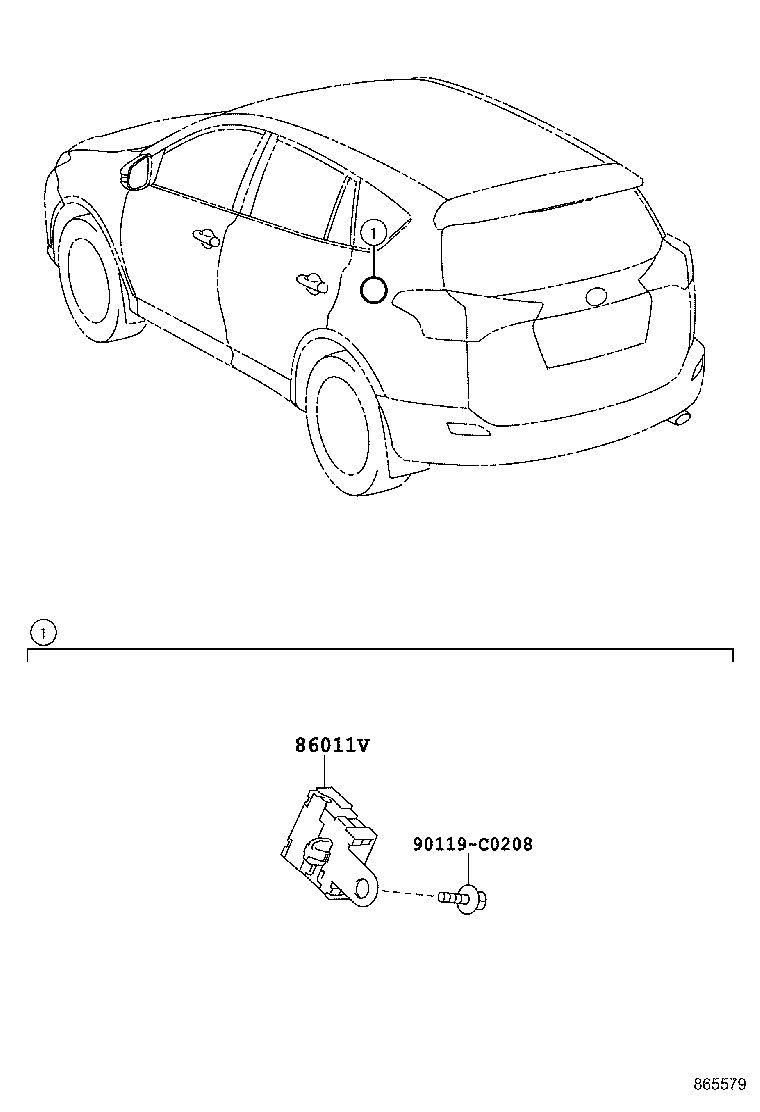

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

CONDENSER

diagram 86011V 90119C0208
Part # Description Qty Price
86011V - CONDENSER, RADIO SETTING
90980-04189

ASA44,ZSA4#

 1
Common parts
90119-C0208
