ZSA42L-ANFXKC (2013)
Toyota Rav4 (China)
(1308- )

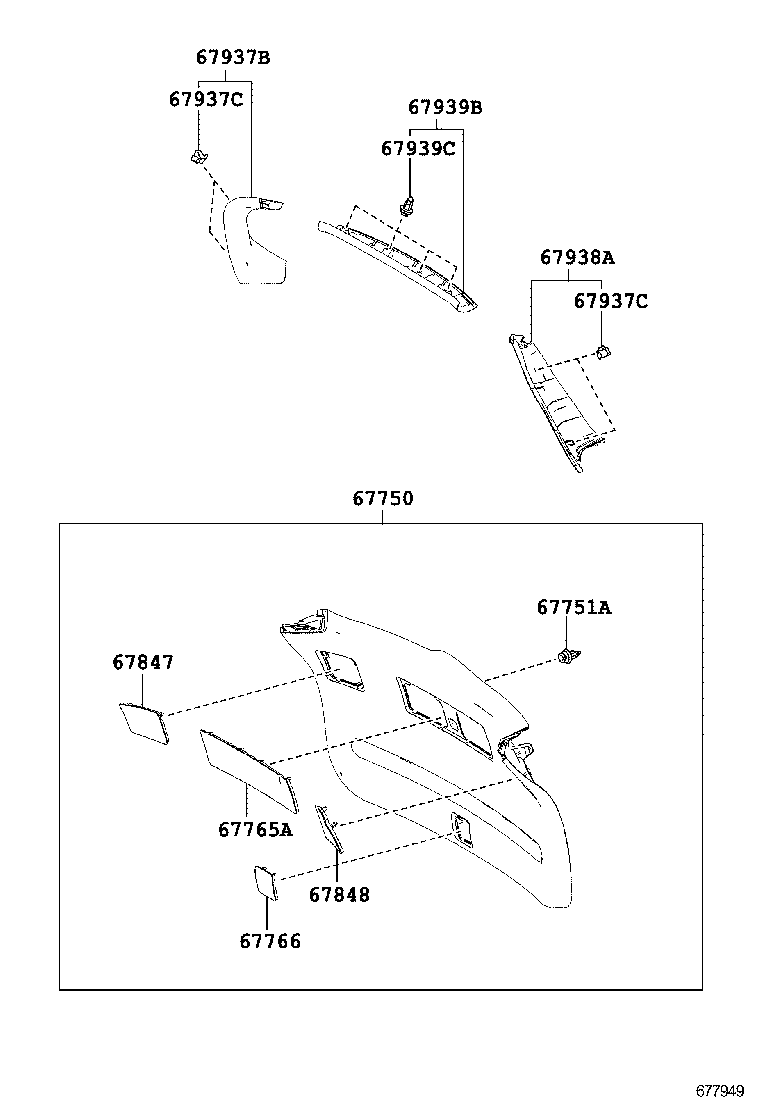

DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-10161 |
ASA44,ZSA4# |
13 | ||
| 90467-C0036 |
ASA44,ZSA4# |
13 | ||
| 67765A - COVER, BACK DOOR SERVICE HOLE, NO.1 | ||||
| 67765-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67766 - COVER, BACK DOOR SERVICE HOLE, NO.2 | ||||
| 67766-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
ASA44,ZSA4# |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 67771-58010 |
ASA44,ZSA4# |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-0R050C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
ASA44,ZSA4# |
4 | ||
| 90467-C0036 |
ASA44,ZSA4# |
4 | ||
(1308- )

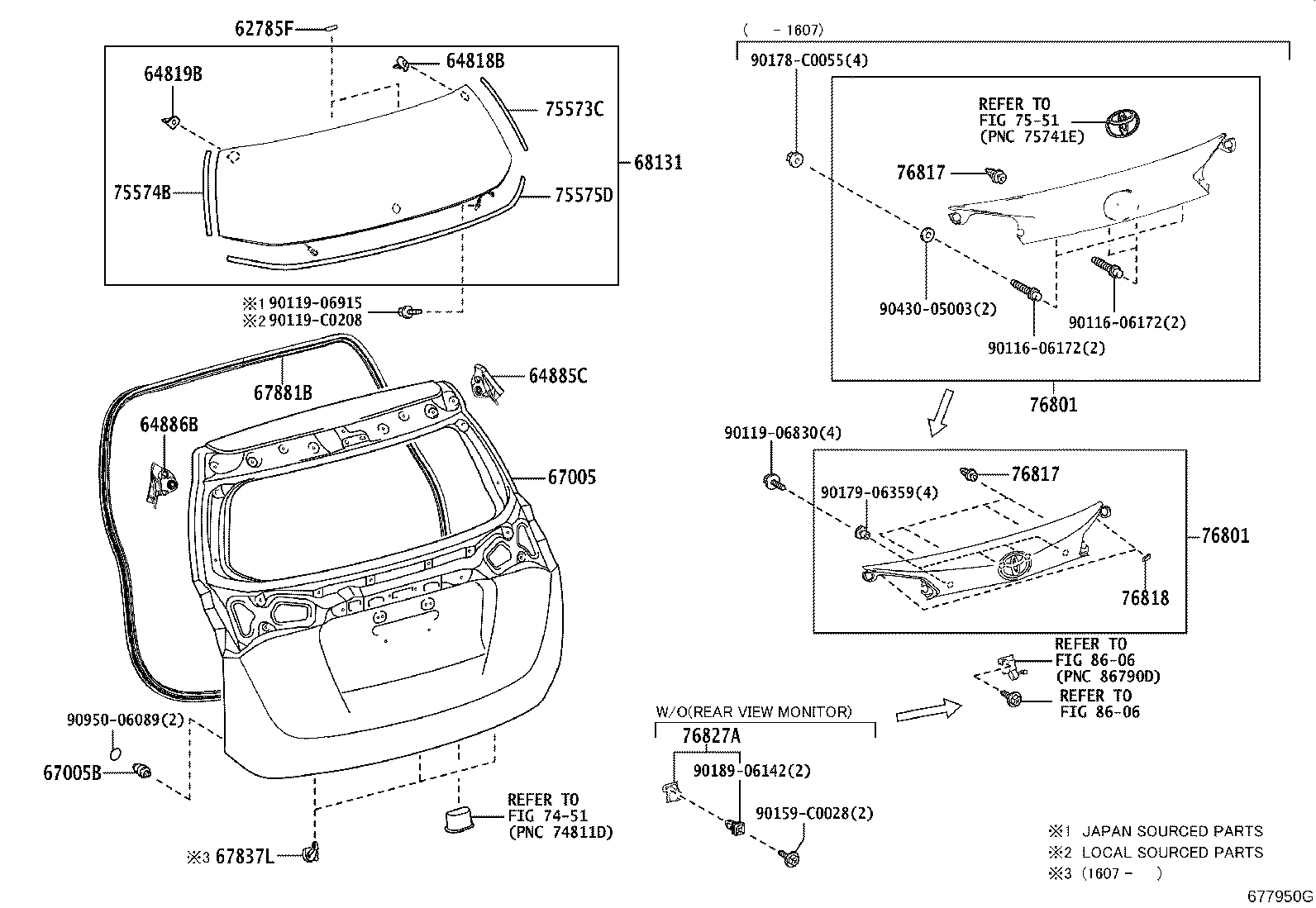

DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62785F - SPACER, BACK DOOR GLASS | ||||
| 62785-0R020 |
ASA44,ZSA4# |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-0R040 |
ASA44,ZSA4# |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-0R040 |
ASA44,ZSA4# |
1 | ||
| 64885C - CHANNEL, BACK DOOR GLASS, RH | ||||
| 64885-0R020 |
ASA44,ZSA4# |
1 | ||
| 64886B - CHANNEL, BACK DOOR GLASS, LH | ||||
| 64886-0R020 |
ASA44,ZSA4# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-0R160 |
ZSA44;ASA44,ZSA42..M |
1 | ||
| 67005-0R150 |
ZSA42..X |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09142 |
ASA44,ZSA4# |
2 | ||
| 67881B - WEATHERSTRIP, BACK DOOR, UPPER RH | ||||
| 67881-0R040 |
ASA44,ZSA4# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-0R080 |
ASA44,ZSA4#..G,M,Q GLASS MARK=FUYAO |
1 | ||
| 68105-0R100 |
ASA44,ZSA4#..G,M,Q GLASS MARK=ASAHI |
1 | ||
| 68105-0R090 |
ZSA42..X GLASS MARK=ASAHI |
1 | ||
| 68105-0R070 |
ZSA42..X GLASS MARK=FUYAO |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-0R040 |
ASA44,ZSA4# |
1 | ||
| 75574B - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75574-0R050 |
ASA44,ZSA4# |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-0R040 |
ASA44,ZSA4# |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-0R040A0 |
ASA44,ZSA4#..G,M,Q SUPER WHITE 2,040 |
1 | ||
| 76801-0R030B0 |
ZSA42..X SILVER ME.,1F7 |
1 | ||
| 76801-0R030E0 |
ZSA42..X ORANGE ME.,4R8 |
1 | ||
| 76801-0R040D0 |
ASA44,ZSA4#..G,M,Q RED M.M.,3R3 |
1 | ||
| 76801-0R040B0 |
ASA44,ZSA4#..G,M,Q SILVER ME.,1F7 |
1 | ||
| 76801-0R040A1 |
ASA44,ZSA4#..G,M,Q WHITE PEARL CS.,070 |
1 | ||
| 76801-0R030C0 |
ZSA42..X BLACK MC.,209 |
1 | ||
| 76801-0R030E2 |
ZSA42..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-0R030A0 |
ZSA42..X SUPER WHITE 2,040 |
1 | ||
| 76801-0R040C0 |
ASA44,ZSA4#..G,M,Q BLACK MC.,209 |
1 | ||
| 76801-0R040E0 |
ASA44,ZSA4#..G,M,Q ORANGE ME.,4R8 |
1 | ||
| 76801-0R030A1 |
ZSA42..X WHITE PEARL CS.,070 |
1 | ||
| 76801-0R040E1 |
ASA44,ZSA4#..G,M,Q DK. BROWN M.M.,4U3 |
1 | ||
| 76801-0R030D0 |
ZSA42..X RED M.M.,3R3 |
1 | ||
| 76801-0R040E2 |
ASA44,ZSA4#..G,M,Q AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-0R030E1 |
ZSA42..X DK. BROWN M.M.,4U3 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-0R040A0 |
ASA44,ZSA4#..G,M,Q SUPER WHITE 2,040 |
1 | ||
| 76801-0R030B0 |
ZSA42..X SILVER ME.,1F7 |
1 | ||
| 76801-0R030E0 |
ZSA42..X ORANGE ME.,4R8 |
1 | ||
| 76801-0R040D0 |
ASA44,ZSA4#..G,M,Q RED M.M.,3R3 |
1 | ||
| 76801-0R040B0 |
ASA44,ZSA4#..G,M,Q SILVER ME.,1F7 |
1 | ||
| 76801-0R040A1 |
ASA44,ZSA4#..G,M,Q WHITE PEARL CS.,070 |
1 | ||
| 76801-0R030C0 |
ZSA42..X BLACK MC.,209 |
1 | ||
| 76801-0R030E2 |
ZSA42..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-0R030A0 |
ZSA42..X SUPER WHITE 2,040 |
1 | ||
| 76801-0R040C0 |
ASA44,ZSA4#..G,M,Q BLACK MC.,209 |
1 | ||
| 76801-0R040E0 |
ASA44,ZSA4#..G,M,Q ORANGE ME.,4R8 |
1 | ||
| 76801-0R030A1 |
ZSA42..X WHITE PEARL CS.,070 |
1 | ||
| 76801-0R040E1 |
ASA44,ZSA4#..G,M,Q DK. BROWN M.M.,4U3 |
1 | ||
| 76801-0R030D0 |
ZSA42..X RED M.M.,3R3 |
1 | ||
| 76801-0R040E2 |
ASA44,ZSA4#..G,M,Q AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 76801-0R030E1 |
ZSA42..X DK. BROWN M.M.,4U3 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ASA44,ZSA4# |
4 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ASA44,ZSA4# |
4 | ||
| Common parts | ||||
| 90116-06172 | ||||
| 90119-06830 | ||||
| 90119-06915 | ||||
| 90119-C0208 | ||||
| 90159-C0028 | ||||
| 90178-C0055 | ||||
| 90179-06359 | ||||
| 90189-06142 | ||||
| 90430-05003 | ||||
| 90950-06089 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7551 | ||||
| 8606 | ||||
