ZSA42L-ANFXKC (2013)
Toyota Rav4 (China)
Production
Aug 2013
-
Jul 2016
Engine
6ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

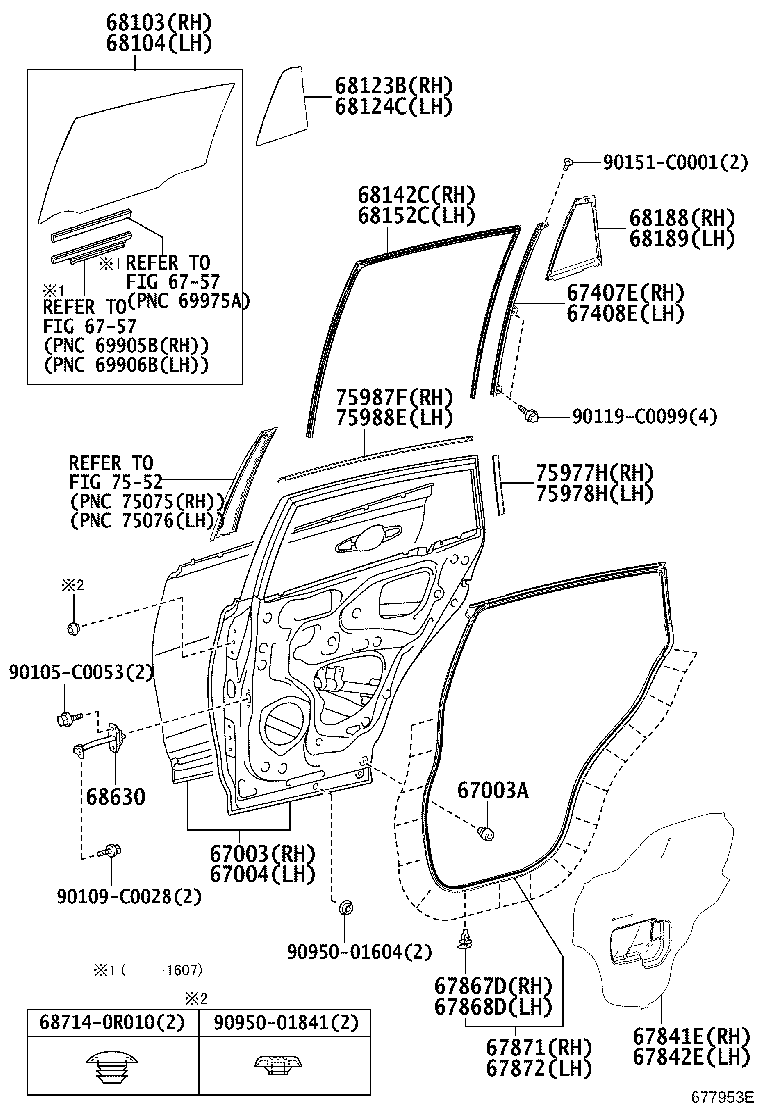

ILLUST NO. 1 OF 2(1308- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0R100 |
ASA44,ZSA4# |
1 | ||
| 67003A - PLUG, HOLE(FOR REAR DOOR PANEL) | ||||
| 90541-09137 |
ASA44,ZSA4# |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0R100 |
ASA44,ZSA4# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-0R040 |
ASA44,ZSA4# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-0R040 |
ASA44,ZSA4# |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0R040 |
ASA44,ZSA4# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0R040 |
ASA44,ZSA4# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ASA44,ZSA4# |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ASA44,ZSA4# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0R040 |
ASA44,ZSA4# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0R040 |
ASA44,ZSA4# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-0R060 |
ASA44,ZSA4# |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-0R060 |
ASA44,ZSA4# |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0R060 |
ASA44,ZSA4# |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0R060 |
ASA44,ZSA4# |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0R040 |
ASA44,ZSA4# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0R040 |
ASA44,ZSA4# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0R040 |
ASA44,ZSA4# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0R040 |
ASA44,ZSA4# |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-0R040 |
ASA44,ZSA4# |
2 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-0R040 |
ASA44,ZSA4# |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-0R040 |
ASA44,ZSA4# |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-0R060 |
ASA44,ZSA4# |
1 | ||
| 75988E - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-0R060 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 68714-0R010 | ||||
| 90105-C0053 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90151-C0001 | ||||
| 90950-01604 | ||||
| 90950-01841 | ||||
| Linked diagrams | ||||
| 6757 | ||||
| 7552 | ||||

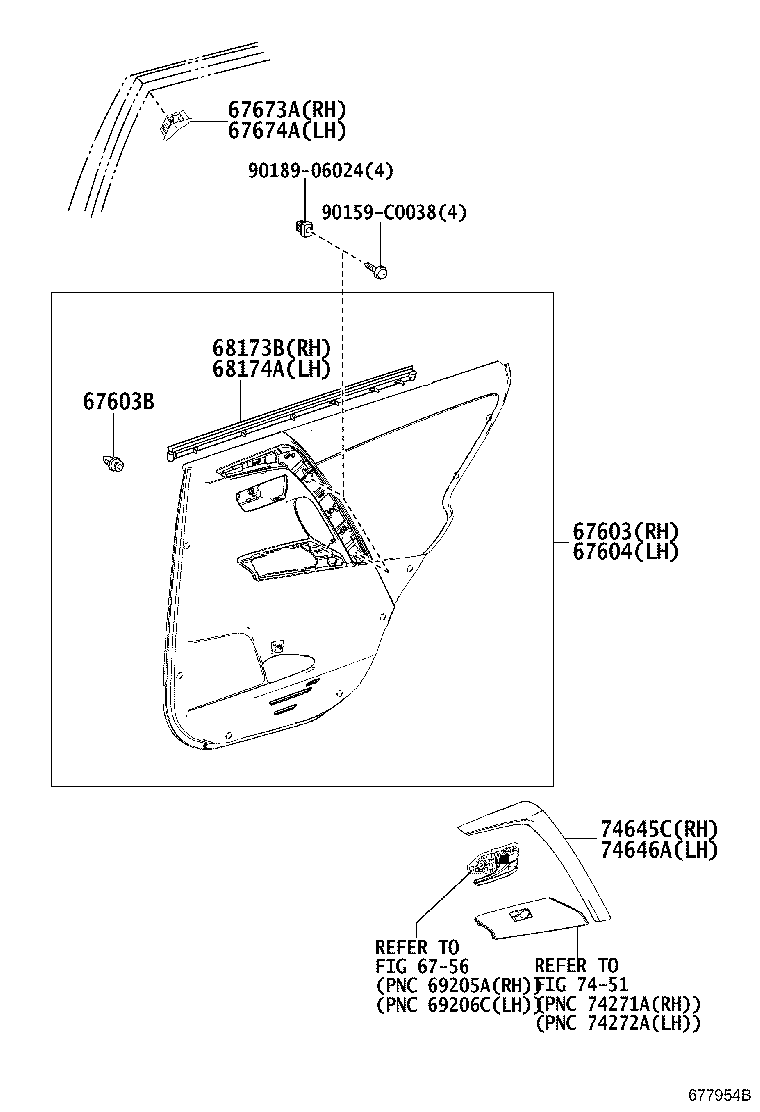

ILLUST NO. 2 OF 2(1308- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0R090C2 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 67630-0R090C0 |
ZSA4#..M,X BLACK,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ASA44,ZSA4# |
16 | ||
| 90467-C0033 |
ASA44,ZSA4# |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0R090C0 |
ZSA4#..M,X BLACK,TRIM4# |
1 | ||
| 67640-0R090C2 |
ZSA4#..M,X BLACK,TRIM2# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0R010 |
ASA44,ZSA4# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0R010 |
ASA44,ZSA4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0R040 |
ASA44,ZSA4# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0R040 |
ASA44,ZSA4# |
1 | ||
| 74645C - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-0R040 |
ASA44,ZSA4# |
1 | ||
| 74646A - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-0R040 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90159-C0038 | ||||
| 90189-06024 | ||||
| Linked diagrams | ||||
| 6756 | ||||
| 7451 | ||||
