ZSA42L-ANFXKC (2013)
Toyota Rav4 (China)

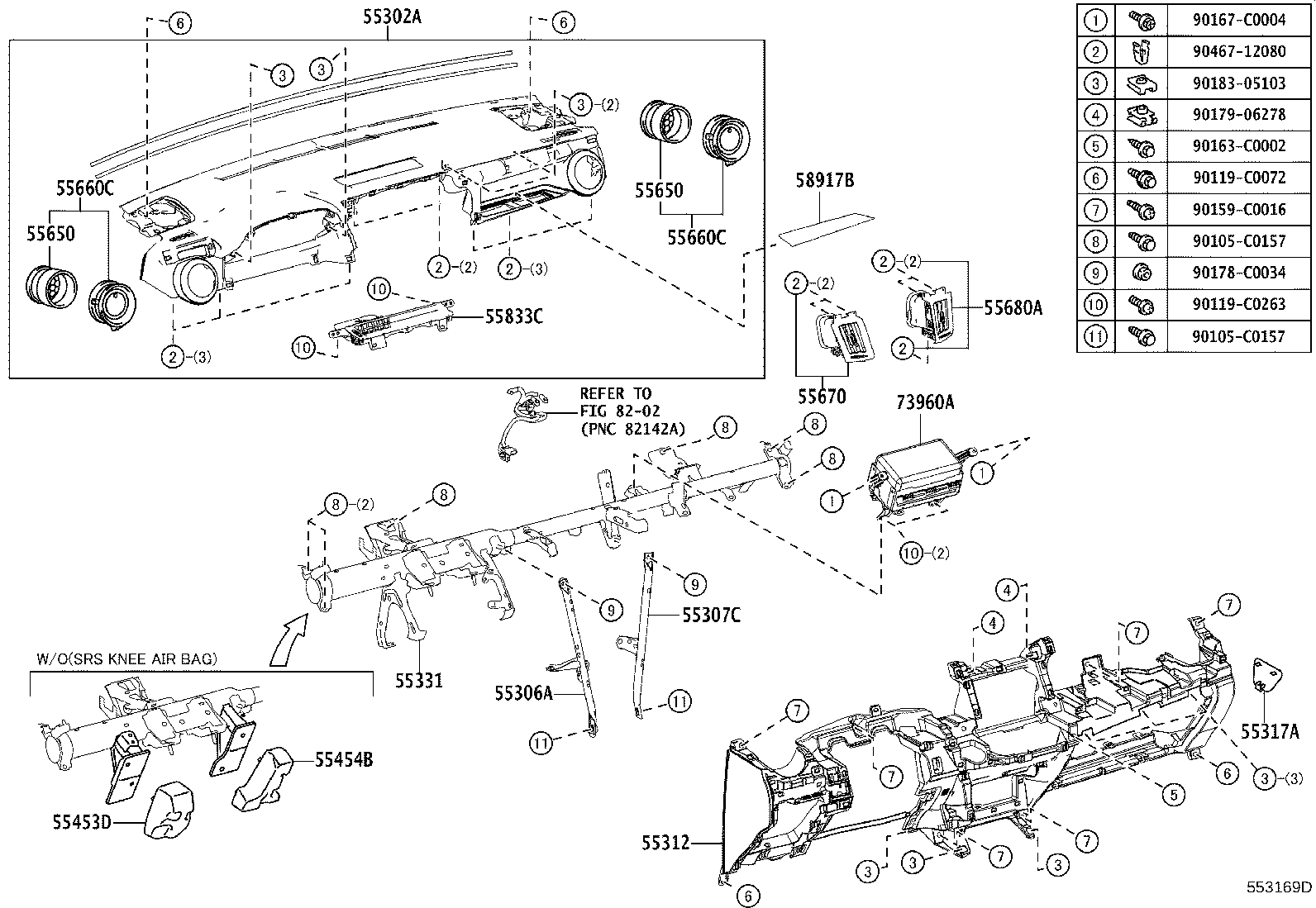

ILLUST NO. 1 OF 2(1308-1607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55302-0R041C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0R050 |
ZSA4#..M,X |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-0R020 |
ASA44,ZSA4# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55312-0R041C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0R060 |
ZSA4#..M,X |
1 | ||
| 55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55453-0R030 |
ZSA4#..M,X |
1 | ||
| 55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55454-0R030 |
ZSA4#..M,X |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
2 | ||
| 55660C - REGISTER ASSY, INSTRUMENT PANEL | ||||
| 55660-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
2 | ||
| 55660C - REGISTER ASSY, INSTRUMENT PANEL | ||||
| 55660-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0R050 |
ASA44,ZSA4#..M,X |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0R030 |
ASA44,ZSA4#..M,X |
1 | ||
| 55833C - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 58917B - MAT, BOX BOTTOM | ||||
| 58917-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0R050 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90105-C0157 | ||||
| 90119-C0072 | ||||
| 90119-C0263 | ||||
| 90159-C0016 | ||||
| 90163-C0002 | ||||
| 90167-C0004 | ||||
| 90178-C0034 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 8202 | ||||

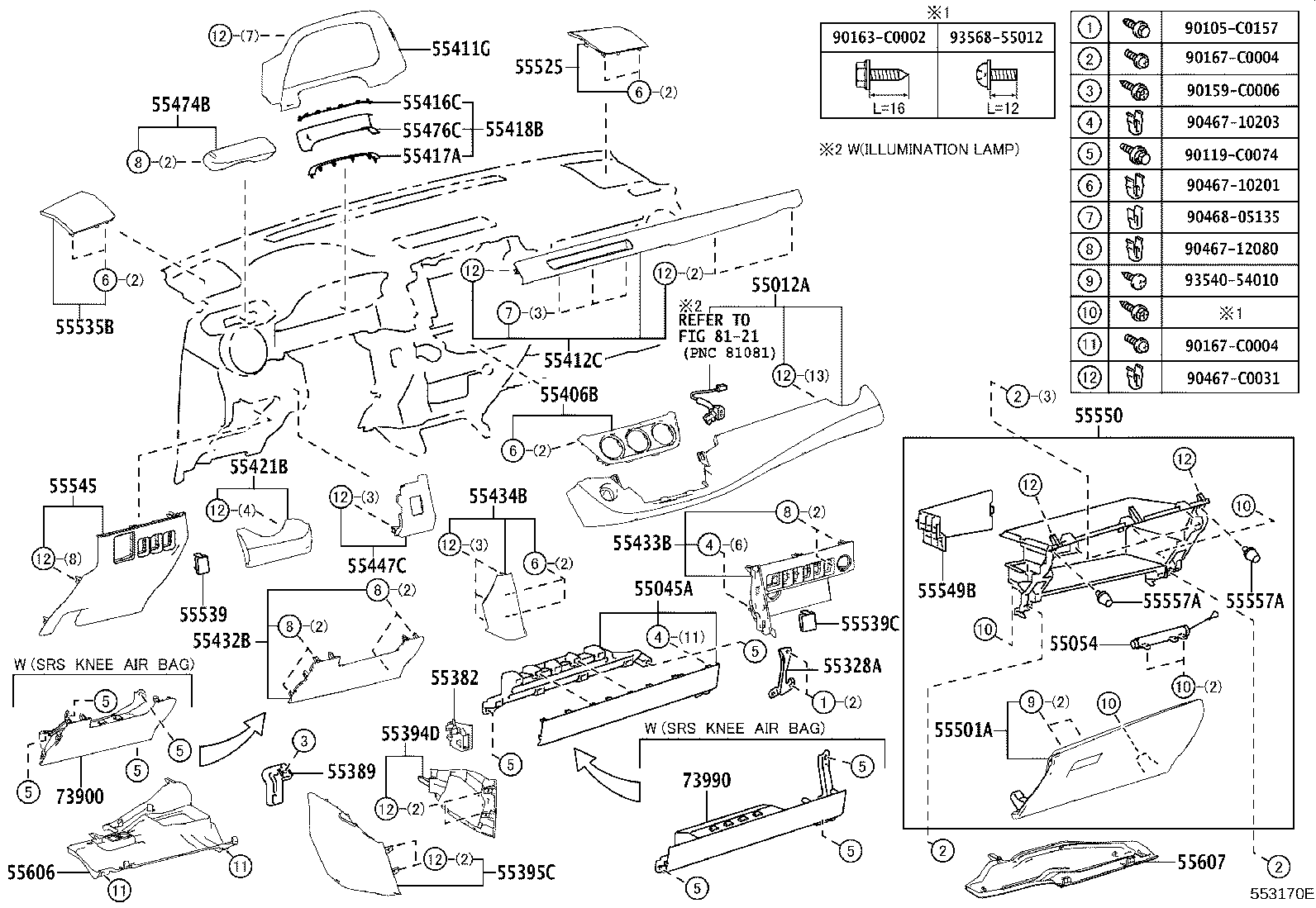

ILLUST NO. 2 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-0R040A0 |
ZSA42..X BEIGE,TRIM4# |
1 | ||
| 55012-0R051C0 |
ZSA4#..M BLACK,TRIM2# |
1 | ||
| 55012-0R041C0 |
ZSA42..X BLACK,TRIM2# |
1 | ||
| 55012-0R050C0 |
ZSA4#..M BLACK,TRIM2# |
1 | ||
| 55012-0R040C0 |
ZSA42..X BLACK,TRIM2# |
1 | ||
| 55012-0R050A0 |
ZSA4#..M BEIGE,TRIM4# |
1 | ||
| 55012-0R051A0 |
ZSA4#..M BEIGE,TRIM4# |
1 | ||
| 55012-0R041A0 |
ZSA42..X BEIGE,TRIM4# |
1 | ||
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0R011C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55045-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-0R010 |
ASA44,ZSA4# |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-0R080 |
ASA44,ZSA4# |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-02120 |
ASA44,ZSA4# |
1 | ||
| 55389 - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-0R020 |
ASA44,ZSA4# |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-0R020 |
ZSA42..X |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-0R041 |
ASA44,ZSA4# |
1 | ||
| 55411-0R040 |
ASA44,ZSA4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-0R050 |
ASA44,ZSA4# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-0R040 |
ASA44,ZSA4# |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-0R040 |
ASA44,ZSA4# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-0R020 |
ASA44,ZSA4# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-0R030A0 |
ZSA42..X BEIGE,TRIM4# |
1 | ||
| 55421-0R030C0 |
ZSA42..X BLACK,TRIM2# |
1 | ||
| 55421-0R040C0 |
ASA44,ZSA4#..G,M,Q BLACK,TRIM2# |
1 | ||
| 55421-0R040A0 |
ASA44,ZSA4#..G,M,Q BEIGE,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0R030C0 |
ZSA42..X BLACK,TRIM2#,4# |
1 | ||
| 55433-0R020C0 |
ZSA4#..M BLACK,TRIM2#,4# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0R020 |
ASA44,ZSA4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-0R020C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-0R020 |
ASA44,ZSA4# |
1 | ||
| 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE | ||||
| 55476-0R040 |
ASA44,ZSA4# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-0R010C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-0R020C0 |
ZSA4#..M BLACK,TRIM2#,4# |
1 | ||
| 55510-0R020C0 |
ZSA42..X BLACK,TRIM2#,4# |
1 | ||
| 55535B - COVER, SPEAKER HOLE, NO.2 | ||||
| 55530-0R020C0 |
ZSA42..X BLACK,TRIM2#,4# |
1 | ||
| 55535-0R020C0 |
ZSA4#..M BLACK,TRIM2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0R030C0 |
ZSA42..6F BLACK,TRIM2#,4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-0R030 |
ASA44,ZSA4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0R040C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55550-0R041C0 |
ZSA4#..M,X BLACK,TRIM2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASA44,ZSA4# |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ASA44,ZSA4# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0R040 |
ASA44,ZSA4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0R041 |
ASA44,ZSA4# |
1 | ||
| 55607-0R040 |
ASA44,ZSA4# |
1 | ||
| Common parts | ||||
| 90105-C0157 | ||||
| 90119-C0074 | ||||
| 90159-C0006 | ||||
| 90163-C0002 | ||||
| 90167-C0004 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-C0031 | ||||
| 90468-05135 | ||||
| 93540-54010 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
