ZSA42L-ANFXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)

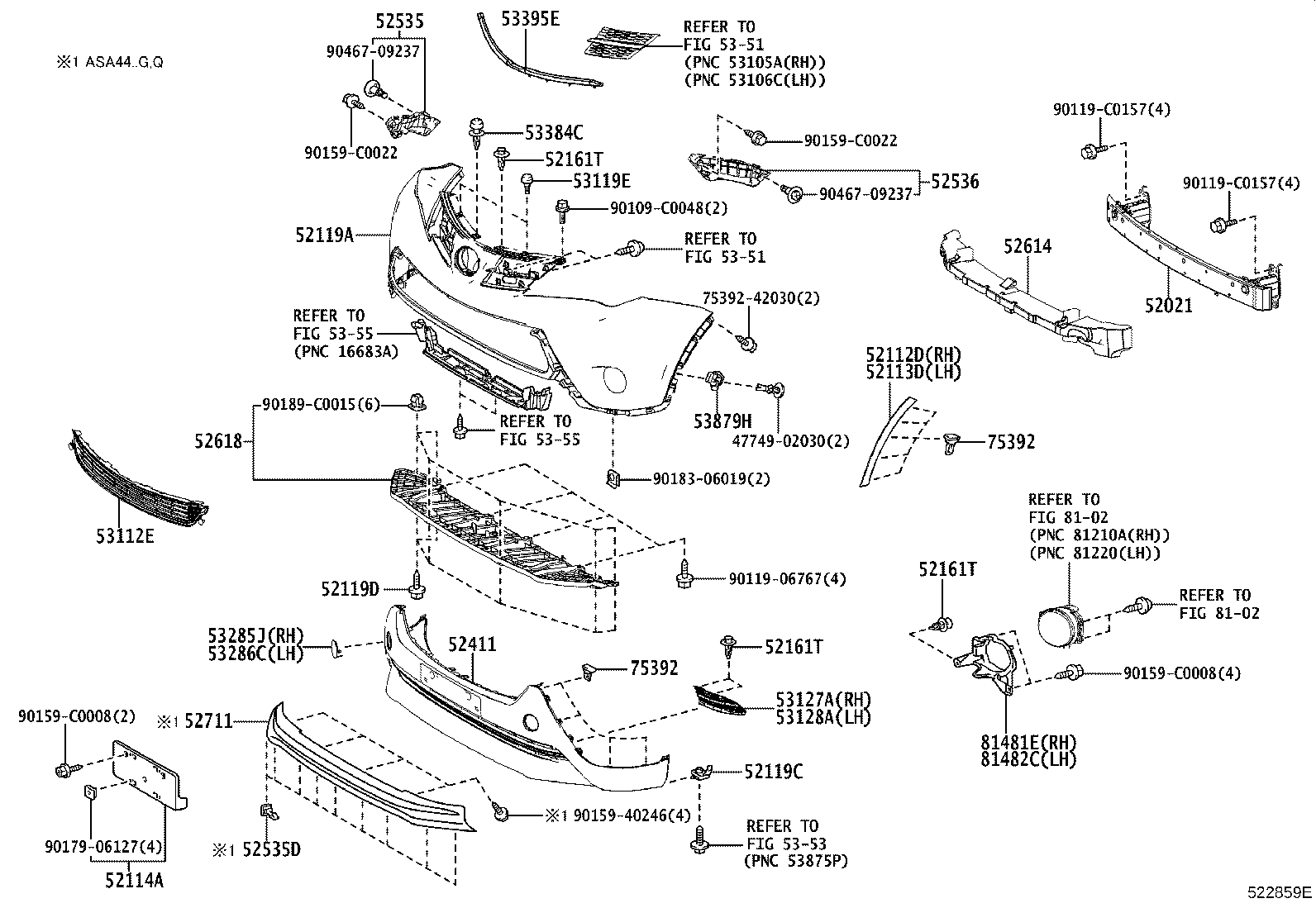

Click highlighted areas on diagram

diagram 4774902030 52021 52112D 52113D 52114A 52119A 52119C 52119D 52161T 52161T 52161T 52411 52535 52535D 52536 52614 52618 52711 53112E 53119E 53127A 53128A 53285J 53286C 53384C 53395E 5351 5351 5353 5355 5355 53879H 75392 75392 7539242030 8102 8102 81481E 81482C 90109C0048 9011906767 90119C0157 90119C0157 9015940246 90159C0008 90159C0008 90159C0022 90159C0022 9017906127 9018306019 90189C0015 9046709237 9046709237
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0R060

ASA44,ZSA4#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-0R040

ASA44,ZSA4#

NO PAINT REQ.

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-0R040

ASA44,ZSA4#

NO PAINT REQ.

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-0R080

ASA44,ZSA4#

 1
52119A - COVER, FRONT BUMPER
52119-0R912

ZSA4#

PAINT REQ.

 1
52119C - CLIP, FRONT BUMPER COVER
90467-05114

ASA44,ZSA4#

 2
52119D - SCREW, NO.1
90159-C0027

ASA44,ZSA4#

 6
52161T - PIECE, FRONT BUMPER
52161-02040

ASA44,ZSA4#

 7
52161T - PIECE, FRONT BUMPER
52161-02040

ASA44,ZSA4#

 7
52161T - PIECE, FRONT BUMPER
52161-02040

ASA44,ZSA4#

 7
52411 - GUARD, FRONT BUMPER
52411-0R030

ZSA44;ASA44,ZSA42..M,X

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0R050

ASA44,ZSA4#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0R040

ASA44,ZSA4#

 1
52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2
52614-0R050

ASA44,ZSA4#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0R020

ASA44,ZSA4#

 1
52618-0R010

ASA44,ZSA4#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0R050

ASA44,ZSA4#

NO PAINT REQ.

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-12150

ASA44,ZSA4#

 2
53127A - GRILLE, RADIATOR, LOWER RH
53127-0R030

ASA44,ZSA4#

 1
53128A - GRILLE, RADIATOR, LOWER LH
53128-0R030

ASA44,ZSA4#

 1
53285J - COVER, FRONT BUMPER ARM HOLE, RH
53285-0R060

ASA44,ZSA4#

 1
53286C - COVER, FRONT BUMPER ARM HOLE, LH
53286-0R060

ASA44,ZSA4#

 1
53384C - CUSHION, HOOD, CENTER
53384-68010

ASA44,ZSA4#

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-0R050

ASA44,ZSA4#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-02060

ASA44,ZSA4#

 2
53879-58010

ASA44,ZSA4#

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

ASA44,ZSA4#

 18
75392-0R030

ASA44,ZSA4#

 18
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

ASA44,ZSA4#

 18
75392-0R030

ASA44,ZSA4#

 18
81481E - COVER, FOG LAMP, RH
52127-0R090

ASA44,ZSA4#

 1
81482C - COVER, FOG LAMP, LH
52128-0R090

ASA44,ZSA4#

 1
Common parts
47749-02030
75392-42030
90109-C0048
90119-06767
90119-C0157
90159-40246
90159-C0008
90159-C0022
90179-06127
90183-06019
90189-C0015
90467-09237
Linked diagrams
5351
5353
5355
8102
