ZSA42L-ANFXKC (2013)

Toyota Rav4 (China)

Production Aug 2013 - Jul 2016
Engine 6ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1607)6ZRFE

Click highlighted areas on diagram

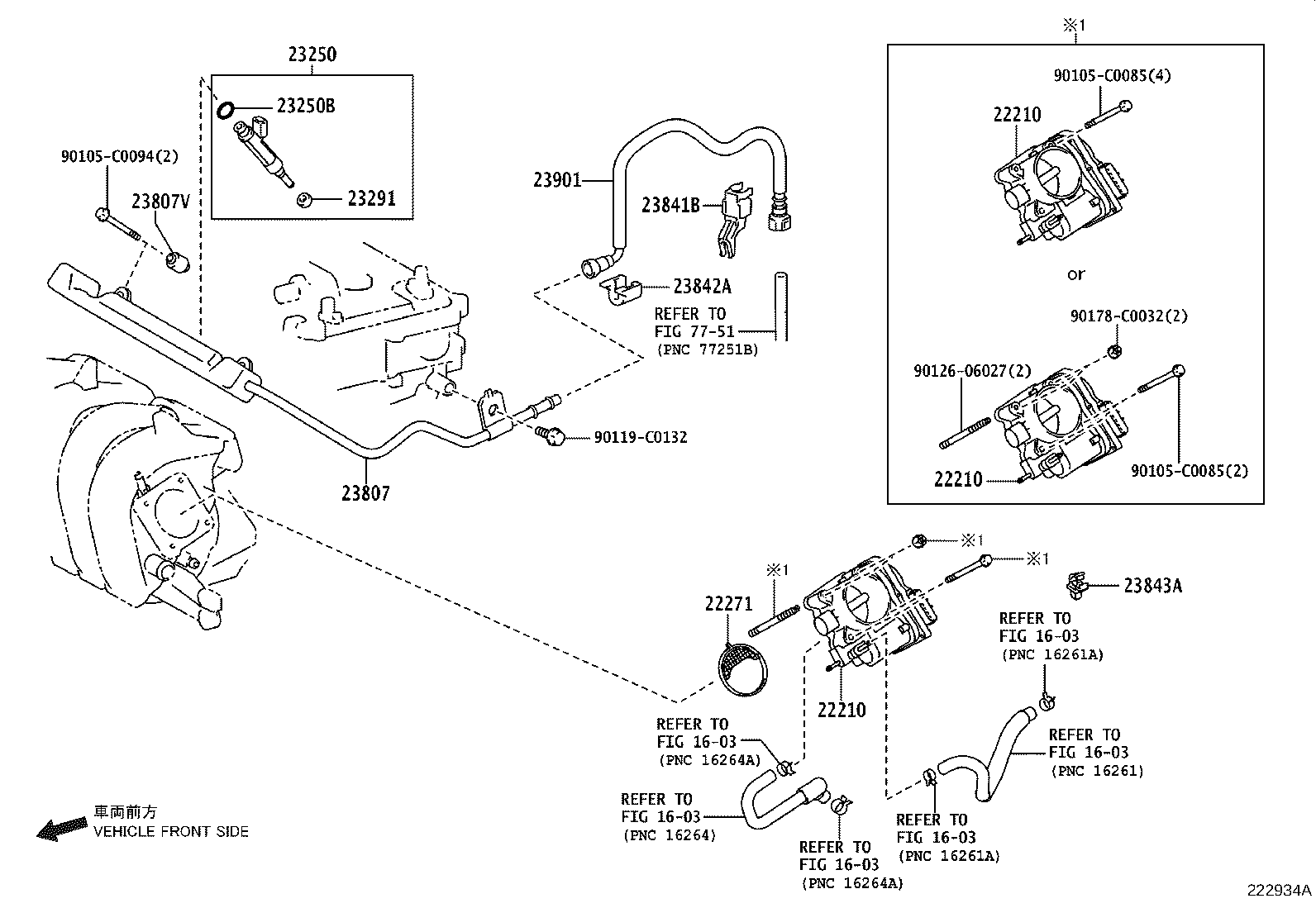

diagram 1603 1603 1603 1603 1603 1603 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23843A 23901 7751 90105C0085 90105C0085 90105C0094 90119C0132 9012606027 90178C0032
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-0T100

6ZRFE..ZSA4#

 1
22210 - BODY ASSY, THROTTLE
22030-0T100

6ZRFE..ZSA4#

 1
22210 - BODY ASSY, THROTTLE
22030-0T100

6ZRFE..ZSA4#

 1
22271 - GASKET, THROTTLE BODY
22271-0T010

6ZRFE..ZSA4#

 1
23250 - INJECTOR ASSY, FUEL
23209-09120

6ZRFE..ZSA4#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

6ZRFE..ZSA4#

 4
90301-07037

6ZRFE..ZSA4#

(J)

 4
90301-C0072

6ZRFE..ZSA4#

(L)

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0P020

6ZRFE..ZSA4#

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

6ZRFE..ZSA4#

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

6ZRFE..ZSA4#

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0V020

6ZRFE..ZSA4#

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0H030

6ZRFE..ZSA4#

 1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-0V010

6ZRFE..ZSA4#

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0T130

6ZRFE..ZSA4#

 1
Common parts
90105-C0085
90105-C0094
90119-C0132
90126-06027
90178-C0032
Linked diagrams
1603
7751
