MXAA54L-SNXMBC (2019)
Toyota Rav4 (China)
ILLUST NO. 1 OF11(1911- )MXAA5#

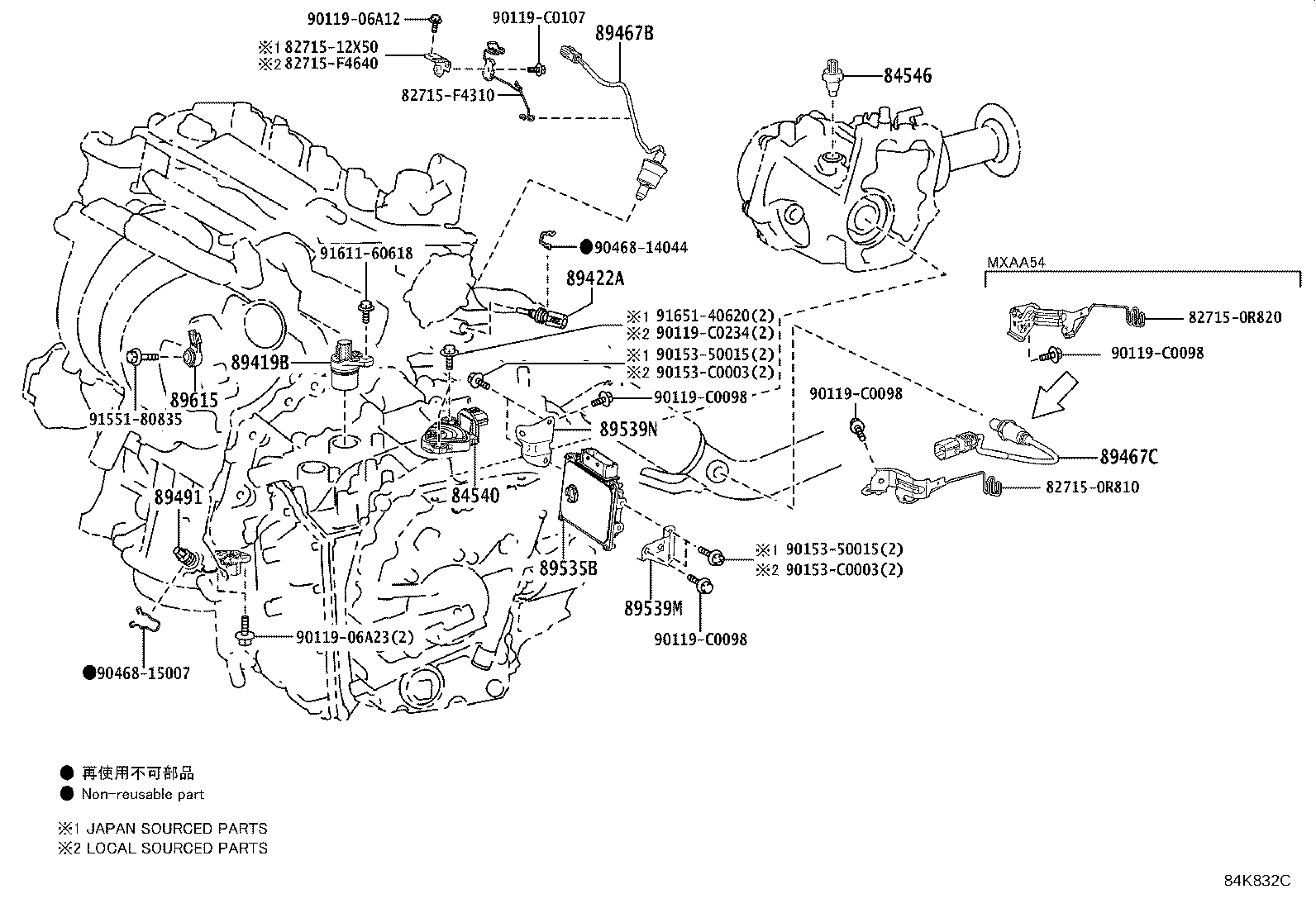

ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12240 |
MXAA5# |
1 | ||
| 89419B - SENSOR, SHIFT STROKE | ||||
| 89419-12011 |
MXAA5# (J) |
1 | ||
| 89419-0E010 |
MXAA5# (L) |
1 | ||
| 89419-12011 |
MXAA5# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
MXAA5# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-F4010 |
MXAA5# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0R120 |
AXAH5#,MXAA5# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-06010 |
MXAA5# |
1 | ||
| 89535B - COMPUTER, TRANSMISSION CONTROL | ||||
| 89535-0R020 |
MXAA54 |
1 | ||
| 89535-42170 |
MXAA54 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-0R010 |
MXAA5# |
1 | ||
| 89539-42080 |
MXAA5# |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-42090 |
MXAA5# |
1 | ||
| 89539-0R020 |
MXAA5# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 82715-0R810 | ||||
| 82715-0R820 | ||||
| 82715-12X50 | ||||
| 82715-F4310 | ||||
| 82715-F4640 | ||||
| 90119-06A12 | ||||
| 90119-06A23 | ||||
| 90119-C0098 | ||||
| 90119-C0107 | ||||
| 90119-C0234 | ||||
| 90153-50015 | ||||
| 90153-C0003 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80835 | ||||
| 91611-60618 | ||||
| 91651-40620 | ||||
ILLUST NO. 2 OF11(1911- )

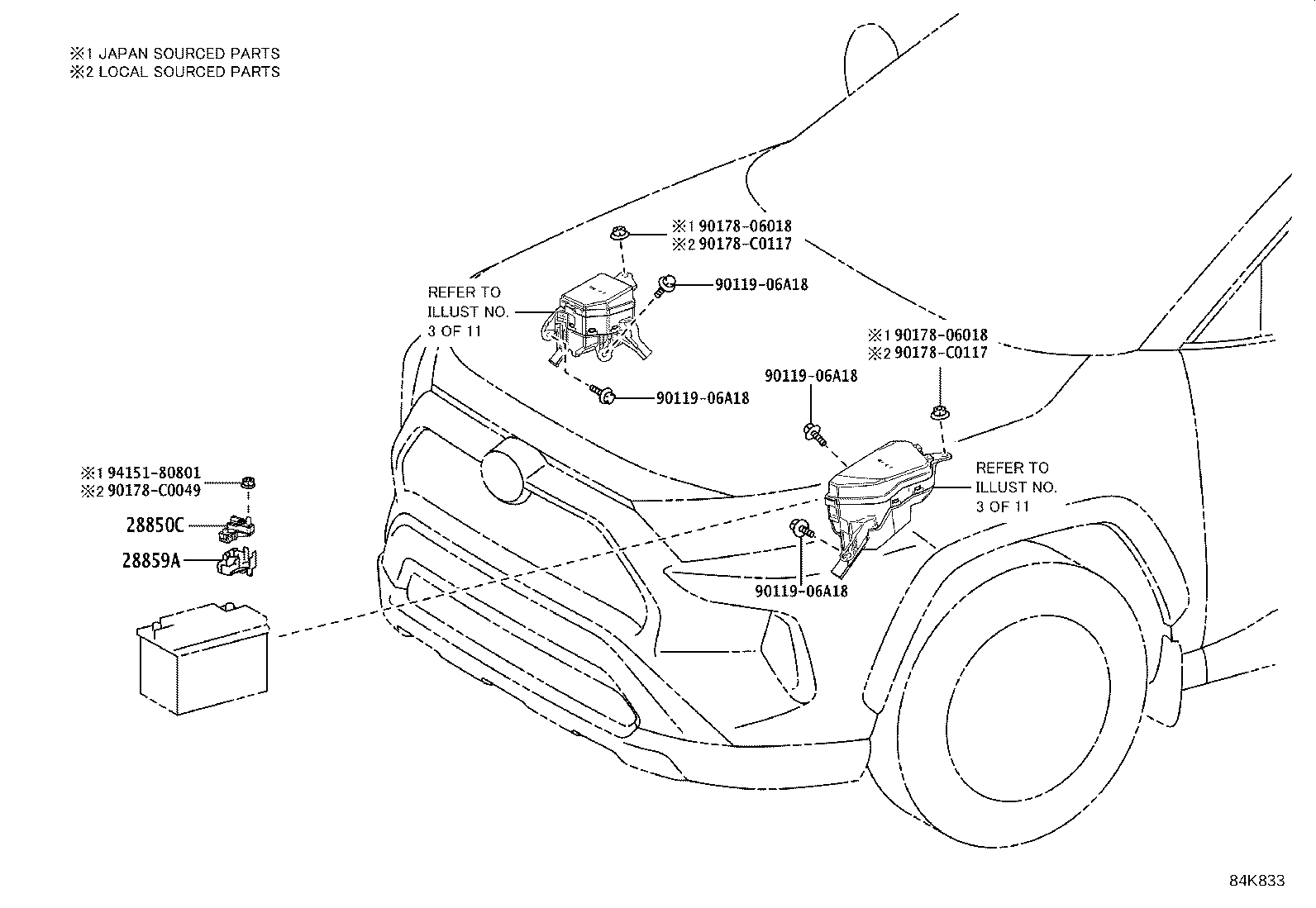

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0030 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-F0090 |
M20DFKS..MXAA5# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06018 | ||||
| 90178-C0049 | ||||
| 90178-C0117 | ||||
| 94151-80801 | ||||

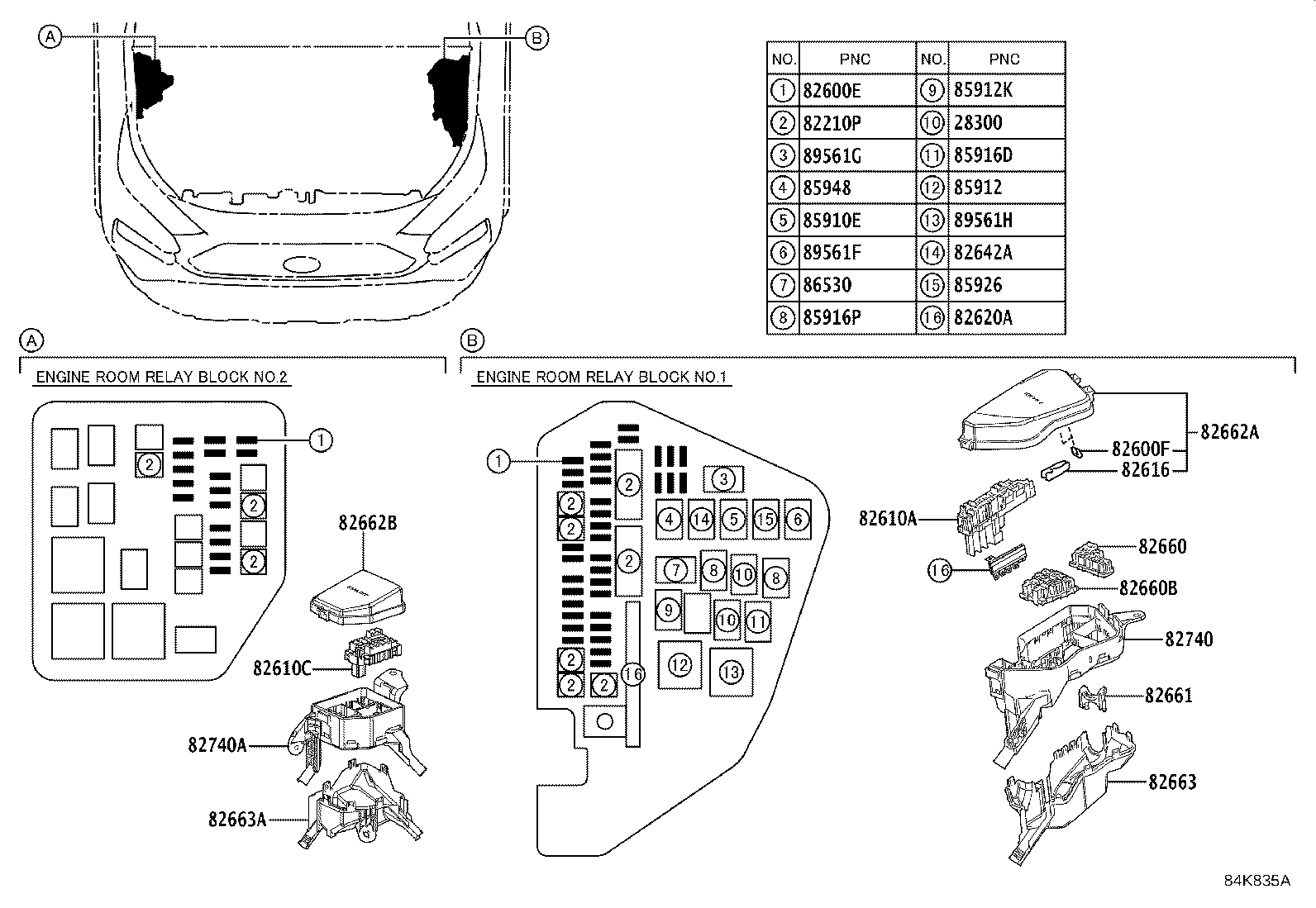

ILLUST NO. 3 OF11(1911- )MXAA5#
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
M20DFKS..MXAA5# |
2 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08283 |
AXAH5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
MXAA5# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08302 |
AXAH5#,MXAA5# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08285 |
AXAH5#,MXAA5# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AXAH5#,MXAA5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXAH5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXAH5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AXAH5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
AXAH5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AXAH5#,MXAA5# 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
AXAH5#,MXAA5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
AXAH5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-42080 |
MXAA5# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-42090 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXAH5#,MXAA5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33150 |
MXAA5# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-T2005 |
AXAH5#,MXAA5# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-42100 |
AXAH5#,MXAA5# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-42110 |
AXAH5#,MXAA5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42070 |
MXAA5# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0R290 |
MXAA5# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-0R310 |
MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0R100 |
MXAA5# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-0R120 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-0R060 |
MXAA5# |
1 | ||
| 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | ||||
| 82740-0R080 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-T2005 |
MXAA5# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
AXAH5#,MXAA5# |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-T2005 |
MXAA5# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
AXAH5#,MXAA5# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2005 |
AXAH5#,MXAA5# |
2 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-T2005 |
AXAH5#,MXAA5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
AXAH5#,MXAA5# |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-T2005 |
MXAA5# |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-T2005 |
MXAA5# |
1 | ||
| 89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | ||||
| 90987-T2004 |
MXAA5# |
1 | ||

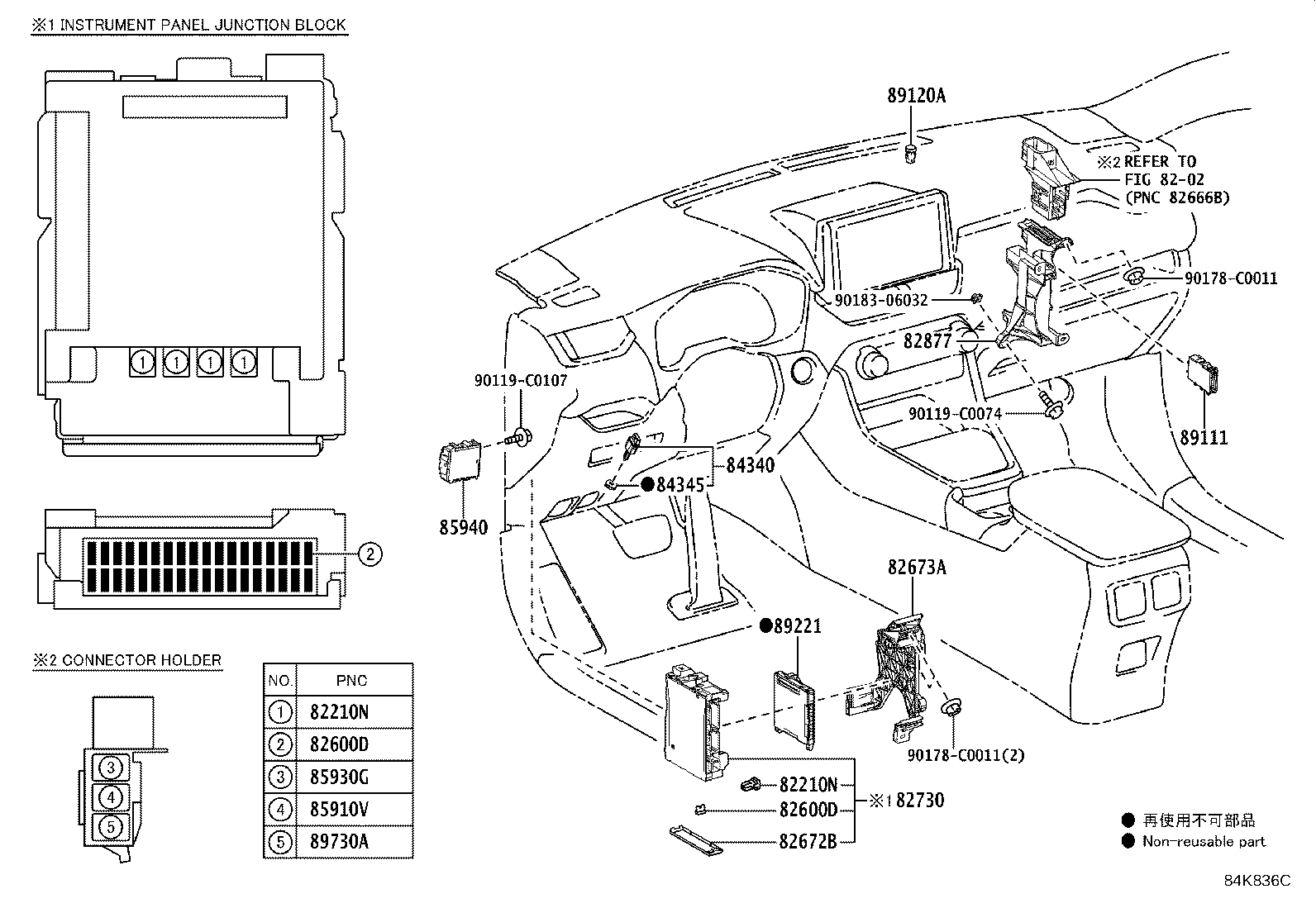

ILLUST NO. 4 OF11(1911- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAH5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXAH5#,MXAA5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXAH5#,MXAA5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
AXAH5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AXAH5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAH5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXAH5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXAH5#,MXAA5# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
AXAH5#,MXAA5# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AXAH5#,MXAA5# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXAH5#,MXAA5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXAH5#,MXAA5# 10A,MINI FUSE,RED |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-0R060 |
MXAA5# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0R120 |
AXAH5#,MXAA5# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0R230 |
MXAA5# |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-07010 |
AXAH5#,MXAA5# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09340 |
AXAH5#,MXAA5# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
AXAH5#,MXAA5# |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-T2005 |
AXAH52,MXAA5#..M,X |
1 | ||
| 90987-T2005 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
2 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
AXAH5#,MXAA5# (J) |
1 | ||
| 90987-T2005 |
AXAH5#,MXAA5# (L) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0R010 |
AXAH5#,MXAA5# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-02121 |
MXAA5# |
1 | ||
| 89111-02120 |
MXAA5# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0E040 |
AXAH5#,MXAA5# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-0R890 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 89220-0R860 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2005 |
AXAH5#,MXAA5#..G,M (L) |
1 | ||
| 90987-02027 |
AXAH5#,MXAA5#..G,M (J) |
1 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90178-C0011 | ||||
| 90183-06032 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF11(1911- )

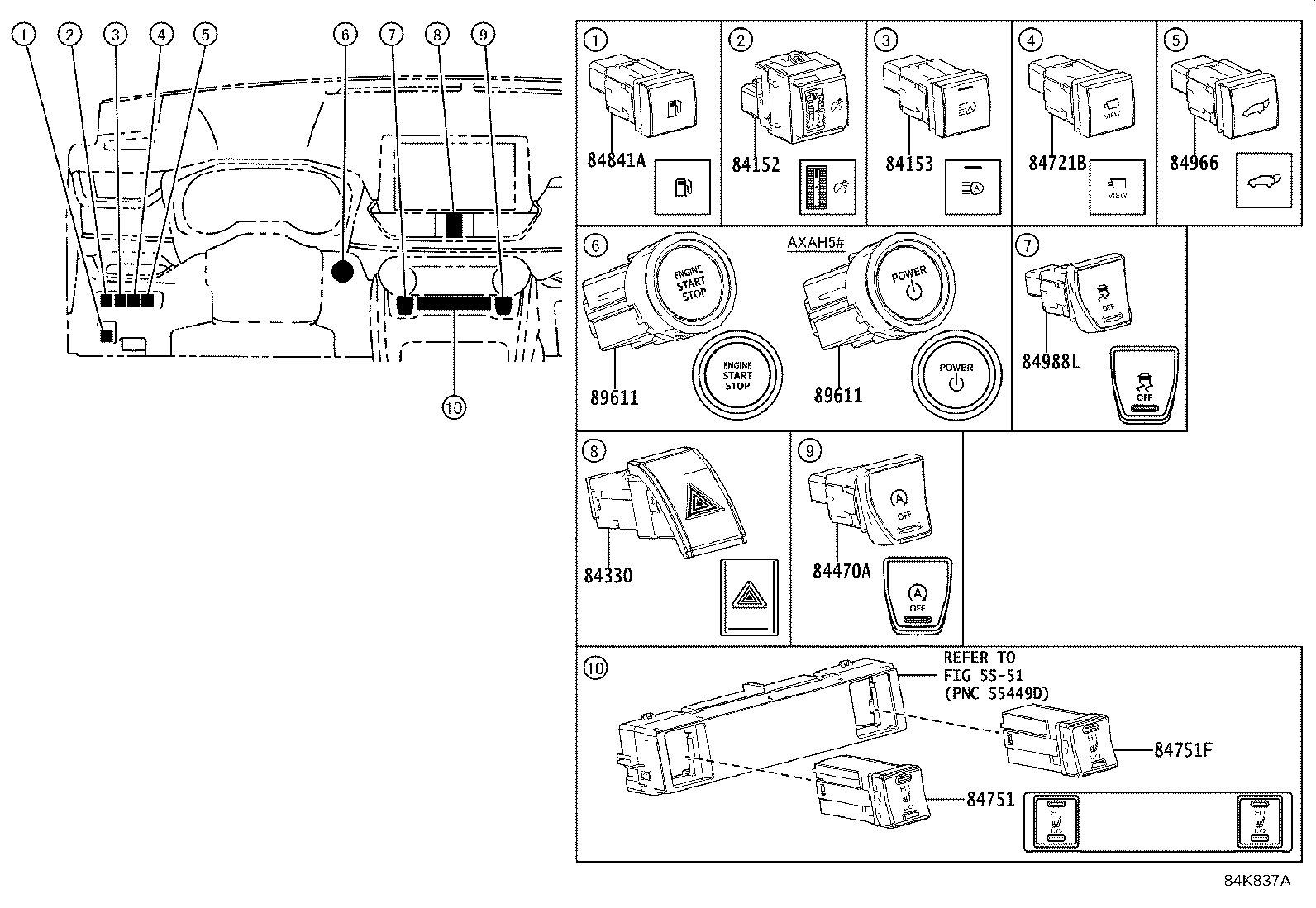

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-0R050 |
MXAA5# |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-0R100 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-0R110 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R012 |
MXAA5#..G,M |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0R012 |
MXAA5#..G,M |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 6 OF11(1911- )

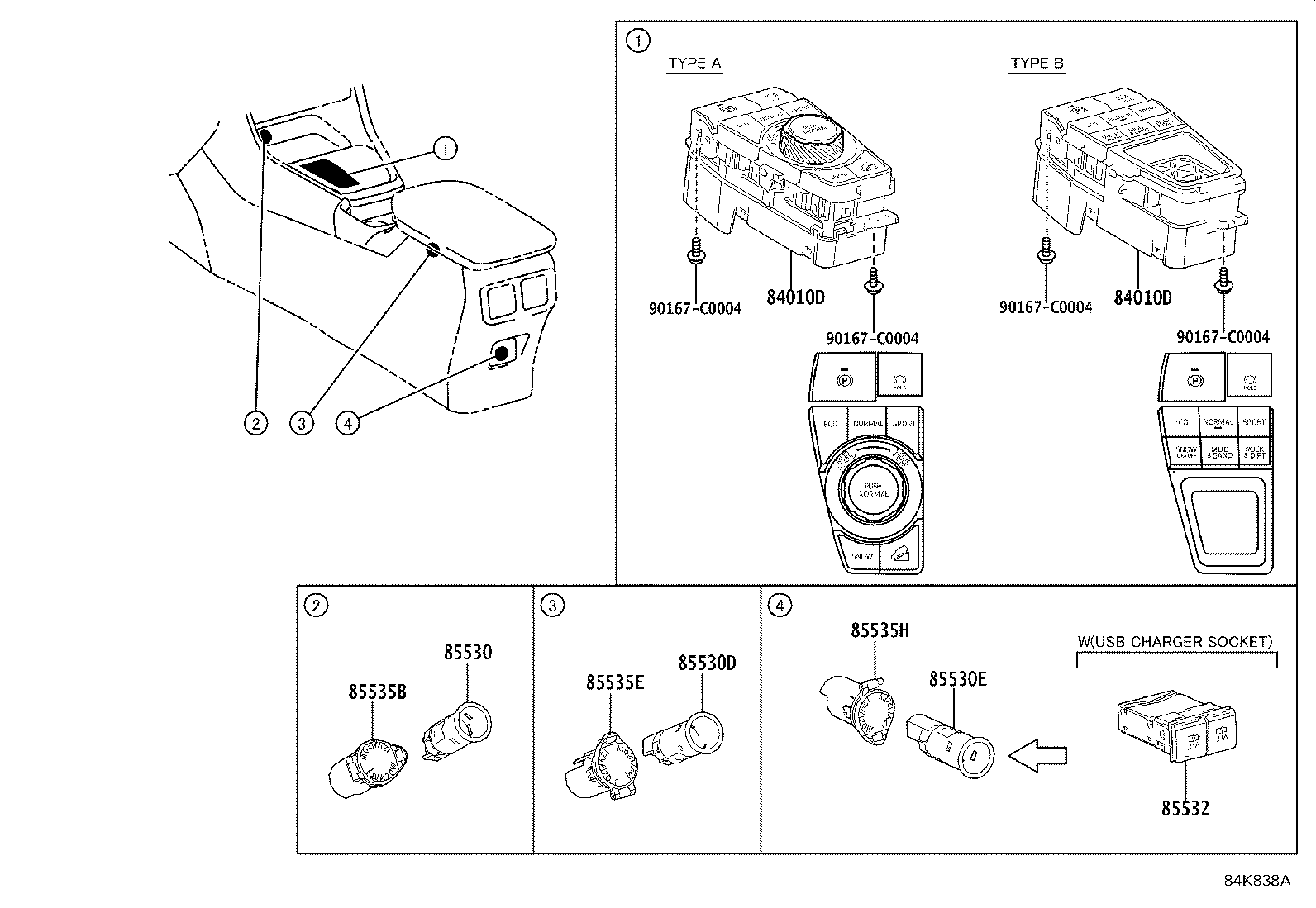

CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0R070 |
MXAA54..M TYPE B:REFER ILLUST. |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-0R070 |
MXAA54..M TYPE B:REFER ILLUST. |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-07020 |
AXAH5#,MXAA5# |
1 | ||
| 85530-0N010 |
AXAH5#,MXAA5# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-0N010 |
AXAH5#,MXAA5# |
1 | ||
| 85530-07020 |
AXAH5#,MXAA5# |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85532-15010 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85532-06070 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0N010 |
AXAH5#,MXAA5# |
1 | ||
| 85535-07030 |
AXAH5#,MXAA5# |
1 | ||
| 85535-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-07030 |
AXAH5#,MXAA5# |
1 | ||
| 85535-0N010 |
AXAH5#,MXAA5# |
1 | ||
| 85535-0R070 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
ILLUST NO. 7 OF11(1911- )

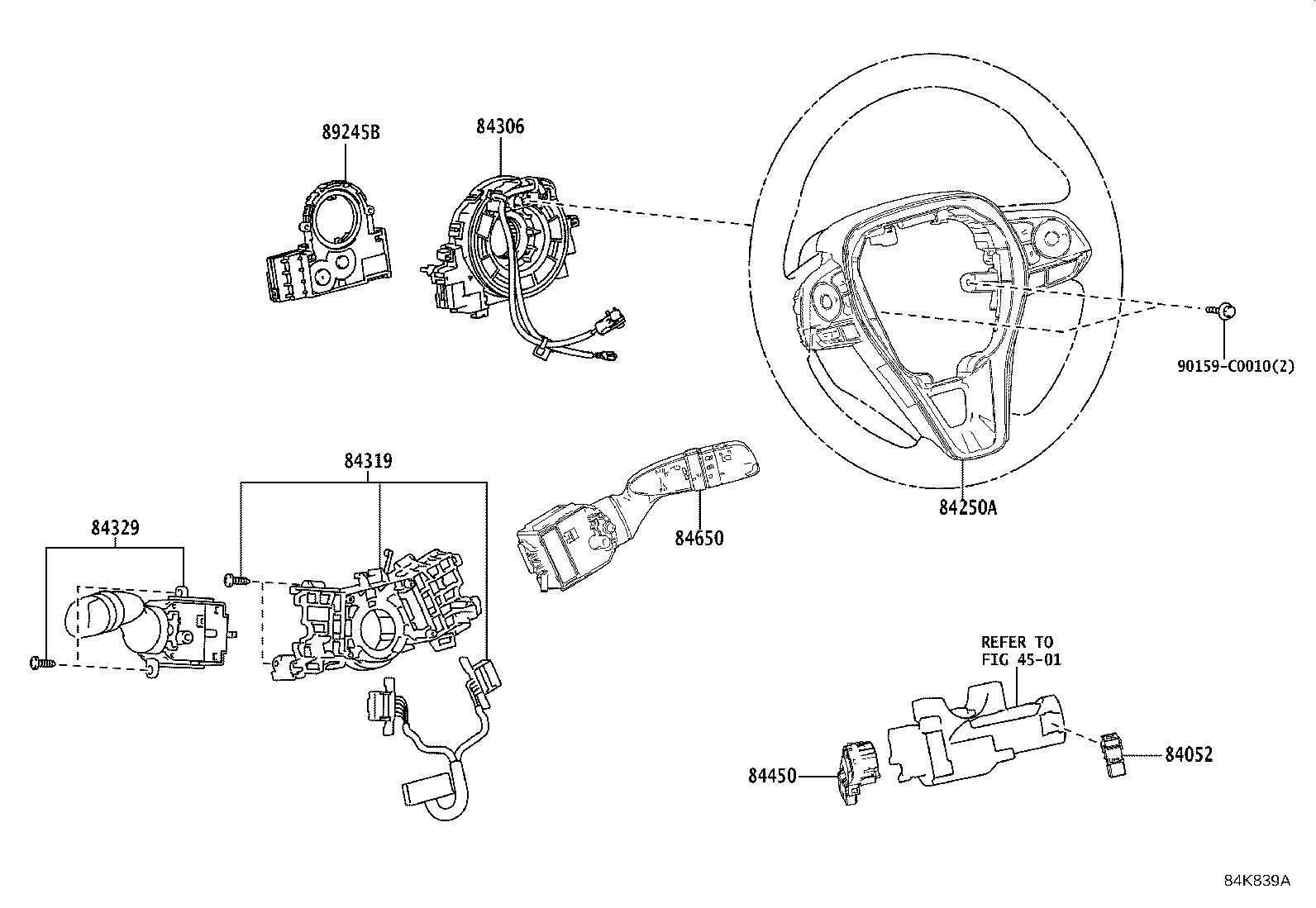

STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0R320 |
AXAH5#,MXAA5#..M,X TOYOTA SAFETY SENSE-WITHOUT&STEERING SWITCH-AUDIO & VOICE & *CRC |
1 | ||
| 84250-02E90 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02170 |
AXAH5#,MXAA5# |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-07010 |
AXAH5#,MXAA5# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-07010 |
AXAH5#,MXAA5# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0R140 |
AXAH5#,MXAA5# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-07010 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 8 OF11(1911- )

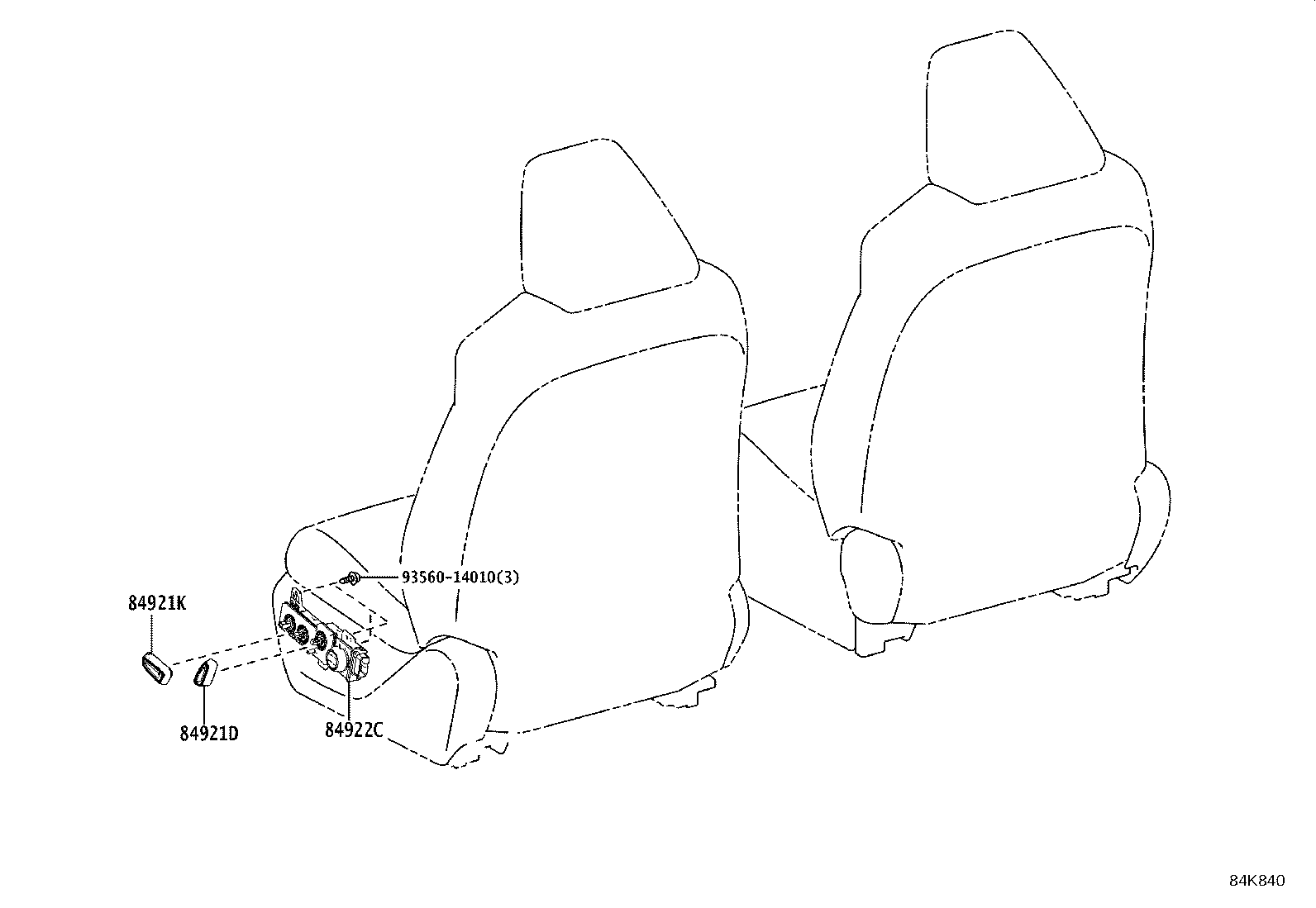

SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-0R020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-0R010C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||

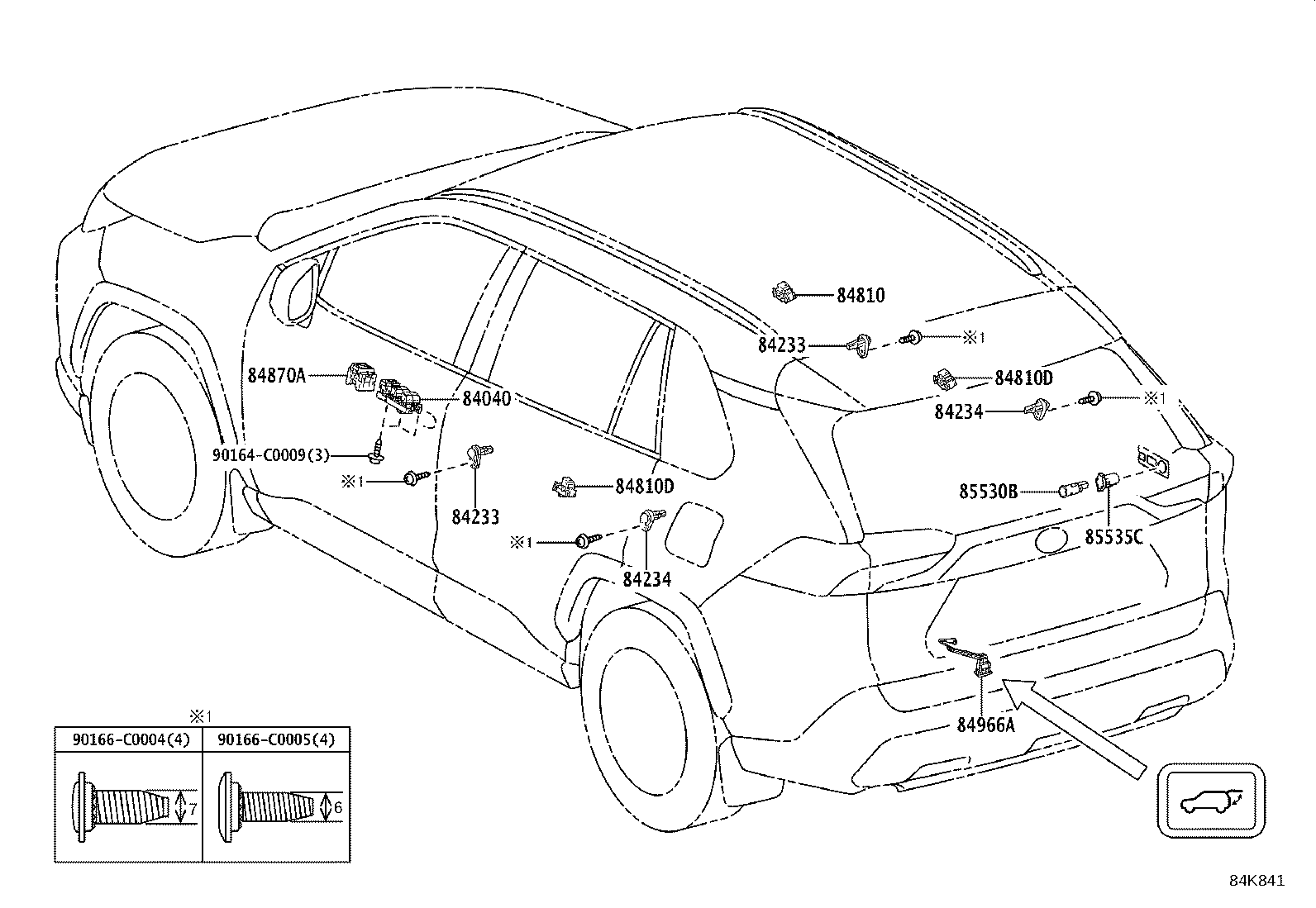

ILLUST NO. 9 OF11(1911- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-0R010 |
AXAH5#,MXAA5#..M,X |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
AXAH5#,MXAA5# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
AXAH5#,MXAA5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
AXAH5#,MXAA5# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
AXAH5#,MXAA5# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0R010 |
AXAH5#,MXAA5#..M,X |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0R010 |
AXAH5#,MXAA5#..M,X |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0R010 |
AXAH5#,MXAA5#..M,X |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-07020 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85530-0N010 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-0N010 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85535-07030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 85535-0R070 |
AXAH5#,MXAA5#..G,M |
1 | ||
| Common parts | ||||
| 90164-C0009 | ||||
| 90166-C0004 | ||||
| 90166-C0005 | ||||

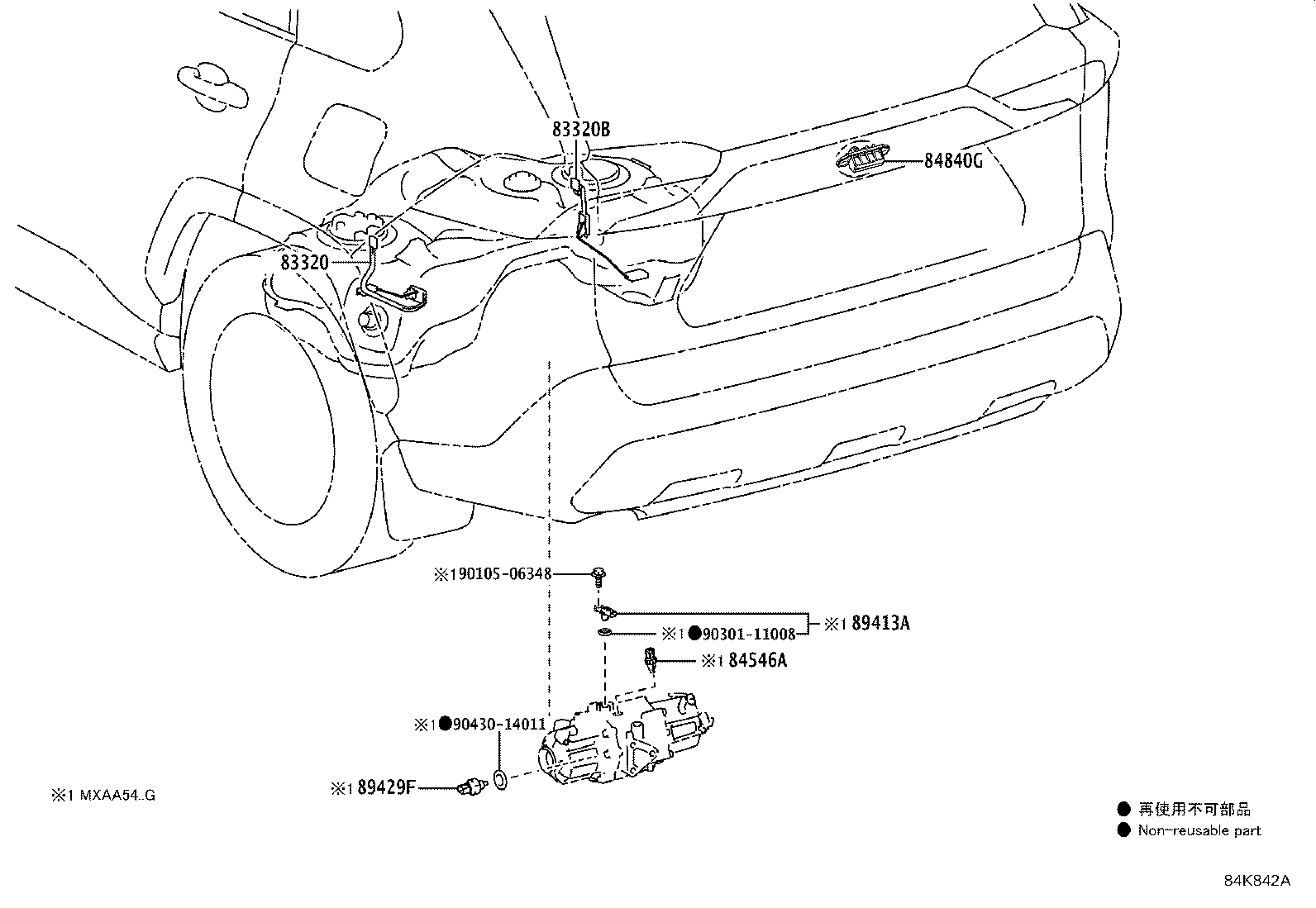

ILLUST NO.10 OF11(1911- )MXAA5#
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0R060 |
MXAA5# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-0R070 |
MXAA5# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-F4060 |
AXAH5#,MXAA5#..G,M |
1 | ||
| Common parts | ||||
| 90105-06348 | ||||
| 90301-11008 | ||||
| 90430-14011 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
