MXAA54L-SNXMBC (2019)
Toyota Rav4 (China)
Production
Nov 2019
-
Sep 9999
Engine
M20DFKS
Transmission
HTWC CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1911- )

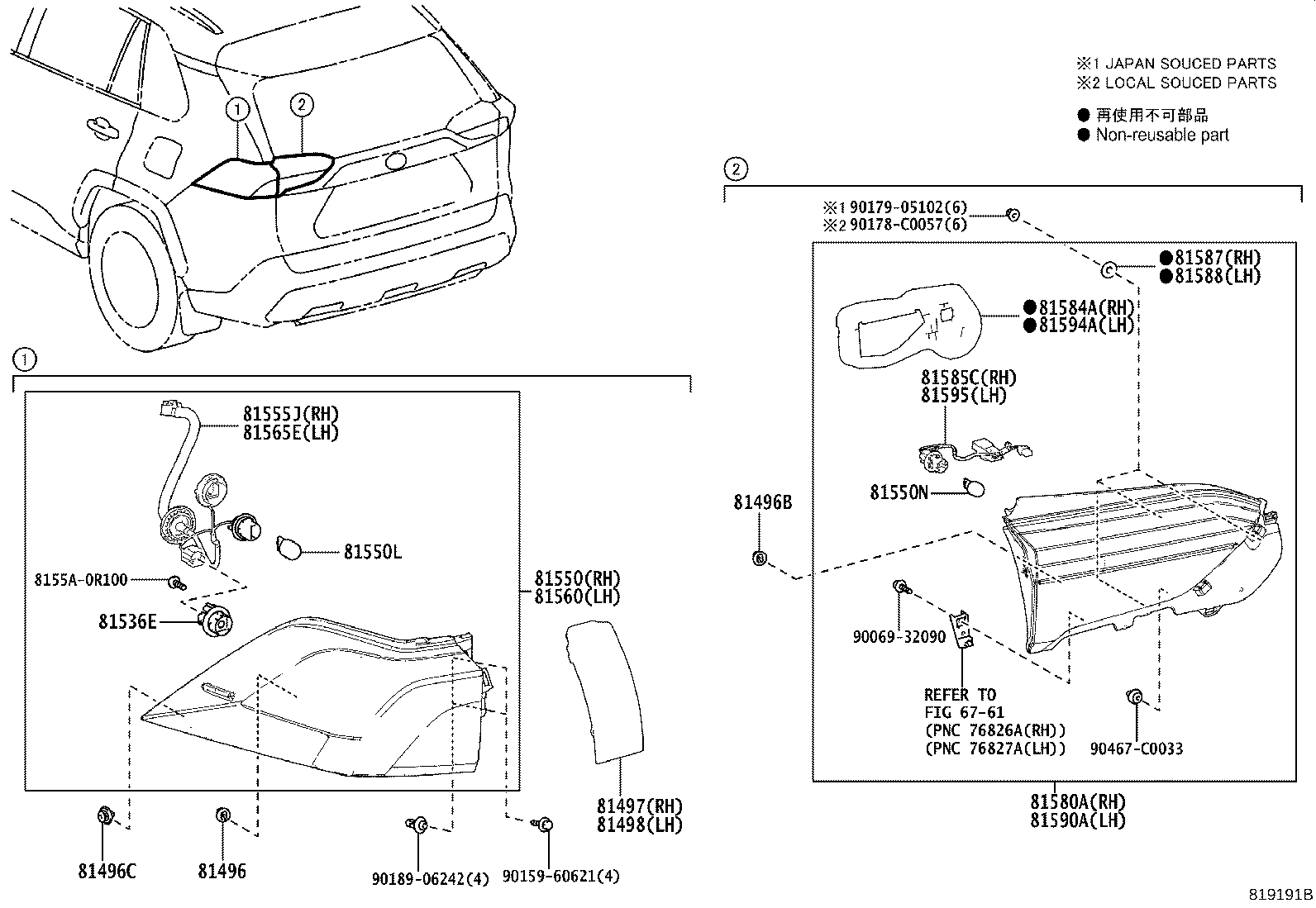

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
AXAH5#,MXAA5# (J) |
2 | ||
| 81496-02020 |
AXAH5#,MXAA5# (L) |
2 | ||
| 81496-52020 |
AXAH5#,MXAA5# |
2 | ||
| 81496B - GUIDE, REAR LAMP | ||||
| 81496-02020 |
AXAH5#,MXAA5# (L) |
2 | ||
| 81496-52020 |
AXAH5#,MXAA5# (J) |
2 | ||
| 81496-52020 |
AXAH5#,MXAA5# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
AXAH5#,MXAA5# |
2 | ||
| 90467-C0019 |
AXAH5#,MXAA5# |
2 | ||
| 81497 - COVER, REAR COMBINATION LAMP, RH | ||||
| 81497-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 81498 - COVER, REAR COMBINATION LAMP, LH | ||||
| 81498-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 81536E - LED, STOP LAMP | ||||
| 81536-0R100 |
AXAH5#,MXAA5# |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0R100 |
AXAH5#,MXAA5# |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
AXAH5#,MXAA5# 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
AXAH5#,MXAA5# 12V 16W |
2 | ||
| 81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH | ||||
| 81555-0R100 |
AXAH5#,MXAA5# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0R100 |
AXAH5#,MXAA5# |
1 | ||
| 81565E - SOCKET & WIRE, REAR COMBINATION LAMP, LH | ||||
| 81555-0R100 |
AXAH5#,MXAA5# |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 81587 - PROTECTOR, REAR LAMP, RH | ||||
| 81588-0R070 |
AXAH5#,MXAA5# |
3 | ||
| 81588 - PROTECTOR, REAR LAMP, LH | ||||
| 81588-0R070 |
AXAH5#,MXAA5# |
3 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-0R070 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 8155A-0R100 | ||||
| 90069-32090 | ||||
| 90159-60621 | ||||
| 90178-C0057 | ||||
| 90179-05102 | ||||
| 90189-06242 | ||||
| 90467-C0033 | ||||
| Linked diagrams | ||||
| 6761 | ||||
