MXAA54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

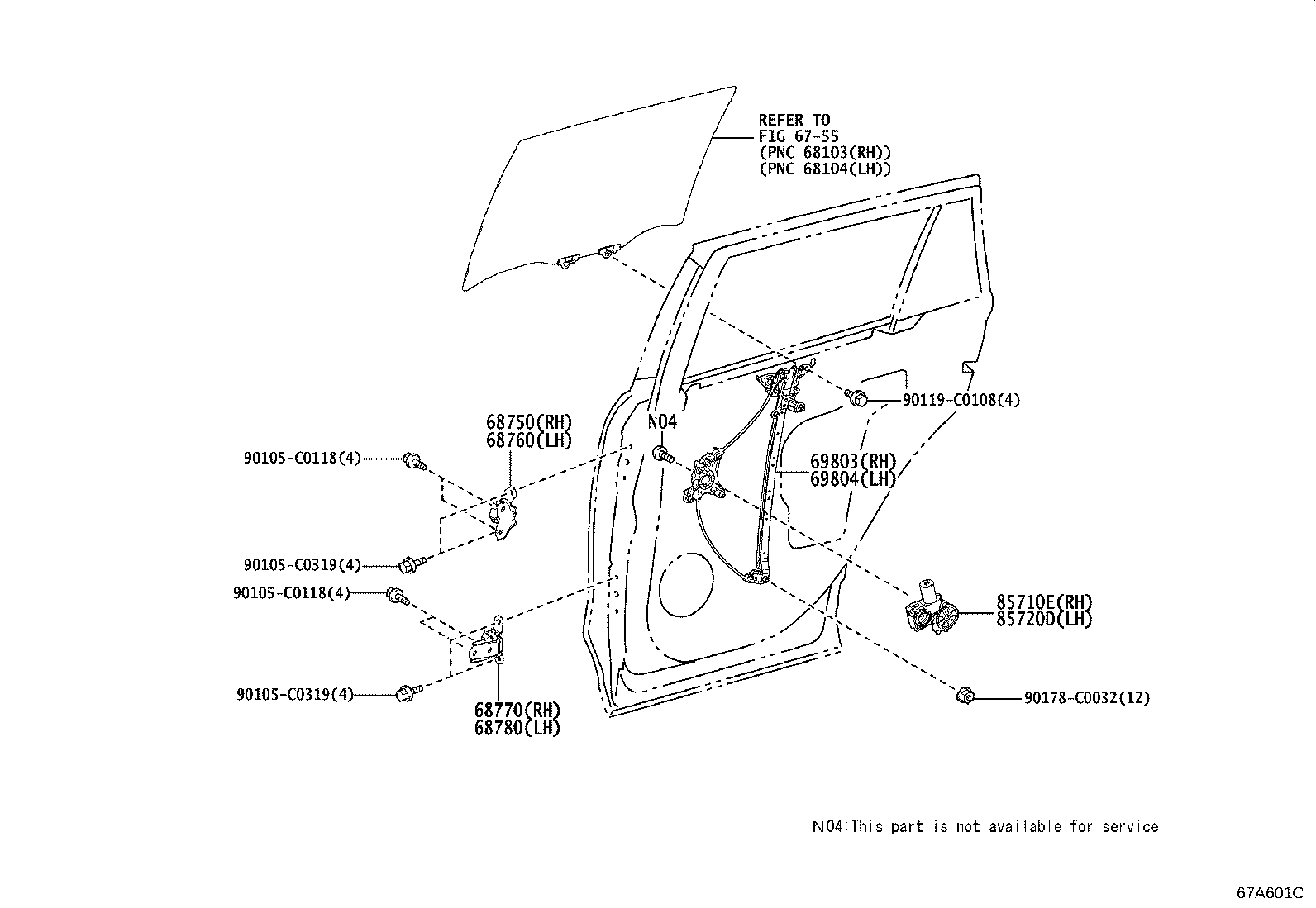

Click highlighted areas on diagram

diagram 6755 68750 68760 68770 68780 69803 69804 85710E 85720D 90105C0118 90105C0118 90105C0319 90105C0319 90119C0108 90178C0032
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0P011

AXAH5#,MXAA5#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0P011

AXAH5#,MXAA5#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-07020

AXAH5#,MXAA5#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-07020

AXAH5#,MXAA5#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-0R060

AXAH5#,MXAA5#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-0R060

AXAH5#,MXAA5#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0R040

AXAH5#,MXAA5#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0R100

AXAH5#,MXAA5#

 1
Common parts
90105-C0118
90105-C0319
90119-C0108
90178-C0032
Linked diagrams
6755
