MXAA54L-SNXMBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

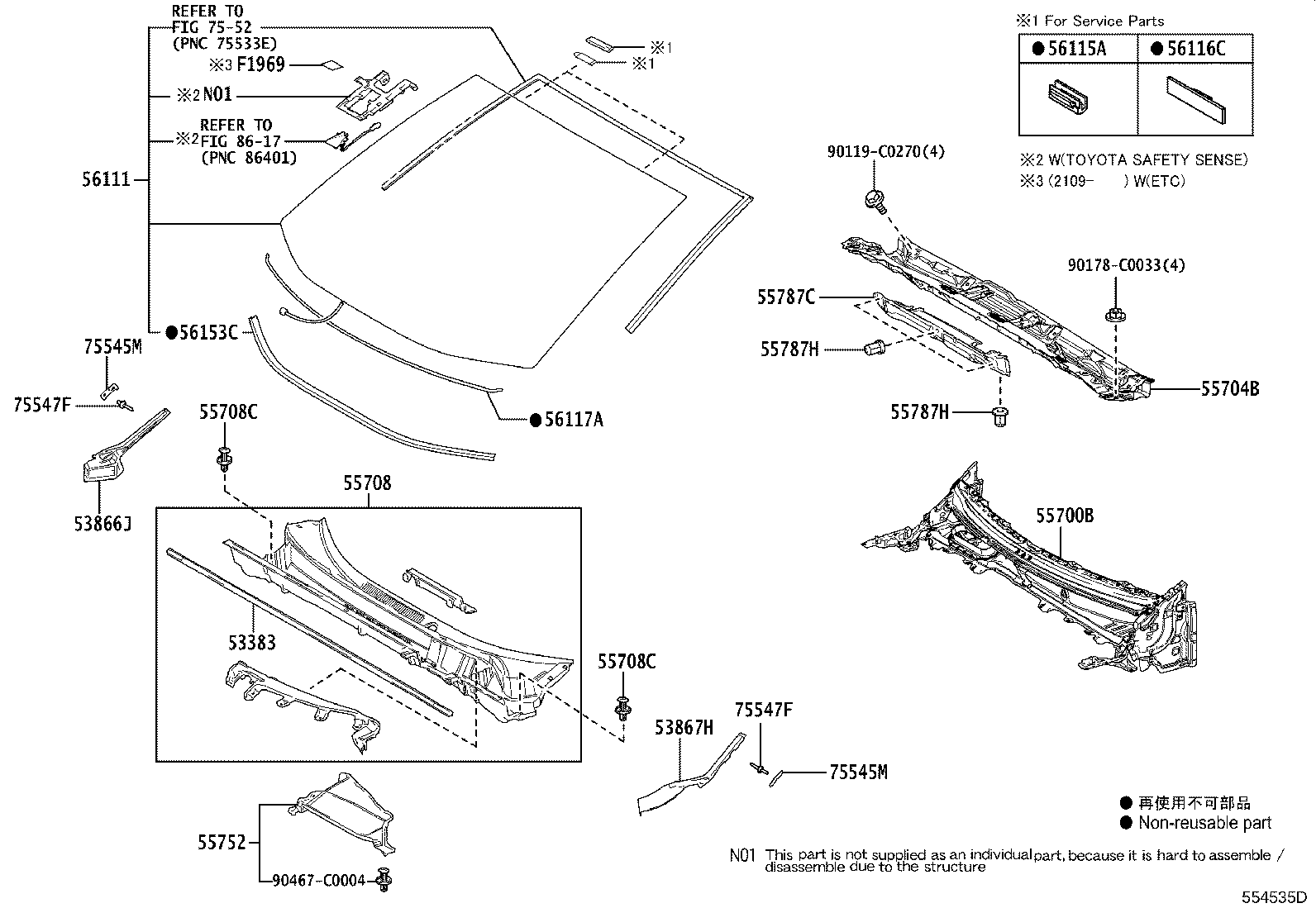

Click highlighted areas on diagram

diagram 53383 53866J 53867H 55700B 55704B 55708 55708C 55708C 55752 55787C 55787H 55787H 56111 56115A 56116C 56117A 56153C 7552 75545M 75545M 75547F 75547F 8617 90119C0270 90178C0033 90467C0004 F1969
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-0R060

AXAH5#,MXAA5#

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-0R070

AXAH5#,MXAA5#

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-0R070

AXAH5#,MXAA5#

 1
55700B - COWL ASSY
55700-0R060

AXAH5#,MXAA5#

 1
55704B - PANEL SUB-ASSY, COWL VENTILATOR
55704-0R040

AXAH5#,MXAA5#

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0R070

AXAH5#,MXAA5#

 1
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXAH5#,MXAA5#

 2
55708C - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXAH5#,MXAA5#

 2
55752 - SHIELD, COWL VENTILATOR SPLASH
55752-0R040

AXAH5#,MXAA5#

 1
55787C - INSULATOR, COWL TOP PANEL, NO.1
55787-0R070

AXAH5#,MXAA5#

 1
55787H - CLIP, COWL TOP PANEL INSULATOR
90467-06188

AXAH5#,MXAA5#

 4
55787H - CLIP, COWL TOP PANEL INSULATOR
90467-06188

AXAH5#,MXAA5#

 4
56111 - GLASS, WINDSHIELD
56101-0R560

MXAA5#..M,X

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000137

 1
56101-0R440

MXAA5#..M,X

MARK=CCC E000137

 1
56101-0R630

MXAA5#..M,X

MARK=CCC E000011

 1
56101-0R670

MXAA5#..M,X

TOYOTA SAFETY SENSE-WITHOUT,MARK=CCC E000011

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

AXAH5#,MXAA5#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AXAH5#,MXAA5#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0R060

AXAH5#,MXAA5#..M,X

L=1380,TOYOTA SAFETY SENSE-WITHOUT

 1
56117-0R060

AXAH5#,MXAA5#

L=1380

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-0R030

AXAH5#,MXAA5#

 1
75545M - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-42010

AXAH5#,MXAA5#

 2
75545M - CLIP, WINDSHIELD OUTSIDE MOULDING
75545-42010

AXAH5#,MXAA5#

 2
75547F - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-51021

AXAH5#,MXAA5#

 2
75547F - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-51021

AXAH5#,MXAA5#

 2
Common parts
90119-C0270
90178-C0033
90467-C0004
Linked diagrams
7552
8617
