MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

Click highlighted areas on diagram

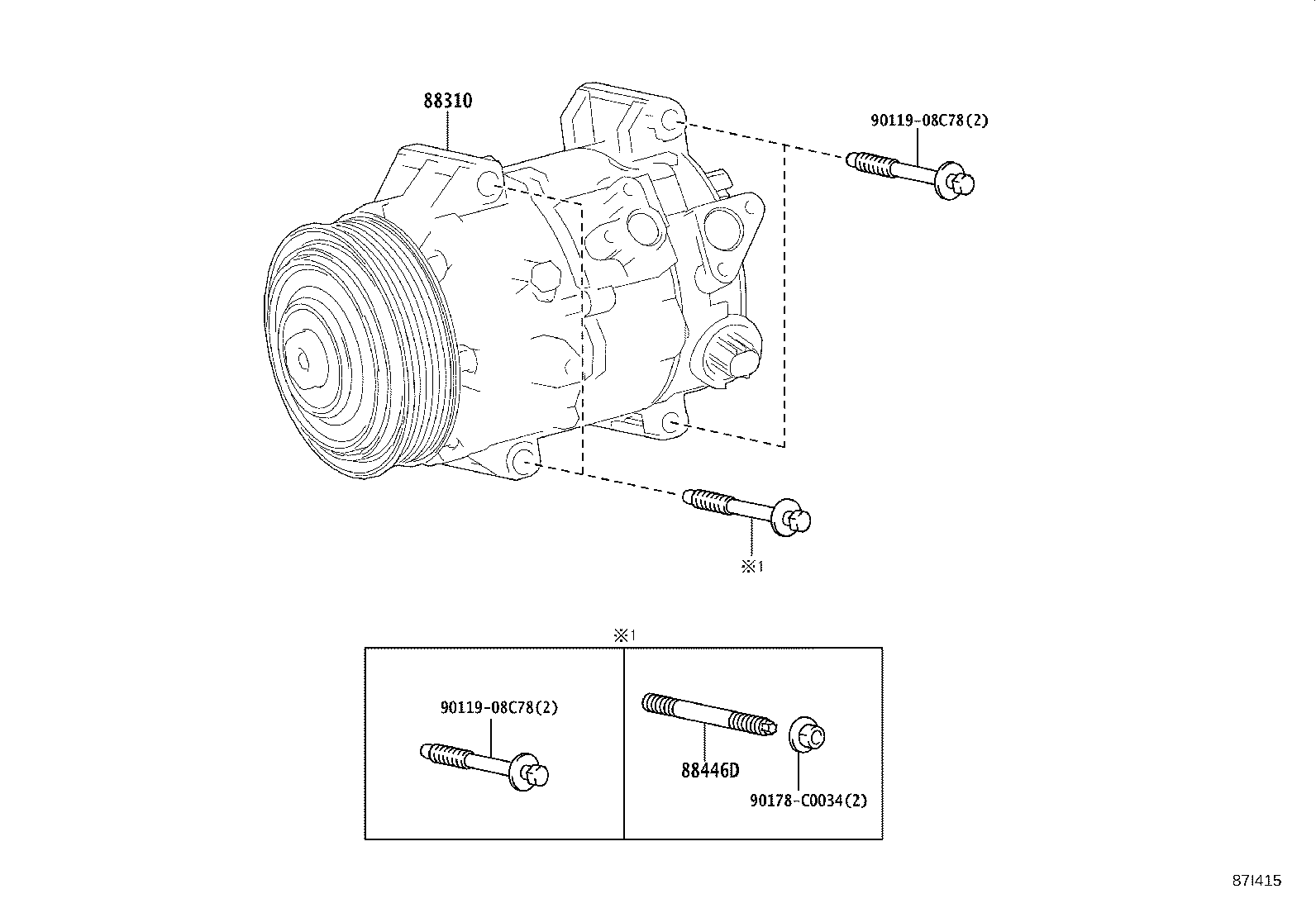

diagram 88310 88446D 9011908C78 9011908C78 90178C0034
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-07090

MXAA5#

 1
88446D - BOLT, COOLER
88446-42030

MXAA5#

 2
Common parts
90119-08C78
90178-C0034
