MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

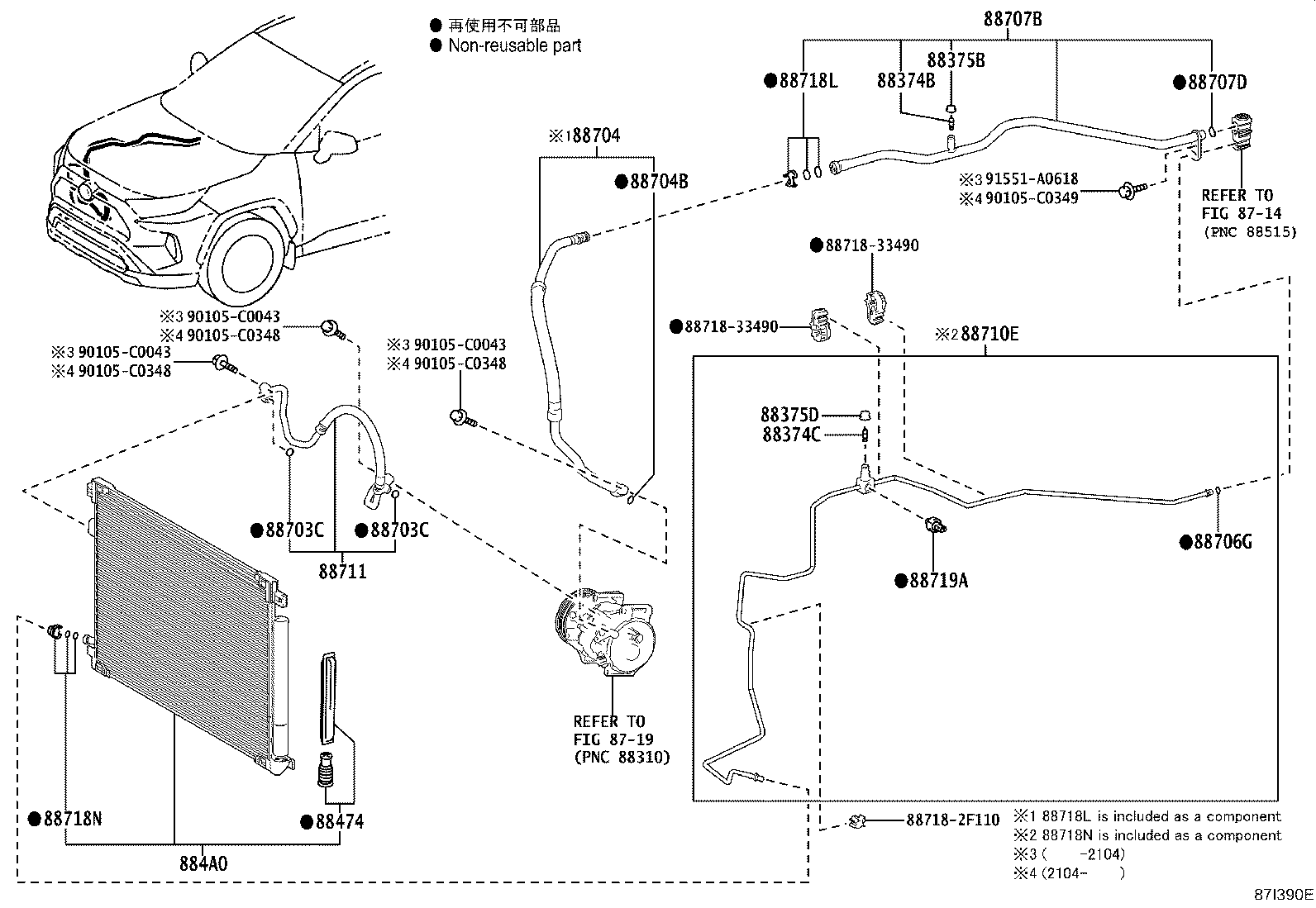

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88474 884A0 88703C 88703C 88704 88704B 88706G 88707B 88707D 88710E 88711 887182F110 8871833490 8871833490 88718L 88718N 88719A 90105C0043 90105C0043 90105C0043 90105C0348 90105C0348 90105C0348 90105C0349 91551A0618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AXAH5#,MXAA5#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AXAH5#,MXAA5#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AXAH5#,MXAA5#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

AXAH5#,MXAA5#

 1
88474 - DRYER, COOLER
88474-12020

AXAH5#,MXAA5#

 1
884A0 - CONDENSER ASSY, COOLER
884A0-0R010

MXAA5#

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MXAA5#

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

MXAA5#

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0R110

MXAA5#

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

MXAA5#

ID=13.4,OD=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

AXAH5#,MXAA5#

ID=6.7,OD=10.3

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0R090

AXAH5#,MXAA5#

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

AXAH5#,MXAA5#

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0R050

MXAA5#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0R030

MXAA5#

 1
88718L - CLAMP, PIPING
88718-52280

AXAH5#,MXAA5#

 1
88718N - CLAMP, PIPING
88718-1E150

AXAH5#,MXAA5#

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXAH5#,MXAA5#

 1
Common parts
88718-2F110
88718-33490
90105-C0043
90105-C0348
90105-C0349
91551-A0618
Linked diagrams
8714
8719
