MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

Click highlighted areas on diagram

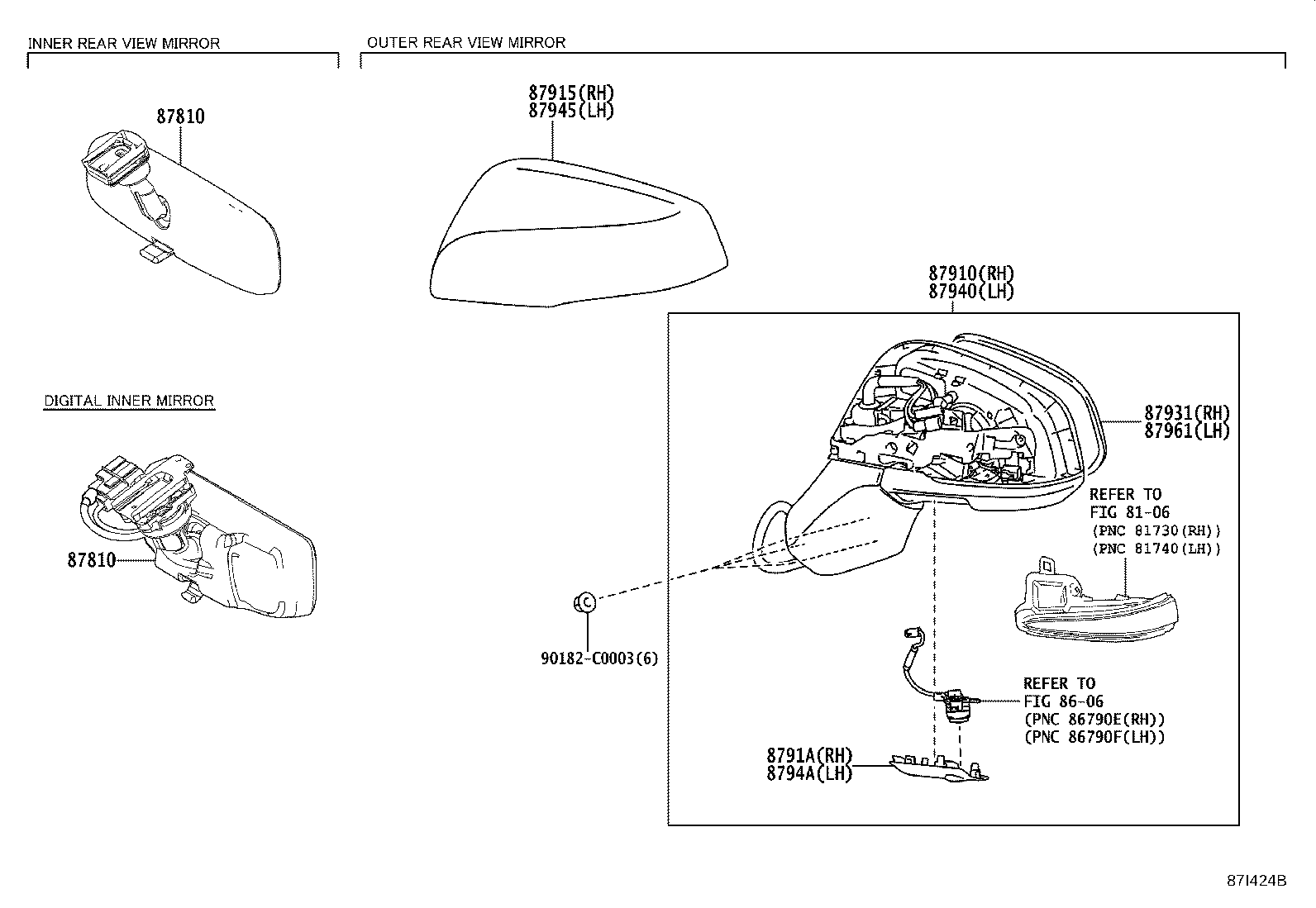

diagram 8106 8606 87810 87810 87910 87915 8791A 87931 87940 87945 8794A 87961 90182C0003
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-F4030

MXAA5#;AXAH5#..M

 1
87810-F4030

MXAA5#;AXAH5#..M

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-F4030

MXAA5#;AXAH5#..M

 1
87810-F4030

MXAA5#;AXAH5#..M

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0R340

AXAH5#,MXAA5#..G,M

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-0R904

AXAH5#,MXAA5#

PAINT REQ.

 1
8791A - COVER, OUTER MIRROR, RH NO.2
8791A-0R340

AXAH5#,MXAA5#..G,M

 1
87931 - OUTER MIRROR, RH
87931-0R341

AXAH5#,MXAA5#..G,M

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0R340

AXAH5#,MXAA5#..G,M

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-0R905

AXAH5#,MXAA5#

PAINT REQ.

 1
8794A - COVER, OUTER MIRROR, LH NO.2
8794A-0R340

AXAH5#,MXAA5#..G,M

 1
87961 - MIRROR OUTER, LH
87961-0R340

AXAH5#,MXAA5#..G,M

 1
Common parts
90182-C0003
Linked diagrams
8106
8606
