MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

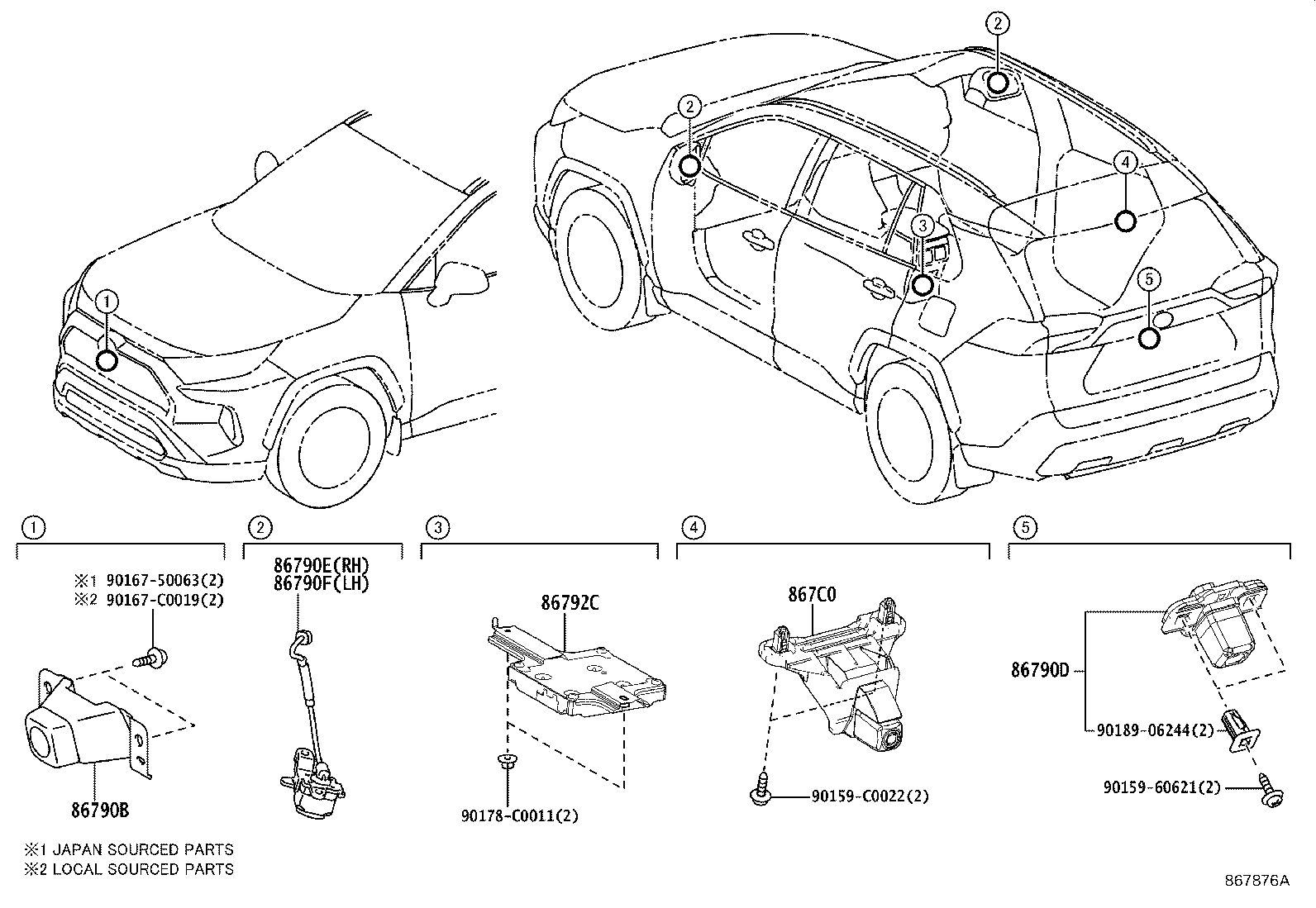

Click highlighted areas on diagram

diagram 86790B 86790D 86790E 86790F 86792C 867C0 9015960621 90159C0022 9016750063 90167C0019 90178C0011 9018906244
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
86790-0R180

AXAH5#,MXAA5#..G,M

 1
86790-0R181

AXAH5#,MXAA5#..G,M

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-0R130

AXAH5#,MXAA5#..G,M

 1
86790-0R230

AXAH5#,MXAA5#..G,M

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-0R110

AXAH5#,MXAA5#..G,M

 1
86790-0E250

AXAH5#,MXAA5#..G,M

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-0E240

AXAH5#,MXAA5#..G,M

 1
86790-0R100

AXAH5#,MXAA5#..G,M

 1
86792C - COMPUTER, PARKING ASSIST
86792-0R100

AXAH5#,MXAA5#..G,M

 1
86792-0R031

AXAH5#,MXAA5#..G,M

 1
86792-0R030

AXAH5#,MXAA5#..G,M

 1
Common parts
90159-60621
90159-C0022
90167-50063
90167-C0019
90178-C0011
90189-06244
