MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

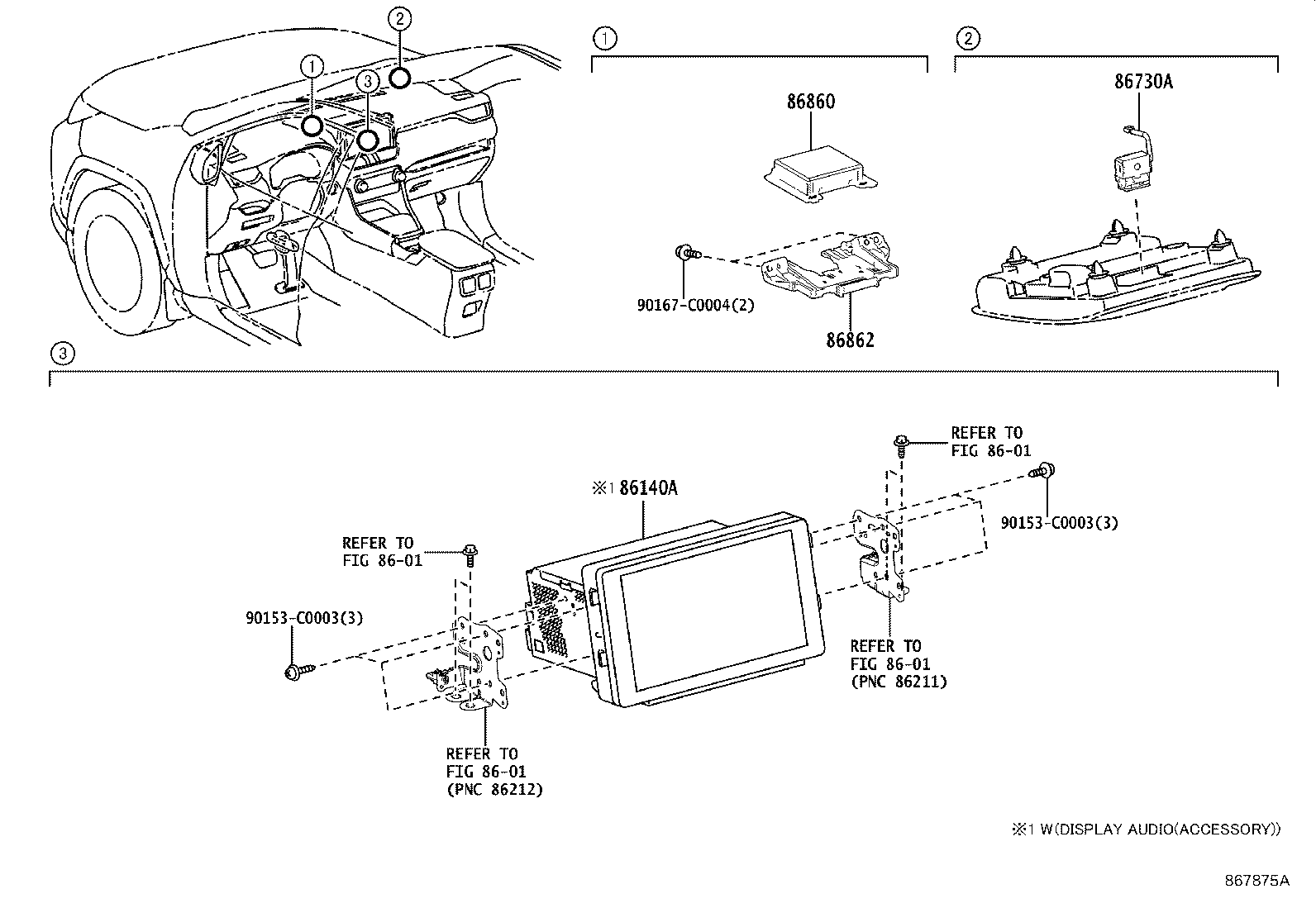

(1911-2104)

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86730A 86860 86862 90153C0003 90153C0003 90167C0004
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-YY120

AXAH5#,MXAA5#..G,M

PIONEER,AUDIO-*DA(ACCESSORY) & 6SPEAKER

 1
86140-0R550

AXAH5#,MXAA5#..G,M

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06060

AXAH5#,MXAA5#

 1
86730-75010

AXAH5#,MXAA5#

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-02050

AXAH5#,MXAA5#

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010

AXAH5#,MXAA5#

 1
Common parts
90153-C0003
90167-C0004
Linked diagrams
8601

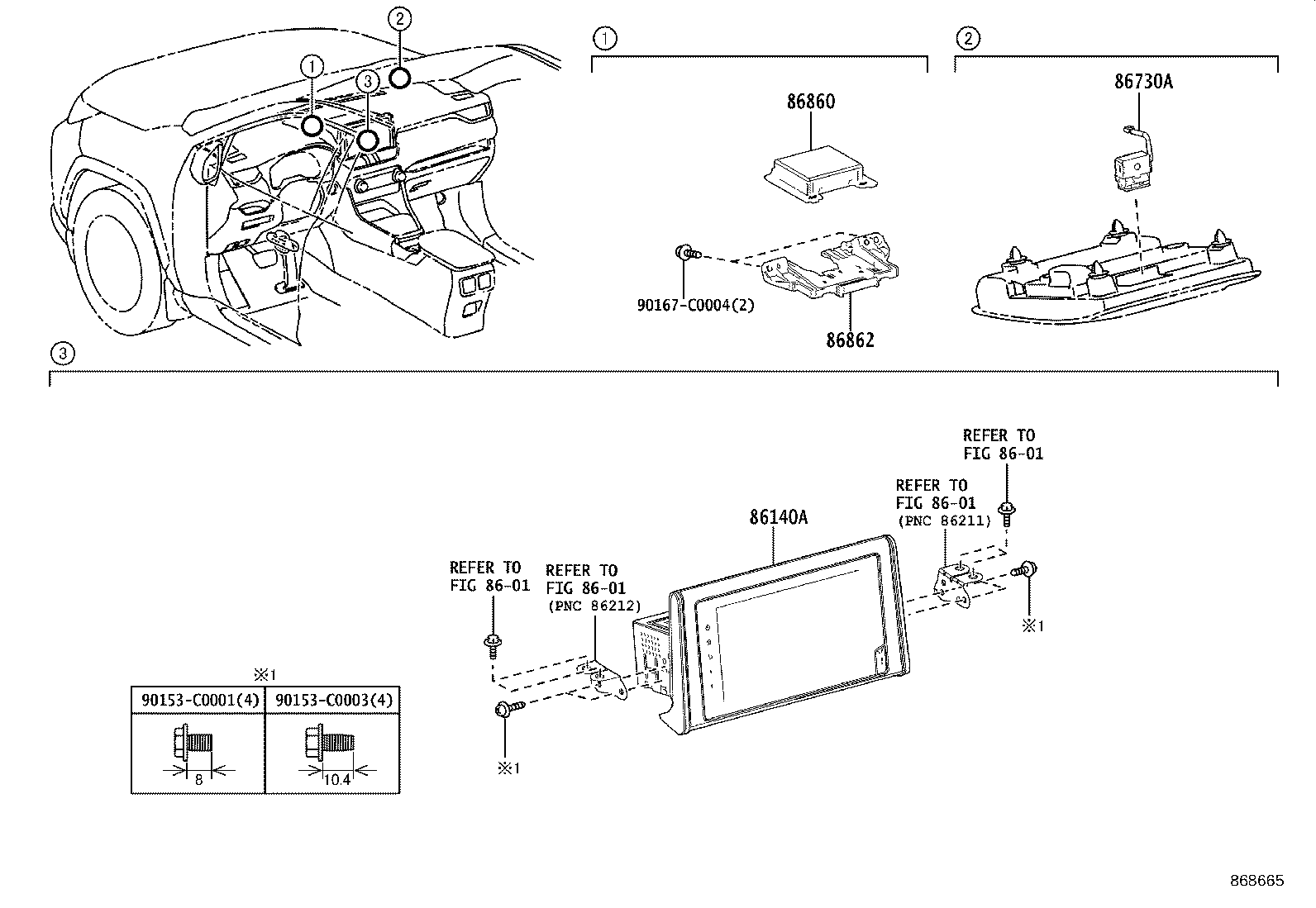

(2104- )

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 86140A 86730A 86860 86862 90153C0001 90153C0003 90167C0004
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-YY120

AXAH5#,MXAA5#..G,M

PIONEER,AUDIO-*DA(ACCESSORY) & 6SPEAKER

 1
86140-0R550

AXAH5#,MXAA5#..G,M

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06060

AXAH5#,MXAA5#

 1
86730-75010

AXAH5#,MXAA5#

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-02050

AXAH5#,MXAA5#

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010

AXAH5#,MXAA5#

 1
Common parts
90153-C0001
90153-C0003
90167-C0004
Linked diagrams
8601
