MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

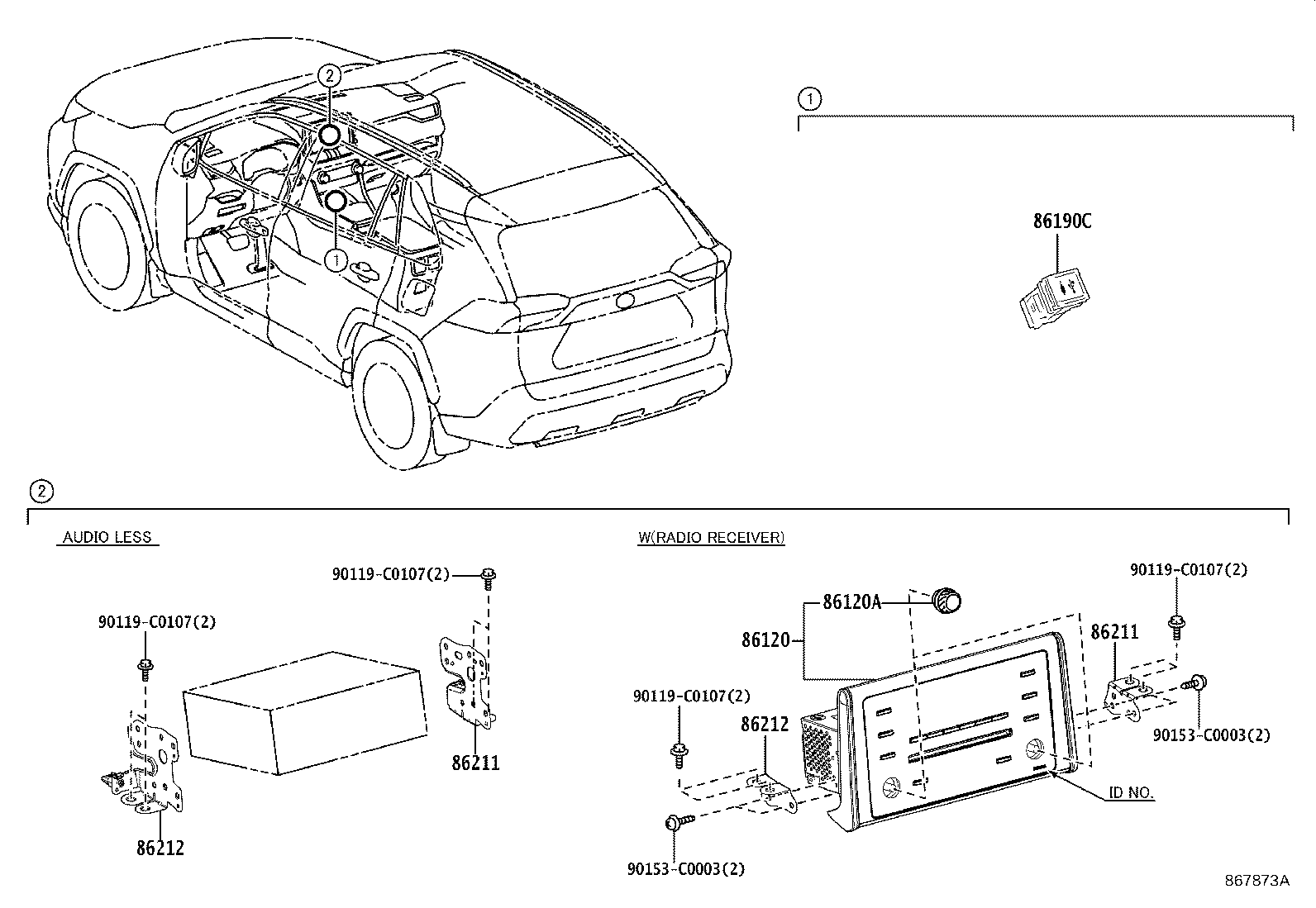

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

diagram 86120 86120A 86190C 86211 86211 86212 86212 90119C0107 90119C0107 90119C0107 90119C0107 90153C0003 90153C0003
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12040

AXAH5#,MXAA5#..G,M

 1
86211 - BRACKET, RADIO, NO.1
86211-0R120

AXAH5#,MXAA5#..G,M

 1
86211-0R100

AXAH5#,MXAA5#..G,M

 1
86211 - BRACKET, RADIO, NO.1
86211-0R120

AXAH5#,MXAA5#..G,M

 1
86211-0R100

AXAH5#,MXAA5#..G,M

 1
86212 - BRACKET, RADIO, NO.2
86212-0R120

AXAH5#,MXAA5#..G,M

 1
86212-0R100

AXAH5#,MXAA5#..G,M

 1
86212 - BRACKET, RADIO, NO.2
86212-0R120

AXAH5#,MXAA5#..G,M

 1
86212-0R100

AXAH5#,MXAA5#..G,M

 1
Common parts
90119-C0107
90153-C0003

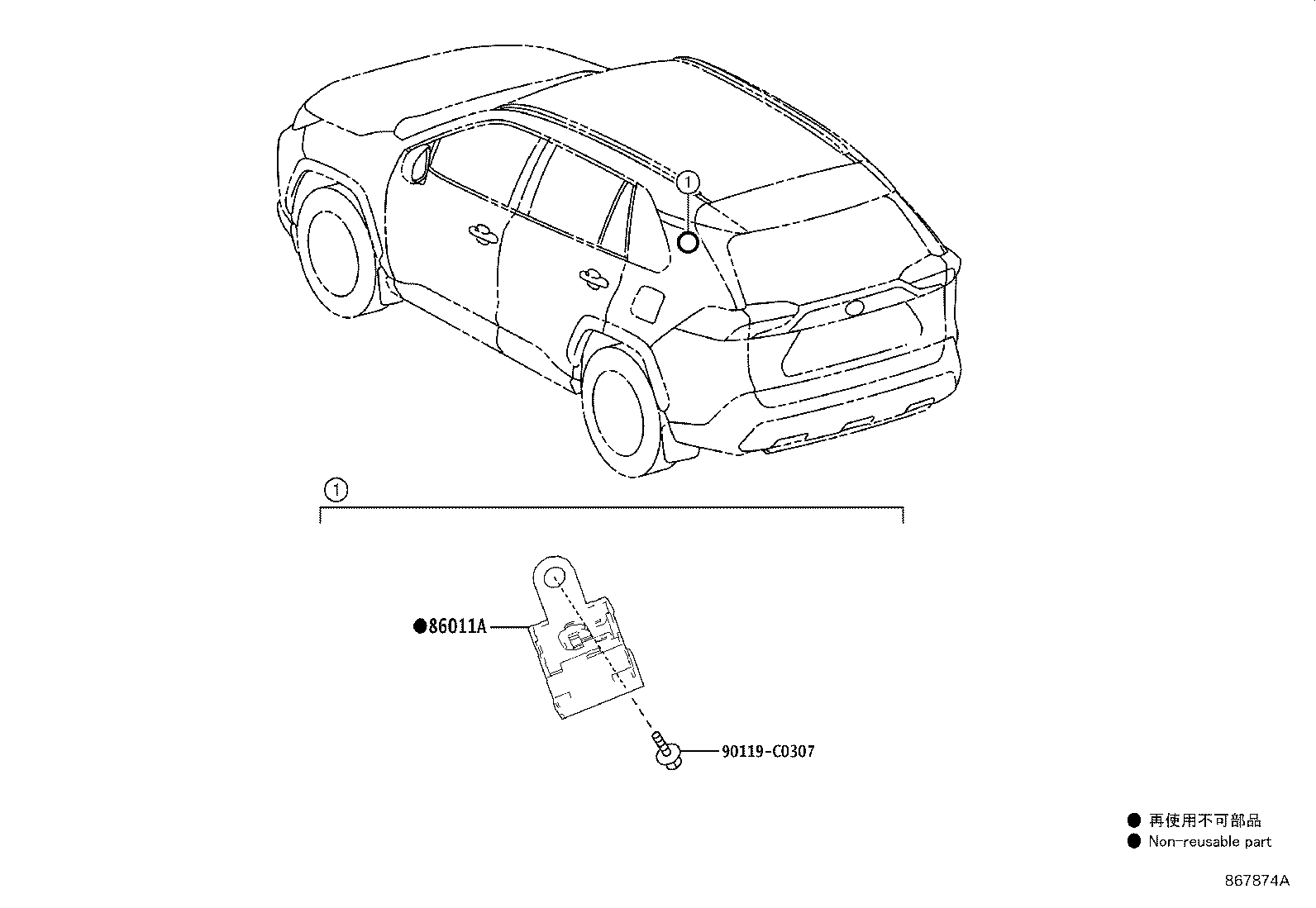

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0307
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04189

AXAH5#,MXAA5#

 1
Common parts
90119-C0307
