MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

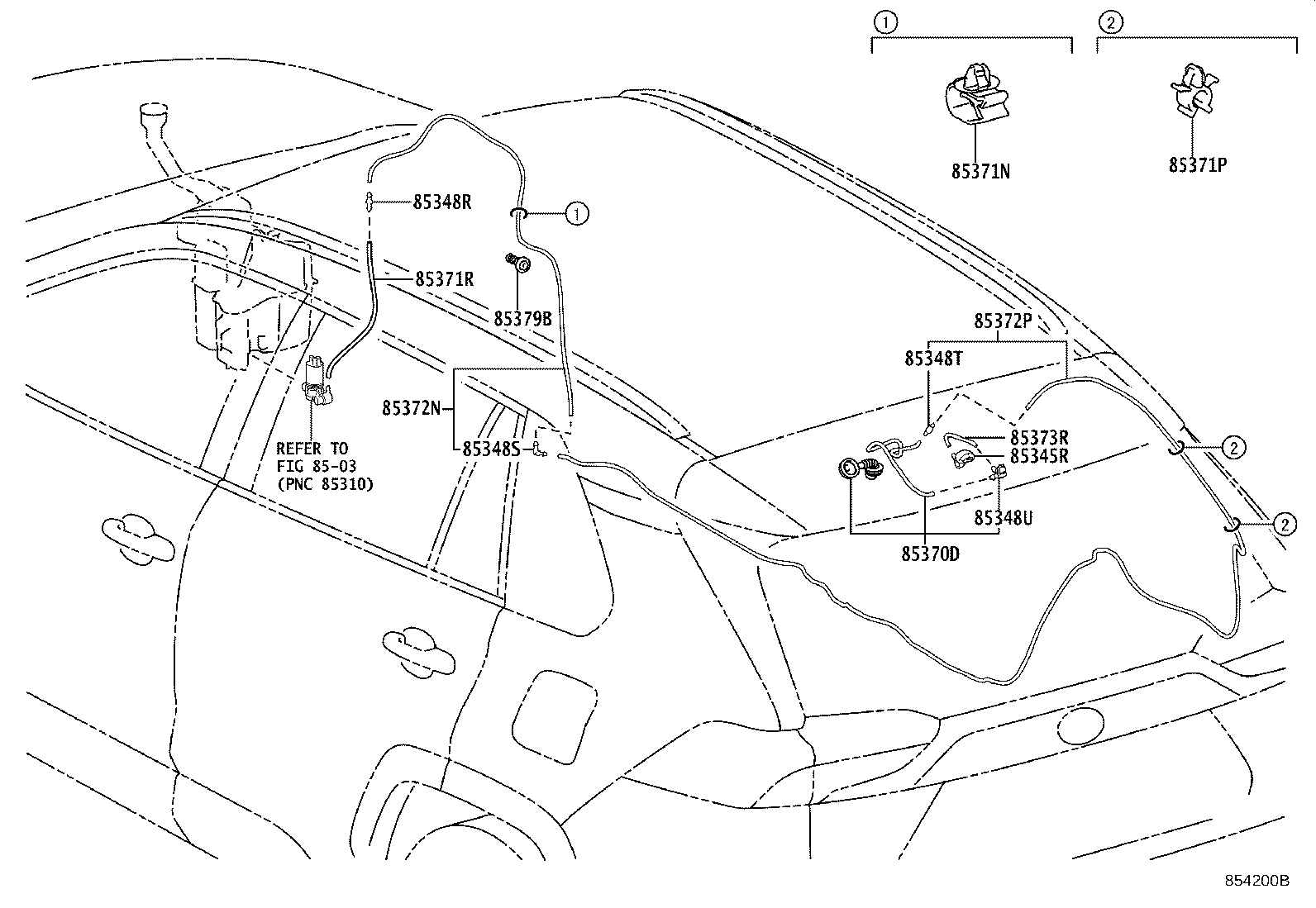

Click highlighted areas on diagram

diagram 8503 85345R 85348R 85348S 85348T 85348U 85370D 85371N 85371P 85371R 85372N 85372P 85373R 85379B
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-42030

AXAH5#,MXAA5#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-05050

AXAH5#,MXAA5#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85376-0R260

AXAH5#,MXAA5#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-05050

AXAH5#,MXAA5#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-0R320

AXAH5#,MXAA5#

 1
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-0R320

AXAH5#,MXAA5#

 1
85371N - CLAMP, REAR WASHER HOSE
82711-16790

AXAH5#,MXAA5#

 1
85371P - CLAMP, REAR WASHER HOSE, NO.2
90469-07011

AXAH5#,MXAA5#

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90069-46102

AXAH5#,MXAA5#

*H,L=380

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90069-46099

AXAH5#,MXAA5#

L=1300

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90069-46098

AXAH5#,MXAA5#

L=3900

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90068-33362

AXAH5#,MXAA5#

L=125

 1
85379B - GROMMET, WASHER, A
85379-0R260

AXAH5#,MXAA5#

 1
