MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

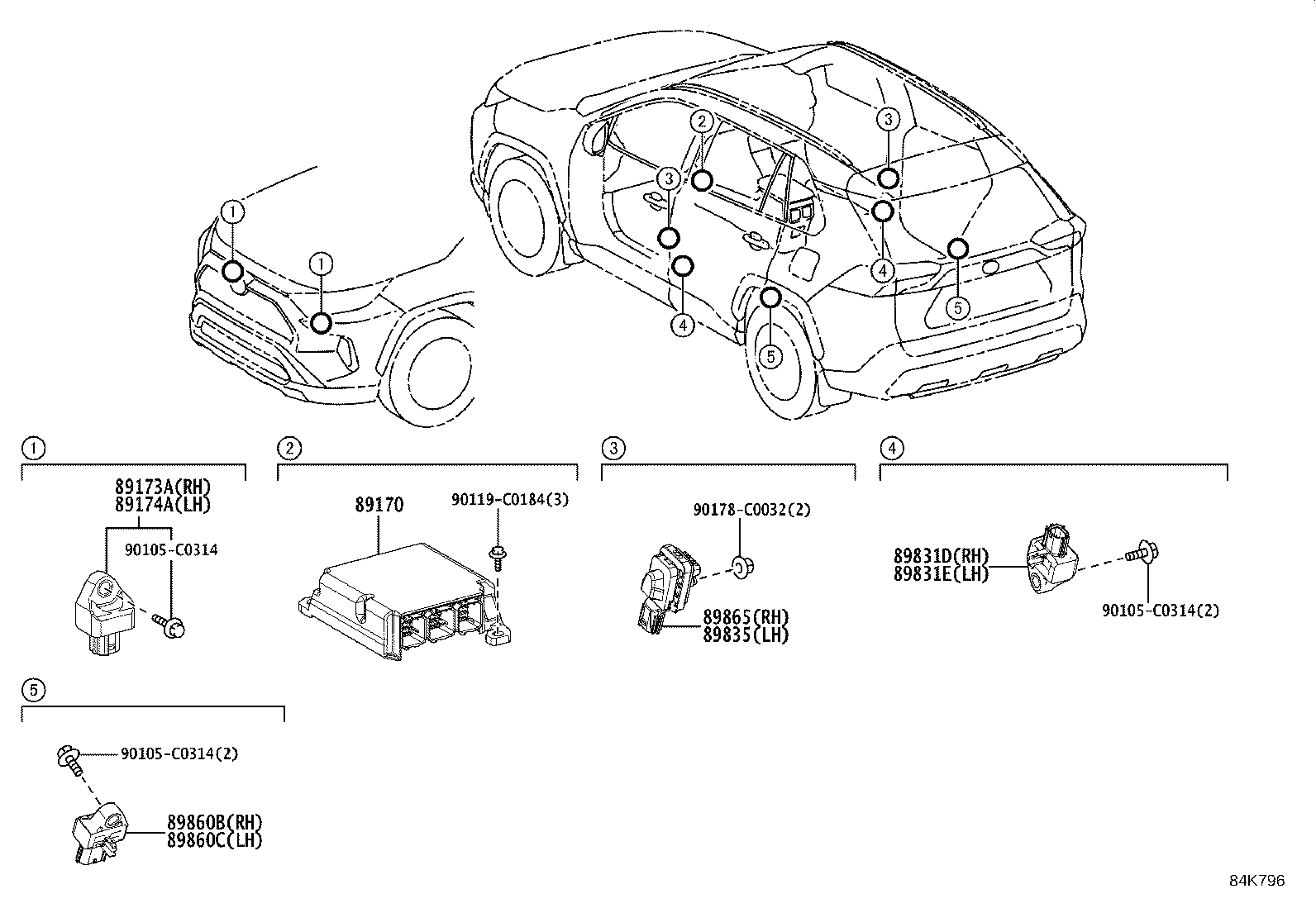

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89831D 89831E 89835 89860B 89860C 89865 90105C0314 90105C0314 90105C0314 90119C0184 90178C0032
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0R160

MXAA5#

 1
89170-0R330

MXAA5#

SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG)

 1
89170-0R370

MXAA5#

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09886

AXAH5#,MXAA5#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09886

AXAH5#,MXAA5#

 1
89831D - SENSOR, FLOOR SIDE AIR BAG, RH
89831-0R150

AXAH5#,MXAA5#

SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG)

 1
89831E - SENSOR, FLOOR SIDE AIR BAG, LH
89831-0R150

AXAH5#,MXAA5#

SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG)

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
8983A-0R011

AXAH5#,MXAA5#

 1
8983A-0R010

AXAH5#,MXAA5#

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-0R130

AXAH5#,MXAA5#

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-0R130

AXAH5#,MXAA5#

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
8983A-0R010

AXAH5#,MXAA5#

 1
8983A-0R011

AXAH5#,MXAA5#

 1
Common parts
90105-C0314
90119-C0184
90178-C0032
