MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

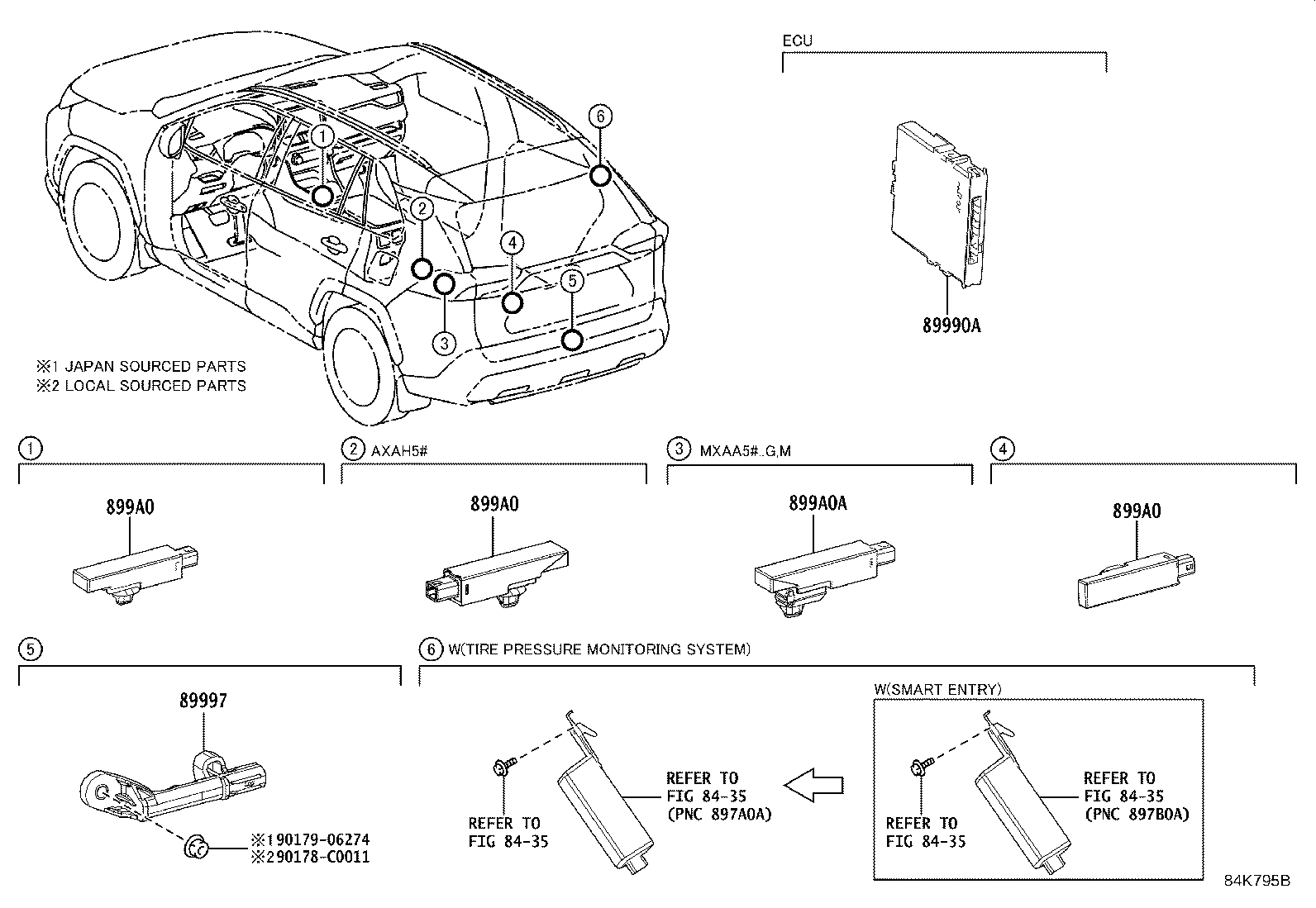

Click highlighted areas on diagram

diagram 8435 8435 8435 8435 89990A 89997 899A0 899A0 899A0 899A0A 90178C0011 9017906274
Part # Description Qty Price
89990A - COMPUTER ASSY, SMART KEY
899H0-0R070

MXAA5#..G,M

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-0E060

AXAH5#,MXAA5#..G,M

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D070

MXAA5#..G,M

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D070

MXAA5#..G,M

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D070

MXAA5#..G,M

 2
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0R030

MXAA5#..G,M

 1
Common parts
90178-C0011
90179-06274
Linked diagrams
8435
