MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

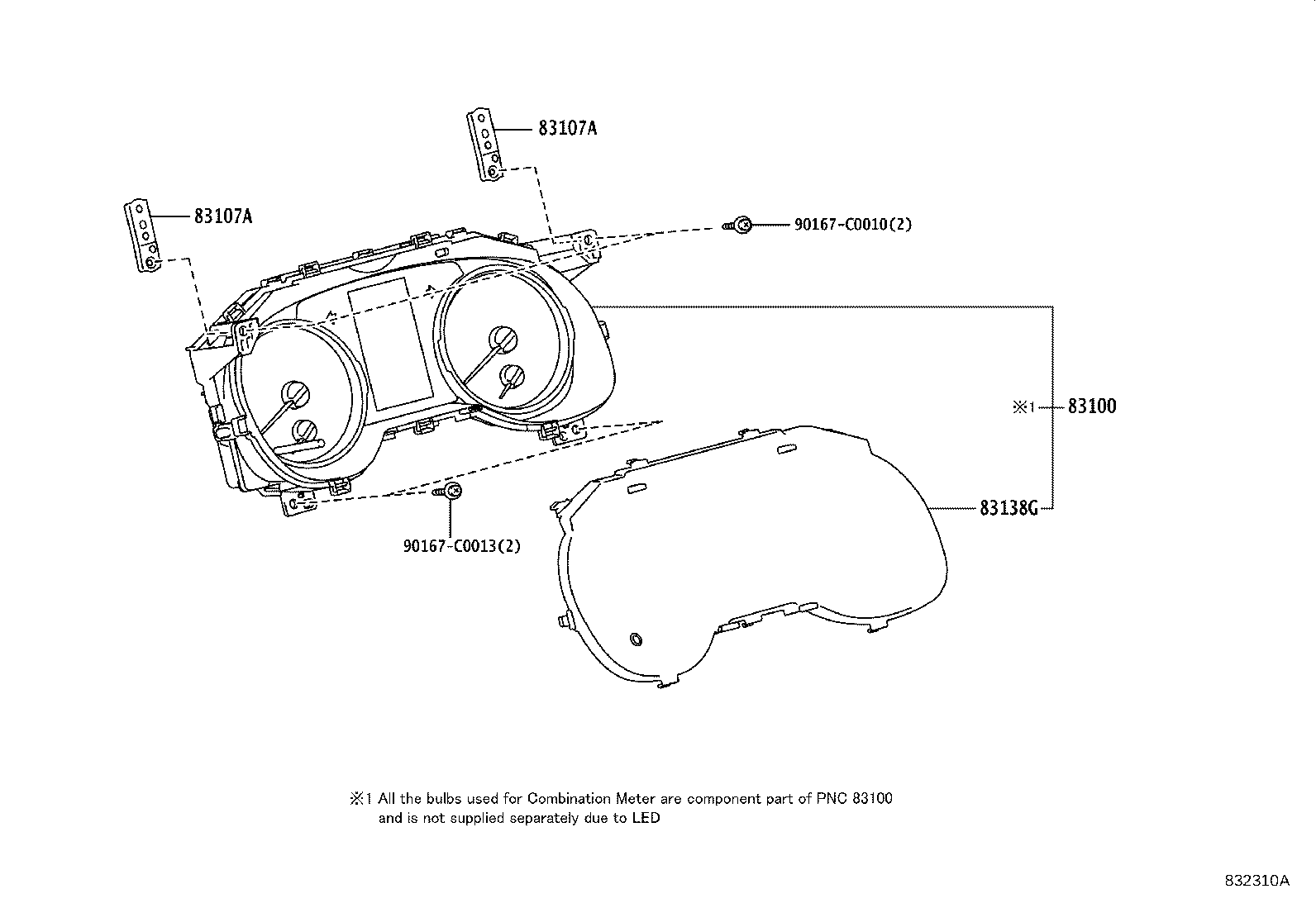

Click highlighted areas on diagram

diagram 83100 83107A 83107A 83138G 90167C0010 90167C0013
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0R570

MXAA5#..G,M

DENSO

 1
83800-0RB70

MXAA5#..G,M

DENSO

 1
83107A - BRACKET SUB-ASSY, METER, NO.1
83107-0R030

AXAH5#,MXAA5#

 2
83107A - BRACKET SUB-ASSY, METER, NO.1
83107-0R030

AXAH5#,MXAA5#

 2
83138G - GLASS, COMBINATION METER
83852-0R570

AXAH5#,MXAA5#..G,M

 1
Common parts
90167-C0010
90167-C0013
