MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

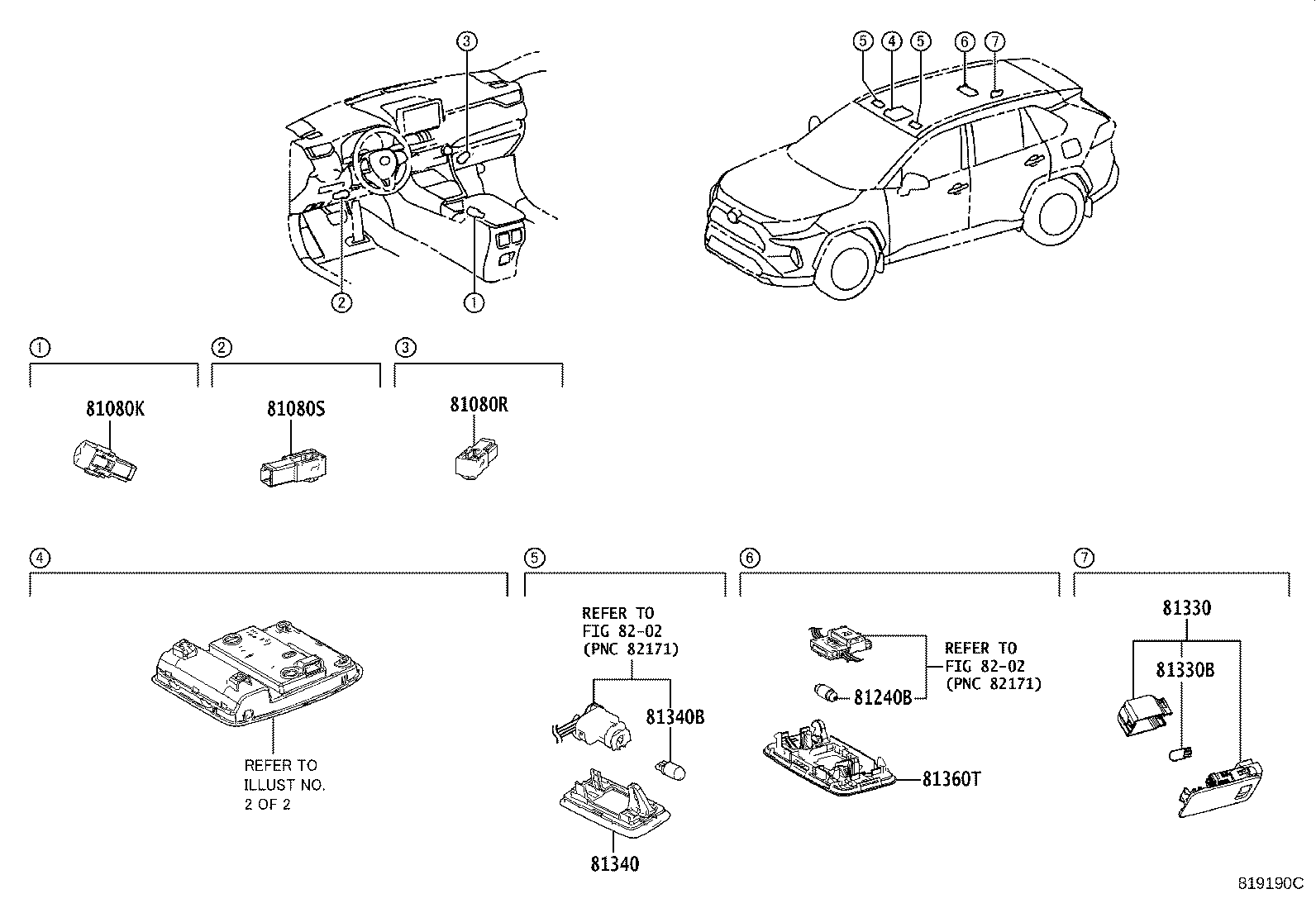

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

diagram 81080K 81080R 81080S 81240B 81330 81330B 81340 81340B 81360T 8202 8202
Part # Description Qty Price
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-42040

AXAH5#,MXAA5#..G

 1
81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-33280

AXAH5#,MXAA5#..G

 1
81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-33280

AXAH5#,MXAA5#..G

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AXAH5#,MXAA5#

12V 8W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-58010

AXAH5#,MXAA5#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

AXAH5#,MXAA5#

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-0P010

AXAH5#,MXAA5#

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

AXAH5#,MXAA5#

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-42021B0

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 1
Linked diagrams
8202

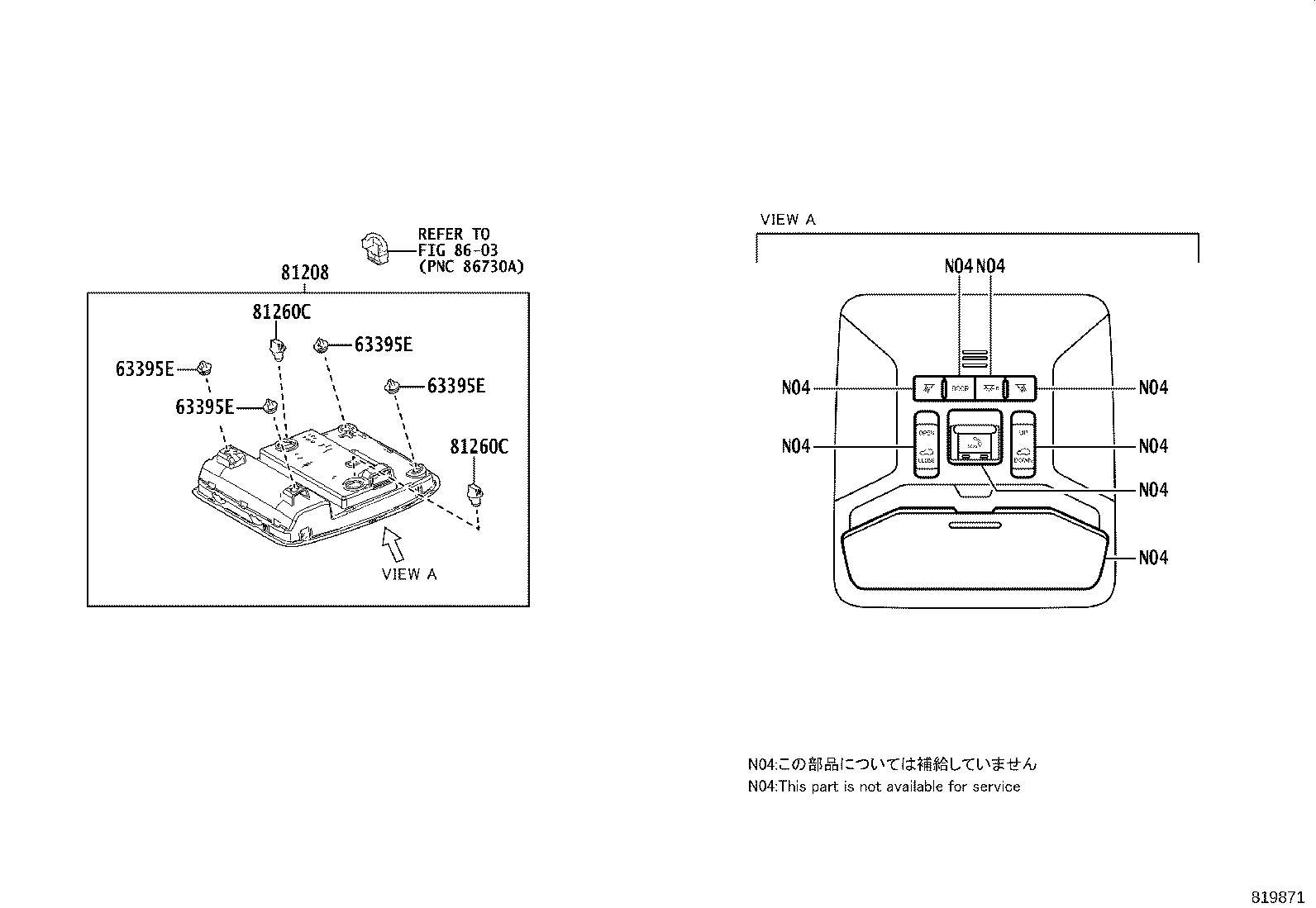

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81208 81260C 81260C 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAH5#,MXAA5#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAH5#,MXAA5#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAH5#,MXAA5#

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

AXAH5#,MXAA5#

 4
81208 - LAMP SUB-ASSY, MAP
81208-0R160B0

AXAH5#,MXAA5#..G

LT.GRAY,TRIM1#,2#,4#

 1
81208-0R150B0

AXAH5#,MXAA5#..M

LT.GRAY,TRIM1#,2#,4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

AXAH5#,MXAA5#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
99132-12050

AXAH5#,MXAA5#

12V 5W

 2
Linked diagrams
8603
