MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)

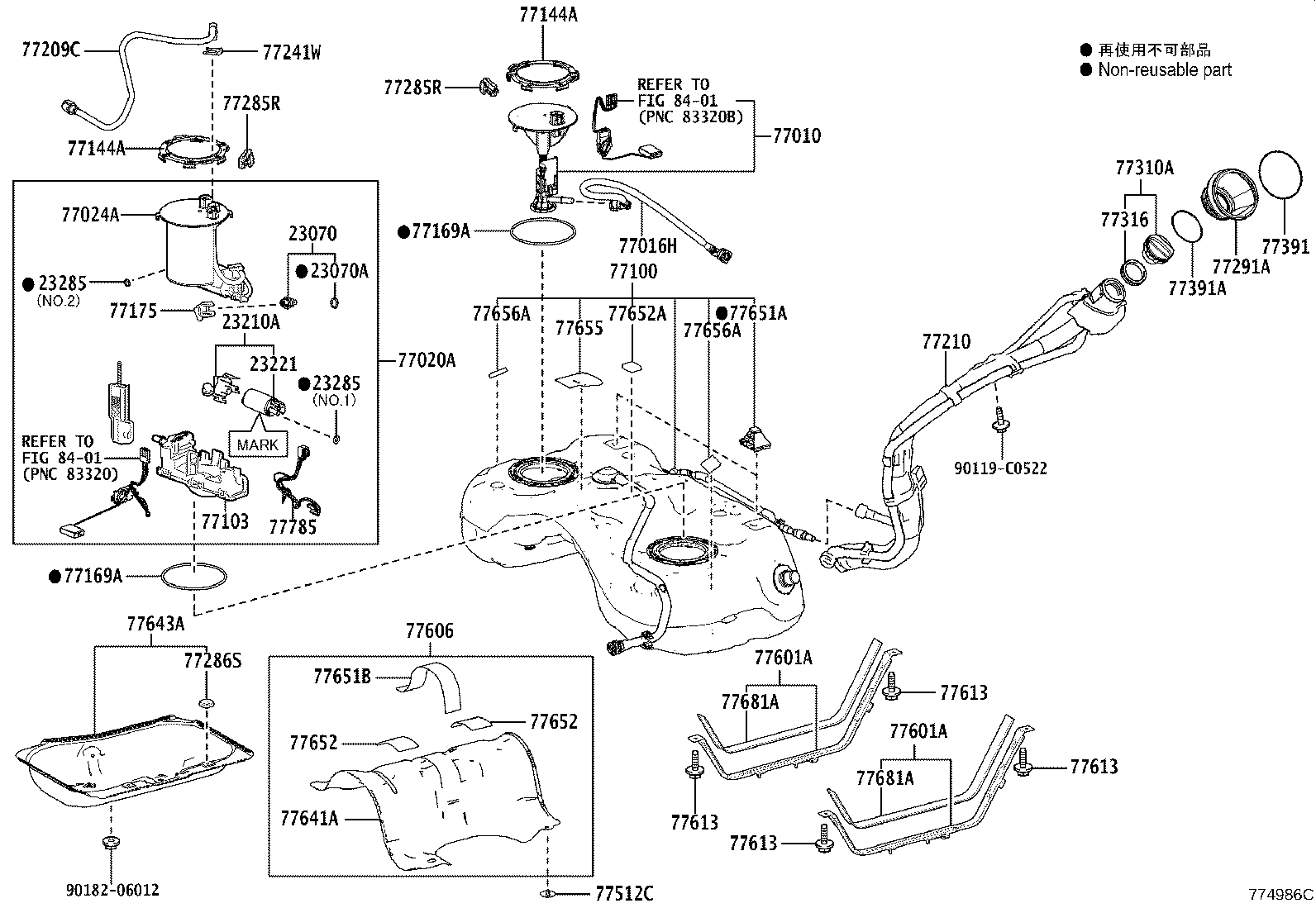

ILLUST NO. 1 OF 3(1911- )MXAA5#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-24010 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# (J) |
1 | ||
| 23070-F0030 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# (L) |
1 | ||
| 23070-24010 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# |
1 | ||
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-F2010 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# |
1 | ||
| 23210-F2010 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# MARK 23221-24010 |
1 | ||
| 23210-F0010 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# MARK 23221-F0040 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-F0040 |
A25BFXS,M20DFKS..AXAH5#,MXAA5# (L) |
1 | ||
| 23221-24010 |
M20DFKS..MXAA5# (J) |
1 | ||
| 23285 - RING, O | ||||
| 90301-C0082 |
M20DFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 90301-C0073 |
M20DFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 23285 - RING, O | ||||
| 90301-C0082 |
M20DFKS..MXAA5# NO.2:REFER ILLUST. |
1 | ||
| 90301-C0073 |
M20DFKS..MXAA5# NO.1:REFER ILLUST. |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0R020 |
MXAA5# |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-0R030 |
MXAA5# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0R070 |
MXAA5# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0R080 |
MXAA5# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0R120 |
MXAA5# |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-0R030 |
MXAA5# |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
MXAA5# |
2 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
MXAA5# |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0R050 |
MXAA5# |
2 | ||
| 77169-47030 |
MXAA5# |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0R050 |
MXAA5# |
2 | ||
| 77169-47030 |
MXAA5# |
2 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-F4020 |
AXAH5#,MXAA5# |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0R080 |
MXAA5# |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-0R080 |
MXAA5# |
1 | ||
| 77210-0E270 |
MXAA5# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
MXAA5# (J) |
1 | ||
| 77241-02020 |
MXAA5# (L) |
1 | ||
| 77241-33011 |
MXAA5# |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R310 |
AXAH5#,MXAA5# (L) |
2 | ||
| 77285-30350 |
MXAA5# |
2 | ||
| 77285-30350 |
MXAA5# (J) |
2 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R310 |
AXAH5#,MXAA5# (L) |
2 | ||
| 77285-30350 |
MXAA5# |
2 | ||
| 77285-30350 |
MXAA5# (J) |
2 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
MXAA5# (J) |
3 | ||
| 77286-F4040 |
MXAA5# (L) |
3 | ||
| 77286-12110 |
MXAA5# |
3 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0R010 |
MXAA5# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0F020 |
MXAA5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0R030 |
AXAH5#,MXAA5# |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MXAA5# (J) |
4 | ||
| 77512-07010 |
MXAA5# (L) |
4 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0R060 |
MXAA5# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0R060 |
MXAA5# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-0R040 |
MXAA5# |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXAA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXAA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXAA5# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXAA5# |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0R100 |
MXAA5# |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77606-0R060 |
MXAA5# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-07010 |
MXAA5# |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-35060 |
MXAA5# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
MXAA5# |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
MXAA5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-07020 |
MXAA5# |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-12100 |
MXAA5# |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-47010 |
MXAA5# |
2 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-47010 |
MXAA5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-0R040 |
MXAA5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-0R040 |
MXAA5# |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-76010 |
MXAA5# |
1 | ||
| Common parts | ||||
| 90119-C0522 | ||||
| 90182-06012 | ||||
| Linked diagrams | ||||
| 8401 | ||||

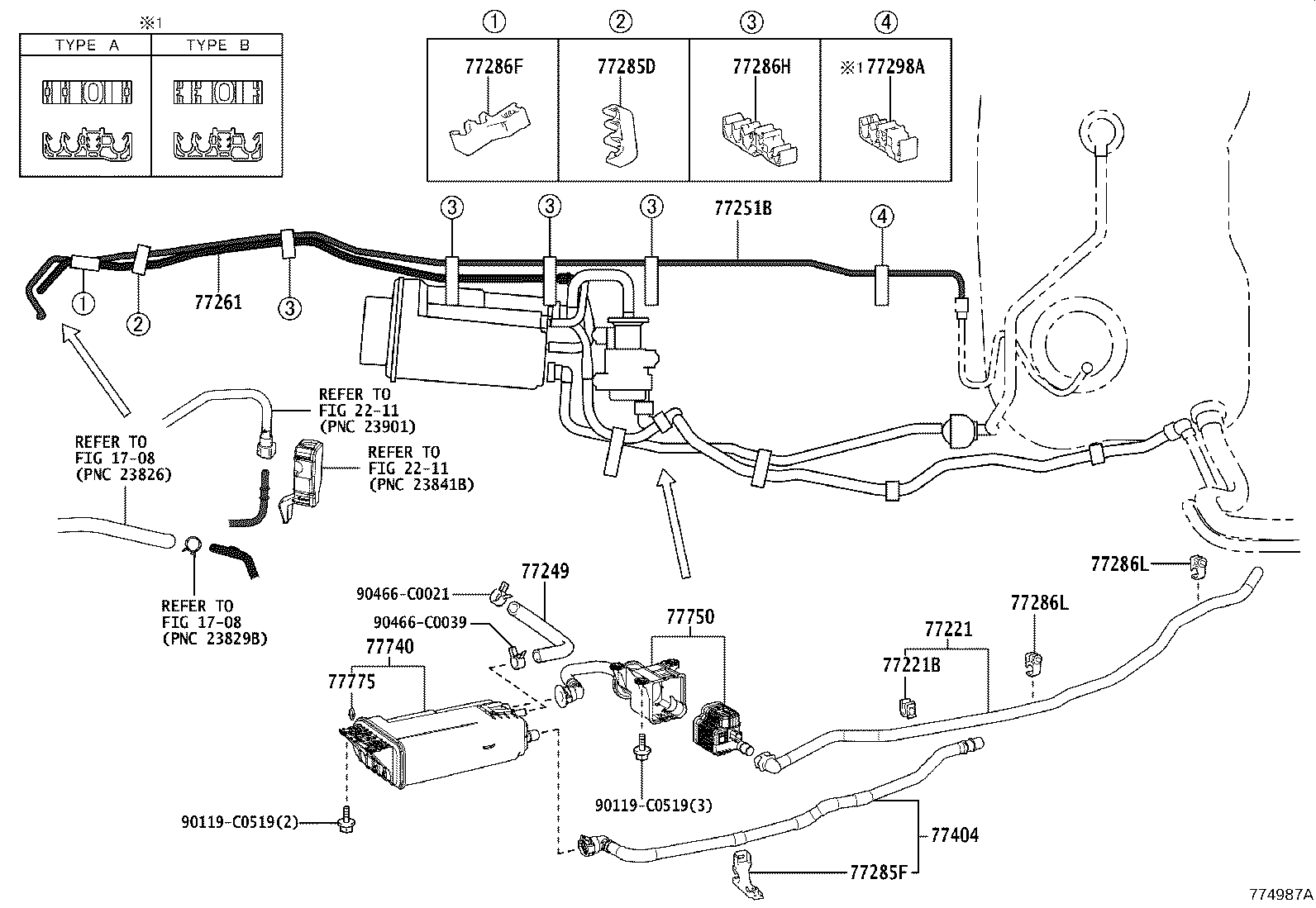

ILLUST NO. 2 OF 3(1911- )MXAA5#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77227-0R060 |
MXAA5# |
1 | ||
| 77221B - CLAMP, BREATHR TUBE | ||||
| 77285-42190 |
MXAA5# |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-0R070 |
MXAA5# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0R120 |
MXAA5# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-0R110 |
AXAH5#,MXAA5# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R130 |
AXAH5#,MXAA5# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42200 |
MXAA5# |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-0R120 |
AXAH5#,MXAA5# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-0R110 |
AXAH5#,MXAA5# |
4 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-0R140 |
MXAA5# |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-0R140 |
MXAA5# |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-07020 |
MXAA5# TYPE A:REFER ILLUST. |
1 | ||
| 77298-33120 |
MXAA5# TYPE B:REFER ILLUST. |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-0R100 |
MXAA5# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-F4020 |
MXAA5# |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77730-0R020 |
MXAA5# |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-33010 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-C0519 | ||||
| 90466-C0021 | ||||
| 90466-C0039 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

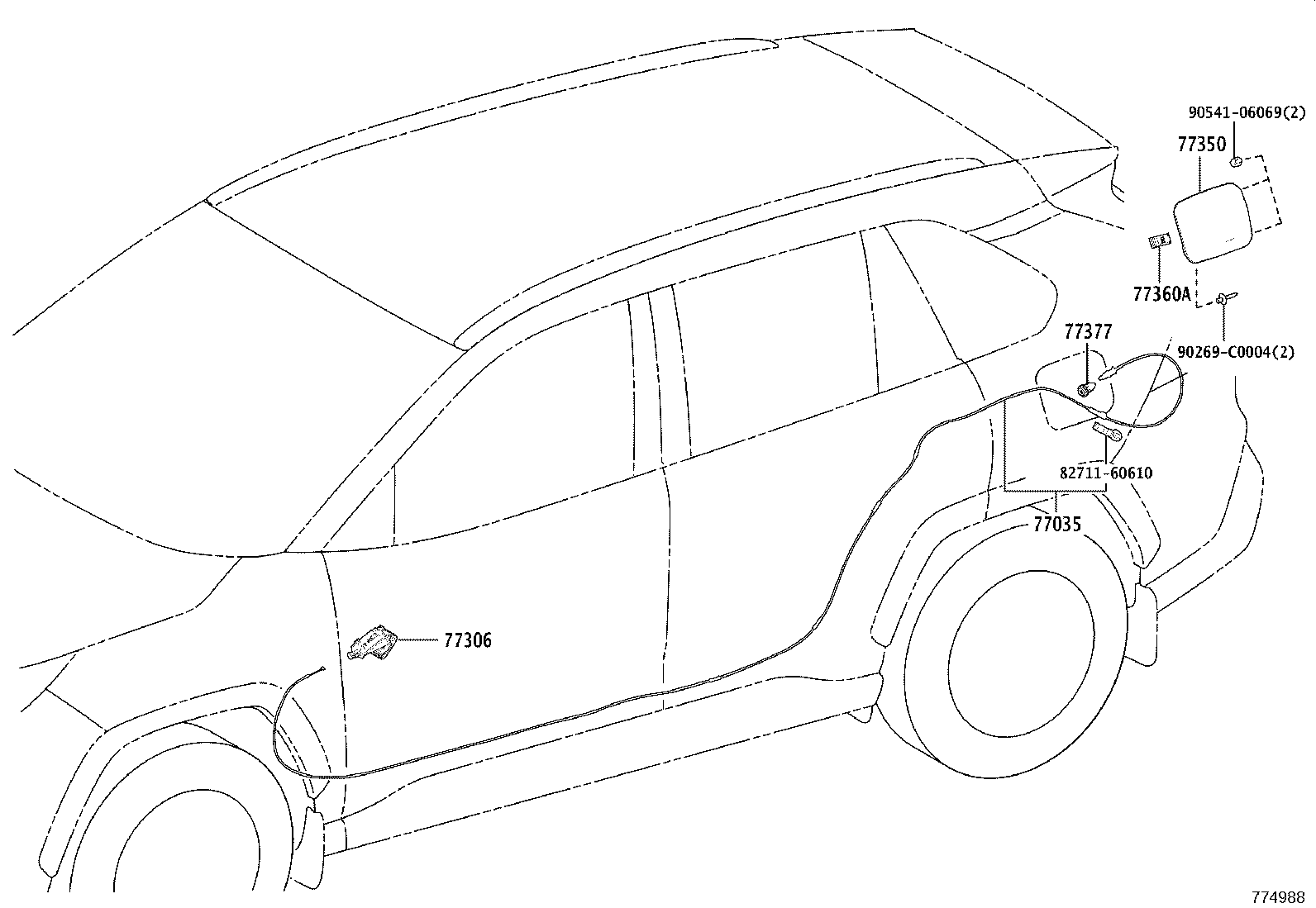

ILLUST NO. 3 OF 3(1911- )MXAA5#
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0R070 |
MXAA5# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0R050C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-35040 |
AXAH5#,MXAA5# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02100 |
MXAA5# |
1 | ||
| Common parts | ||||
| 82711-60610 | ||||
| 90269-C0004 | ||||
| 90541-06069 | ||||
