MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

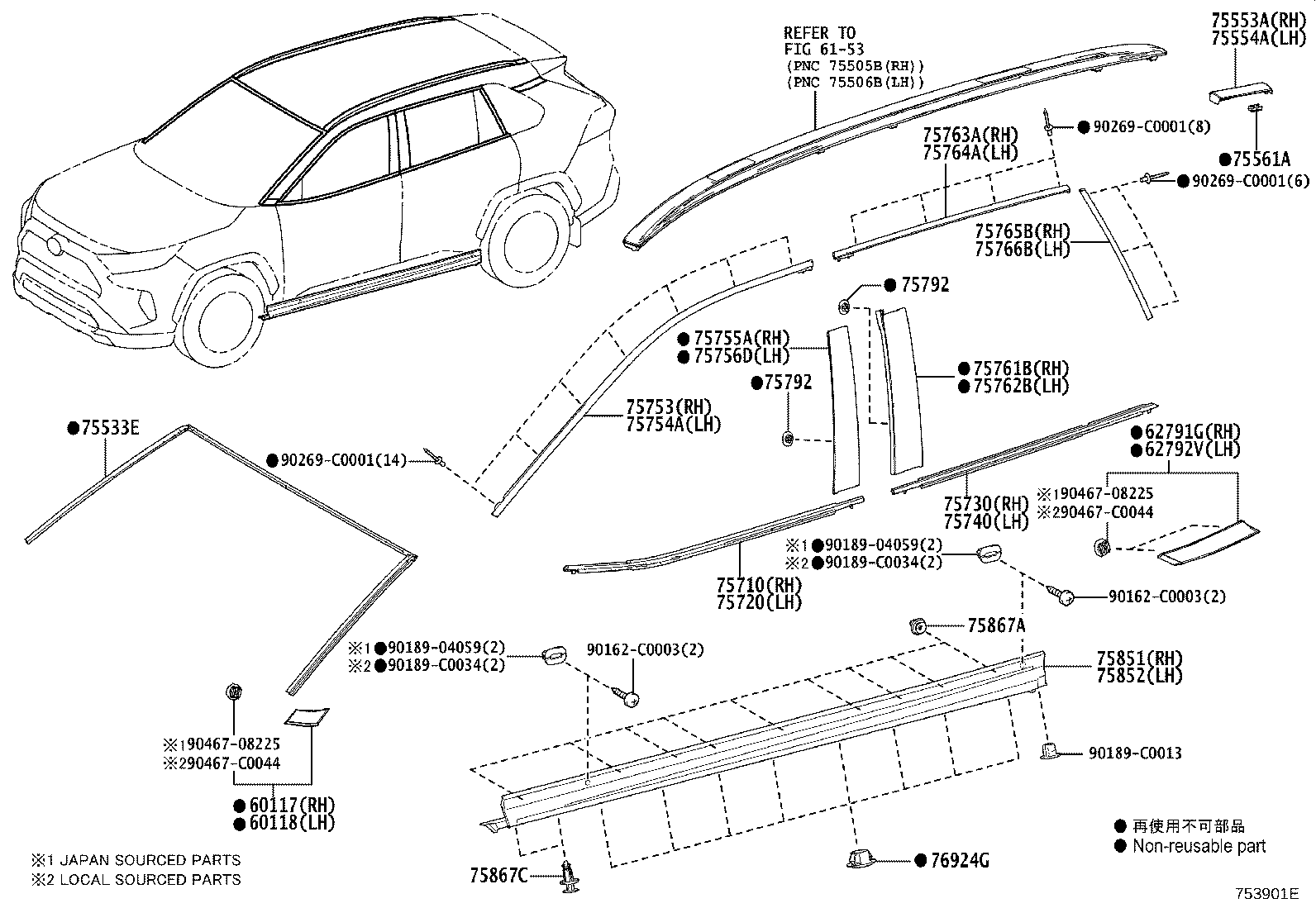

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

W(ROOF RAIL)

diagram 60117 60118 6153 62791G 62792V 75533E 75553A 75554A 75561A 75710 75720 75730 75740 75753 75754A 75755A 75756D 75761B 75762B 75763A 75764A 75765B 75766B 75792 75792 75851 75852 75867A 75867C 76924G 90162C0003 90162C0003 9018904059 9018904059 90189C0013 90189C0034 90189C0034 90269C0001 90269C0001 90269C0001 9046708225 9046708225 90467C0044 90467C0044
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-0R070

AXAH5#,MXAA5#

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-0R070

AXAH5#,MXAA5#

 1
62791G - MOULDING, QUARTER WINDOW, UPPER RH
62791-0R020

AXAH5#,MXAA5#..M,X

 1
62791-0R040

AXAH5#,MXAA5#..G

 1
62792V - MOULDING, QUARTER WINDOW, UPPER LH
62792-0R020

AXAH5#,MXAA5#..M,X

 1
62792-0R040

AXAH5#,MXAA5#..G

 1
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-0R040

AXAH5#,MXAA5#

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-0R070

AXAH5#,MXAA5#..G

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-0R070

AXAH5#,MXAA5#..G

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52020

AXAH5#,MXAA5#..M,X

 4
75561-52020

AXAH5#,MXAA5#..G

 2
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0R060

AXAH5#,MXAA5#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0R060

AXAH5#,MXAA5#

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0R060

AXAH5#,MXAA5#

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0R060

AXAH5#,MXAA5#

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75071-0R020

AXAH5#,MXAA5#

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75072-0R020

AXAH5#,MXAA5#

 1
75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID
75755-0R040

AXAH5#,MXAA5#

 1
75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID
75756-0R040

AXAH5#,MXAA5#

 1
75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE
75075-0R040

AXAH5#,MXAA5#

 1
75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE
75076-0R040

AXAH5#,MXAA5#

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-0R020

AXAH5#,MXAA5#

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-0R020

AXAH5#,MXAA5#

 1
75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75765-0R020

AXAH5#,MXAA5#

 1
75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75766-0R020

AXAH5#,MXAA5#

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D010

AXAH5#,MXAA5#

 4
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D010

AXAH5#,MXAA5#

 4
75851 - MOULDING, ROCKER PANEL, RH
75851-0R020

AXAH5#,MXAA5#

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-0R020

AXAH5#,MXAA5#

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-0R010

AXAH5#,MXAA5#

 18
75867C - CLIP, ROCKER PANEL MOULDING
75867-30120

AXAH5#,MXAA5#

 4
76924G - RETAINER, ROCKER PANEL MOULDING
90467-22017

AXAH5#,MXAA5#

 16
Common parts
90162-C0003
90189-04059
90189-C0013
90189-C0034
90269-C0001
90467-08225
90467-C0044
Linked diagrams
6153

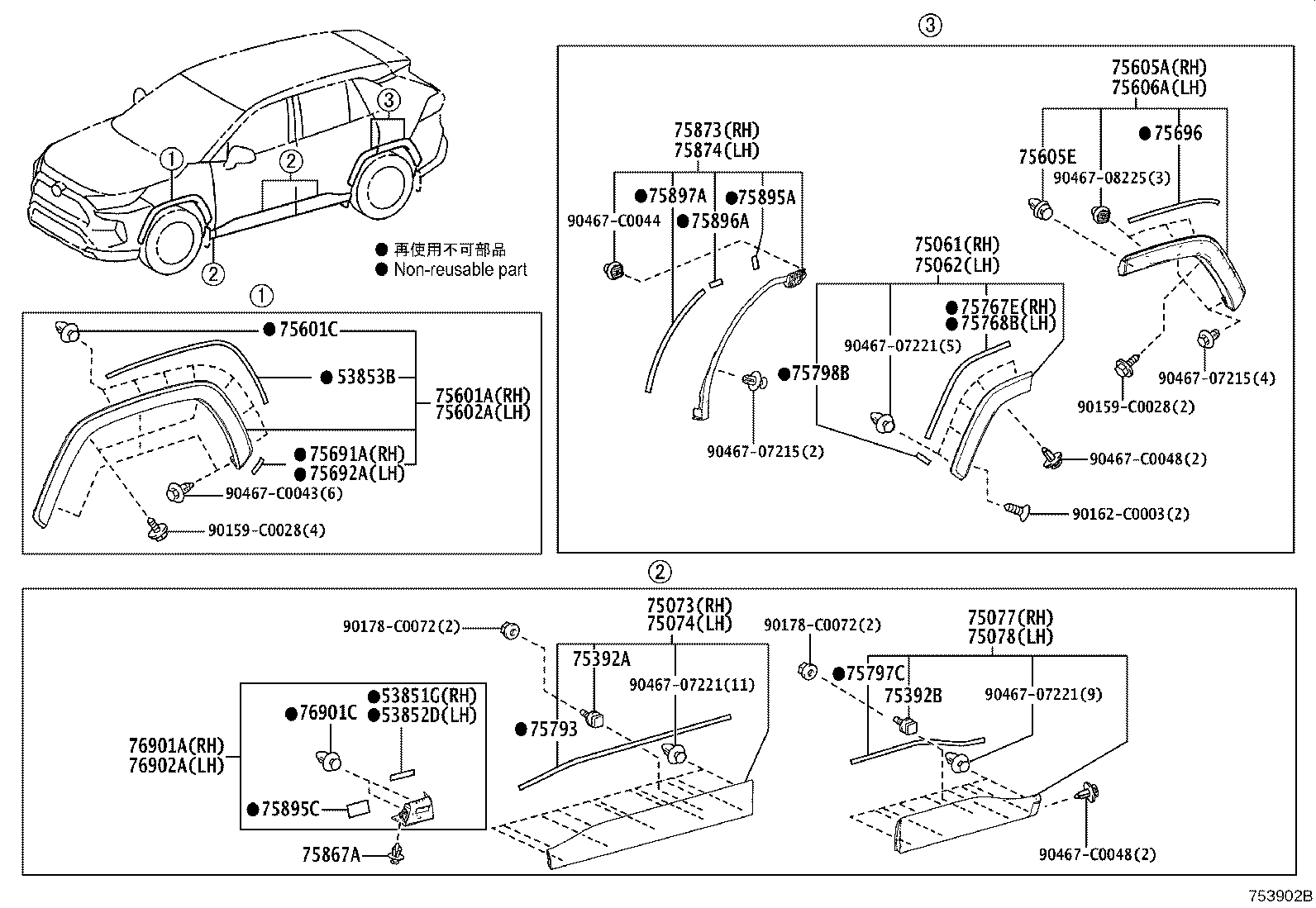

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

diagram 53851G 53852D 53853B 75061 75062 75073 75074 75077 75078 75392A 75392B 75601A 75601C 75602A 75605A 75605E 75606A 75691A 75692A 75696 75767E 75768B 75793 75797C 75798B 75867A 75873 75874 75895A 75895C 75896A 75897A 76901A 76901C 76902A 90159C0028 90159C0028 90162C0003 90178C0072 90178C0072 9046707215 9046707215 9046707221 9046707221 9046707221 9046708225 90467C0043 90467C0044 90467C0048 90467C0048
Part # Description Qty Price
53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-0R120

AXAH5#,MXAA5#

 1
53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH
53851-0R120

AXAH5#,MXAA5#

 1
53853B - PAD, FRONT WHEEL OPENING EXTENSION, NO.1
53853-0R070

AXAH5#,MXAA5#

 2
75061 - MOULDING SET, OUTSIDE
75061-0R040

AXAH5#,MXAA5#

 1
75062 - MOULDING SET, OUTSIDE, LH
75062-0R040

AXAH5#,MXAA5#

 1
75073 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH
75073-0R101

AXAH5#,MXAA5#

 1
75073-0R100

AXAH5#,MXAA5#

 1
75074 - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH
75074-0R101

AXAH5#,MXAA5#

 1
75074-0R100

AXAH5#,MXAA5#

 1
75077 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
75077-0R101

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75077-0R100

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75078 - MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75078-0R101

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75078-0R100

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75392A - RETAINER, OUTSIDE MOULDING, NO.1
75392-33020

AXAH5#,MXAA5#

 2
75392B - RETEINER, OUTSIDE MOULDING, NO.1
75392-33020

AXAH5#,MXAA5#

 2
75601A - MOULDING SUB-ASSY, FRONT FENDER, RH
75601-0R120

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75601C - CLIP, FRONT FENDER MOULDING
75867-0R010

AXAH5#,MXAA5#

 16
75602A - MOULDING SUB-ASSY, FRONT FENDER, LH
75602-0R120

AXAH5#,MXAA5#

NO PAINT REQ.

 1
75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-0R120

AXAH5#,MXAA5#

 1
75605E - CLIP, QUARTER OUTSIDE MOULDING
62217-13010

AXAH5#,MXAA5#

 2
75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75606-0R120

AXAH5#,MXAA5#

 1
75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH
75798-0R060

AXAH5#,MXAA5#

 1
75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH
75798-0R060

AXAH5#,MXAA5#

 1
75696 - PAD, BODY OUTSIDE MOULDING, NO.1
75696-0R080

AXAH5#,MXAA5#

 2
75767E - PAD, REAR DOOR MOULDING, RH
75767-0R050

AXAH5#,MXAA5#

 1
75768B - PAD, REAR DOOR MOULDING, LH
75767-0R050

AXAH5#,MXAA5#

 1
75793 - PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75793-0R100

AXAH5#,MXAA5#

 2
75797C - PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75797-0R110

AXAH5#,MXAA5#

 2
75798B - PAD, REAR DOOR OUTSIDE MOULDING, REAR
75798-0R060

AXAH5#,MXAA5#

 2
75867A - CLIP, ROCKER PANEL MOULDING
75867-0R010

AXAH5#,MXAA5#

 18
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-0R020

AXAH5#,MXAA5#

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-0R020

AXAH5#,MXAA5#

 1
75895A - TAPE, MOULDING, NO.1
75895-0R030

AXAH5#,MXAA5#

 2
75895C - TAPE, MOULDING, NO.3
75895-0R040

AXAH5#,MXAA5#

 2
75896A - TAPE, MOULDING, NO.2
75896-0R020

AXAH5#,MXAA5#

 2
75897A - TAPE, MOULDING, NO.2
75897-0R020

AXAH5#,MXAA5#

 2
76901A - MUDGUARD SUB-ASSY, SIDE, RH
76901-0R030

AXAH5#,MXAA5#

 1
76901C - CLIP, FENDER PANEL MUDGUARD
75867-0R010

AXAH5#,MXAA5#

 4
76902A - MUDGUARD SUB-ASSY, SIDE, LH
76902-0R030

AXAH5#,MXAA5#

 1
Common parts
90159-C0028
90162-C0003
90178-C0072
90467-07215
90467-07221
90467-08225
90467-C0043
90467-C0044
90467-C0048

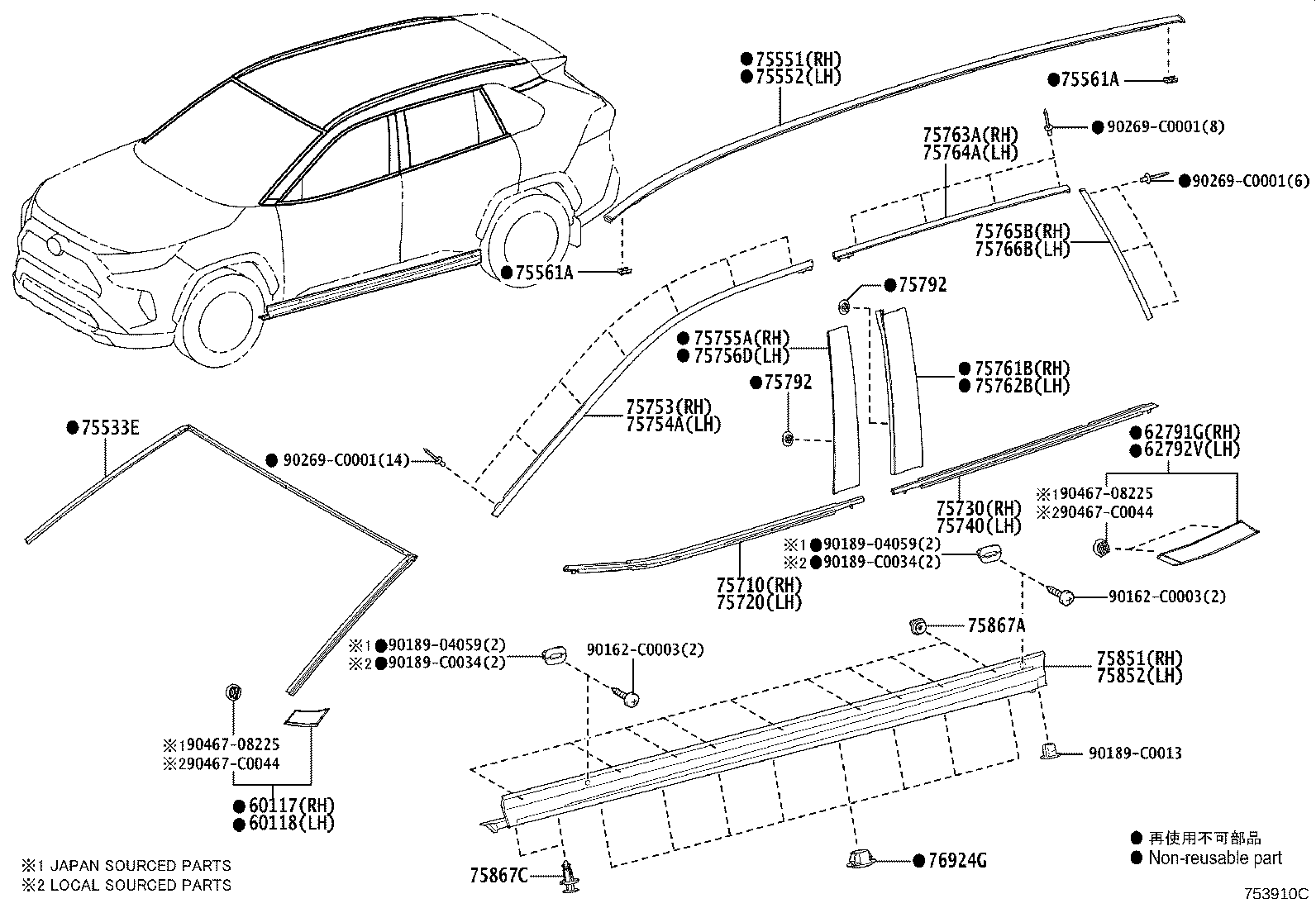

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

W/O(ROOF RAIL)

diagram 60117 60118 62791G 62792V 75533E 75551 75552 75561A 75561A 75710 75720 75730 75740 75753 75754A 75755A 75756D 75761B 75762B 75763A 75764A 75765B 75766B 75792 75792 75851 75852 75867A 75867C 76924G 90162C0003 90162C0003 9018904059 9018904059 90189C0013 90189C0034 90189C0034 90269C0001 90269C0001 90269C0001 9046708225 9046708225 90467C0044 90467C0044
Part # Description Qty Price
60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH
60117-0R070

AXAH5#,MXAA5#

 1
60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH
60118-0R070

AXAH5#,MXAA5#

 1
62791G - MOULDING, QUARTER WINDOW, UPPER RH
62791-0R020

AXAH5#,MXAA5#..M,X

 1
62791-0R040

AXAH5#,MXAA5#..G

 1
62792V - MOULDING, QUARTER WINDOW, UPPER LH
62792-0R020

AXAH5#,MXAA5#..M,X

 1
62792-0R040

AXAH5#,MXAA5#..G

 1
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-0R040

AXAH5#,MXAA5#

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-0R040

AXAH5#,MXAA5#..M,X

NO PAINT REQ.

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-0R040

AXAH5#,MXAA5#..M,X

NO PAINT REQ.

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52020

AXAH5#,MXAA5#..M,X

 4
75561-52020

AXAH5#,MXAA5#..G

 2
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-52020

AXAH5#,MXAA5#..M,X

 4
75561-52020

AXAH5#,MXAA5#..G

 2
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0R060

AXAH5#,MXAA5#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0R060

AXAH5#,MXAA5#

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0R060

AXAH5#,MXAA5#

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0R060

AXAH5#,MXAA5#

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75071-0R020

AXAH5#,MXAA5#

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75072-0R020

AXAH5#,MXAA5#

 1
75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID
75755-0R040

AXAH5#,MXAA5#

 1
75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID
75756-0R040

AXAH5#,MXAA5#

 1
75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE
75075-0R040

AXAH5#,MXAA5#

 1
75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE
75076-0R040

AXAH5#,MXAA5#

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-0R020

AXAH5#,MXAA5#

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-0R020

AXAH5#,MXAA5#

 1
75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75765-0R020

AXAH5#,MXAA5#

 1
75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75766-0R020

AXAH5#,MXAA5#

 1
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D010

AXAH5#,MXAA5#

 4
75792 - CLIP, DOOR WINDOW FRAME MOULDING
75792-0D010

AXAH5#,MXAA5#

 4
75851 - MOULDING, ROCKER PANEL, RH
75851-0R020

AXAH5#,MXAA5#

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-0R020

AXAH5#,MXAA5#

 1
75867A - CLIP, ROCKER PANEL MOULDING
75867-0R010

AXAH5#,MXAA5#

 18
75867C - CLIP, ROCKER PANEL MOULDING
75867-30120

AXAH5#,MXAA5#

 4
76924G - RETAINER, ROCKER PANEL MOULDING
90467-22017

AXAH5#,MXAA5#

 16
Common parts
90162-C0003
90189-04059
90189-C0013
90189-C0034
90269-C0001
90467-08225
90467-C0044
