MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

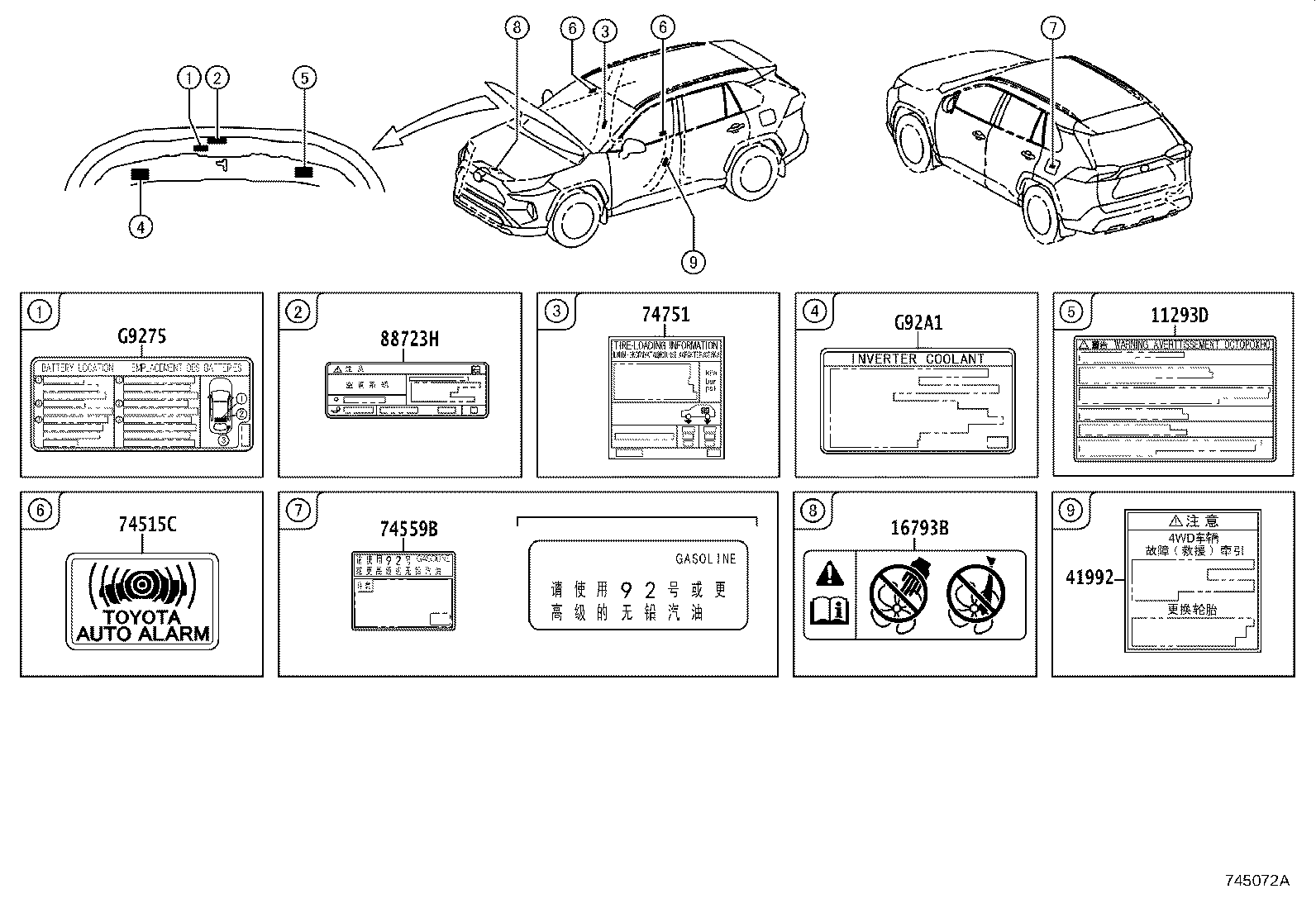

ENGINE ROOM & EXTERIOR

diagram 11293D 16793B 41992 74515C 74559B 74751 88723H G9275 G92A1
Part # Description Qty Price
16793B - LABEL, COOLING FAN INFORMATION
16793-36030

A25BFXS,M20DFKS..AXAH5#,MXAA5#

 1
41992 - LABEL, DIFFERENTIAL NOTICE
41992-0R020

AXAH54,MXAA54

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-06020

AXAH5#,MXAA5#..G,M

 2
74559B - LABEL, FUEL INFORMATION
74579-0D010

MXAA5#

(L)

 1
74579-26011

MXAA5#

(J)

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0R230

MXAA5#..G

 1
42661-0R250

AXAH5#;MXAA5#..M

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0R060

MXAA5#

 1

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

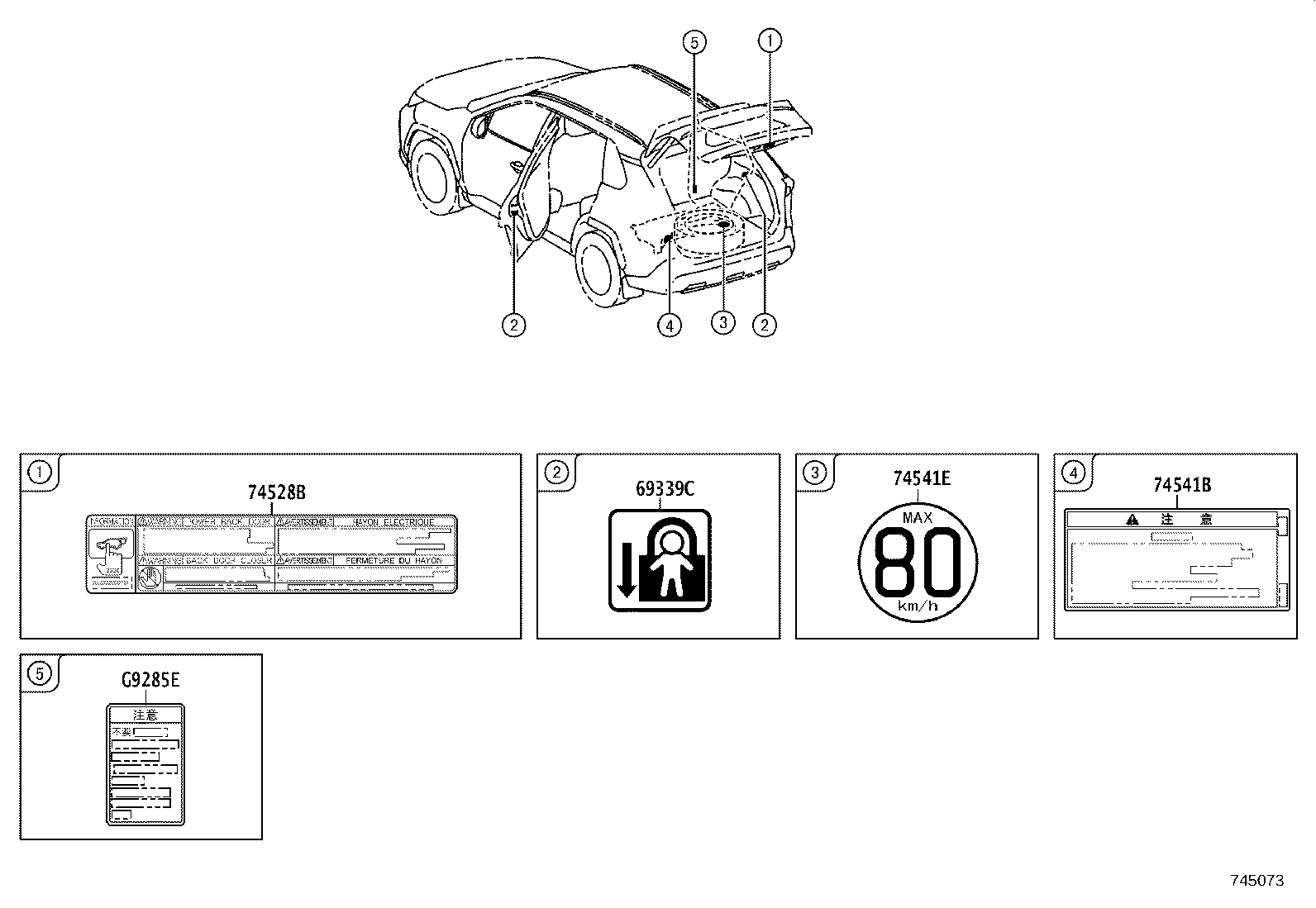

INTERIOR

diagram 69339C 74528B 74541B 74541E G9285E
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06080

AXAH5#,MXAA5#

 2
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-0N010

AXAH5#,MXAA5#

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-20020

AXAH5#,MXAA5#

 1
