MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )MXAA5#

Click highlighted areas on diagram

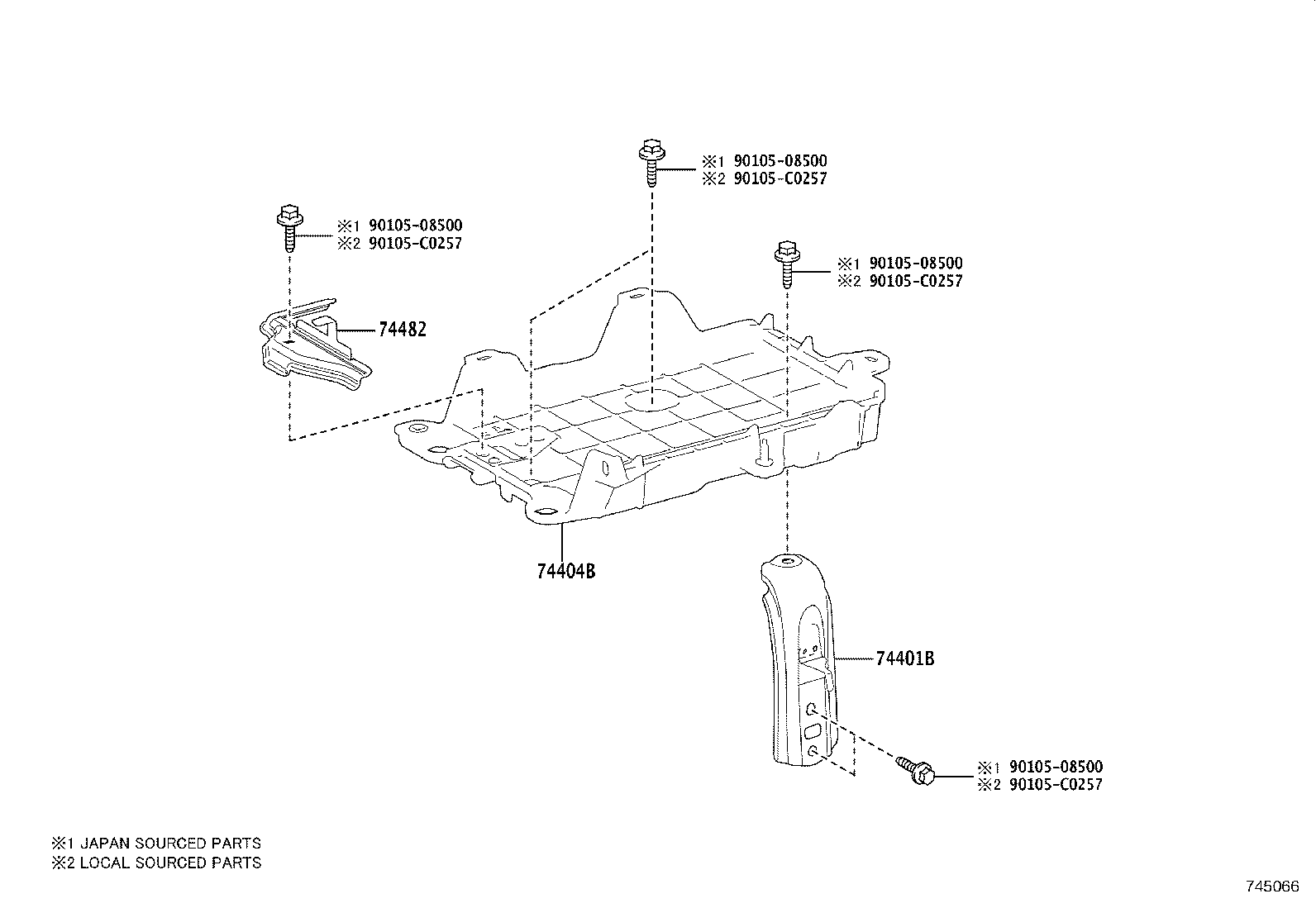

diagram 74401B 74404B 74482 9010508500 9010508500 9010508500 9010508500 90105C0257 90105C0257 90105C0257 90105C0257
Part # Description Qty Price
74401B - BRACKET SUB-ASSY, BATTERY CARRIER
74401-07010

MXAA5#

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-07030

MXAA5#

 1
74482 - CLAMP, BATTERY, NO.2
74482-07010

MXAA5#

 1
Common parts
90105-08500
90105-C0257
