MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)
(1911- )

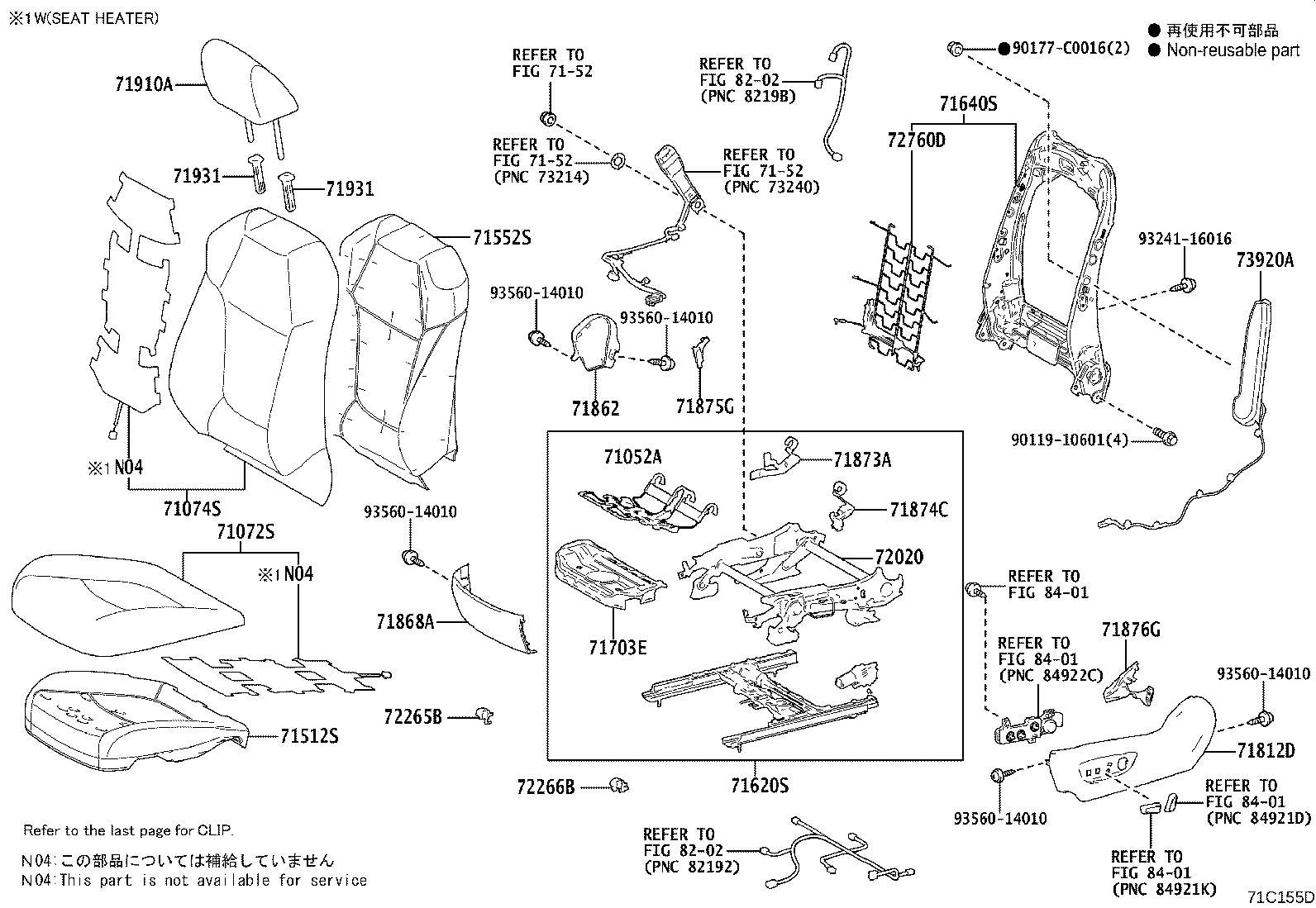

DRIVER SEAT(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R360C6 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71072-0R360B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71072-0R360B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71072-0R460E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R460C5 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71072-0R360E5 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R360E5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R360C6 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-0R460B3 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R430C3 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71074-0R430C3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0R430E4 |
AXAH5#,MXAA5#..G NATURAL BEIGE,TRIM4# |
1 | ||
| 71074-0R480E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-0R430E4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NATURAL BEIGE,TRIM4# |
1 | ||
| 71074-0R480C3 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71074-0R430B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71074-0R480B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-0R430B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0R200 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0R230 |
AXAH5#,MXAA5# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0R220 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0R240 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 71703E - PANEL SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71703-0R010 |
AXAH5#,MXAA5# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R170C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R110C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0R040 |
AXAH5#,MXAA5# |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0R050C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R190B0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
2 | ||
| 71910-0R250C2 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
2 | ||
| 71910-0R190E0 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R250E2 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R190B0 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
2 | ||
| 71910-0R190C1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-0R190C1 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
2 | ||
| 71910-0R250B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-0R190E0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0R160 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 72265B - COVER, SEAT TRACK UPR RAIL, RH | ||||
| 72266-0R010 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 72266B - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-0R060 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0R070 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90177-C0016 | ||||
| 93241-16016 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
(1911- )

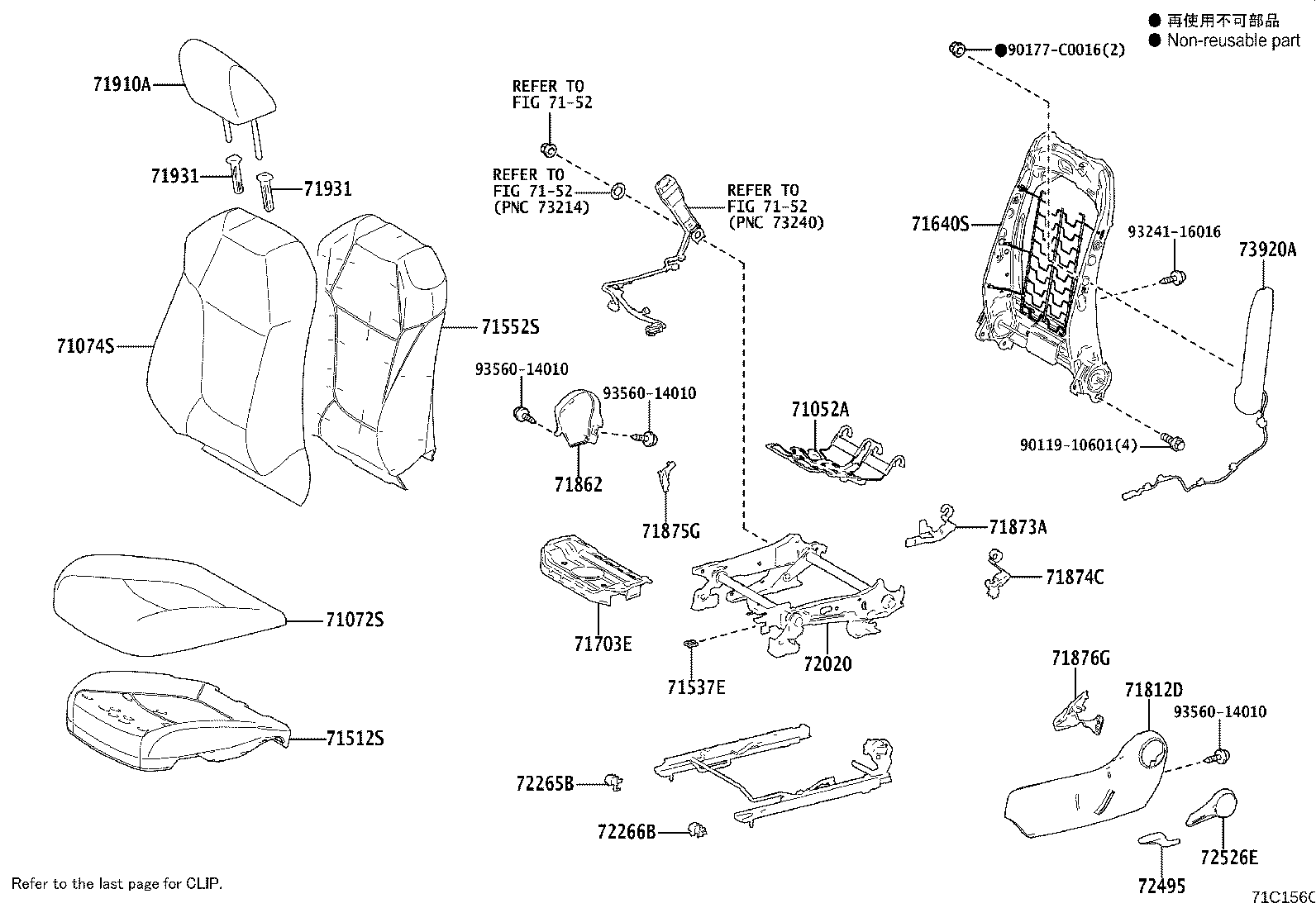

DRIVER SEAT(MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0R360C6 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71072-0R360B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71072-0R360B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71072-0R460E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R460C5 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71072-0R360E5 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R360E5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-0R360C6 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71072-0R460B3 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0R430C3 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71074-0R430C3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71074-0R430E4 |
AXAH5#,MXAA5#..G NATURAL BEIGE,TRIM4# |
1 | ||
| 71074-0R480E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-0R430E4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NATURAL BEIGE,TRIM4# |
1 | ||
| 71074-0R480C3 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71074-0R430B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71074-0R480B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-0R430B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0R200 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-0R030 |
AXAH52,MXAA5#..M |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0R230 |
AXAH5#,MXAA5# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0R240 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 71703E - PANEL SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71703-0R010 |
AXAH5#,MXAA5# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0R170C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0R110C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-0R040 |
AXAH5#,MXAA5# |
2 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0R050C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R190B0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
2 | ||
| 71910-0R250C2 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
2 | ||
| 71910-0R190E0 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R250E2 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R190B0 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
2 | ||
| 71910-0R190C1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-0R190C1 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
2 | ||
| 71910-0R250B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-0R190E0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0R160 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 72265B - COVER, SEAT TRACK UPR RAIL, RH | ||||
| 72266-0R010 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 72266B - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0R030 |
AXAH5#,MXAA5#..G,M |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0R070 |
AXAH5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90177-C0016 | ||||
| 93241-16016 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1911- )

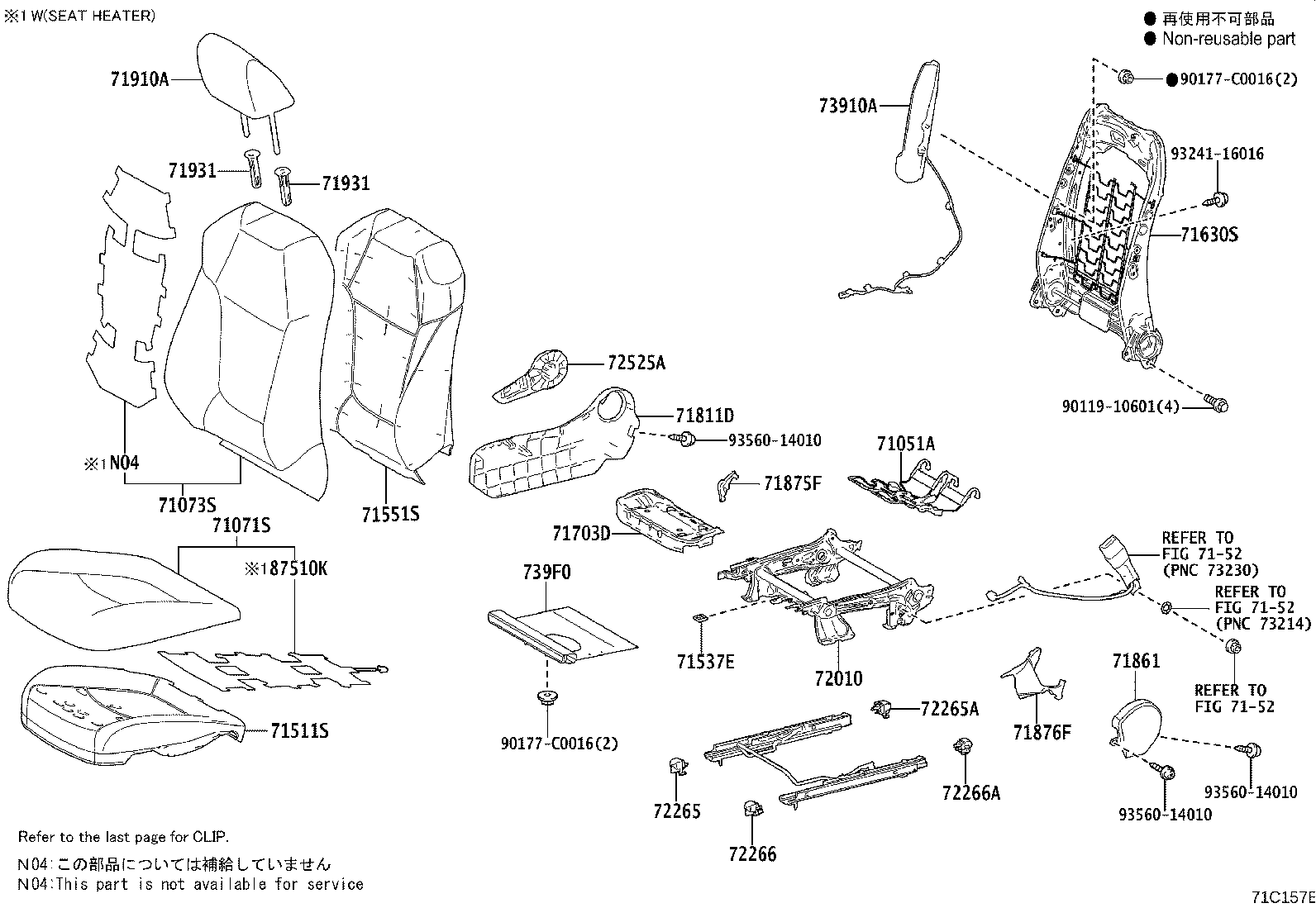

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0R340E5 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-0R340C4 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71071-0R390B3 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-0R340B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71071-0R340C4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71071-0R390C3 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71071-0R390E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-0R340B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71071-0R340E5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0R470C3 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71073-0R520B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71073-0R470B3 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71073-0R470E4 |
AXAH5#,MXAA5#..G NATURAL BEIGE,TRIM4# |
1 | ||
| 71073-0R520C3 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71073-0R520E3 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-0R470B3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71073-0R470C3 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71073-0R470E4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NATURAL BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0R090 |
AXAH5#,MXAA5# SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 71501-0R090 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 71501-0R150 |
AXAH5#,MXAA5# |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-0R030 |
AXAH52,MXAA5#..M |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0R180 |
AXAH5#,MXAA5# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0R090 |
AXAH5#,MXAA5# |
1 | ||
| 71703D - PANEL SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71703-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0R050C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0R190B0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
2 | ||
| 71910-0R250C2 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
2 | ||
| 71910-0R190E0 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R250E2 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-0R190B0 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
2 | ||
| 71910-0R190C1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71910-0R190C1 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
2 | ||
| 71910-0R250B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-0R190E0 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0R060C0 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 71930-0R080C0 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0R090 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 72010-0R120 |
AXAH5#,MXAA5# |
1 | ||
| 72010-0R090 |
AXAH5#,MXAA5# SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72266-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-0R030 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 739F0-0R030 |
AXAH5#,MXAA5# SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-0R300 |
AXAH5#,MXAA5#..G |
1 | ||
| 87510-0R300 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG) |
1 | ||
| 87510-0R300 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH |
1 | ||
| 87510-0R300 |
AXAH52,MXAA5#..M SEAT HEATER-WITH |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90177-C0016 | ||||
| 93241-16016 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1911- )

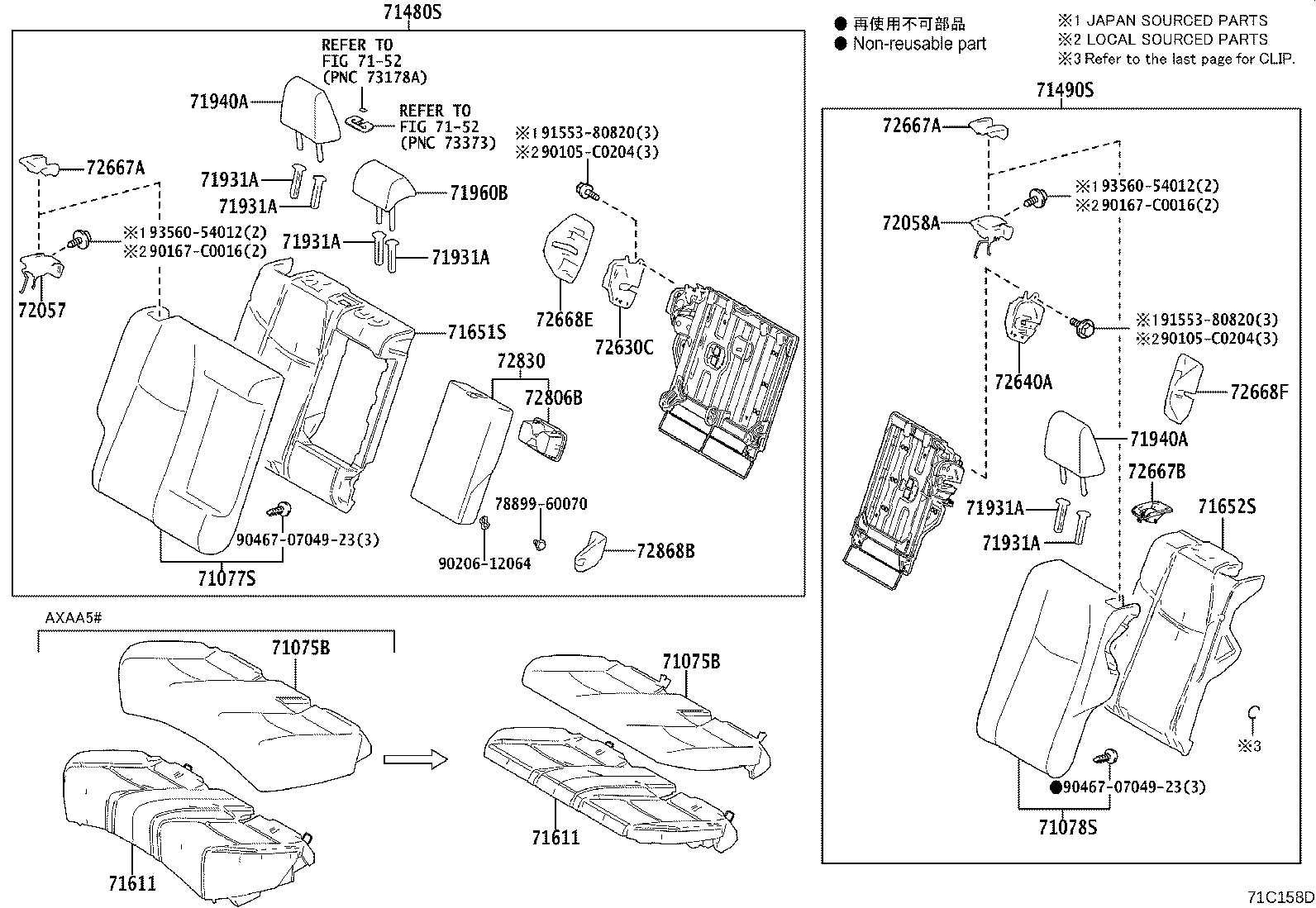

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0R390C4 |
MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71075-0R300B4 |
MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71075-0R300B4 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71075-0R300E4 |
MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075-0R300C5 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-0R300E4 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075-0R300C5 |
MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71075-0R390B5 |
MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0R390E4 |
MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0R390C4 |
MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71075-0R300B4 |
MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71075-0R300B4 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71075-0R300E4 |
MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075-0R300C5 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71075-0R300E4 |
MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71075-0R300C5 |
MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71075-0R390B5 |
MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71075-0R390E4 |
MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-0R310C7 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71077-0R310C6 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71077-0R310C8 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-0R310C8 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71077-0R360C7 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71077-0R310C7 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71077-0R360C6 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71077-0R310C6 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71077-0R360C5 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-0R310C7 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71078-0R310C6 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71078-0R310C8 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-0R360C8 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71078-0R360C7 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-0R310C7 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71078-0R360C9 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71078-0R310C8 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71078-0R310C6 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-0R120B4 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71480-0R110C4 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71480-0R120E4 |
AXAH5#,MXAA5#..G NATURAL BEIGE,TRIM4# |
1 | ||
| 71480-0R110E4 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71480-0R120C5 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71480-0R120B4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71480-0R110B4 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71480-0R120C5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71480-0R120E4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NATURAL BEIGE,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-0R090C5 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71490-0R090B4 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
1 | ||
| 71490-0R090E4 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71490-0R080C4 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
1 | ||
| 71490-0R090B4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
1 | ||
| 71490-0R080B5 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71490-0R090C5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71490-0R080E5 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71490-0R090E4 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-0R080 |
MXAA5# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-0R080 |
MXAA5# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-0R090 |
AXAH5#,MXAA5# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-0R080 |
AXAH5#,MXAA5# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-0R030C1 |
AXAH5#,MXAA5#..G,M W(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71931-0R030C1 |
AXAH5#,MXAA5#..G,M W/O(LOCK),BLACK,TRIM1#,2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R250B2 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
2 | ||
| 71940-0R250E1 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71940-0R310B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71940-0R310C2 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
2 | ||
| 71940-0R250C5 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
2 | ||
| 71940-0R310E2 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71940-0R250C5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-0R250B2 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
2 | ||
| 71940-0R250E1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0R250B2 |
AXAH5#,MXAA5#..G GRAY,TRIM1# |
2 | ||
| 71940-0R250E1 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71940-0R310B2 |
AXAH52,MXAA5#..M NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71940-0R310C2 |
AXAH52,MXAA5#..M BLACK,TRIM2# |
2 | ||
| 71940-0R250C5 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
2 | ||
| 71940-0R310E2 |
AXAH52,MXAA5#..M NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71940-0R250C5 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
2 | ||
| 71940-0R250B2 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GRAY,TRIM1# |
2 | ||
| 71940-0R250E1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-0R170E1 |
AXAH52,MXAA5#..M,X NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71960-0R180C1 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 71960-0R180C1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 71960-0R180E1 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71960-0R170B2 |
AXAH52,MXAA5#..M LT. GRAY,TRIM1# |
1 | ||
| 71960-0R180B1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71960-0R170C1 |
AXAH52,MXAA5#..M,X BLACK,TRIM2# |
1 | ||
| 71960-0R180B1 |
AXAH5#,MXAA5#..G LT.GRAY,TRIM1# |
1 | ||
| 71960-0R180E1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(L) |
1 | ||
| 72057-42020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(J) |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-0R040C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(L) |
1 | ||
| 72058-42020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(J) |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-42010 |
AXAH5#,MXAA5# (J) |
1 | ||
| 72630-0R020 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG),(L) |
1 | ||
| 72630-0R020 |
AXAH5#,MXAA5# SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG),(L) |
1 | ||
| 72630-0R021 |
AXAH5#,MXAA5# |
1 | ||
| 72630-0R020 |
AXAH5#,MXAA5# (L) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-42010 |
AXAH5#,MXAA5# (J) |
1 | ||
| 72640-0R020 |
AXAH5#,MXAA5#..M SEAT HEATER-WITH&SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG),(L) |
1 | ||
| 72640-0R020 |
AXAH5#,MXAA5# (L) |
1 | ||
| 72640-0R021 |
AXAH5#,MXAA5# |
1 | ||
| 72640-0R020 |
AXAH5#,MXAA5# SRS AIR BAG-WITH(WITH/ *PAS CUSHION AIR BAG),(L) |
1 | ||
| 72667A - BEZEL, REAR SEAT BACK LOCK, UPPER RH | ||||
| 72667-42010C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(J) |
1 | ||
| 72667-0R090C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(L) |
1 | ||
| 72667A - BEZEL, REAR SEAT BACK LOCK, UPPER RH | ||||
| 72667-42010C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(J) |
1 | ||
| 72667-0R090C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(L) |
1 | ||
| 72667B - BEZEL, REAR SEAT BACK LOCK, UPPER LH | ||||
| 72667-42020C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(J) |
1 | ||
| 72667-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4#,(L) |
1 | ||
| 72668E - BEZEL, REAR SEAT BACK LOCK, LOWER RH | ||||
| 72668-0R050C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 72668F - BEZEL, REAR SEAT BACK LOCK, LOWER LH | ||||
| 72668-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0R190E1 |
AXAH5#,MXAA5#..G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-0R180C1 |
AXAH52,MXAA5#..M,X BLACK,TRIM2# |
1 | ||
| 72830-0R180B1 |
AXAH52,MXAA5#..M LT.GRAY,TRIM1# |
1 | ||
| 72830-0R180E2 |
AXAH52,MXAA5#..M,X NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72830-0R190B1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,GARY,TRIM1# |
1 | ||
| 72830-0R190C1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2# |
1 | ||
| 72830-0R190C1 |
AXAH5#,MXAA5#..G BLACK,TRIM2# |
1 | ||
| 72830-0R190B1 |
AXAH5#,MXAA5#..G GARY,TRIM1# |
1 | ||
| 72830-0R190E1 |
AXAH52,MXAA5#..M LEATHER PACKAGE&SEAT HEATER-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 78899-60070 | ||||
| 90105-C0204 | ||||
| 90167-C0016 | ||||
| 90206-12064 | ||||
| 90467-0704923 | ||||
| 91553-80820 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1911- )

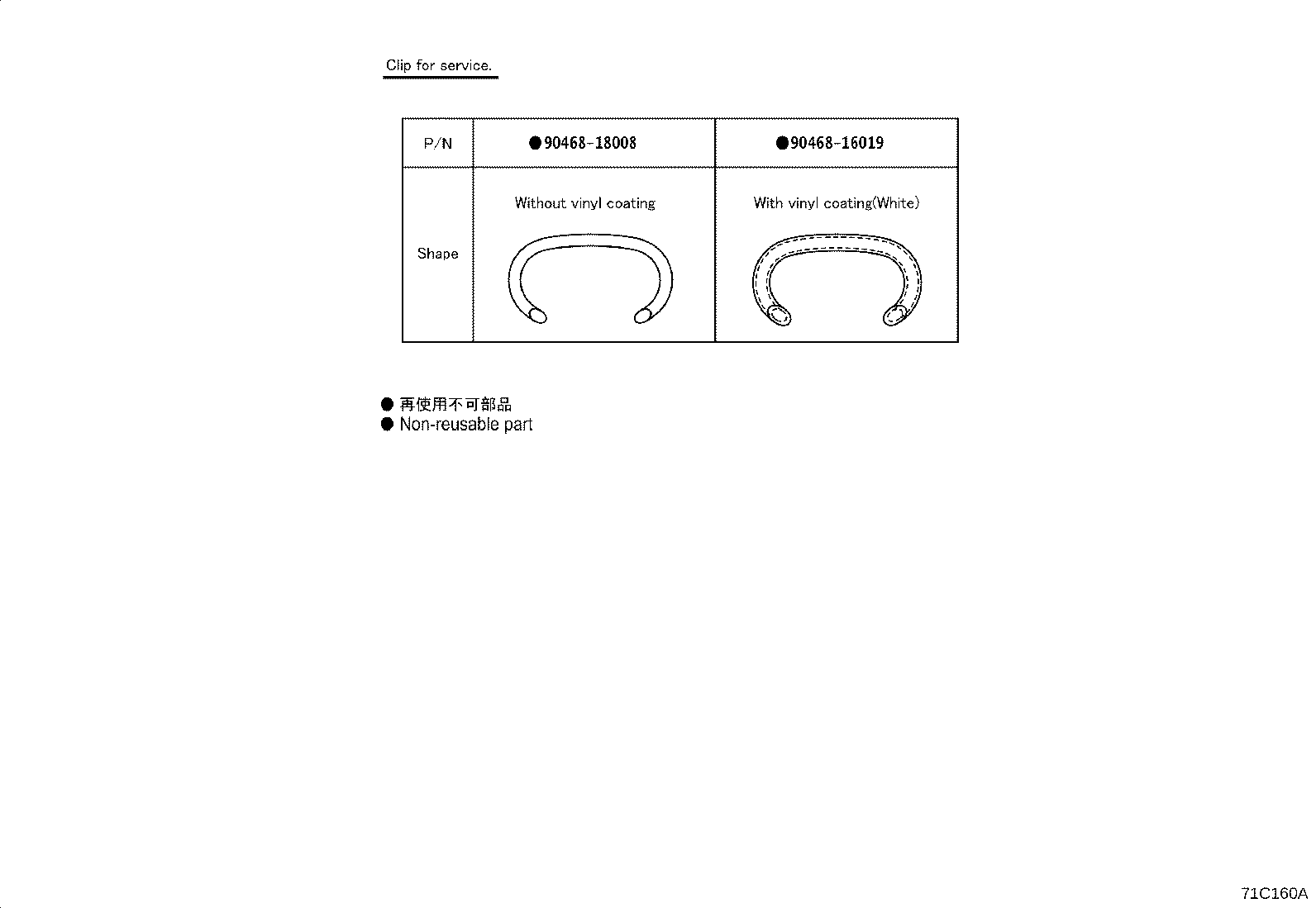

CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1911- )

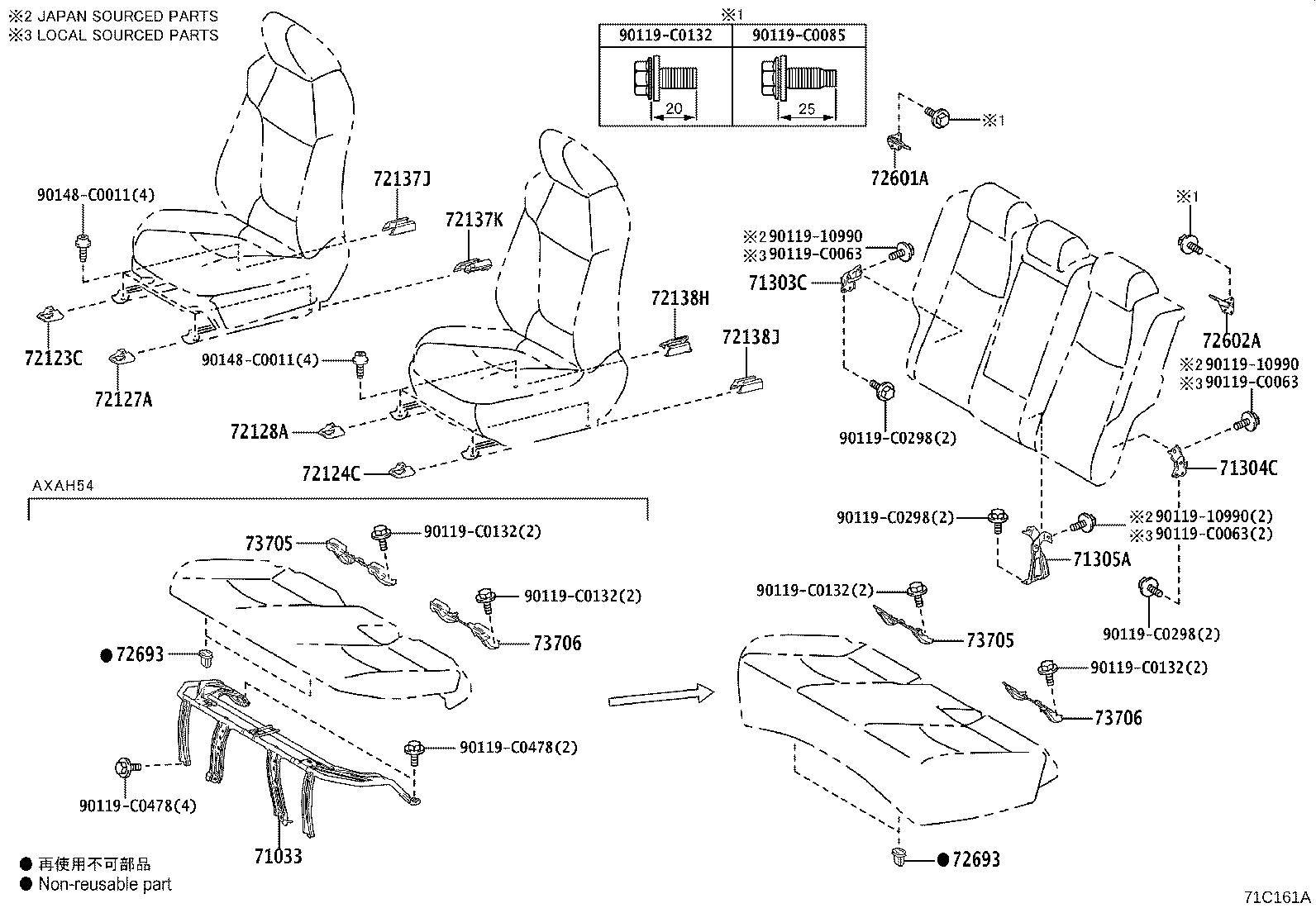

SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-0R030 |
AXAH5#,MXAA5# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-0R030 |
AXAH5#,MXAA5# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-0R060 |
AXAH5#,MXAA5# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-0R030 |
AXAH5#,MXAA5# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXAH5#,MXAA5# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AXAH5#,MXAA5# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-0R030 |
MXAA5# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-0R030 |
MXAA5# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-0R010 |
MXAA5# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-0R010 |
MXAA5# |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 90119-C0063 | ||||
| 90119-C0085 | ||||
| 90119-C0132 | ||||
| 90119-C0298 | ||||
| 90119-C0478 | ||||
| 90148-C0011 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
