MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

Click highlighted areas on diagram

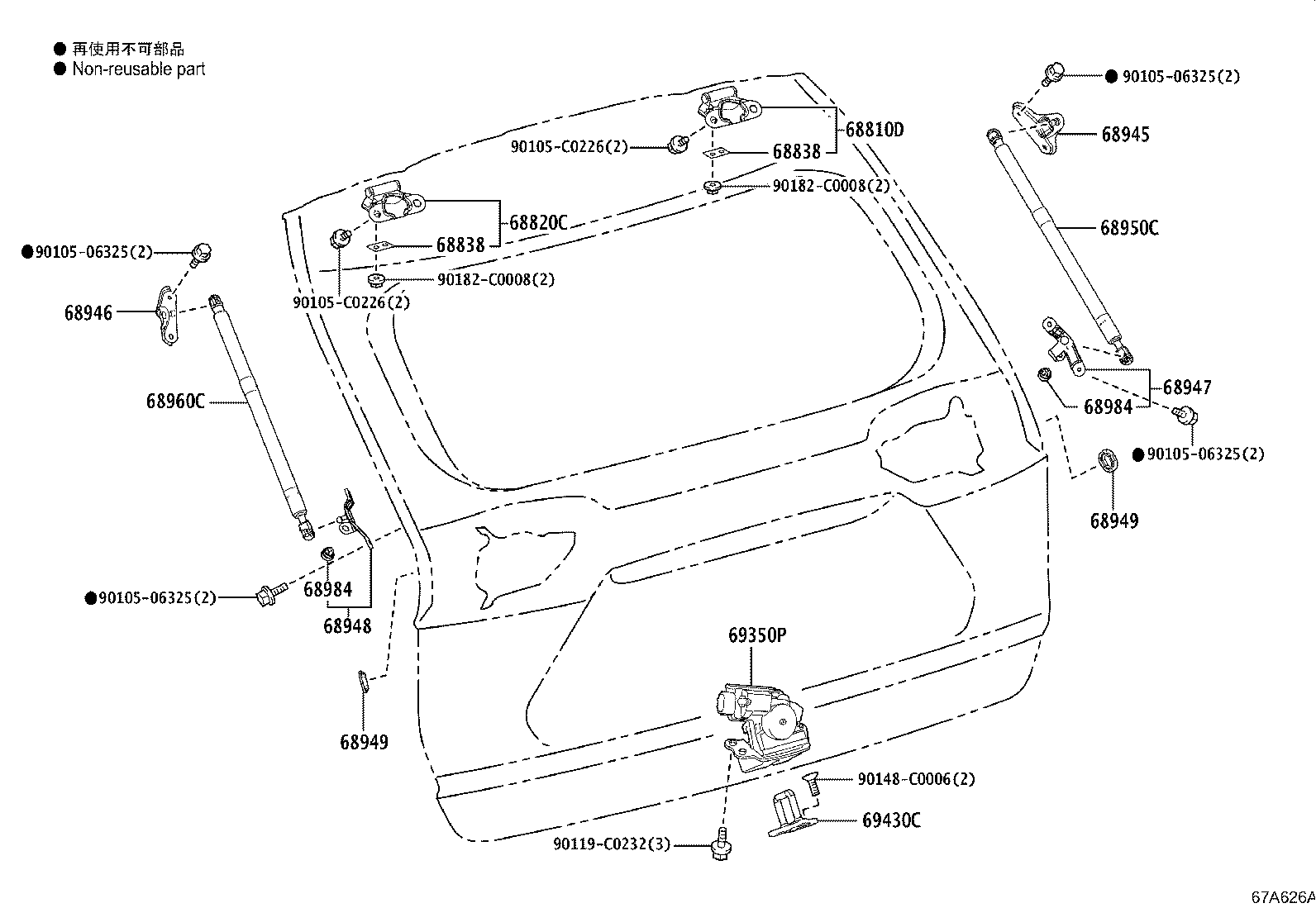

W/O(POWER BACK DOOR)

diagram 68810D 68820C 68838 68838 68945 68946 68947 68948 68949 68949 68950C 68960C 68984 68984 69350P 69430C 9010506325 9010506325 9010506325 9010506325 90105C0226 90105C0226 90119C0232 90148C0006 90182C0008 90182C0008
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-0R110

AXAH5#,MXAA5#

PAD T=1.5

 1
68810-0R100

AXAH5#,MXAA5#

PAD T=1.0

 1
68810-0R120

AXAH5#,MXAA5#

PAD T=2.0

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0R110

AXAH5#,MXAA5#

PAD T=1.5

 1
68810-0R100

AXAH5#,MXAA5#

PAD T=1.0

 1
68810-0R120

AXAH5#,MXAA5#

PAD T=2.0

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4070

AXAH5#,MXAA5#

T=1.0

 2
68838-F4090

AXAH5#,MXAA5#

T=2.0

 2
68838-F4080

AXAH5#,MXAA5#

T=1.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4070

AXAH5#,MXAA5#

T=1.0

 2
68838-F4090

AXAH5#,MXAA5#

T=2.0

 2
68838-F4080

AXAH5#,MXAA5#

T=1.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0R070

AXAH54..M;AXAH52,MXAA5#

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0R070

AXAH54..M;AXAH52,MXAA5#

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0R060

AXAH5#,MXAA5#

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0R060

AXAH5#,MXAA5#

 1
68949 - SEAL, BACK DOOR STAY BRACKET
68949-0R020

AXAH54..M;AXAH52,MXAA5#

 2
68949 - SEAL, BACK DOOR STAY BRACKET
68949-0R020

AXAH54..M;AXAH52,MXAA5#

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-0R080

AXAH54..M;AXAH52,MXAA5#

 1
68960C - STAY SET, BACK DOOR, LH
68960-0R080

AXAH54..M;AXAH52,MXAA5#

 1
68984 - STOPPER, BACK DOOR STAY
68984-0R050

AXAH5#,MXAA5#

 2
68984 - STOPPER, BACK DOOR STAY
68984-0R050

AXAH5#,MXAA5#

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0R070

AXAH54..M;AXAH52,MXAA5#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0R020

AXAH5#,MXAA5#

 1
Common parts
90105-06325
90105-C0226
90119-C0232
90148-C0006
90182-C0008

(1911- )

Click highlighted areas on diagram

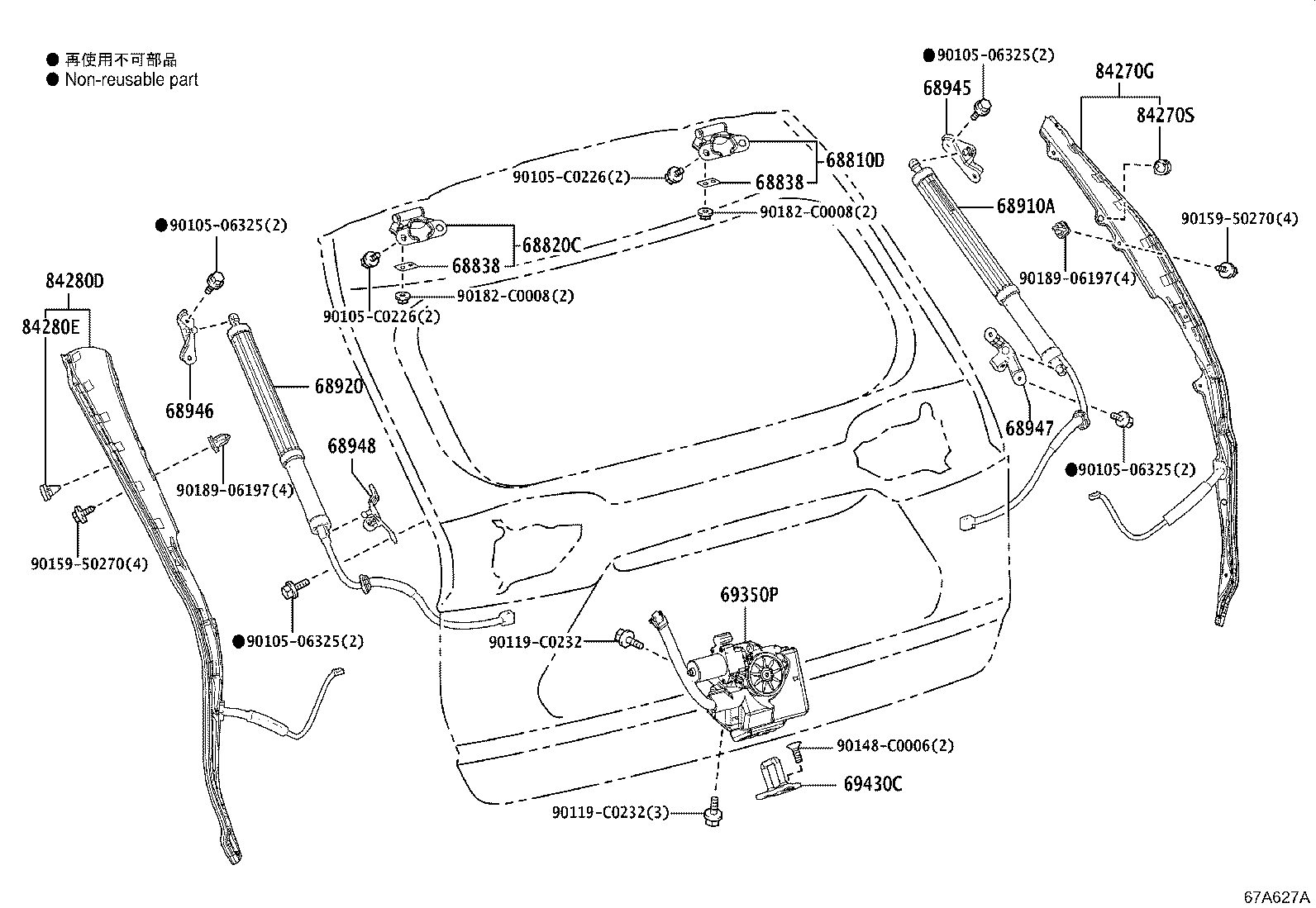

W(POWER BACK DOOR)

diagram 68810D 68820C 68838 68838 68910A 68920 68945 68946 68947 68948 69350P 69430C 84270G 84270S 84280D 84280E 9010506325 9010506325 9010506325 9010506325 90105C0226 90105C0226 90119C0232 90119C0232 90148C0006 9015950270 9015950270 90182C0008 90182C0008 9018906197 9018906197
Part # Description Qty Price
68810D - HINGE ASSY, BACK DOOR, RH
68810-0R110

AXAH5#,MXAA5#

PAD T=1.5

 1
68810-0R100

AXAH5#,MXAA5#

PAD T=1.0

 1
68810-0R120

AXAH5#,MXAA5#

PAD T=2.0

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-0R110

AXAH5#,MXAA5#

PAD T=1.5

 1
68810-0R100

AXAH5#,MXAA5#

PAD T=1.0

 1
68810-0R120

AXAH5#,MXAA5#

PAD T=2.0

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4070

AXAH5#,MXAA5#

T=1.0

 2
68838-F4090

AXAH5#,MXAA5#

T=2.0

 2
68838-F4080

AXAH5#,MXAA5#

T=1.5

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-F4070

AXAH5#,MXAA5#

T=1.0

 2
68838-F4090

AXAH5#,MXAA5#

T=2.0

 2
68838-F4080

AXAH5#,MXAA5#

T=1.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-0R070

AXAH54..M;AXAH52,MXAA5#

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-0R070

AXAH54..M;AXAH52,MXAA5#

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-0R060

AXAH5#,MXAA5#

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-0R060

AXAH5#,MXAA5#

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-0R070

AXAH54..M;AXAH52,MXAA5#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-0R020

AXAH5#,MXAA5#

 1
Common parts
90105-06325
90105-C0226
90119-C0232
90148-C0006
90159-50270
90182-C0008
90189-06197
