MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

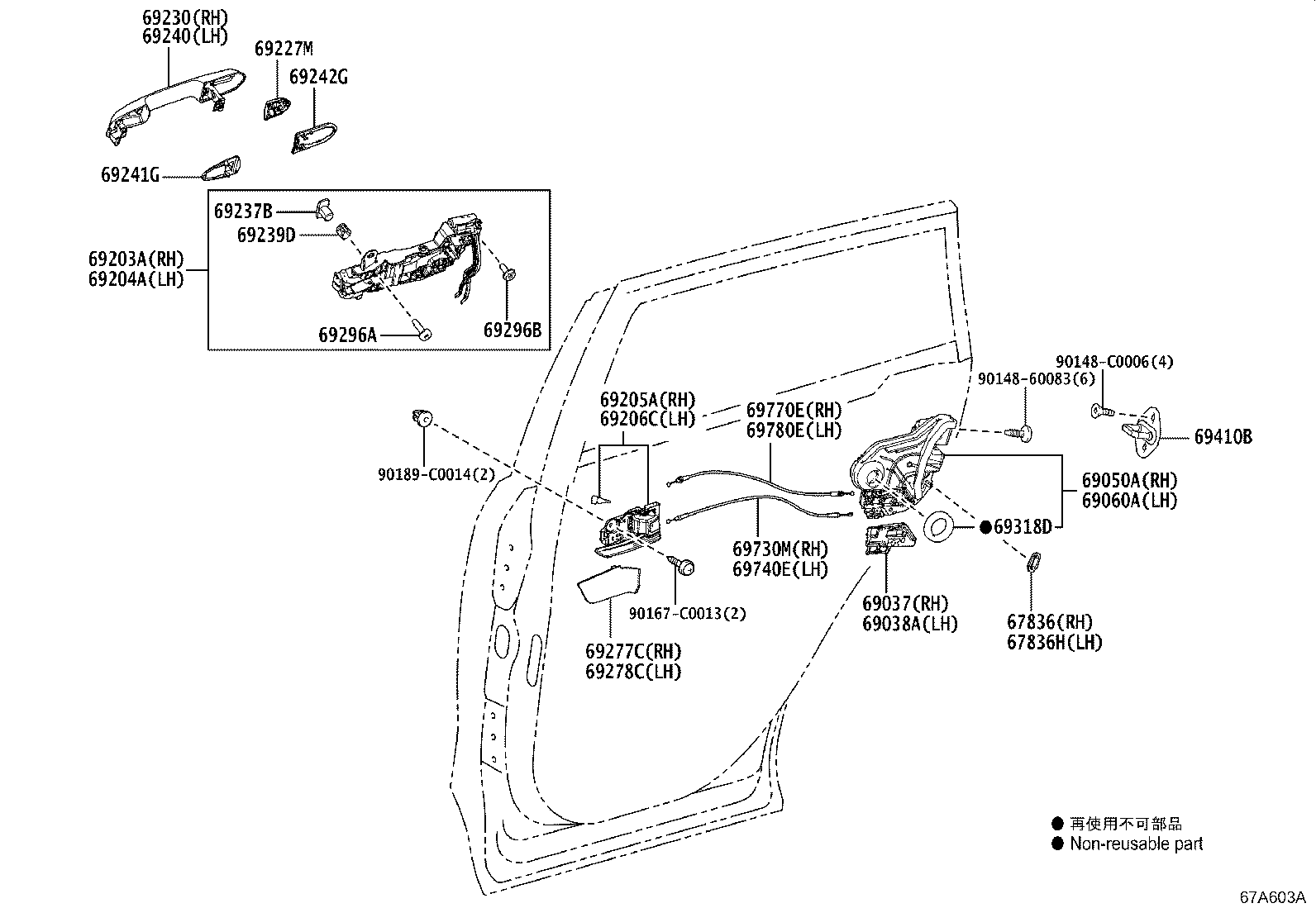

Click highlighted areas on diagram

diagram 67836 67836H 69037 69038A 69050A 69060A 69203A 69204A 69205A 69206C 69227M 69230 69237B 69239D 69240 69241G 69242G 69277C 69278C 69296A 69296B 69318D 69410B 69730M 69740E 69770E 69780E 9014860083 90148C0006 90167C0013 90189C0014
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-02040

AXAH5#,MXAA5#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-02040

AXAH5#,MXAA5#

 1
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-02060

AXAH5#,MXAA5#

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-02060

AXAH5#,MXAA5#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02450

AXAH5#,MXAA5#..G,M

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02450

AXAH5#,MXAA5#..G,M

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0R080

AXAH5#,MXAA5#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0R080

AXAH5#,MXAA5#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0R080C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0R080C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-0R090

AXAH5#,MXAA5#

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-0R100C0

AXAH5#,MXAA5#..G,M

BLACK MC.,209 ,2RX

 1
69211-0R100E0

AXAH5#,MXAA5#..G,M

AVANT-GARDE BRONZE ME.,2SA ,4V8

 1
69211-0R100B0

AXAH5#,MXAA5#..G,M

ASH GRAY ME.,1K6 ,2RZ

 1
69211-0R100G0

AXAH5#,MXAA5#..G,M

URBAN KHAKI,2QU ,6X3

 1
69211-0R100J0

AXAH5#,MXAA5#..G,M

CYAN METALLIC,2QV ,8W9

 1
69211-0R100D0

AXAH5#,MXAA5#..G,M

RED MC.,2PN ,2RY ,3T3

 1
69211-0R100A0

AXAH5#,MXAA5#..G,M

WHITE PEARL CS.,070 ,2KR

 1
69211-0R100A1

AXAH5#,MXAA5#..G,M

PLATINUM WHITE PEARL MC.,089 ,2PU

 1
69237B - NUT, REAR DOOR HANDLE
69237-0R020

AXAH5#,MXAA5#

 2
69239D - BUSH, REAR DOOR HANDLE
69239-0R020

AXAH5#,MXAA5#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-0R100C0

AXAH5#,MXAA5#..G,M

BLACK MC.,209 ,2RX

 1
69211-0R100A0

AXAH5#,MXAA5#..G,M

WHITE PEARL CS.,070 ,2KR

 1
69211-0R100D0

AXAH5#,MXAA5#..G,M

RED MC.,2PN ,2RY ,3T3

 1
69211-0R100J0

AXAH5#,MXAA5#..G,M

CYAN METALLIC,2QV ,8W9

 1
69211-0R100B0

AXAH5#,MXAA5#..G,M

ASH GRAY ME.,1K6 ,2RZ

 1
69211-0R100G0

AXAH5#,MXAA5#..G,M

URBAN KHAKI,2QU ,6X3

 1
69211-0R100E0

AXAH5#,MXAA5#..G,M

AVANT-GARDE BRONZE ME.,2SA ,4V8

 1
69211-0R100A1

AXAH5#,MXAA5#..G,M

PLATINUM WHITE PEARL MC.,089 ,2PU

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0R040

AXAH5#,MXAA5#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-0R040

AXAH5#,MXAA5#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-0R030

AXAH5#,MXAA5#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-0R030

AXAH5#,MXAA5#

 1
69296A - SCREW, DOOR INSIDE HANDLE
69296-0R020

AXAH5#,MXAA5#

 2
69296B - SCREW, DOOR INSIDE HANDLE
90148-50003

AXAH5#,MXAA5#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AXAH5#,MXAA5#

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020

AXAH5#,MXAA5#

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-0R070

AXAH5#,MXAA5#

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-0R070

AXAH5#,MXAA5#

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-0R070

AXAH5#,MXAA5#

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-0R070

AXAH5#,MXAA5#

 1
Common parts
90148-60083
90148-C0006
90167-C0013
90189-C0014
