MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

Click highlighted areas on diagram

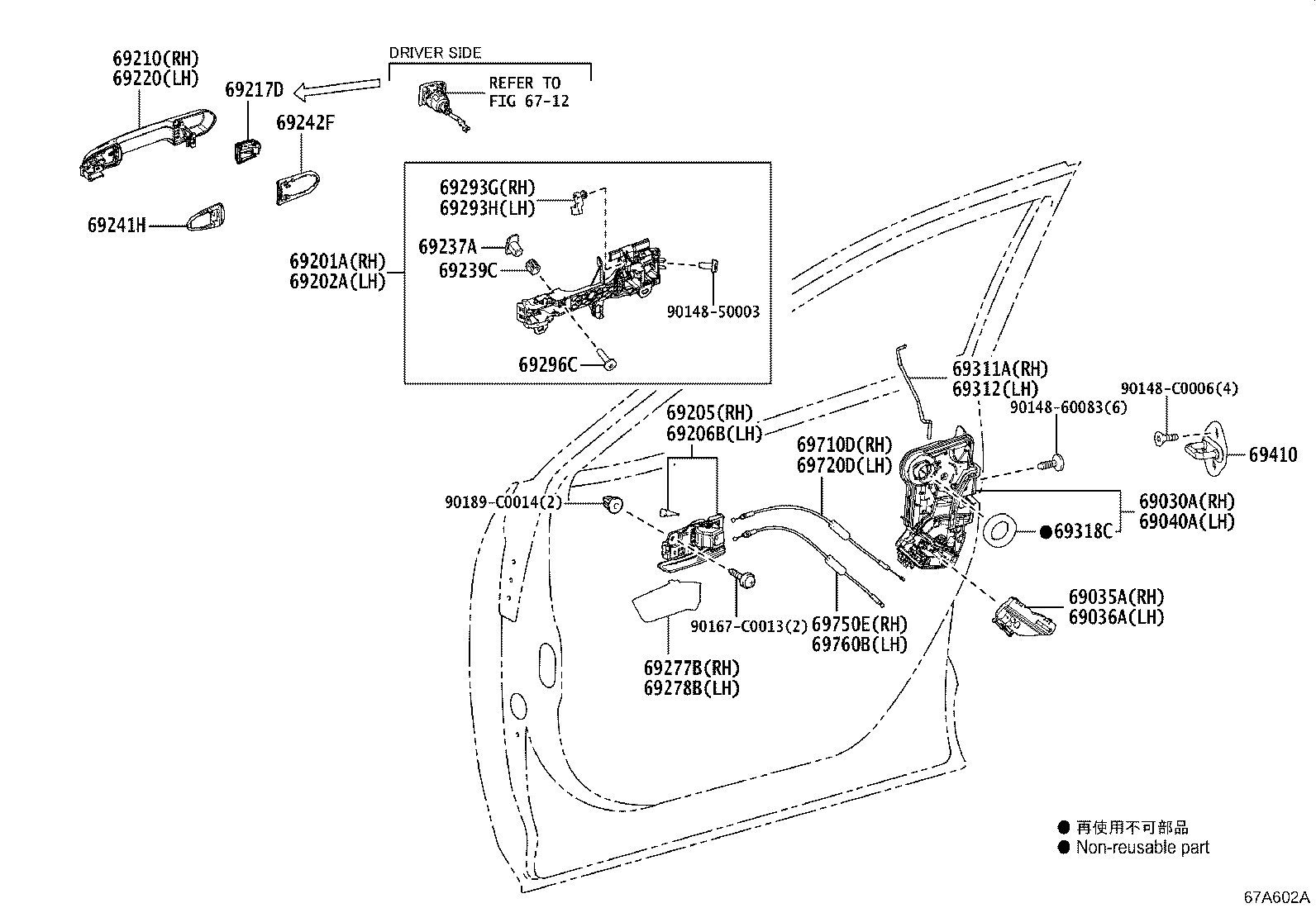

diagram 6712 69030A 69035A 69036A 69040A 69201A 69202A 69205 69206B 69210 69217D 69220 69237A 69239C 69241H 69242F 69277B 69278B 69293G 69293H 69296C 69311A 69312 69318C 69410 69710D 69720D 69750E 69760B 9014850003 9014860083 90148C0006 90167C0013 90189C0014
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-02620

AXAH5#,MXAA5#

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-02060

AXAH5#,MXAA5#

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-02060

AXAH5#,MXAA5#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-02590

AXAH5#,MXAA5#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-0R090

AXAH5#,MXAA5#..G,M

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0R070

AXAH5#,MXAA5#..G,M

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-0R080C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-0R080C0

AXAH5#,MXAA5#..G,M

BLACK,TRIM1#,2#,4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-0R120B0

AXAH5#,MXAA5#..G,M

ASH GRAY ME.,1K6 ,2RZ

 1
69210-0R120A0

AXAH5#,MXAA5#..G,M

WHITE PEARL CS.,070 ,2KR

 1
69210-0R120E0

AXAH5#,MXAA5#..G,M

AVANT-GARDE BRONZE ME.,2SA ,4V8

 1
69210-0R120G0

AXAH5#,MXAA5#..G,M

URBAN KHAKI,2QU ,6X3

 1
69210-0R120D0

AXAH5#,MXAA5#..G,M

RED MC.,2PN ,2RY ,3T3

 1
69210-0R120J0

AXAH5#,MXAA5#..G,M

CYAN METALLIC,2QV ,8W9

 1
69210-0R120C0

AXAH5#,MXAA5#..G,M

BLACK MC.,209 ,2RX

 1
69210-0R120A1

AXAH5#,MXAA5#..G,M

PLATINUM WHITE PEARL MC.,089 ,2PU

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-0R190

AXAH5#,MXAA5#..G,M

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-0R130B0

AXAH5#,MXAA5#..G,M

ASH GRAY ME.,1K6 ,2RZ

 1
69210-0R130G0

AXAH5#,MXAA5#..G,M

URBAN KHAKI,2QU ,6X3

 1
69210-0R130D0

AXAH5#,MXAA5#..G,M

RED MC.,2PN ,2RY ,3T3

 1
69210-0R130E0

AXAH5#,MXAA5#..G,M

AVANT-GARDE BRONZE ME.,2SA ,4V8

 1
69210-0R130J0

AXAH5#,MXAA5#..G,M

CYAN METALLIC,2QV ,8W9

 1
69210-0R130A0

AXAH5#,MXAA5#..G,M

WHITE PEARL CS.,070 ,2KR

 1
69210-0R130C0

AXAH5#,MXAA5#..G,M

BLACK MC.,209 ,2RX

 1
69210-0R130A1

AXAH5#,MXAA5#..G,M

PLATINUM WHITE PEARL MC.,089 ,2PU

 1
69237A - NUT, FRONT DOOR HANDLE
69237-F4030

AXAH5#,MXAA5#..G,M

 2
69239C - BUSH, FRONT DOOR HANDLE
69239-07020

AXAH5#,MXAA5#..G,M

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-0R040

AXAH5#,MXAA5#

 2
69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-0R040

AXAH5#,MXAA5#

 2
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-0R030

AXAH5#,MXAA5#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-0R030

AXAH5#,MXAA5#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-02090

AXAH5#,MXAA5#..G,M

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-07010

AXAH5#,MXAA5#..G,M

 1
69296C - SCREW, DOOR INSIDE HANDLE
69296-0R010

AXAH5#,MXAA5#..G,M

 2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-0R060

AXAH5#,MXAA5#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-0R060

AXAH5#,MXAA5#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AXAH5#,MXAA5#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-0D020

AXAH5#,MXAA5#

 2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-0R070

AXAH5#,MXAA5#

 1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-0R070

AXAH5#,MXAA5#

 1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-0R070

AXAH5#,MXAA5#

 1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-0R070

AXAH5#,MXAA5#

 1
Common parts
90148-50003
90148-60083
90148-C0006
90167-C0013
90189-C0014
Linked diagrams
6712
