MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1911- )

Click highlighted areas on diagram

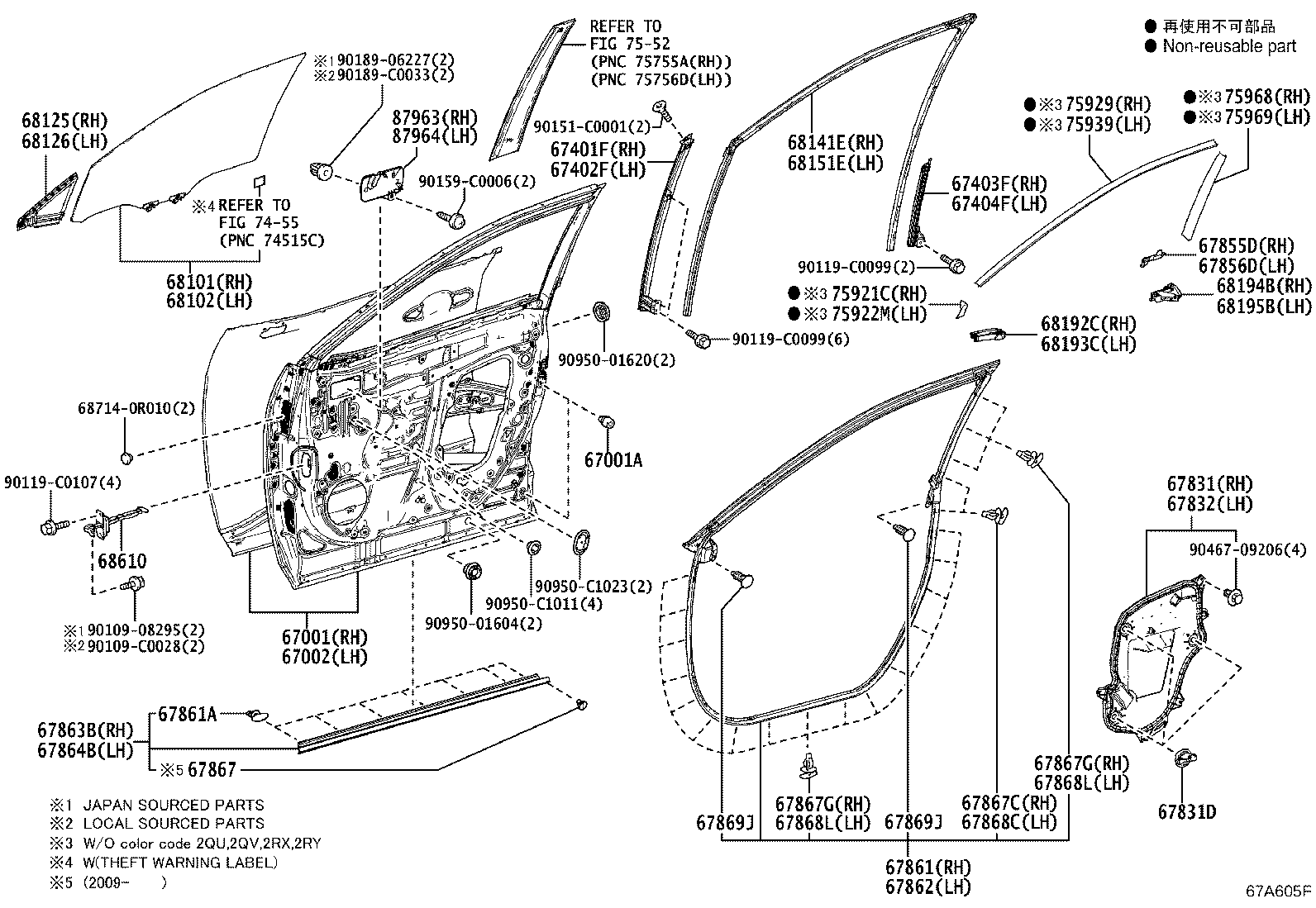

DOOR PANEL

diagram 67001 67001A 67002 67401F 67402F 67403F 67404F 67831 67831D 67832 67855D 67856D 67861 67861A 67862 67863B 67864B 67867 67867C 67867G 67867G 67868C 67868L 67868L 67869J 67869J 68101 68102 68125 68126 68141E 68151E 68192C 68193C 68194B 68195B 68610 687140R010 7552 75921C 75922M 75929 75939 75968 75969 87963 87964 9010908295 90109C0028 90119C0099 90119C0099 90119C0107 90151C0001 90159C0006 9018906227 90189C0033 9046709206 9095001604 9095001620 90950C1011 90950C1023
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-0R100

AXAH5#,MXAA5#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09137

AXAH5#,MXAA5#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-0R120

AXAH5#,MXAA5#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-0R020

AXAH5#,MXAA5#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-0R020

AXAH5#,MXAA5#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-0R060

AXAH5#,MXAA5#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-0R060

AXAH5#,MXAA5#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-0R070

AXAH5#,MXAA5#

 1
67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67869-F4020

AXAH5#,MXAA5#

 6
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-0R070

AXAH5#,MXAA5#

 1
67855D - PROTECTOR, FRONT DOOR PANEL, RH
67855-0R020

AXAH5#,MXAA5#

 1
67856D - PROTECTOR, FRONT DOOR PANEL, LH
67856-0R020

AXAH5#,MXAA5#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-0R060

AXAH5#,MXAA5#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-12150

AXAH5#,MXAA5#

 14
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-0R060

AXAH5#,MXAA5#

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-0R051

AXAH5#,MXAA5#

 1
67863-0R050

AXAH5#,MXAA5#

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-0R040

AXAH5#,MXAA5#

 1
67864-0R041

AXAH5#,MXAA5#

 1
67867 - CLIP, DOOR WEATHERSTRIP
67869-26050

AXAH5#,MXAA5#

 2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AXAH5#,MXAA5#

 2
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150

AXAH5#,MXAA5#

 19
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150

AXAH5#,MXAA5#

 19
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AXAH5#,MXAA5#

 2
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

AXAH5#,MXAA5#

 19
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150

AXAH5#,MXAA5#

 19
67869J - CLIP, FRONT DOOR WEATHERSTRIP
67869-26050

AXAH5#,MXAA5#

 4
67869J - CLIP, FRONT DOOR WEATHERSTRIP
67869-26050

AXAH5#,MXAA5#

 4
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-0R130

AXAH5#,MXAA5#..G,M

MARK=CCC E000546

 1
68101-0R120

AXAH5#,MXAA5#..G,M

MARK=CCC E000137

 1
68101-0R070

AXAH5#,MXAA5#..G,M

MARK=CCC E000137

 1
68101-0R110

AXAH5#,MXAA5#..G,M

MARK=CCC E000546

 1
68101-0R170

AXAH5#,MXAA5#

MARK=CCC E000137

 1
68101-0R190

AXAH5#,MXAA5#

MARK=CCC E000546

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-0R130

AXAH5#,MXAA5#..G,M

MARK=CCC E000546

 1
68102-0R120

AXAH5#,MXAA5#..G,M

MARK=CCC E000137

 1
68102-0R110

AXAH5#,MXAA5#..G,M

MARK=CCC E000546

 1
68102-0R190

AXAH5#,MXAA5#

MARK=CCC E000546

 1
68102-0R170

AXAH5#,MXAA5#

MARK=CCC E000137

 1
68102-0R070

AXAH5#,MXAA5#..G,M

MARK=CCC E000137

 1
68125 - GLASS, FRONT DOOR FIX WINDOW, RH
68125-0R080

AXAH5#,MXAA5#

 1
68125-0R020

AXAH5#,MXAA5#

 1
68126 - GLASS, FRONT DOOR FIX WINDOW, LH
68126-0R020

AXAH5#,MXAA5#

 1
68126-0R080

AXAH5#,MXAA5#

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-0R070

AXAH5#,MXAA5#

 1
68151E - RUN, FRONT DOOR GLASS, LH
68151-0R070

AXAH5#,MXAA5#

 1
68192C - SEAL, FRONT DOOR BELT, FRONT RH
68192-0R020

AXAH5#,MXAA5#

 1
68193C - SEAL, FRONT DOOR BELT, FRONT LH
68193-0R020

AXAH5#,MXAA5#

 1
68194B - SEAL, FRONT DOOR BELT, REAR RH
68194-0R020

AXAH5#,MXAA5#

 1
68195B - SEAL, FRONT DOOR BELT, REAR LH
68195-0R020

AXAH5#,MXAA5#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-0R070

AXAH5#,MXAA5#

 2
75921C - TAPE, BLACK OUT, NO.1 RH
75921-0R060

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-0R060

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75985-0R020

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75986-0R020

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75965-0R020

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
75966-0R020

MXAA54

BODY COLOR-TWO-TONE,0 OR 1PIECE,REF.ILL.

 1
87963 - COVER, OUTER MIRROR INSTALL HOLE, RH
87963-0R020

AXAH5#,MXAA5#

 1
87964 - COVER, OUTER MIRROR INSTALL HOLE, LH
87964-0R020

AXAH5#,MXAA5#

 1
Common parts
68714-0R010
90109-08295
90109-C0028
90119-C0099
90119-C0107
90151-C0001
90159-C0006
90189-06227
90189-C0033
90467-09206
90950-01604
90950-01620
90950-C1011
90950-C1023
Linked diagrams
7552

ILLUST NO. 2 OF 2(1911- )

Click highlighted areas on diagram

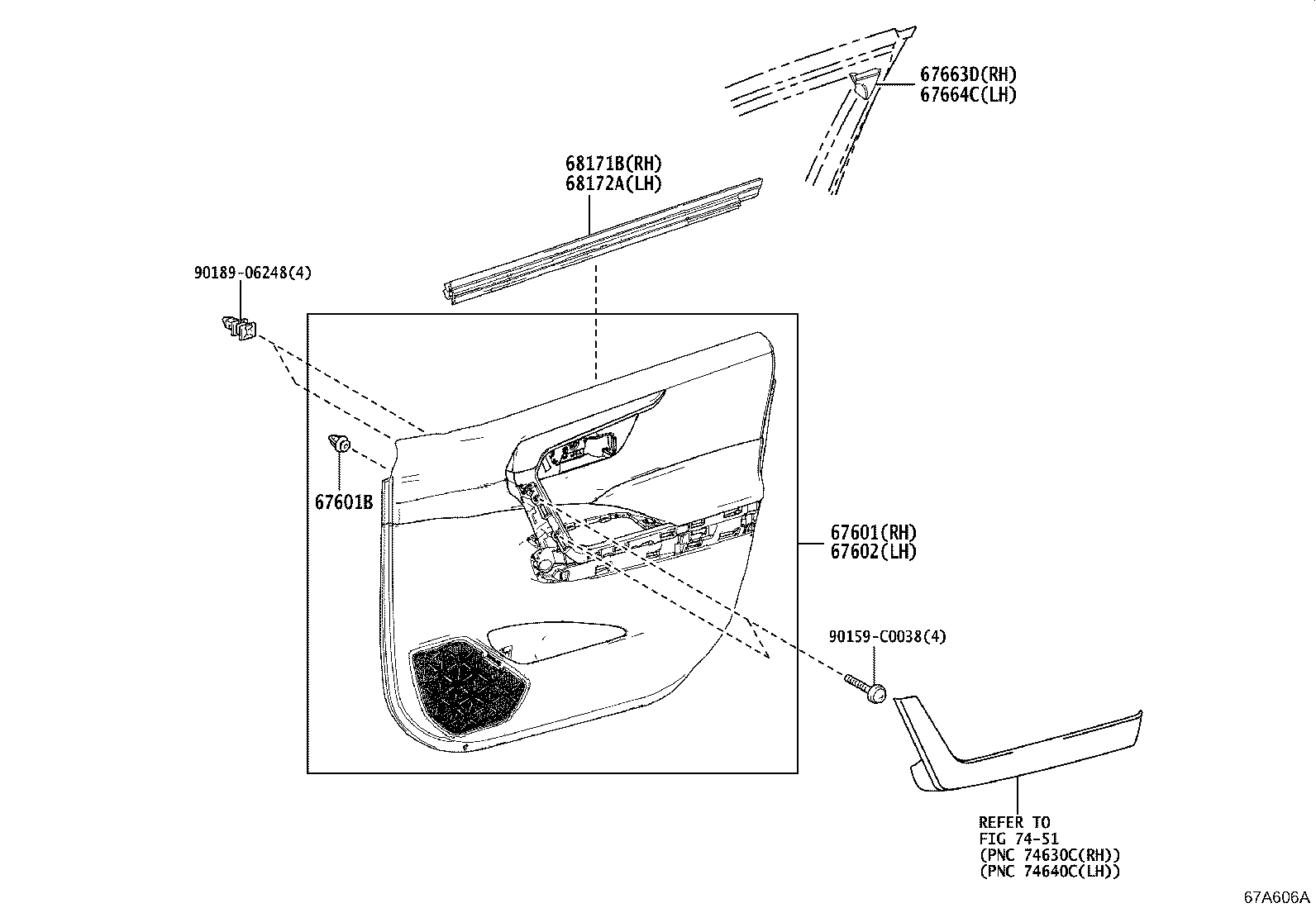

DOOR TRIM

diagram 67601 67601B 67602 67663D 67664C 68171B 68172A 7451 90159C0038 9018906248
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-0R220C0

AXAH52,MXAA5#..M

LT.GRAY,TRIM1#

 1
67610-0R230C1

AXAH52,MXAA5#..M

LEATHER PACKAGE,LT.GRAY,TRIM2#

 1
67610-0R220C1

AXAH52,MXAA5#..M,X

BLACK,TRIM2#

 1
67610-0R220C2

AXAH52,MXAA5#..M,X

NEUTRAL BEIGE,TRIM4#

 1
67610-0R230C1

AXAH5#,MXAA5#..G

LT.GRAY,TRIM2#

 1
67610-0R230C2

AXAH5#,MXAA5#..G

BLACK,TRIM4#

 1
67610-0R230C3

AXAH52,MXAA5#..M

LEATHER PACKAGE,CAMEL NO.91,TRIM1#

 1
67610-0R230C2

AXAH52,MXAA5#..M

LEATHER PACKAGE,BLACK,TRIM4#

 1
67610-0R230C3

AXAH5#,MXAA5#..G

CAMEL NO.91,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-C0033

AXAH5#,MXAA5#

 20
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-0R230C1

AXAH5#,MXAA5#..G

LT.GRAY,TRIM2#

 1
67620-0R230C2

AXAH5#,MXAA5#..G

BLACK,TRIM4#

 1
67620-0R220C2

AXAH52,MXAA5#..M,X

NEUTRAL BEIGE,TRIM4#

 1
67620-0R220C1

AXAH52,MXAA5#..M,X

BLACK,TRIM2#

 1
67620-0R220C0

AXAH52,MXAA5#..M

LT.GRAY,TRIM1#

 1
67620-0R230C1

AXAH52,MXAA5#..M

LEATHER PACKAGE,LT.GRAY,TRIM2#

 1
67620-0R230C3

AXAH5#,MXAA5#..G

CAMEL NO.91,TRIM1#

 1
67620-0R230C2

AXAH52,MXAA5#..M

LEATHER PACKAGE,BLACK,TRIM4#

 1
67620-0R230C3

AXAH52,MXAA5#..M

LEATHER PACKAGE,CAMEL NO.91,TRIM1#

 1
67663D - GARNISH, DOOR FRAME, RH
67663-0R040

AXAH5#,MXAA5#

 1
67664C - GARNISH, DOOR FRAME, LH
67664-0R040

AXAH5#,MXAA5#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-42070

AXAH5#,MXAA5#

(J)

 1
68171-0R060

AXAH5#,MXAA5#

 1
68171-0R060

AXAH5#,MXAA5#

(L)

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-0R060

AXAH5#,MXAA5#

 1
68172-42070

AXAH5#,MXAA5#

(J)

 1
68172-0R060

AXAH5#,MXAA5#

(L)

 1
Common parts
90159-C0038
90189-06248
Linked diagrams
7451
