MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)

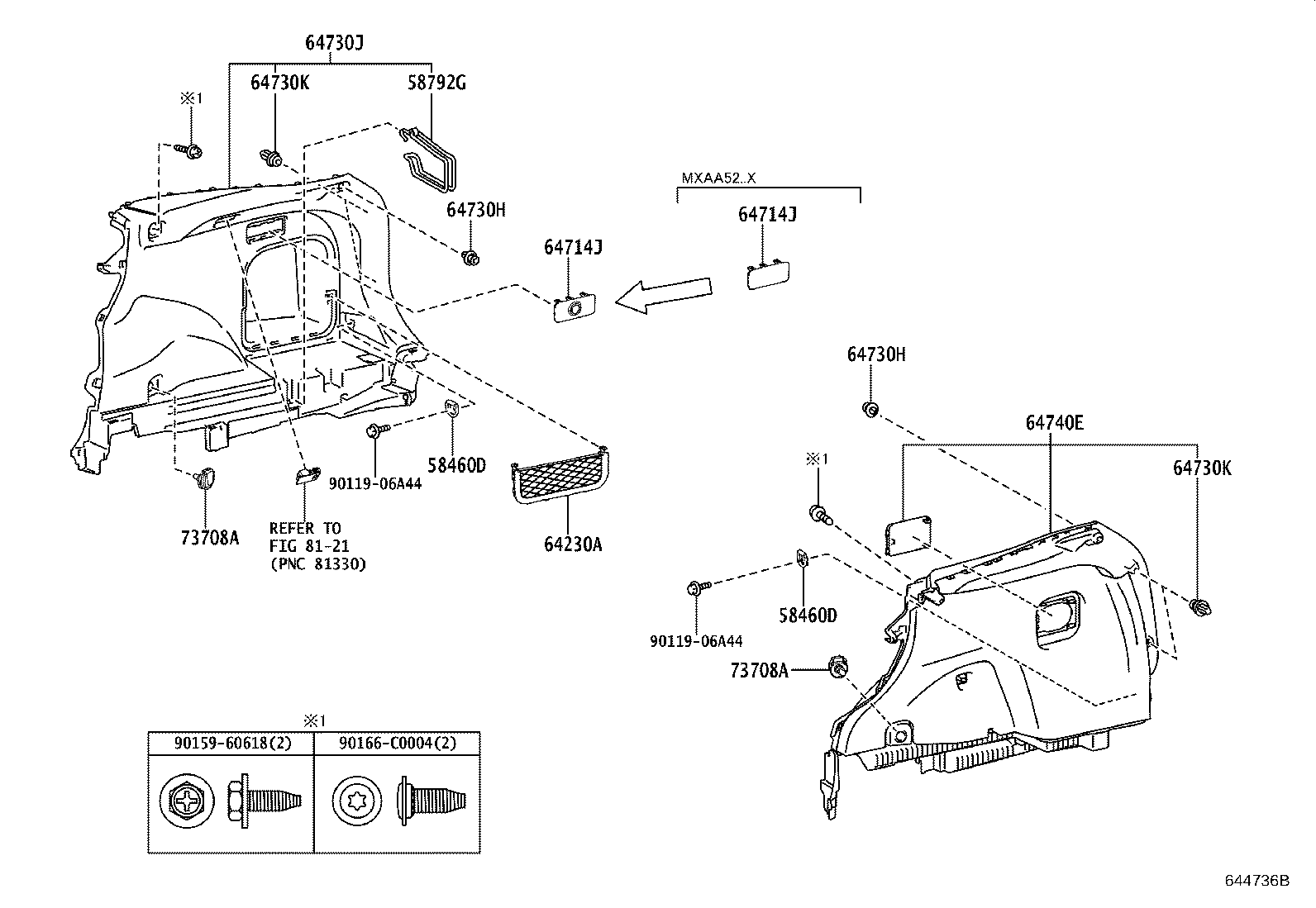

ILLUST NO. 1 OF 2(1911- )MXAA5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AXAH5#,MXAA5# |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AXAH5#,MXAA5# |
2 | ||
| 58792G - SUPPORT, JACK CARRIER | ||||
| 58792-48020 |
AXAH5#,MXAA5# |
1 | ||
| 58792-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 64230A - NET ASSY, ROOM PARTITION | ||||
| 64230-0R030C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64714J - COVER, DECK SIDE TRIM, RH | ||||
| 64714-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64714J - COVER, DECK SIDE TRIM, RH | ||||
| 64714-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09242 |
AXAH5#,MXAA5# |
2 | ||
| 90467-C0071 |
AXAH5#,MXAA5# |
2 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09242 |
AXAH5#,MXAA5# |
2 | ||
| 90467-C0071 |
AXAH5#,MXAA5# |
2 | ||
| 64730J - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-0R251C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-0R250C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-09240 |
AXAH5#,MXAA5# |
4 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-09240 |
AXAH5#,MXAA5# |
4 | ||
| 64740E - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-0R170C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-0R171C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 73708A - BRACKET SET, TETHER ANCHOR | ||||
| 73708-42060C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
2 | ||
| 73708A - BRACKET SET, TETHER ANCHOR | ||||
| 73708-42060C1 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
2 | ||
| Common parts | ||||
| 90119-06A44 | ||||
| 90159-60618 | ||||
| 90166-C0004 | ||||
| Linked diagrams | ||||
| 8121 | ||||

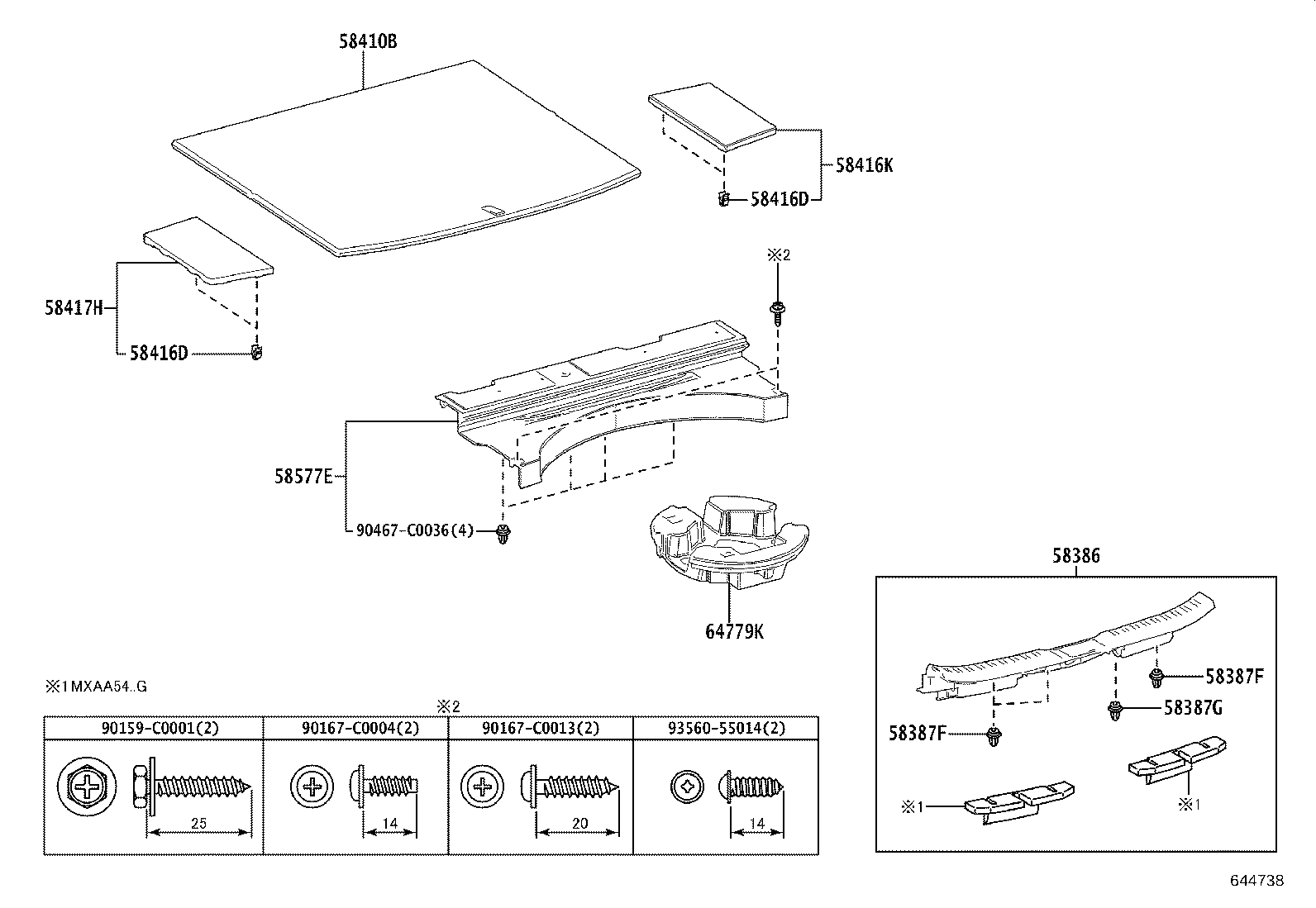

ILLUST NO. 2 OF 2(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58386 - PLATE, REAR FLOOR FINISH | ||||
| 58387-0R090C0 |
MXAA54..M;AXAH5#,MXAA52..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-0R130C0 |
MXAA54..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-09240 |
AXAH5#,MXAA5# |
3 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-09240 |
AXAH5#,MXAA5# |
3 | ||
| 58387G - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-0R100C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90467-10201 |
AXAH5#,MXAA5# |
4 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90467-10201 |
AXAH5#,MXAA5# |
4 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 58417H - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-0R060C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 | ||||
| 58577-0R080C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 64779K - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0R180 |
MXAA5#..G |
1 | ||
| 64779-0R080 |
AXAH5#;MXAA5#..M,X |
1 | ||
| Common parts | ||||
| 90159-C0001 | ||||
| 90167-C0004 | ||||
| 90167-C0013 | ||||
| 90467-C0036 | ||||
| 93560-55014 | ||||
