MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

Click highlighted areas on diagram

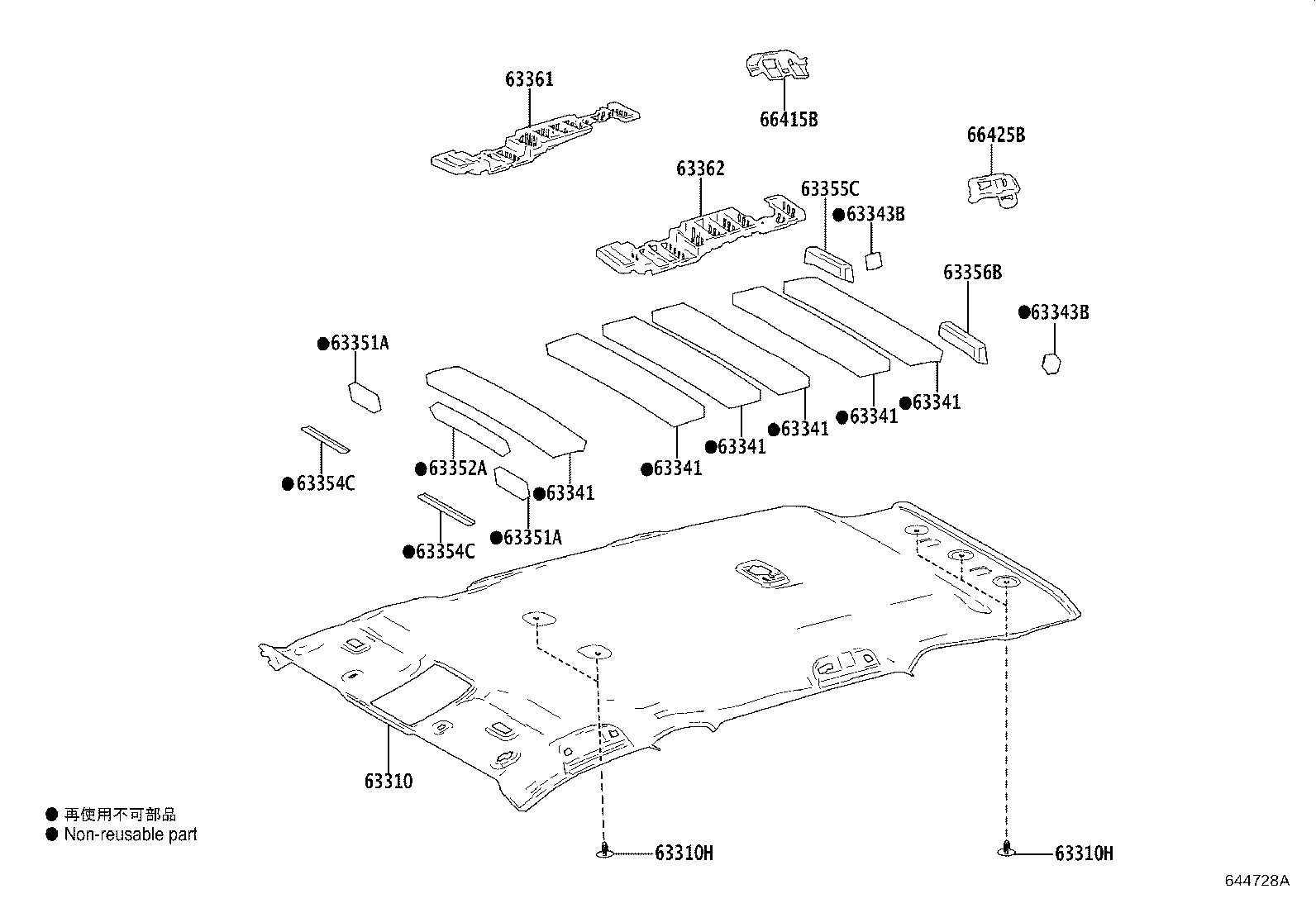

NORMAL ROOF

diagram 63310 63310H 63310H 63341 63341 63341 63341 63341 63341 63343B 63343B 63351A 63351A 63352A 63354C 63354C 63355C 63356B 63361 63362 66415B 66425B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0R190B0

AXAH5#,MXAA5#..M

LT. GRAY,TRIM1#,2#,4#

 1
63310-0R200B0

AXAH5#,MXAA5#..G

LT. GRAY,TRIM1#,2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 3
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63355C - PAD, ROOF HEADLINING, RH
63355-0R050

AXAH5#,MXAA5#..G

 1
63355-0R040

AXAH5#,MXAA5#..M,X

 1
63356B - PAD, ROOF HEADLINING, LH
63356-0R030

AXAH5#,MXAA5#..G

 1
63356-0R020

AXAH5#,MXAA5#..M,X

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-0R080

AXAH5#,MXAA5#..M

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-0R080

AXAH5#,MXAA5#..M

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R080

AXAH5#,MXAA5#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R080

AXAH5#,MXAA5#

 1

(1911- )

Click highlighted areas on diagram

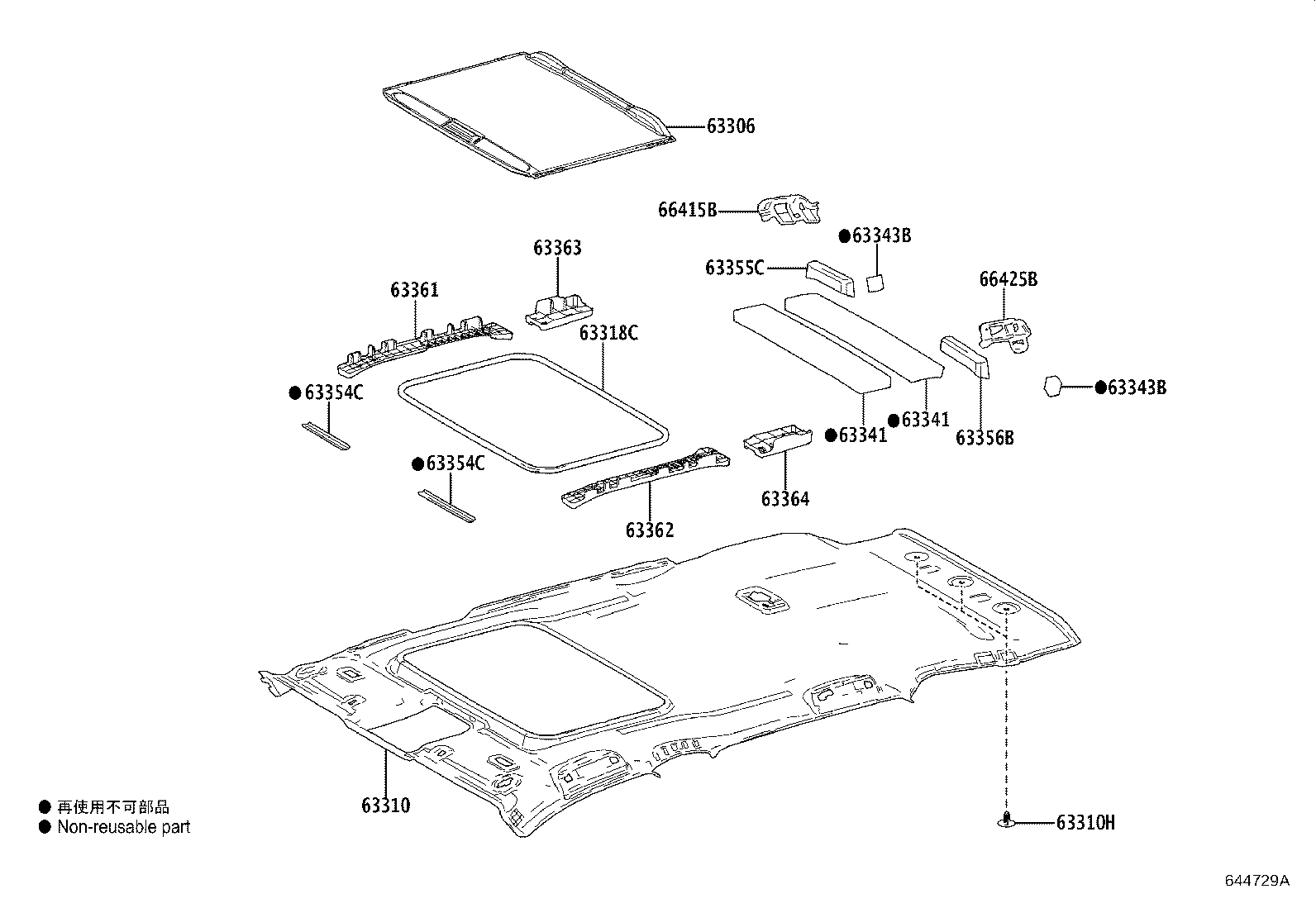

MOON ROOF

diagram 63306 63310 63310H 63318C 63341 63341 63343B 63343B 63354C 63354C 63355C 63356B 63361 63362 63363 63364 66415B 66425B
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0R090B0

AXAH5#,MXAA5#..G

LT. GRAY,TRIM1#,2#,4#

 1
63306-0R080B0

AXAH5#,MXAA5#..M

LT. GRAY,TRIM1#,2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-0R190B0

AXAH5#,MXAA5#..M

LT. GRAY,TRIM1#,2#,4#

 1
63310-0R200B0

AXAH5#,MXAA5#..G

LT. GRAY,TRIM1#,2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 3
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-0R070B0

AXAH5#,MXAA5#..M

L=2251,LT. GRAY,TRIM1#,2#,4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-0R060

AXAH5#,MXAA5#..M

 2
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63355C - PAD, ROOF HEADLINING, RH
63355-0R050

AXAH5#,MXAA5#..G

 1
63355-0R040

AXAH5#,MXAA5#..M,X

 1
63356B - PAD, ROOF HEADLINING, LH
63356-0R030

AXAH5#,MXAA5#..G

 1
63356-0R020

AXAH5#,MXAA5#..M,X

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-0R080

AXAH5#,MXAA5#..M

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-0R080

AXAH5#,MXAA5#..M

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-0R050

AXAH5#,MXAA5#..M

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-0R050

AXAH5#,MXAA5#..M

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R080

AXAH5#,MXAA5#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R080

AXAH5#,MXAA5#

 1

(1911- )

Click highlighted areas on diagram

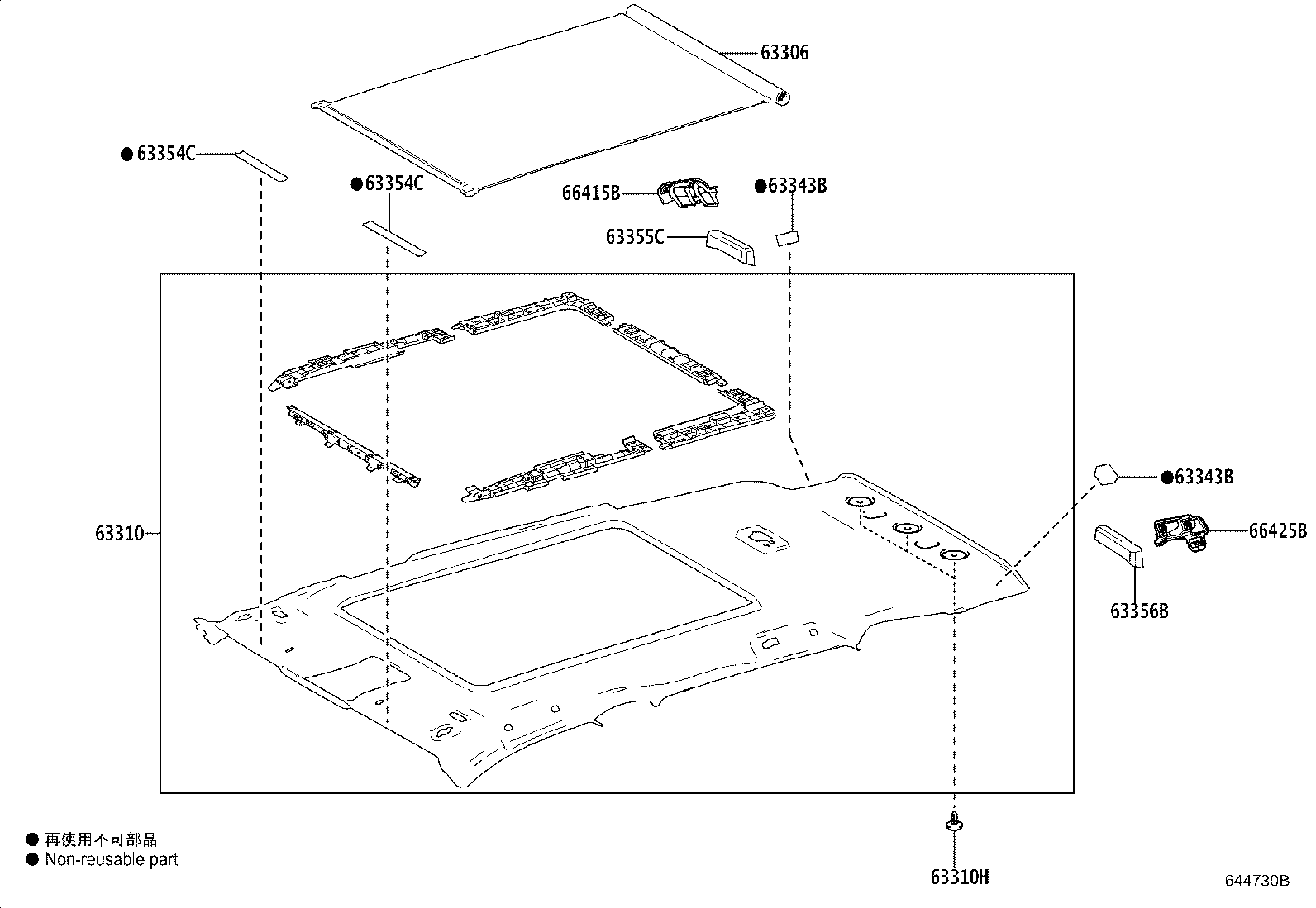

PANORAMA ROOF

diagram 63306 63310 63310H 63343B 63343B 63354C 63354C 63355C 63356B 66415B 66425B
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0R090B0

AXAH5#,MXAA5#..G

LT. GRAY,TRIM1#,2#,4#

 1
63306-0R080B0

AXAH5#,MXAA5#..M

LT. GRAY,TRIM1#,2#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-0R190B0

AXAH5#,MXAA5#..M

LT. GRAY,TRIM1#,2#,4#

 1
63310-0R200B0

AXAH5#,MXAA5#..G

LT. GRAY,TRIM1#,2#,4#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-C0016B1

AXAH5#,MXAA5#..G,M

LT.GRAY,TRIM1#,2#,4#

 3
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63343B - PAD, ROOF SILENCER, REAR
63353-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63354C - PAD, ROOF HEADLINING FRONT SIDE
63354-0R030

AXAH5#,MXAA5#

 2
63355C - PAD, ROOF HEADLINING, RH
63355-0R050

AXAH5#,MXAA5#..G

 1
63355-0R040

AXAH5#,MXAA5#..M,X

 1
63356B - PAD, ROOF HEADLINING, LH
63356-0R030

AXAH5#,MXAA5#..G

 1
63356-0R020

AXAH5#,MXAA5#..M,X

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0R080

AXAH5#,MXAA5#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0R080

AXAH5#,MXAA5#

 1
