MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)
(1911- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AXAH5#,MXAA5# TYPE A |
2 | ||
| 90467-06155 |
AXAH5#,MXAA5# TYPE B |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0R080 |
AXAH5#,MXAA5#..G,X |
1 | ||
| 62170-0R070 |
AXAH5#,MXAA5#..M |
1 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-0R080 |
AXAH5#,MXAA5#..G,X |
1 | ||
| 62170-0R070 |
AXAH5#,MXAA5#..M |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-C0107 |
AXAH5#,MXAA5# |
8 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0R070 |
AXAH5#,MXAA5#..M |
1 | ||
| 62180-0R080 |
AXAH5#,MXAA5#..G,X |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-0R070 |
AXAH5#,MXAA5#..M |
1 | ||
| 62180-0R080 |
AXAH5#,MXAA5#..G,X |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AXAH5#,MXAA5# |
2 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AXAH5#,MXAA5# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-0R120B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-0R120B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-42050 |
AXAH5#,MXAA5# |
4 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-C0046 |
AXAH5#,MXAA5# |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-0R080B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62411H - CLIP | ||||
| 90467-C0035 |
AXAH5#,MXAA5# |
2 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-0R080B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-0R070C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-0R090B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62471G - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-C0035 |
AXAH5#,MXAA5# |
4 | ||
| 90467-10167 |
AXAH5#,MXAA5# |
4 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
AXAH5#,MXAA5# |
8 | ||
| 62471M - CLIP | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
4 | ||
| 62471M - CLIP | ||||
| 90467-C0036 |
AXAH5#,MXAA5# |
4 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-0R110B0 |
AXAH5#,MXAA5#..G,M LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
AXAH5#,MXAA5# |
2 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
AXAH5#,MXAA5# |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62555-0R050C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62556-0R040C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-33040 |
AXAH5#,MXAA5# |
2 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-0R080C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-0R080C0 |
AXAH5#,MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0R090C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-0R090C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0R090C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-0R090C0 |
MXAA5#..G,M BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90105-C0302 | ||||
| 90467-09240 | ||||
| 90467-18017 | ||||

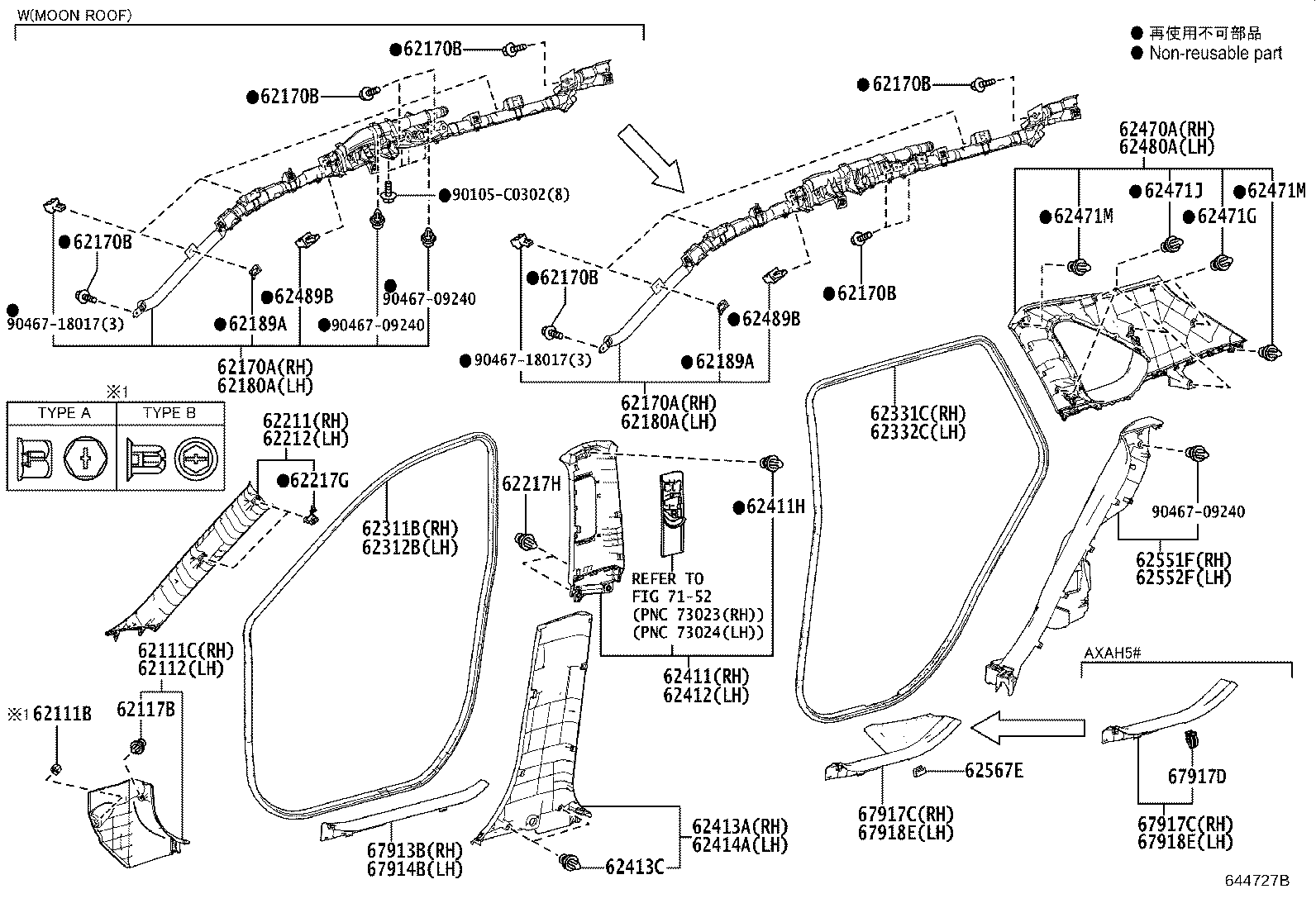

| Linked diagrams | ||||
| 7152 | ||||
