MXAA54L-SNXGBC (2019)

Toyota Rav4 (China)

Production Nov 2019 - Sep 9999
Engine M20DFKS
Transmission HTWC CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )

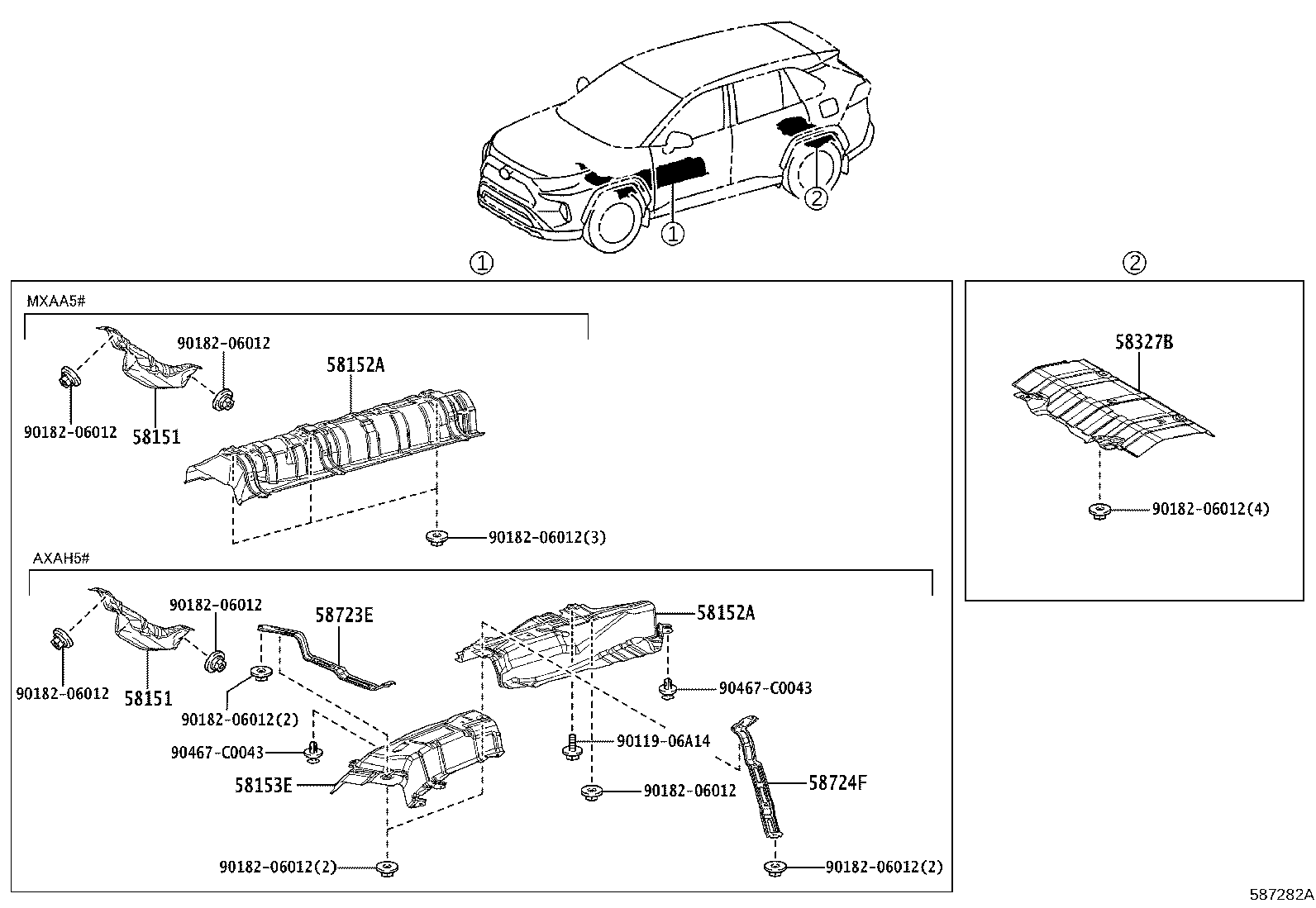

Click highlighted areas on diagram

diagram 58151 58151 58152A 58152A 58153E 58327B 58723E 58724F 9011906A14 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 90467C0043 90467C0043
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0R030

AXAH5#,MXAA5#

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-0R030

AXAH5#,MXAA5#

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58720-0R030

MXAA5#

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58720-0R030

MXAA5#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0R040

AXAH5#,MXAA5#

 1
Common parts
90119-06A14
90182-06012
90467-C0043
