MXAA54L-SNXGBC (2019)
Toyota Rav4 (China)
Production
Nov 2019
-
Sep 9999
Engine
M20DFKS
Transmission
HTWC CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1911- )MXAA5#

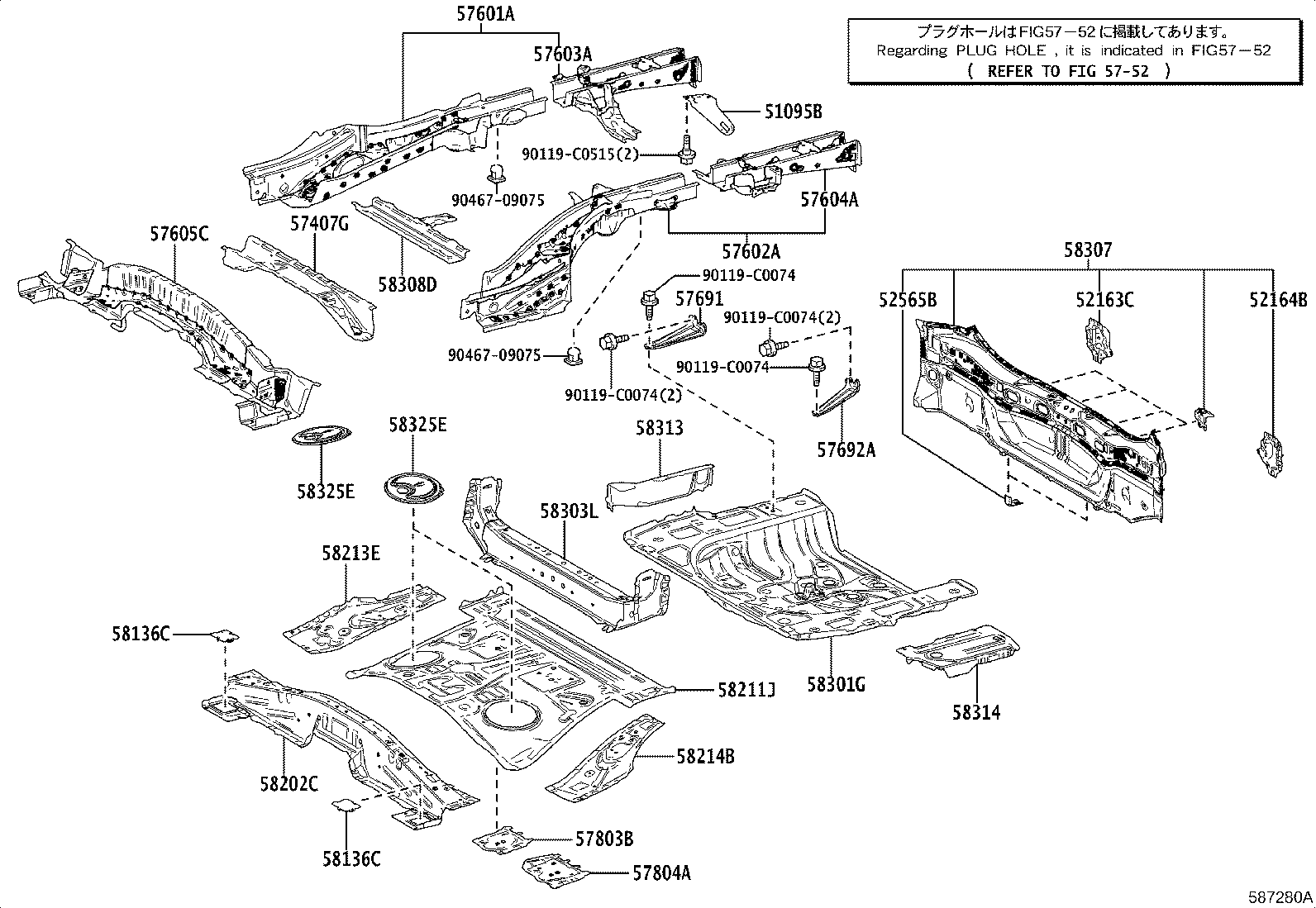

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 52163C - PLATE, REAR BUMPER REINFORCEMENT, RH | ||||
| 52163-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 52164B - PLATE, REAR BUMPER REINFORCEMENT, LH | ||||
| 52164-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 52565B - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-0R050 |
AXAH5#,MXAA5# |
2 | ||
| 57407G - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-0R021 |
AXAH5#,MXAA5# |
1 | ||
| 57407-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0R070 |
AXAH5#,MXAA5# |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-0R060 |
MXAA5# |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-0R020 |
AXAH5#,MXAA5# |
1 | ||
| 57803B - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH | ||||
| 57803-0R050 |
AXAH5#,MXAA5# |
1 | ||
| 57804A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH | ||||
| 57804-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 58136C - COVER, REAR FLOOR HOLE | ||||
| 58136-0R030 |
AXAH5#,MXAA5# |
2 | ||
| 58136C - COVER, REAR FLOOR HOLE | ||||
| 58136-0R030 |
AXAH5#,MXAA5# |
2 | ||
| 58202C - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-0R070 |
MXAA5# |
1 | ||
| 58211J - PAN, CENTER FLOOR | ||||
| 58211-0R060 |
MXAA5# |
1 | ||
| 58213E - PANEL, SEAT FLOOR SIDE, RH | ||||
| 58213-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 58214B - PANEL, SEAT FLOOR SIDE, LH | ||||
| 58214-0R040 |
MXAA5# |
1 | ||
| 58301G - PAN SUB-ASSY, REAR FLOOR | ||||
| 58301-0R900 |
MXAA5# |
1 | ||
| 58303L - PANEL SUB-ASSY, REAR FLOOR PARTITION | ||||
| 58303-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 58303-0R041 |
AXAH5#,MXAA5# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0R090 |
AXAH5#,MXAA5# |
1 | ||
| 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-0R030 |
AXAH5#,MXAA5# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-0R060 |
MXAA5# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-0R040 |
AXAH5#,MXAA5# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0R030 |
MXAA5# |
2 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0R030 |
MXAA5# |
2 | ||
| Common parts | ||||
| 90119-C0074 | ||||
| 90119-C0515 | ||||
| 90467-09075 | ||||
| Linked diagrams | ||||
| 5752 | ||||
